UPS LINE INTERATIVE LEGEND 1600

6440.67 INR/Unit

Get a Price/Quote

Product Details:

Product Type UPS LINE INTERATIVE LEGEND 1600
Power Rating 1600VA
Standard standard physical size
Frequency (MHz) 50 Hertz (HZ)
Protection Overload Protection The UPS detects when the connected devices draw more power than its rated capacity (1600 VA / ~960 W) and prevents damage by switching to protection mode or shutting down output. Battery Deep Discharge & Overcharge Protection The internal battery system is protected against too-deep discharge during use and excessive charging when mains power returns. This helps extend battery life and prevents battery damage. Automatic Voltage Regulation (AVR) The built-in boost & buck AVR corrects under- and over-voltage without switching to battery mode, safeguarding connected electronics from harmful voltage fluctuations. Wide Input Voltage Range Accepts a broad range of mains voltage (typically ~140 V to ~300 V AC), reducing unnecessary battery usage and protecting devices during brownouts or surges. Auto Restart on Mains Recovery After a power cut, when mains returns, the UPS can automatically restart and restore backup mode without manual intervention. Cold-Start Capability Allows the UPS to start and supply power from batteries even if mains power isn t present useful for temporary or planned outag
Usage BACKUP
Size So the typical size (L W H) of the UPS unit is:
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

UPS LINE INTERATIVE LEGEND 1600 Price And Quantity

Price 6440.67 INR/Unit
Minimum Order Quantity 1 Unit

UPS LINE INTERATIVE LEGEND 1600 Product Specifications

Size So the typical size (L W H) of the UPS unit is:
Cable Type Standard AC mains power cable (IEC or Indian 3-pin)
Material STEEL
Standard standard physical size
Color BLACK
Phase Single Phase
Frequency 50 Hertz (HZ)
Conductor AC Mains Input Conductor Type: 3 core flexible cable Conductor Material: Copper (Copper covered conductor) standard for safety and good conductivity Configuration: Live (L) Neutral (N) Earth (E)
Usage BACKUP
Rated Voltage 230 V AC Volt (V)
Product Type UPS LINE INTERATIVE LEGEND 1600
Rated Current 1600 VA / 960 W Watt (w)
Frequency (MHz) 50 Hertz (HZ)
Features Topology: Line Interactive UPS with a microprocessor for reliable operation.
Dimension (L*W*H) (315 130 183 mm Millimeter (mm)
Warranty 2 YEARS
Usage & Applications POWER SUPPLY
Power Rating 1600VA
Protection Overload Protection The UPS detects when the connected devices draw more power than its rated capacity (1600 VA / ~960 W) and prevents damage by switching to protection mode or shutting down output. Battery Deep Discharge & Overcharge Protection The internal battery system is protected against too-deep discharge during use and excessive charging when mains power returns. This helps extend battery life and prevents battery damage. Automatic Voltage Regulation (AVR) The built-in boost & buck AVR corrects under- and over-voltage without switching to battery mode, safeguarding connected electronics from harmful voltage fluctuations. Wide Input Voltage Range Accepts a broad range of mains voltage (typically ~140 V to ~300 V AC), reducing unnecessary battery usage and protecting devices during brownouts or surges. Auto Restart on Mains Recovery After a power cut, when mains returns, the UPS can automatically restart and restore backup mode without manual intervention. Cold-Start Capability Allows the UPS to start and supply power from batteries even if mains power isn t present useful for temporary or planned outag
Weight 10.25 Kilograms (kg)
Operating Temperature 0 C to 40 C Celsius (oC)
Display Type Most Legend 1600 line-interactive UPS units use a simple LED status display (LED indicators on the front panel) that shows basic operating states like mains on, battery mode, fault/overload etc. not a full LCD screen.

UPS LINE INTERATIVE LEGEND 1600 Trade Information

Delivery Time 7 Days

Product Description

The Microtek Legend 1600 Line Interactive UPS is a 1600VA / 960W power backup solution designed to provide stable and reliable electricity to computers, networking equipment, CCTV systems, and other small office or home electronics during mains power fluctuations and outages. It uses lineinteractive topology with automatic voltage regulation (AVR) to protect connected devices against undervoltage (brownouts) and overvoltage conditions. The builtin microprocessor control ensures optimum reliability, with features such as overload protection, battery deepdischarge/overcharge protection, and automatic restart when mains power returns.

Specification Table Microtek Legend 1600 UPS

Category Specification

Model Name UPS Legend 1600

Capacity 1600VA / 960W

Input Voltage Range 140V300V AC

Input Frequency 50Hz 10%

Output Voltage (Nominal) 230V AC

Output Frequency (Batt. Mode) 50Hz 1Hz

Output Waveform (Batt. Mode) Modified sine wave

Transfer Time Typical 48ms

Battery Type Sealed Maintenance Free (SMF)

Battery Configuration 2 12V /9Ah

Battery Charging Time ~6hrs to 90%

Operating Temp Range 0C40C

Relative Humidity 090% noncondensing

Noise Level <45dB

Phase Single phase

Dimensions (LWH) 315130183mm

Weight (Net) ~10.25kg

Display / Indicators LED status indicators

Protection Features Overload, deep discharge/overcharge, AVR boost & buck

Warranty 2yrs on UPS electronics; battery 1yr (varies by seller)

Category	Specification
Model Name	UPS Legend 1600
Capacity	1600VA / 960W
Input Voltage Range	140V300V AC
Input Frequency	50Hz 10%
Output Voltage (Nominal)	230V AC
Output Frequency (Batt. Mode)	50Hz 1Hz
Output Waveform (Batt. Mode)	Modified sine wave
Transfer Time	Typical 48ms
Battery Type	Sealed Maintenance Free (SMF)
Battery Configuration	2 12V /9Ah
Battery Charging Time	~6hrs to 90%
Operating Temp Range	0C40C
Relative Humidity	090% noncondensing
Noise Level	<45dB
Phase	Single phase
Dimensions (LWH)	315130183mm
Weight (Net)	~10.25kg
Display / Indicators	LED status indicators
Protection Features	Overload, deep discharge/overcharge, AVR boost & buck
Warranty	2yrs on UPS electronics; battery 1yr (varies by seller)

Notes

Waveform: The UPS delivers a modified sine wave in battery mode, which is normal for most lineinteractive units at this price point.
Phase: Suitable for singlephase household/office supply.
Protection & Features: Includes AVR (automatic voltage regulation), overload protection, autorestart after mains recovery, offmode charging, and cold start functionality.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Line Interactive UPS' category

UPS LEGEND 650VA Price : 1991.0 INR/Unit Minimum Order Quantity : 1 Size : Typical Retail Box Size 30 cm 15 cm 15 cm Frequency : 50 Hertz (HZ) Color : BLACK Phase : Single PhasE Product Type : UPS LEGEND 650VA Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 230V AC Volt (V) Warranty : 2 YEARS Cable Type : The UPS comes with a built in input power cable that ends in a standard Indian 3 pin plug (6 A) for mains connection. You plug this directly into your wall socket. Material : durable fireretardant ABS plastic Standard : Dimensions (L W H): ~28.1 10.0 14.3 cm (approx. footprint of the unit) Rated Current : 2.8 A Ampere (amp) Usage : Desktop Computers & Monitors Protection : Battery Discharge & Overcharge Protection Weight : 4.16 Kilograms (kg) Operating Temperature : 0 C to 40 C Celsius (oC) Display Type : Mains ON (LED) Battery Mode (LED) Fault / Low Battery (LED) Power Rating : 650 VA Features : Automatic Voltage Regulation (Boost & Buck) Dimension (L*W*H) : ~28.1 cm (L) 10 cm (W) 14.3 cm (H) Centimeter (cm) Usage & Applications : POWER SUPPLY Conductor : Material: Copper conductor (most small UPS units use copper for good conductivity and low resistance)

Send Inquiry

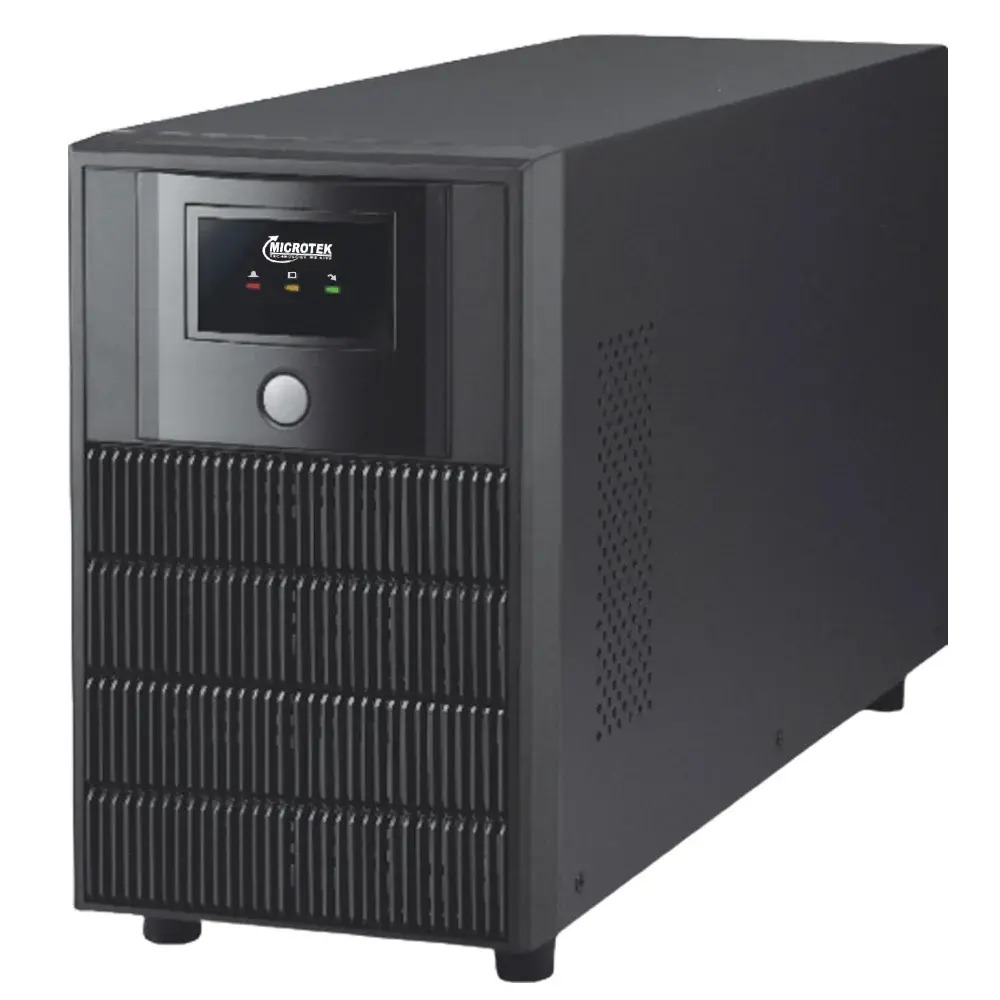

DESIREPRO+LINE INTERACTIVE UPS 2000VA Price : 9800.0 INR/Unit Minimum Order Quantity : 1 Size : UPS Unit Dimensions Length (L): 395 mm Width (W): 145 mm Height (H): 220 mm Weight: ~14.25 kg Package / Box Dimensions Length (L): 395 mm Width (W): 145 mm Height (H): 220 mm Approx. Package Weight: ~15 kg (includes protective packing) Frequency : 50 Hertz (HZ) Color : BLACK Phase : 1 PHASE Product Type : DESIREPRO+LINE INTERACTIVE UPS 2000VA Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 220 230 V AC Volt (V) Warranty : 2 YEARS Cable Type : UPS Cable Types 1. AC Input Cable The UPS has an India 3 pin 6 A mains input socket on the back. You connect it to a wall power socket using a standard 3 pin Indian mains power cord with an Indian Type D plug (6 A). 2. Output Power Sockets / Cables The UPS provides output through Indian standard output sockets (typically 6 A or 10 A rated). You plug your devices using their standard 3 pin Indian plug power cords into the UPS output. 3. Battery Connection Cables This model uses external batteries (not built in). You connect them with thick battery cables (24 V DC) between the UPS battery terminals and the external SMF/lead acid battery set. Battery cables are not a typical mains cable but heavy gauge DC wires with ring terminals (size based on battery Ah and distance). 4. Communication Cable (Optional) This UPS does not usually include a data/communication port or cable (like USB or RS 232) for PC monitoring that feature is common only in UPS models with smart communication. There s no manufacturer documentation showing such connectors on this line interactive model. Material : STEEL Standard : Standard Features of DESIRE PRO+ 2000VA UPS Rated Current : 1200 W (Watts) Watt (w) Usage : BACKUP Protection : Protection Type Description / Function Overload Protection Prevents damage to UPS and connected devices if the load exceeds the rated capacity (2000 VA / 1200 W). UPS will sound an alarm and may shut down to protect itself. Short Circuit Protection Detects any short circuit in the connected load and immediately disconnects the output to avoid damage. Battery Overcharge Protection Prevents the connected battery from overcharging, extending battery life and preventing leakage or damage. Battery Deep Discharge Protection Automatically disconnects the battery when voltage drops below safe limits to prevent deep discharge, which can permanently damage the battery. Surge / Spike Protection Protects connected devices from voltage spikes and transient surges from the mains supply. Undervoltage / Overvoltage Protection Automatic Voltage Regulation (AVR) with Boost & Buck stabilizes low or high mains voltage without switching to battery unnecessarily. Fuse Protection Internal fuses provide additional safety against unexpected electrical faults. Alarm Indicators Audio/visual alarms notify the user of battery low, overload, fault, or mains failure conditions. Weight : 14.25 kg Kilograms (kg) Operating Temperature : 0 40 C Celsius (oC) Display Type : Shows UPS operating status using LED indicator lights on the front panel. Power Rating : 2000 VA (Volt Ampere) Features : Line Interactive Technology Provides stable power by regulating input voltage and switching to battery only when needed helps extend battery life and improves reliability. Dimension (L*W*H) : (L W H): 14.5 cm 39.5 cm 22 cm Centimeter (cm) Usage & Applications : POWER SUPPLY Conductor : Purpose: Supplies AC mains power to the UPS
