Luminous

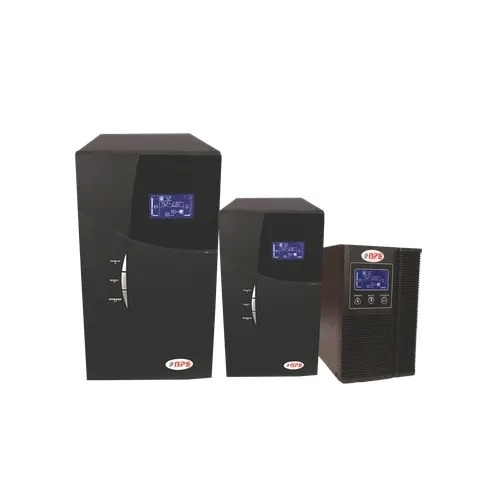

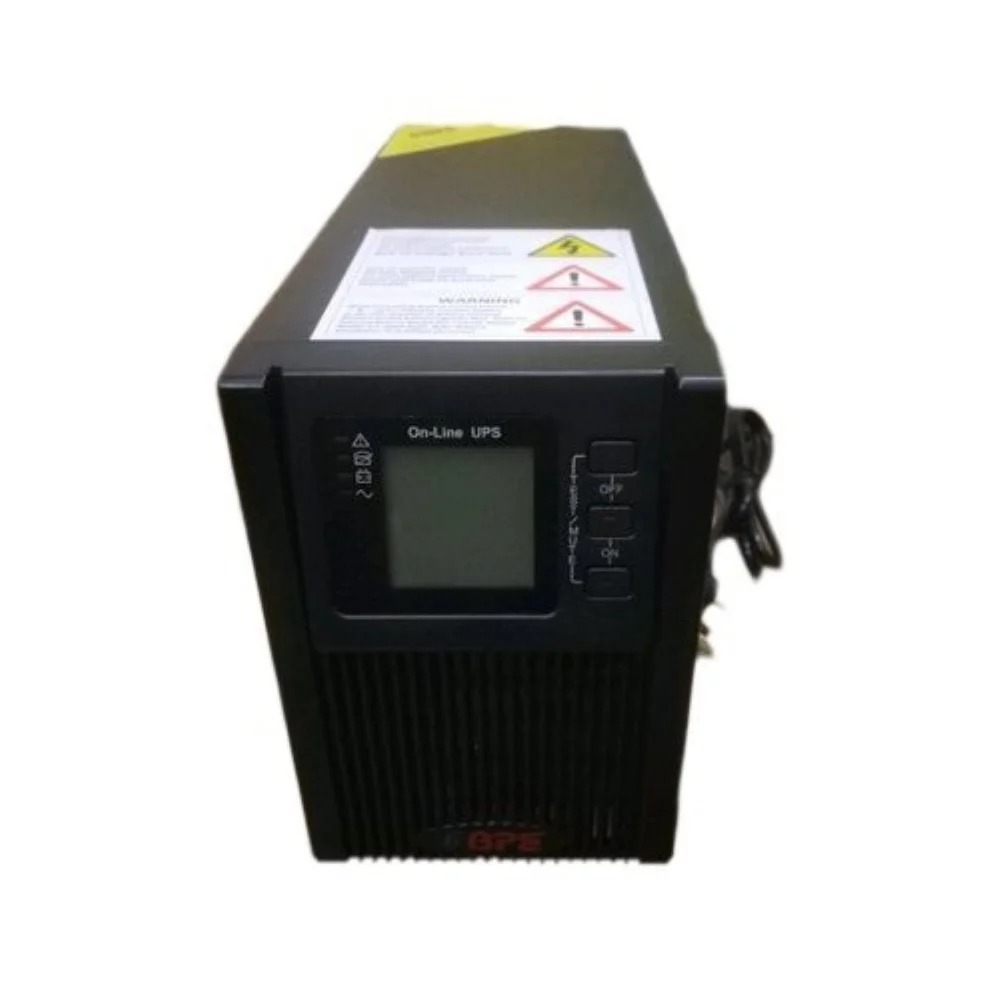

BPE MS1103L6 3KVA ONLINE UPS EXTERNAL BATTERY

19000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 2.4 kW (2400 Watts)
Product Type BPE MS1103L6 3KVA ONLINE UPS EXTERNAL BATTERY
Standard IEC 62040-1
Frequency (MHz) 50 / 60 Hz Hertz (HZ)
Protection Protects UPS and connected load from high input voltage.
Usage BACKUP
Size Overall Size (W D H): 192 469 399 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MS1103L6 3KVA ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 19000.0 INR/Unit

BPE MS1103L6 3KVA ONLINE UPS EXTERNAL BATTERY Product Specifications

Usage & Applications POWER SUPPLY
Size Overall Size (W D H): 192 469 399 mm
Dimension (L*W*H) Dimension Type Size Width 192 mm Depth 469 mm Height 399 mm Net Weight 26.7 kg Millimeter (mm)
Standard IEC 62040-1
Rated Current 3000VA Volt (v)
Phase 1 PHASE
Warranty 1 YEAR
Frequency (MHz) 50 / 60 Hz Hertz (HZ)
Frequency 50 / 60 Hz Hertz (HZ)
Cable Type 3 Core Copper Flexible Cable, 4 mm 6 mm For single-phase 230 V input; rated for 16 A 20 A.
Product Type BPE MS1103L6 3KVA ONLINE UPS EXTERNAL BATTERY
Color BLACK
Conductor 3 Core Copper Flexible Cable, 4 mm 6 mm For single-phase 230 V input; rated for 16 A 20 A.
Rated Voltage 220 / 230 / 240 V AC Volt (V)
Operating Temperature 0 C 40 C Celsius (oC)
Power Rating 2.4 kW (2400 Watts)
Material STEEL
Features True Online Double Conversion Provides continuous and clean power without interruption. Zero Transfer Time Instant switching from mains to battery (0 ms). Pure Sine Wave Output Safe for sensitive equipment like servers and networking devices. Wide Input Voltage Range Operates within 110 300V AC, reducing battery usage during voltage fluctuations. High Efficiency Mode Up to 94% efficiency in online mode and 99% in ECO mode. LCD Display Shows input/output voltage, battery status, load percentage, and fault information. High Input Power Factor 0.99, reducing power losses and improving efficiency. Static Bypass Function Automatically transfers load to bypass during overload or fault. Advanced Battery Management Optimizes charging and protects batteries from overcharge or deep discharge. Cold Start Function UPS can start directly from battery without AC power. IGBT-Based Inverter & Rectifier Provides reliable performance and better power control. Generator Compatible Works with generator power supply. EMI/RFI Filter Protects connected equipment from electrical noise and interference. Auto Restart / Auto Charge Automatically restarts and charges batteries when power returns.
Usage BACKUP
Weight 26.7 Kilograms (kg)
Display Type LCD Display Panel
Protection Protects UPS and connected load from high input voltage.

BPE MS1103L6 3KVA ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

Description

The BPE MF1103L6 3kVA Online UPS is a high-performance true double-conversion UPS system designed to provide uninterrupted and clean power to sensitive equipment such as servers, networking devices, medical equipment, and office IT systems. It uses external batteries (typically 6 12V) to deliver extended backup time depending on battery capacity.

This UPS continuously converts incoming AC power to DC and then back to AC, ensuring stable voltage, frequency regulation, and zero transfer time during power failures or fluctuations.

Here is the Specification Table for the BPE MF1103L6 3kVA Online UPS (External Battery Model):

Specification	Details
Model	MF1103L6
UPS Type	True Online Double Conversion
Capacity	3 kVA / 2.4 kW
Input Phase	Single Phase
Output Phase	Single Phase
Nominal Input Voltage	220 / 230 / 240 V AC
Input Voltage Range	110 300 V AC
Input Frequency	50 / 60 Hz 10%
Input Power Factor	0.99
Output Voltage	220 / 230 / 240 V AC 1%
Output Frequency	50 / 60 Hz 0.1 Hz (Battery Mode)
Output Waveform	Pure Sine Wave
Output Power Factor	0.8 (0.9 optional)
Transfer Time	0 ms (Online UPS)
Efficiency	Up to 94% (Online Mode), 99% (ECO Mode)
Harmonic Distortion	13%
Crest Factor	3:1
Battery Type	External SMF / Tubular Batteries
Battery Voltage	72 V DC
Battery Configuration	6 12 V Batteries
Battery Capacity Range	7 Ah 100 Ah
Charging Current	Up to 66.5 A
Recharge Time	45 Hours (to 90%)
Display	LCD Display Panel
Communication Ports	RS-232, Smart Slot / SNMP
Noise Level	< 50 dB
Dimensions (WDH)	192 469 399 mm
Weight	Approx. 26.7 kg
Operating Temperature	0C 40C

WARRAANTY :- `YEAR
Sources: Manufacturer technical specifications and product listings.

Key Point: This UPS works with 6 external 12V batteries (72V battery bank) and provides zero transfer time, making it suitable for servers, CCTV, and networking equipment.
