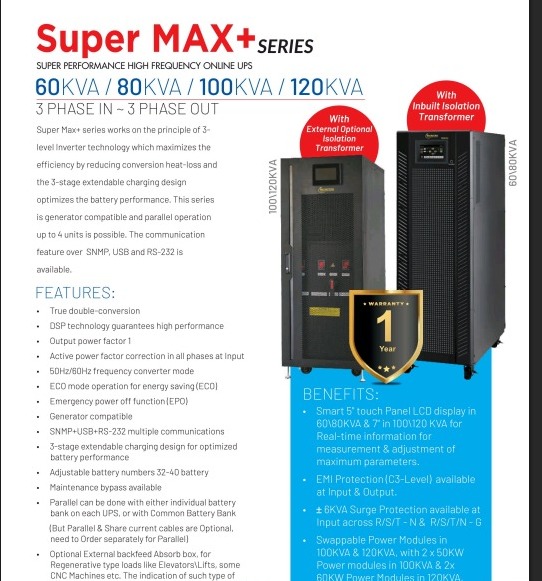

MICROTEK 80 KVA ONLINE UPS 3 PHASE IN 3 PHASE OUT with isolation transformer

Product Description

Product Overview

Microtek Make 80KVA Supermax+ Online UPS With Isolation Transformer

This is an industrial-grade online UPS system designed for demanding power environments where continuity, clean supply and protection from electrical disturbances are critical (like data centers, manufacturing plants, hospitals, large offices, telecom sites, etc.).

Key Description & Features

True Online Double-Conversion UPS

• Converts incoming AC power to DC and back to AC continuously ensuring no transfer interruptions during mains failure.

3 Phase Input 3 Phase Output

• Accepts 3-phase mains power and supplies 3-phase output at 400415 V for industrial and large load applications.

Isolation Transformer Included

• Built-in or supplied isolation transformer provides electrical isolation between input and output, reducing noise, spikes and protecting sensitive equipment.

Performance Specs

• Capacity: 80 kVA (72 kW actual power).

• Efficiency: Up to 94% at full load.

• THD: Output voltage distortion <3% (linear loads).

• Power Factor: Designed around 0.8 output power factor.

• Transfer Time: 0 ms (continuous online mode).

Battery Support

• External battery bank required (typically SMF/VrLa or flooded lead-acid).

• Supports DC bus around 384480 VDC and recommended 100200 Ah batteries (quantities depend on runtime).

Control & Monitoring

• LCD display for status.

• Communication ports: RS-232, USB (SNMP optional).

• Audible alarms for faults and battery status.

Protection & Reliability

• Built-in static bypass allows load to be supplied directly in certain fault/maintenance conditions.

• Input protection (fuse/filters) and robust metal enclosure suitable for industrial environments.

• Supports paralleling up to multiple UPS units for redundancy or higher power.

Physical & Environmental

• Weight: 350475 kg depending on configuration.

• Dimensions: 72 79 106 cm (standard rack/tower).

• Designed for typical indoor industrial temperatures and humidity conditions.

Typical Use Cases

Data centers and server rooms
CNC, PLC and industrial automation systems
Telecom and networking hubs
Critical IT infrastructure
Medical equipment requiring clean AC power

These require clean, uninterrupted, and phase-balanced power exactly what this UPS is built for.

Why This Model Is Good

True online double conversion means zero transfer interruption.
High efficiency lowers energy loss and heat output.
Isolation transformer adds an extra layer of safety and noise filtering.
Modular and expandable via paralleling.
