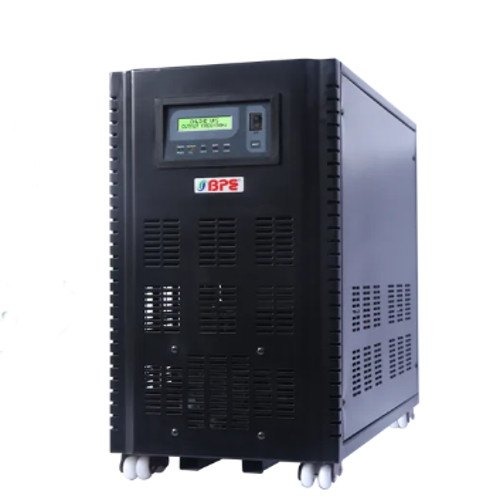

BPE (PBill05L10) 5KVA ONLINE UPS INBUILT Isolation Transfarmer

40500.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 5 kVA
Product Type BPE (PBill05L10) 5KVA ONLINE UPS INBUILT Isolation Transfarmer
Standard Specification Value (Typical / Standard) Height ~844 mm Width ~260 mm Depth ~692 mm Net Weight ~66 kg 72.5 kg Form Factor Floor standing tower UPS Battery Type External SMF/VRLA (usually separate) Cooling Forced air / Internal fans Mounting Floor / skid (not wall mount)
Frequency (MHz) 50 Hz Hertz (HZ)
Protection Overload, Short Circuit, High/Low Voltage, Battery Low, UPS Failure
Usage backup
Size 260 692 844 (W D H)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (PBill05L10) 5KVA ONLINE UPS INBUILT Isolation Transfarmer Price And Quantity

Price 40500.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (PBill05L10) 5KVA ONLINE UPS INBUILT Isolation Transfarmer Product Specifications

Usage & Applications power supply
Protection Overload, Short Circuit, High/Low Voltage, Battery Low, UPS Failure
Color black
Display Type LCD: Voltage, Frequency, Load & Battery % / LED indicators & alarms
Product Type BPE (PBill05L10) 5KVA ONLINE UPS INBUILT Isolation Transfarmer
Dimension (L*W*H) 260 692 844 (W D H) Millimeter (mm)
Rated Current 21.7 A Ampere (amp)
Frequency (MHz) 50 Hz Hertz (HZ)
Phase 1 phase
Usage backup
Standard Specification Value (Typical / Standard) Height ~844 mm Width ~260 mm Depth ~692 mm Net Weight ~66 kg 72.5 kg Form Factor Floor standing tower UPS Battery Type External SMF/VRLA (usually separate) Cooling Forced air / Internal fans Mounting Floor / skid (not wall mount)
Rated Voltage 160 V 280 V AC Volt (V)
Frequency 50 Hz Hertz (HZ)
Cable Type Cable Size (sq.mm) Max Continuous Load Typical Use 4 sq.mm copper ~25 30 A Small UPS output branch 6 sq.mm copper ~32 40 A Recommended for UPS output 10 sq.mm copper ~50 A+ UPS input feed from panel 16 sq.mm copper ~70 A+ Heavy runs / longer distance
Power Rating 5 kVA
Weight 72.5 kg Kilograms (kg)
Size 260 692 844 (W D H)
Material steel
Warranty 1 year
Features 1. True Online Double Conversion Architecture The UPS constantly converts incoming AC to DC and back to AC, eliminating transfer time during power failures your connected systems never see a break in supply
Operating Temperature 0 C to 40 C Celsius (oC)

BPE (PBill05L10) 5KVA ONLINE UPS INBUILT Isolation Transfarmer Trade Information

Delivery Time 6 Days

Product Description

BPE 5KVA 1:1 Phase Online UPS with Isolation Transformer Description & Key Features

Heres a detailed description of a typical 5KVA Online UPS with inbuilt isolation transformer like the BPE PB Series (e.g., PB1105L10 / PB1105L16) youre asking about:

Specification Table 5KVA Online UPS (with Inbuilt Isolation Transformer)

Specification	Details
Model Example	BPE PB1105L10 (5KVA, 1:1 Phase)
UPS Type	Online Double Conversion with Inbuilt Isolation Transformer
Rated Power	5kVA ( 4kW @ PF 0.8)
Input Voltage Range	160V 280V AC (Single Phase, L+N+PE)
Input Frequency	50Hz10%
Output Voltage	220V / 230V / 240V1%
Output Frequency	50Hz0.1% (on battery)
Output Waveform	Pure Sine Wave
Total Harmonic Distortion (THDv)	1% (linear load)
Power Factor (Output)	0.8 (standard), 0.9 (optional)
Efficiency	~93%
Overload Capability	110125% for 10min; 125150% for 60s; >150% for 1s
Isolation	Inbuilt Isolation Transformer (for galvanic isolation & noise reduction)
Battery Type	External SMF / VRLA Batteries (DC bus ~120V typical)
Charging Current	1A 10A (standard)
Charging Time	~45hrs to 95% charge
Display & Indicators	LCD: Voltage, Frequency, Load & Battery % / LED indicators & alarms
Protection Features	Overload, ShortCircuit, High/Low Voltage, Battery Low, UPS Failure
Cold Start	Yes (starts on battery without mains)
Waveform Distortion (Output)	<3% THD (typical)
Operating Temperature	~0C to ~40C (varies by model)
Weight & Dimensions	Varies by variant & manufacturer
Typical Applications	Servers, Networking, CCTV, Lab/Industrial equipment, POS

warranty :- 1 YEAR
Notes

True Online Double Conversion means zero transfer time on mains failure the inverter always powers the load.
Inbuilt Isolation Transformer provides galvanic isolation between incoming mains and the output, reducing noise, spikes & groundloop issues.
Battery configuration (voltage & AH) determines actual backup time (not part of standard UPS unit itself).

If you want, I can also prepare a comparison table of multiple specific 5kVA UPS
