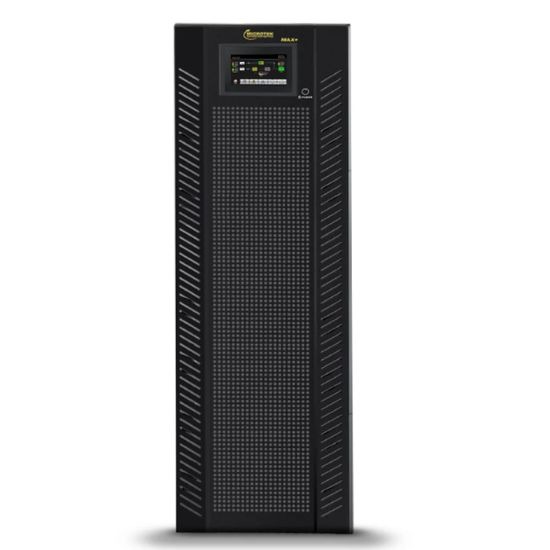

SUPERMAX+60KVA,ONLINE UPS WITH ISOLATION TRANSFORMER

Name: SUPERMAX+60KVA,ONLINE UPS WITH ISOLATION TRANSFORMER
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 522539.0 INR
Availability: InStock

522539.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 60 kVA
Product Type ONLINE UPS
Standard IP20 (Standard Indoor)
Frequency (MHz) 50 Hz Hertz (HZ)
Protection Input Protection/ Output Protection/ Battery Protection/Internal / System Protection/ Thermal Protection
Usage BACKUP
Size Height: 28.2 cm Width: 13.2 cm Depth: 25.9 cm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

SUPERMAX+60KVA,ONLINE UPS WITH ISOLATION TRANSFORMER Price And Quantity

Price 522539.0 INR/Unit
Minimum Order Quantity 1 Unit

SUPERMAX+60KVA,ONLINE UPS WITH ISOLATION TRANSFORMER Product Specifications

Operating Temperature 0 C to 40 C Celsius (oC)
Usage & Applications POWER SUPPLY
Dimension (L*W*H) 600 mm 850 mm 1500 mm Millimeter (mm)
Standard IP20 (Standard Indoor)
Rated Voltage 400 V / 415 V Volt (V)
Warranty 1 YEAR
Power Rating 60 kVA
Frequency 50 HZ Hertz (HZ)
Cable Type Input Power Cable (Mains to UPS) Output Power Cables (UPS to Devices)
Usage BACKUP
Conductor standard electrical wires/conductors
Size Height: 28.2 cm Width: 13.2 cm Depth: 25.9 cm
Protection Input Protection/ Output Protection/ Battery Protection/Internal / System Protection/ Thermal Protection
Features Power & Protection Battery & Backup Indicators & Alerts Smart & Safety Features Outlets & Connectivity
Weight 74 Kilograms (kg)
Material STEEL
Rated Current 83 amperes Ampere (amp)
Display Type Liquid Crystal Display panel
Phase 3 PHASE IN 3 PHASE OUT
Frequency (MHz) 50 Hz Hertz (HZ)
Color BLACK
Product Type ONLINE UPS

SUPERMAX+60KVA,ONLINE UPS WITH ISOLATION TRANSFORMER Trade Information

Delivery Time 6 Days

Product Description

The SUPERMAX+ 60 kVA Online UPS is a high-performance, true-online, double-conversion uninterruptible power supply designed for demanding industrial, commercial, and mission-critical applications. It provides uninterrupted, clean, and reliable power to sensitive electrical and electronic equipment, ensuring optimal performance and protection against power quality issues

Key Highlights

60 kVA / 60 kW Capacity Ideal for medium to large industrial and commercial applications

True Online Double Conversion Technology Zero transfer time with continuous pure sine wave output

In-Built Isolation Transformer (ISO TX) Enhanced safety, noise reduction, and superior power quality

3-Phase Input & 3-Phase Output (3-3) Designed for heavy-duty three-phase power systems

Pure Sine Wave Output Safe for sensitive and mission-critical equipment

High Efficiency Operation Lower power losses and reduced operating cost

Low Input THDi Generator friendly and minimizes harmonic distortion

Wide Input Voltage Range Operates without switching to battery during voltage fluctuations

Advanced Digital Control Intelligent monitoring with LCD display

Comprehensive Protection Features Overload, short circuit, surge, and thermal protection

Industrial-Grade Design Robust construction for long-term reliability

SUPERMAX+ 60 kVA Online UPS Specification Table

Specification Category	Details
UPS Type	True Online Double Conversion
Capacity	60 kVA / 60 kW
Input Configuration	3 Phase + Neutral + Earth
Input Voltage Range	320V 480V AC
Input Frequency	50 Hz 5%
Output Configuration	3 Phase + Neutral + Earth
Output Voltage	415V AC 1%
Output Frequency	50 Hz 0.1%
Output Waveform	Pure Sine Wave
Input Power Factor	0.99
Efficiency	Up to 95%
Isolation Transformer	In-Built at Output (ISO TX)
Battery Type	External Battery Bank (SMF / VRLA / Tubular)
DC Bus Voltage	384V / 480V (Configurable)
Battery Charger	Intelligent Microprocessor Controlled
Transfer Time	Zero (Online Mode)
Overload Capacity	110% (60 min), 125% (10 min)
Protection Features	Input/Output Overvoltage & Undervoltage, Overload, Short Circuit, Thermal, Surge/Spike, Battery Deep Discharge, Fan Failure, EPO
Display & Monitoring	LCD / LED Digital Display Panel
Cooling System	Forced Air Cooling
Operating Temperature	0C to 40C
Relative Humidity	095% Non-Condensing
Noise Level	< 65 dB (Approx.)
UPS Cabinet Dimensions (WDH)	600 mm 850 mm 1500 mm
Weight (Without Batteries)	300 400 kg
Installation Type	Floor Standing
Degree of Protection	IP20 (Indoor Use)
Standards Compliance	IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 60076, IEC 60896, IEC 61000, ISO 9001:2015, RoHS
Applications	Data Centers, Industrial Automation, Telecom, Medical Equipment, Banking, Security Systems

warranty 1 year
