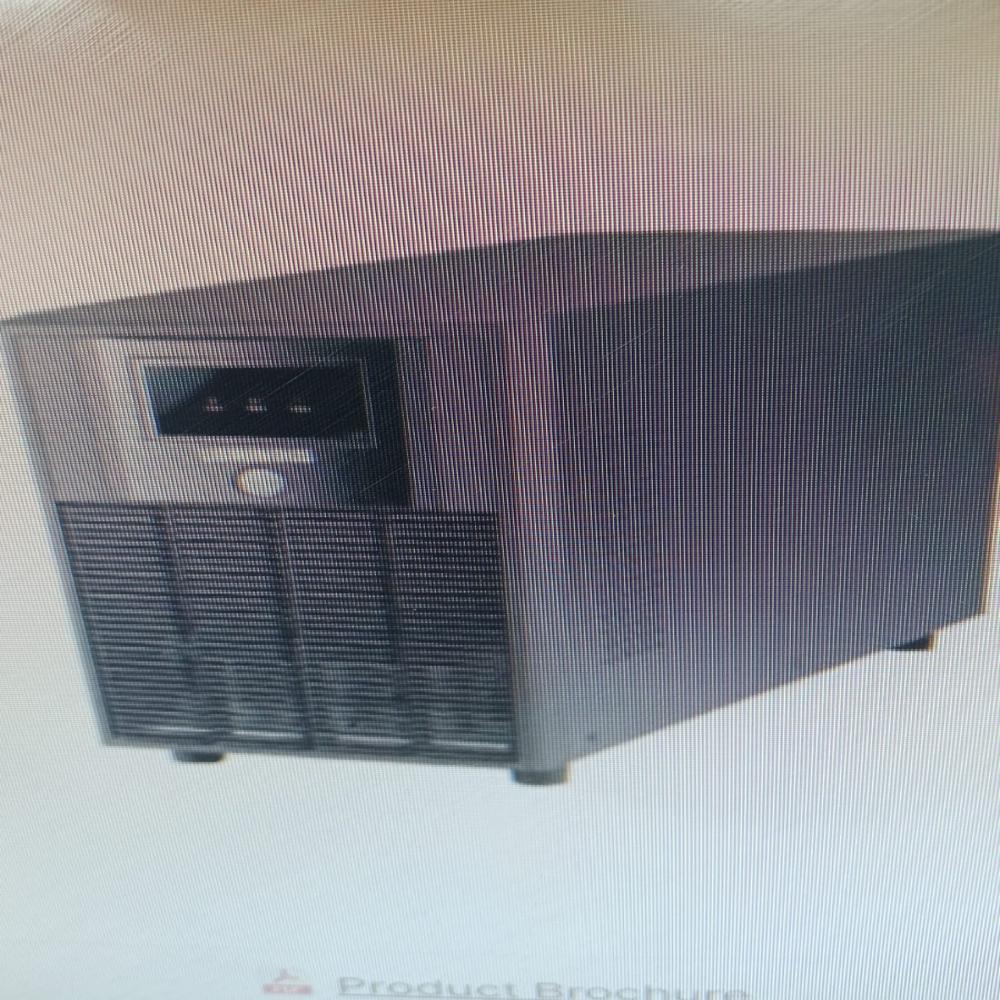

LUMINOUS (LB2000XL)Line interactive UPS

9925.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 2000va
Product Type LUMINOUS (LB2000XL)Line interactive UPS
Standard IS 16242 (Part 1):2014 IEC 62040 Series
Frequency (MHz) 45 55 Hz Hertz (HZ)
Protection Overload, Overcharge, Deep Discharge Protection
Usage backup
Size 395 145 220 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

LUMINOUS (LB2000XL)Line interactive UPS Price And Quantity

Minimum Order Quantity 1 Unit
Price 9925.0 INR/Unit

LUMINOUS (LB2000XL)Line interactive UPS Product Specifications

Power Rating 2000va
Rated Current 5.22 A Ampere (amp)
Weight 9 Kilograms (kg)
Usage backup
Display Type LED Status Indicators
Warranty 1 year
Size 395 145 220 mm
Product Type LUMINOUS (LB2000XL)Line interactive UPS
Standard IS 16242 (Part 1):2014 IEC 62040 Series
Phase 1:1
Material steel
Rated Voltage 230 VAC, Single Phase Volt (V)
Dimension (L*W*H) 395 145 220 mm Millimeter (mm)
Frequency (MHz) 45 55 Hz Hertz (HZ)
Cable Type 3-core Copper, PVC insulated, FR/FRLS 3 1.5 mm
Color black
Operating Temperature 0 C to 40 C Celsius (oC)
Protection Overload, Overcharge, Deep Discharge Protection
Features https://chatgpt.com/c/6a5b49cb-d254-83ee-90bd-dbf5a1bf63a7#:~:text=Provides%20reliable%20backup%20power%20for%20computers%2C%20networking%20equipment%2C%20office%20electronics%2C%20and%20other%20critical%20loads.
Usage & Applications power supply
Frequency 45 55 Hz Hertz (HZ)

LUMINOUS (LB2000XL)Line interactive UPS Trade Information

Delivery Time 7 Days

Product Description

Luminous LB2000XL Line Interactive UPS Description

The Luminous LB2000XL is a 2000 VA (1200 W) Line Interactive UPS designed to provide dependable backup power and voltage protection for computers, networking equipment, office electronics, diagnostic equipment, and other critical loads. It is especially suited for areas with frequent voltage fluctuations and power outages.

The UPS features microprocessor-based control for reliable operation and Automatic Voltage Regulation (AVR) with buck and boost functionality to stabilize input voltage without unnecessarily switching to battery mode. It supports external SMF or tubular batteries (17 Ah to 200 Ah) and offers selectable charging currents (5 A, 10 A, 15 A, or 20 A), allowing users to optimize charging for different battery capacities.

Luminous LB2000XL Line Interactive UPS Technical Specifications

Category	Specification
Model	Luminous LB2000XL
UPS Type	Line Interactive UPS
Output Capacity	2000 VA / 1200 W
Input Voltage	230 VAC
Input Voltage Range	140300 VAC
Input Frequency	4555 Hz
Output Voltage	220/230 VAC 10% (Battery Mode)
Output Frequency	50 Hz 1 Hz (Battery Mode)
Transfer Time	<10 ms (Typical 48 ms)
Output Waveform	Stepped Approximation to Sine Wave (Simulated Sine Wave)
Output Socket	3-Pin 6A Indian Socket
Battery Voltage (DC Bus)	24 VDC
Battery Type	SMF / Flooded (Tubular) Batteries
Battery Capacity Supported	17 Ah 200 Ah
Maximum Charging Current	20 A (Selectable: 5A / 10A / 15A / 20A)
Battery Position	External
Display	LED Status Indicators
Control Technology	Microprocessor Controlled
Voltage Regulation	Buck & Boost Automatic Voltage Regulation (AVR)
Auto Restart	Yes
Cold Start Function	Yes
Off-Mode Charging	Yes
Protection Features	Overload, Overcharge, Deep Discharge Protection
Operating Temperature	0C to 40C
Operating Humidity	095% RH (Non-condensing)
Audible Noise	<45 dB (approx.)
Dimensions (D W H)	395 145 220 mm
Net Weight	9 kg
Certifications	BIS Approved

Typical Applications

Small Office/Home Office (SOHO)
Desktop PCs and Workstations
Networking Equipment
Diagnostic Labs & Clinics
DTP & Print Shops
Computer Labs
Retail Billing Counters
Travel & Reservation Counters
FMCG Warehouses and Critical Office Equipment
