Luminous

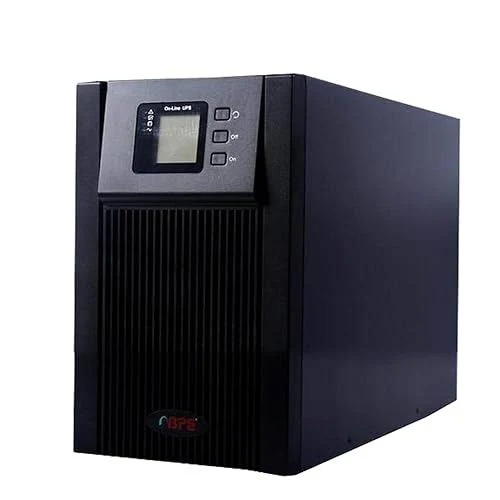

BPE (MP1101B3) 1KVA ONLINE UPS INBUILT BATTERY

18499.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (MP1101B3) 1KVA ONLINE UPS INBUILT BATTERY
Power Rating 1 kVA (1000 VA
Standard CE, BIS, RoHS, ISO (various)
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, Short Circuit, Deep Battery Discharge Protection, etc.
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MP1101B3) 1KVA ONLINE UPS INBUILT BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 18499.0 INR/Unit

BPE (MP1101B3) 1KVA ONLINE UPS INBUILT BATTERY Product Specifications

Operating Temperature 0 45 C Celsius (oC)
Usage BACKUP
Weight 10.8 kg Kilograms (kg)
Power Rating 1 kVA (1000 VA
Frequency (MHz) 50 Hertz (HZ)
Color BLACK
Standard CE, BIS, RoHS, ISO (various)
Material STEEL
Rated Voltage 220 240 V AC Volt (V)
Protection Overload, Short Circuit, Deep Battery Discharge Protection, etc.
Display Type LCD Display / Status LEDs
Dimension (L*W*H) Dimension Measurement Length (Depth) 415 mm Width 143 mm Height 215 mm Weight ~11.2 kg Millimeter (mm)
Usage & Applications POWER SUPPLY
Phase 1 PHASE
Warranty 1 YEAR
Features True Online & Double Conversion Provides zero transfer time from mains to battery ideal for sensitive equipment. It always runs through the inverter for clean power delivery. Pure Sine Wave Output Delivers a pure sine wave output that s safe for computers, networking gear, security systems, small servers, and other electronics. Advanced Control & Technology Uses fully digital microprocessor control with PWM technology and high frequency inverter for stable performance. Wide input voltage range to handle poor mains conditions.
Cable Type Input Power Cable: The UPS generally comes with a three core mains power cable (live, neutral & earth) that plugs into a standard Indian 3 pin AC wall socket for mains input connection (1Ph + N + PE). You use this cable to connect the UPS to your home or office power suppl
Rated Current 1 kVA (1000 VA) Volt (v)
Product Type BPE (MP1101B3) 1KVA ONLINE UPS INBUILT BATTERY
Frequency 50 Hertz (HZ)
Size STANDARD

BPE (MP1101B3) 1KVA ONLINE UPS INBUILT BATTERY Trade Information

Delivery Time 7 Days

Product Description

Product Overview

Type: True Online UPS (doubleconversion with zero transfer time) provides clean, uninterrupted AC power without switching delay.
Capacity: 1kVA (~800W usable) suitable for desktop PCs, routers, networking gear, CCTV/security systems, small servers, etc.
Internal Batteries: Comes with three 12V, 7Ah sealed leadacid batteries builtin for immediate backup without external battery packs.
Output Waveform: Pure sine wave output ideal for sensitive electronics.
MicrocontrollerBased Control: Advanced PWM technology with MOSFET provides efficient and stable UPS operation.
Wide Input Voltage & AVR: Builtin Automatic Voltage Regulation (AVR) handles voltage fluctuations, surges, spikes and brownouts from mains.
Protection Features: Protection against overload, short circuit, battery deep discharge and input anomalies.
Features:
- LCD or LED indicators for status (online, battery mode, fault).
- Generator compatible and solar compatible in many setups.
- Autostart and coldstart capability (can start on battery without mains).

Performance & Specs

Efficiency: Up to 94% in Dual Conversion mode, 99% in ECO mode.
Backup Time Estimate: ~512minutes depending on load (short at full load, longer at lighter load).
Input Voltage Range: 220240V AC (standard Indian mains).
Operating Frequency: Autosensing 50/60Hz.
Protection Cover: Battery low, DC high, inverter under/over voltage, overload, short circuit, fan failure, UPS faults.
Dimensions & Weight: ~143415215mm, ~11kg.

Who Its For

This UPS is suitable if you need continuous clean power without interruption (no transfer delay) for:
Computers & workstations
Networking equipment (modems, routers, switches)
Security systems (CCTV, alarms)
Small office gear and peripherals
Home office setups where power reliability is critical
Heres the detailed specification table for the BPE MF 1kVA Online UPS with 3 nos. 7Ah 12V Internal Batteries MF1101B3 a true online UPS with builtin batteries:

Specification	Details
Brand	BPE
Model	MF1101B3
UPS Type	Online UPS (Double Conversion)
Rated Power	1kVA (~800W)
Input Voltage	220240V AC (Single Phase, 1Ph+N+PE)
Input Frequency	Autosensing 50/60Hz
Output Voltage	220240V AC
Output Frequency	50/60Hz (Battery Mode)
Waveform	Pure Sine Wave
Battery Type	Sealed Lead Acid (Internal)
Battery Configuration	3 12V, 7Ah
Battery Backup Time	~5min (Full Load) / ~12min (Half Load)
Charging Current	~1Amp
Efficiency	~94% (Dual Conversion), 99% (ECO Mode)
Power Factor	>0.99 at full load
Operating Temp. Range	045C
Relative Humidity	095% (noncondensing)
Dimensions (LWH)	~14.44021.5cm
Weight	~10.8kg
Protection Features	Overload, Short Circuit, Deep Battery Discharge Protection, etc.
Display/Indicators	LCD Display / Status LEDs
Standards & Compliance	CE, BIS, RoHS, ISO (various)
Warranty	~1 Year
Country of Origin	India

WARRANTY :- 1YEAR
Key Points:

It delivers pure sine wave output suitable for sensitive electronics (PCs, servers, networking gear).
Internal batteries eliminate the need for separate external battery banks.
Typical backup is short good for safe shutdown and brief outages rather than long power cuts.

If you want, I can also explain how to calculate actual backup time based on the load (in watts) you intend to use with this UPS.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MICROTEK i MAXX SERIES 7.5 KVA ONLINE UPS 16/18 battery system with isolation transformer Price : 81720.0 INR/Unit Minimum Order Quantity : 1 Frequency (MHz) : 50 Hertz (HZ) Color : BLACK Standard : Electrical standards / certifications the UPS complies with (like IS, IEC, CE, RoHS)? Standard features / configuration of the Microtek 7.5 kVA UPS? Material : steel Power Rating : 7.5 KVA /6.0 KW Operating Temperature : 0 C to 40 C Celsius (oC) Weight : 78 Kilograms (kg) Usage : Backup Dimension (L*W*H) : 562 mm 250 mm ~830 mm Millimeter (mm) Usage & Applications : power supply Rated Voltage : 208V AC/ 220VAC / 230V AC Volt (V) Protection : Voltage spike/surge & over voltage cut off Display Type : LCD (Liquid Crystal Display) Warranty : 1 Year Phase : Single phase Size : STANDARD Frequency : 50 Hertz (HZ) Rated Current : 6000 Watt (w) Product Type : ONLINE UPS Features : Protection & Safety Inbuilt OVCD (Over Voltage Cut Off Device) with surge suppression. Short circuit and overload protection protects UPS and load. Over temperature shutdown prevents overheating. EMI/RFI noise filtering reduces electrical interference. Protection from DC fan failure. Maintenance bypass & static bypass switch enables service without load interruption Cable Type : 4 mm 6 mm flexible copper PVC insulated singlecore for short runs (<10 m). Conductor : Type: Copper or aluminum wire (copper preferred for efficiency and heat tolerance)

Send Inquiry

MAX LIFE 3 KVA ONLINE UPS Price : 47884.0 INR/Unit Minimum Order Quantity : 1 Frequency (MHz) : 50 HZ Hertz (HZ) Color : BLACK Standard : Standard packaging includes protective padding around the UPS, so overall shipping box may be ~5 7 cm larger in each dimension and a few kg heavier. Typical total package weight 17 18 kg. Material : steel / metal sheet body with powder coated finish Power Rating : Rated Power Capacity: 3 kVA (kilovolt ampere) Operating Temperature : 0 C 50 C Celsius (oC) Weight : 15.5 Kilograms (kg) Usage : BACKUP Dimension (L*W*H) : 46.5 19 31.8 cm (L W H) Centimeter (cm) Usage & Applications : POWER SUPPLY Rated Voltage : 220 V / 230 V / 240 VAC Volt (V) Protection : Overload Protection / Short CircuiGenerator Compatibility/ t ProOver Voltage & Under Voltage Protection/ Wide Input Voltage Range Display Type : load level, battery level, AC mode or battery mode, bypass mode, and fault indicators. Warranty : 1 YEAR Phase : SINGLE Size : Physical Size / Dimensions: Length: ~46.5 cm Width: ~19 cm Height: ~31.8 cm (L W H) Frequency : 50 HZ Hertz (HZ) Rated Current : 3 kVA ~2700 W Watt (w) Product Type : ONLINE UPS Features : True online double conversion with pure sine wave output Adjustable charging current via LCD panel Cold start from battery High current charger (60 A) Generator compatible and wide input range Overload and short circuit protection Advanced battery support with parallel scaling option Cable Type : Recommended Cable Types Input AC Cable (Mains to UPS) Type: 3core flexible copper cable (Live, Neutral, Earth) Specification: 4 mm copper, heat resistant PVC or FRLS (Fire Retardant Low Smoke) insulation Voltage Rating: 300 V AC Notes: Properly fused; follow local electrical codes. Output AC Cable (UPS to Equipment / Load) Type: Flexible copper wire or standard IEC extension cabling Specification: 4 mm copper for full load (~2700 W / 12 A at 230 V) Voltage Rating: 300 450 V AC, depending on insulation standard DC Battery Cable (UPS to Battery Bank) Type: Flexible, stranded copper cable Specification: 10 16 mm (depending on battery AH and distance) Voltage Rating: 60 V DC Insulation: Heat resistant, batterygrade PVC or XLPE Notes: Keep cable runs short and use properly rated terminals to handle up to 60 A charging current. Material Conductor: Highconductivity copper (preferred over aluminum for low resistance and heat) Insulation: Fireresistant, heatresistant, and flexible for safe routing Conductor : Recommended Cable Types Input AC Cable (Mains to UPS) Type: 3core flexible copper cable (Live, Neutral, Earth) Specification: 4 mm copper, heat resistant PVC or FRLS (Fire Retardant Low Smoke) insulation Voltage Rating: 300 V AC Notes: Properly fused; follow local electrical codes. Output AC Cable (UPS to Equipment / Load) Type: Flexible copper wire or standard IEC extension cabling Specification: 4 mm copper for full load (~2700 W / 12 A at 230 V) Voltage Rating: 300 450 V AC, depending on insulation standard DC Battery Cable (UPS to Battery Bank) Type: Flexible, stranded copper cable Specification: 10 16 mm (depending on battery AH and distance) Voltage Rating: 60 V DC Insulation: Heat resistant, batterygrade PVC or XLPE Notes: Keep cable runs short and use properly rated terminals to handle up to 60 A charging current. Material Conductor: Highconductivity copper (preferred over aluminum for low resistance and heat) Insulation: Fireresistant, heatresistant, and flexible for safe routing

Send Inquiry

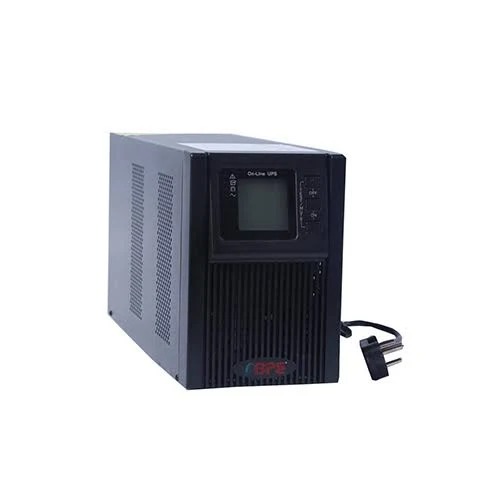

BPE (MP1102B6) 2KVA ONLINE UPS INBUILT BATTERY Price : 33999.0 INR/Unit Minimum Order Quantity : 1 Frequency (MHz) : 40 70 Hz Hertz (HZ) Color : BLACK Standard : IEC/EN62040, CE, ISO Certified Material : STEEL Power Rating : 2 KVA Operating Temperature : 0 C to 50 C Celsius (oC) Weight : 25 Kilograms (kg) Usage : BACKUP Dimension (L*W*H) : 438 580 133 mm (3U) Millimeter (mm) Usage & Applications : POWER SUPPLY Rated Voltage : 230V AC Volt (V) Protection : Overload, Short Circuit, Over/Under Voltage, Over Temp, Battery Low Display Type : LCD Display Warranty : 1 YEAR Phase : 1 PHASE Size : 3U (Internal battery model) Frequency : 40 70 Hz Hertz (HZ) Rated Current : 8.7 Amps Ampere (amp) Product Type : BPE (MP1102B6) 2KVA ONLINE UPS INBUILT BATTERY Features : Advanced Power Technology True Online Double Conversion (VFI) PWM technology for stable and efficient output Delivers pure sine wave power for sensitive device Cable Type : 3Core Power Cable Phase (L), Neutral (N), Earth (E)
