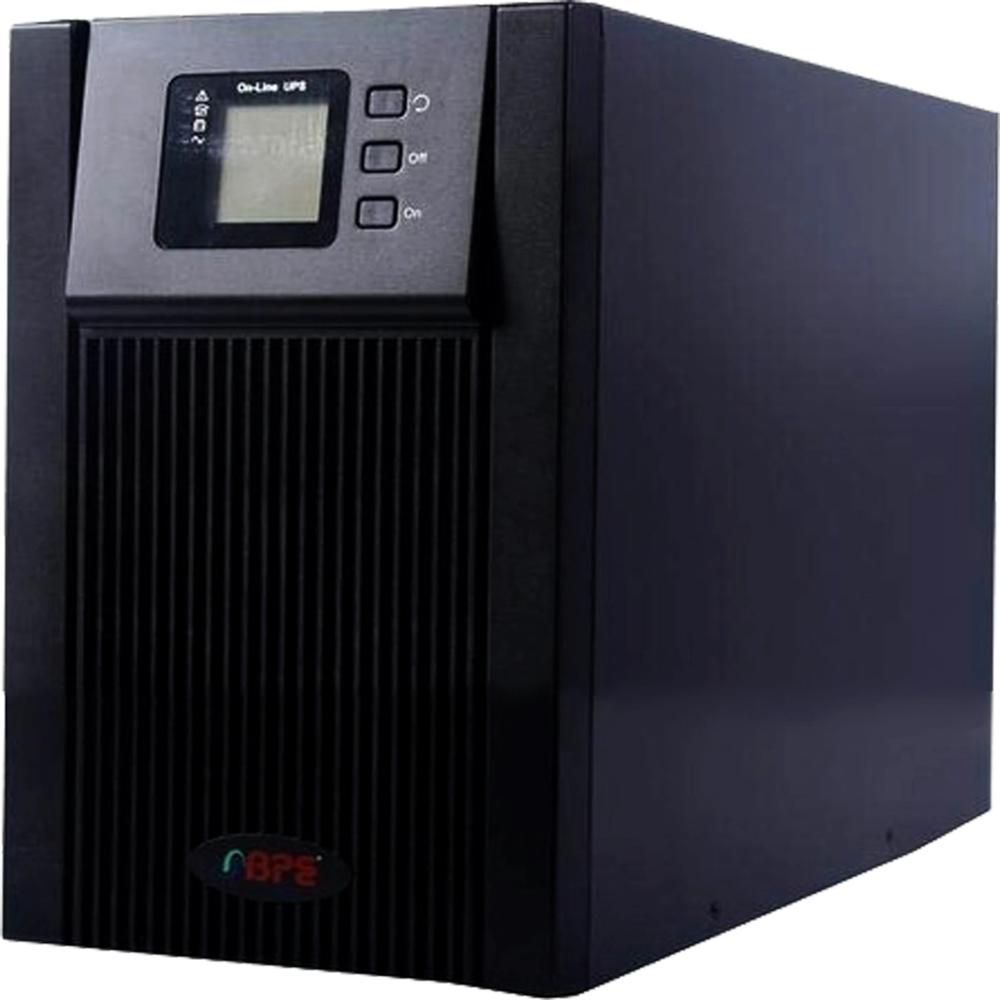

BPE (MF11106L16) 10KVA ONLINE UPS EXTERNAL BATTERY

75000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 6 kVA
Product Type BPE (MF11106L16) 10KVA ONLINE UPS EXTERNAL BATTERY
Standard IEC 62040-1
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, Short Circuit, Surge, Battery Low
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MF11106L16) 10KVA ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 75000.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (MF11106L16) 10KVA ONLINE UPS EXTERNAL BATTERY Product Specifications

Usage & Applications POWER SUPPLY
Frequency 50 Hertz (HZ)
Features Core Features True Online Double Conversion Technology Ensures continuous clean power with zero interruption Zero Transfer Time (0 ms) No switching delay during power failure Pure Sine Wave Output Safe for sensitive equipment like servers & medical devices High Input Power Factor ( 0.99) Reduces power losses and improves efficiency
Product Type BPE (MF11106L16) 10KVA ONLINE UPS EXTERNAL BATTERY
Dimension (L*W*H) Parameter Value Height (H) 399 mm Width (W) 469 mm Depth (D) 192 mm Weight ~26.7 kg Millimeter (mm)
Power Rating 6 kVA
Material STEEL
Warranty 1 YEAR
Operating Temperature 0 C to 45 C Celsius (oC)
Size STANDARD
Cable Type Copper earth cable 6 10 mm
Protection Overload, Short Circuit, Surge, Battery Low
Usage BACKUP
Standard IEC 62040-1
Display Type LCD + LED Indicators
Color BLACK
Frequency (MHz) 50 Hertz (HZ)
Rated Voltage 220 240 V AC Volt (V)
Weight 26.7 Kilograms (kg)
Rated Current 25 27 Amps Ampere (amp)
Phase SINGLE PHASE

BPE (MF11106L16) 10KVA ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

Description BPE MF1106L16 Online UPS (External Battery)

The BPE MF1106L16 is a 6 kVA single-phase online UPS designed to provide continuous, clean, and reliable power for sensitive equipment. It uses true online (double-conversion) technology, meaning it constantly converts incoming AC power to DC and back to ACensuring zero interruption and stable output even during voltage fluctuations or power cuts.

Technical Specifications Table

Specification	Details
Model	MF11106L16
Capacity	6 kVA / 4.8 kW
UPS Type	Online Double Conversion
Phase	Single Phase (Input & Output)
Battery Type	External Battery System
Battery Voltage (DC Bus)	192V 240V DC
No. of Batteries	Typically 1620 (12V each)

Input Specifications

Specification	Details
Nominal Voltage	220 / 230 / 240 V AC
Voltage Range	110V 300V AC
Frequency Range	50/60 Hz 10%
Input Power Factor	0.99
Generator Compatibility	Yes

Output Specifications

Specification	Details
Output Voltage	220 / 230 / 240 V AC (Configurable)
Power Factor	0.8 (Std), up to 0.9 optional
Voltage Regulation	1%
Frequency	50/60 Hz 0.1% (Battery Mode)
Waveform	Pure Sine Wave
THD	13%
Transfer Time	0 ms (No interruption)
Crest Factor	3:1

Battery & Charging

Specification	Details
Battery Type	SMF / VRLA / Tubular Compatible
Charging Current	~66.5 A
Recharge Time	45 hours (90%)

Performance & Features

Specification	Details
Efficiency	Up to 94% (Online), 99% (ECO Mode)
Overload Capacity	Up to 150% (short duration)
Display	LCD + LED Indicators
Noise Level	< 55 dB
Operating Temp	0C to 45C
Humidity	095% Non-condensing
Protection	Overload, Short Circuit, Surge, Battery Low

Communication & Interface

Specification	Details
Ports	RS-232, USB, SNMP (optional)
Software Support	UPS monitoring software available
Alarms	Audible & visual alarms

WARRANTY :- 1YEAR
Summary

6 kVA online UPS with external batteries
Zero transfer time + pure sine wave output
Wide voltage range ideal for Indian power conditions
Scalable backup depending on battery capacity
