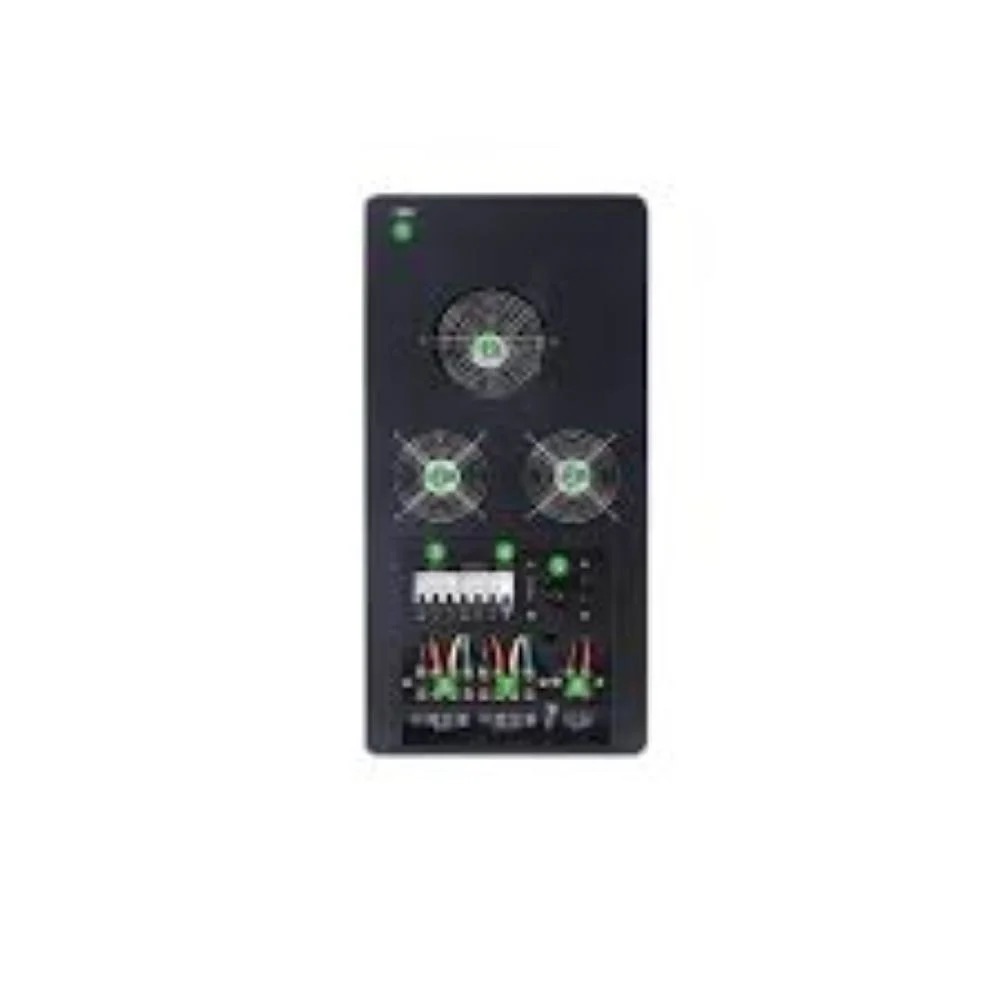

BPE (CP3315L20) 15KVA 3-Phase Online UPS with Inbuilt Isolation Transformer

Name: BPE (CP3315L20) 15KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 202960.0 INR
Availability: InStock

202960.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (CP3315L20) 15KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Power Rating 15KVA
Standard IEC 62040 / CE / BIS Compliant
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, Short Circuit, Over Temperature, Battery Deep Discharge
Usage backup
Size DIMENSION
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (CP3315L20) 15KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Price And Quantity

Minimum Order Quantity 1 Unit
Price 202960.0 INR/Unit

BPE (CP3315L20) 15KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Product Specifications

Phase 3:3 Phase
Display Type LCD Digital Display
Color black
Product Type BPE (CP3315L20) 15KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Rated Voltage 380V / 400V / 415V AC Volt (V)
Material STEEL
Usage backup
Cable Type Copper XLPE Insulated Same as Phase Size
Frequency (MHz) 50 Hertz (HZ)
Rated Current 21 22 Amps Ampere (amp)
Usage & Applications POWER SUPPLY
Size DIMENSION
Dimension (L*W*H) 400 950 770 mm Millimeter (mm)
Power Rating 15KVA
Weight 210 Kilograms (kg)
Warranty 1 YEAR
Operating Temperature 0 C to 40 C Celsius (oC)
Standard IEC 62040 / CE / BIS Compliant
Protection Overload, Short Circuit, Over Temperature, Battery Deep Discharge
Frequency 50 Hertz (HZ)
Features True Online Double Conversion Technology

BPE (CP3315L20) 15KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Trade Information

Delivery Time 7 Days

Product Description

The BPE CP3315L20 15KVA 3-Phase Online UPS is a high-performance true online double-conversion UPS system designed for critical industrial and commercial power backup applications. It delivers continuous, clean, and regulated three-phase power to sensitive equipment such as servers, CNC machines, medical systems, telecom infrastructure, industrial automation systems, and data centers.

Equipped with an inbuilt isolation transformer, the UPS provides enhanced electrical isolation, superior noise suppression, harmonic reduction, and protection against voltage spikes and transients. The system ensures uninterrupted operation with zero transfer time during mains failure and maintains a pure sine wave output for maximum equipment safety and reliability.

Specification	Details
Model	BPE CP3315L20
UPS Capacity	15 KVA / 12 KW
UPS Type	True Online Double Conversion UPS
Phase Configuration	3 Phase Input 3 Phase Output (3:3)
Transformer	Inbuilt Isolation Transformer
Output Waveform	Pure Sine Wave
Input Voltage Range	Wide Input Voltage Range
Nominal Voltage	380V / 400V / 415V AC
Frequency	50/60 Hz
Output Power Factor	0.8
Efficiency	Up to 94% (Online Mode)
ECO Mode Efficiency	Up to 99%
Transfer Time	0 Milliseconds
Battery Type	External SMF / VRLA Batteries
Battery Charging	Intelligent Battery Management
Display	LCD Digital Display
Communication Ports	RS232 / USB / Optional SNMP
Protection Features	Overload, Short Circuit, Over Temperature, Battery Deep Discharge
Cooling System	Forced Air Cooling
Bypass	Static & Maintenance Bypass
Parallel Operation	Optional
Noise Suppression	Yes
Harmonic Distortion	Low THDi
Generator Compatibility	Yes
Operating Temperature	0C to 40C
Humidity	095% Non-Condensing
Protection Class	IP20
Applications	Data Centers, CNC Machines, Medical Equipment, Telecom, Industrial Automation
Standards	IEC 62040 / CE / BIS Compliant
