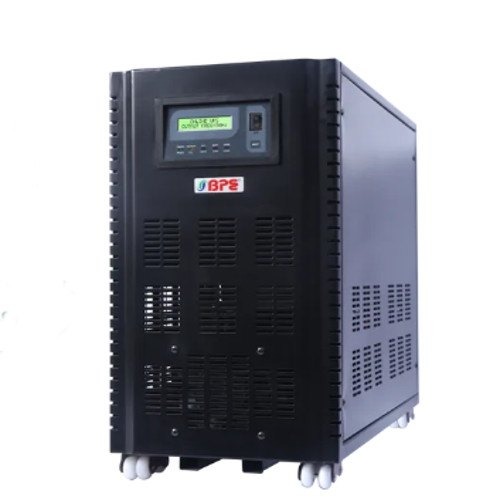

BPE (PB1115L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer

77880.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 10 KVA
Product Type BPE (PB1115L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer
Standard IEC 62040-1, IEC 62040-2, IEC 62040-3
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, Short Circuit, Battery Low, Over Temp
Usage backup
Size Width: 280 mm Depth: 615 mm Height: 685 mm Weight: ~76 kg
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (PB1115L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Price And Quantity

Minimum Order Quantity 1 Unit
Price 77880.0 INR/Unit

BPE (PB1115L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Product Specifications

Frequency 50 Hertz (HZ)
Operating Temperature 0 C to 40 C Celsius (oC)
Color black
Warranty 1 warranty
Standard IEC 62040-1, IEC 62040-2, IEC 62040-3
Weight 76 Kilograms (kg)
Cable Type Copper Armoured Cable 2 Core 10 16 sq.mm
Power Rating 10 KVA
Size Width: 280 mm Depth: 615 mm Height: 685 mm Weight: ~76 kg
Phase 1 phase
Features True Online Double Conversion (zero transfer time)
Usage & Applications power supply
Dimension (L*W*H) Width: 280 mm Depth: 615 mm Height: 685 mm Weight: ~76 kg Millimeter (mm)
Display Type LCD Display Panel
Rated Current 43 45 Amps Ampere (amp)
Product Type BPE (PB1115L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer
Material steel
Protection Overload, Short Circuit, Battery Low, Over Temp
Rated Voltage 160 V 280 V AC Volt (V)
Frequency (MHz) 50 Hertz (HZ)
Usage backup

BPE (PB1115L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Trade Information

Delivery Time 7 Days

Product Description

Description BPE PB1115L16 10KVA Online UPS (with Inbuilt Isolation Transformer)

The BPE PB1115L16 is a 1015 KVA high-capacity online double-conversion UPS designed for critical power backup applications where uninterrupted and clean power is essential. It comes with an inbuilt isolation transformer, which enhances safety and power quality by electrically separating input and output supply.

Specification Details Table

Specification	Details
Model	PB1115L16
Capacity	1015 KVA (10 kW 12 kW approx.)
Type	Online Double Conversion UPS
Phase	Single Phase Input / Single Phase Output
Power Factor	0.8 (Standard), up to 0.9 optional
Input Voltage Range	160V 280V AC
Output Voltage	220 / 230 / 240V 1%
Output Frequency	50Hz 0.1%
Waveform	Pure Sine Wave
Efficiency	Up to 9394%
Transfer Time	0 ms (No break)
THD (Output)	< 3%
Crest Factor	3:1
Battery DC Bus	192V DC
Battery Type	SMF External Batteries
Charging Current	1A 10A (max)
Recharge Time	< 10 hours (up to 9095%)
Isolation Transformer	Inbuilt
Overload Capacity	110125% for 10 min, higher short-term support
Bypass System	Automatic + Manual internal bypass
Display	LCD (Voltage, Load, Battery, Frequency)
Protection Features	Overload, short circuit, over/under voltage, battery low
Operating Temperature	0C 40C
Noise Level	< 56 dB
Applications	Server rooms, hospitals, IT systems, industrial load

If you want, I can also convert this into:

PDF datasheet format
Quotation format for purchase
Battery backup calculation (how many batteries you need for 12 hours)
Wiring/installation diagram

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price : 10673.0 INR/Unit Minimum Order Quantity : 1 Material : STEEL Usage : BACKUP Usage & Applications : POWER SUPPLY Size : Packaged/Cardboard Size: ~14.4 cm 40 cm 21.5 cm Color : BLACK Warranty : 1 YEAR Product Type : BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Protection : Overload Protection Prevents damage if connected load exceeds UPS capacity. UPS goes into bypass or alarm mode Rated Current : 800 W Watt (w) Frequency (MHz) : 50/60 Hz Hertz (HZ) Rated Voltage : 220 / 230 / 240 V AC Volt (V) Power Rating : 1 kVA (1000 VA) Weight : 5.6 Kilograms (kg) Phase : Single Phase Frequency : 50/60 Hz Hertz (HZ) Display Type : LCD (voltage, frequency, mode, load, battery) Dimension (L*W*H) : Approx. External Size (W D H): 144 400 215 mm (mm) Width Depth Height (tower form factor). Millimeter (mm) Operating Temperature : 0 50 C Celsius (oC) Standard : IEC 62040 1 Features : True Online Double Conversion Technology Continuously converts incoming AC power to DC and back to AC. Zero transfer time on mains failure no interruption to connected devices. Cable Type : 3core flexible copper cable, typically 1.5 mm 2.5 mm depending on installation Connects UPS to singlephase AC mains (Live, Neutral, Earth).

Send Inquiry

BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY Price : 150000.0 INR/Unit Minimum Order Quantity : 1 Material : STEEL Usage : BACKUP Usage & Applications : POWER SUPPLY Size : STANDARD Color : BLACK Warranty : 1 YEAR Product Type : BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY PRICE Protection : Internal automatic & manual bypass, overload protection, surge suppression Rated Current : 87 A Ampere (amp) Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 380 415 V AC, Volt (V) Power Rating : 20 kVA Weight : 37 Kilograms (kg) Phase : 1 PHASE Frequency : 50 Hertz (HZ) Display Type : Multifunction LCD panel showing load, battery, alarms Dimension (L*W*H) : Dimension Value Height 616 mm Width 502 mm Depth 250 mm Net Weight 37 kg Millimeter (mm) Operating Temperature : 0 45 C, Celsius (oC) Standard : ISO 900 Features : Provides continuous clean power by converting AC DC AC, isolating the load from mains disturbances and eliminating transfer time during outages. Cable Type : 3 Core Flexible Copper Cable PVC Insulated, FRLS / Fire Retardant LSZH (preferred), 600/1000 V grade

Send Inquiry

MICROTEK MAX+ SERIES 3 KVA ONLINE UPS ISO TX WITH EXTERNAL BATTERIES Price : 34516.0 INR/Unit Minimum Order Quantity : 1 Material : steel Usage : backup Usage & Applications : power supply Size : Standard Color : black Warranty : 2 year Product Type : ONLINE UPS Protection : Protection Type Description / Function Overload Protection Automatically shifts to bypass if load exceeds 110 % for ~30 s or >150 % instantly to protect the UPS from damage. Short Circuit Protection Inverter shuts down immediately in case of a short circuit on the output; audible alarm alerts the user. Input Overvoltage / Undervoltage Protection UPS handles wide AC input range (118 295 V) and switches to battery mode if voltage goes outside safe limits, preventing damage to equipment. Rated Current : 2700 Watt (w) Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 160V AC TO 175V AC Volt (V) Power Rating : 3 KVA/2700 Watts Weight : 14.7 Kilograms (kg) Phase : 1 phase Frequency : 50 Hertz (HZ) Display Type : Display Type: LCD (Liquid Crystal Display Dimension (L*W*H) : 560 320 460 mm (Length Width Height) Centimeter (cm) Standard : IS/IEC 62040 1 / IS 13252

Send Inquiry

MICROTEK 60 KVA ONLINE UPS 3 PHASE IN 3 PHASE OUT with isolation transformer Price : 616596.02 INR/Unit Minimum Order Quantity : 1 Material : steel Usage : BACKUP Usage & Applications : power supply Size : standard Color : BLACK Warranty : 1 year Protection : Key Protection Features of a 60 kVA 3Phase Online UPS Rated Current : 83.5 A per phase Ampere (amp) Frequency (MHz) : 50 Hz or 60 Hz Hertz (HZ) Rated Voltage : 380 415 V AC Volt (V) Power Rating : 60 KVA Weight : 440 Kilograms (kg) Phase : 3 PHASE IN 3 PHASE OUT Frequency : 50 Hz or 60 Hz Hertz (HZ) Display Type : dynamic LCD panel Dimension (L*W*H) : 81.5 cm 30 cm 100 cm Centimeter (cm) Operating Temperature : 0 C to 40 C Celsius (oC)

Send Inquiry
