BPE (GTM3360L32) 60KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

Name: BPE (GTM3360L32) 60KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 330400.0 INR
Availability: InStock

330400.0 INR/Piece

Get a Price/Quote

Product Details:

Power Rating 60KVA
Product Type BPE (GTM3360L32) 60KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Standard IEC 62040-1 (Safety)
Frequency (MHz) 50 Hertz (HZ)
Protection Industrial-grade overload & short-circuit protection
Usage BACKUP
Size 760 880 1600 mm (approx.)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GTM3360L32) 60KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 330400.0 INR/Piece

BPE (GTM3360L32) 60KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Rated Voltage 380V / 400V / 415V AC Volt (V)
Frequency 50 Hertz (HZ)
Cable Type 3.5 core Copper XLPE armoured cable (FRLS / FRLSH)
Operating Temperature 0 C to 40 C Celsius (oC)
Weight 485 Kilograms (kg)
Usage BACKUP
Display Type LCD / LED Control Panel
Standard IEC 62040-1 (Safety)
Usage & Applications POWER SUPPLY
Material STEEL
Size 760 880 1600 mm (approx.)
Color BLACK
Power Rating 60KVA
Phase 3:3 PHASE
Rated Current 83 A Ampere (amp)
Dimension (L*W*H) 760 880 1600 mm (approx.) Millimeter (mm)
Warranty 1 YEAR
Features True Online Double Conversion
Product Type BPE (GTM3360L32) 60KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Frequency (MHz) 50 Hertz (HZ)
Protection Industrial-grade overload & short-circuit protection

BPE (GTM3360L32) 60KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The BPE GTM3360L32 is a 60 kVA three-phase input and three-phase output online UPS system designed for critical power backup applications such as data centers, industries, hospitals, and telecom infrastructure. It uses true double-conversion technology, ensuring continuous, clean, and stable power without interruption.

This UPS operates with an external battery bank (typically 384V DC configurable system), allowing users to scale backup time according to their requirement.

It provides zero transfer time, meaning there is no power break during switching between mains and battery mode, making it ideal for sensitive equipment.

Specification Table

Specification	Details
Brand	BPE (Best Power Equipments)
Model	GTM3360L32
Capacity	60 kVA
Phase	3 Phase Input / 3 Phase Output (3:3)
UPS Technology	Online Double Conversion
Application Type	Industrial / Data Center / Critical Load
Output Power Factor	0.9 (approx.)
Input Voltage	380415V AC (3-Phase)
Output Voltage	380 / 400 / 415V AC
Frequency	50/60 Hz (auto sensing)
Battery Type	External Battery Bank
Battery Voltage	384V DC
Transfer Time	0 ms (Instant)
Efficiency	Up to 9596%
Output Waveform	Pure Sine Wave
Voltage Regulation	1%
Harmonic Distortion (THD)	13%
Overload Capacity	125% (10 min), 150% (short duration)
Cooling System	Forced Air Cooling (Smart Fan Control)
Display	LCD / LED Control Panel
Communication Ports	RS232 / SNMP / Modbus (optional)
Protection Features	Overload, Short Circuit, Overvoltage, Battery Low, Overheat
Installation Type	Floor Standing (Tower Type)
Backup Time	Depends on external battery bank

WARRANTY:- 1 YEAR
If you want, I can also convert this into:

PDF datasheet format
Brochure-style marketing sheet
Battery sizing chart for 60 kVA load
Price estimation in India (latest market range)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

BPE MFP1102L8 2KVA ONLINE UPS Price : 23000.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 YEAR Dimension (L*W*H) : Physical Dimensions Height: 399 mm Width: 469 mm Depth: 192 mm Net Weight: 26.7 kg Millimeter (mm) Rated Current : 8.7 A Microampere (A) Product Type : BPE MFP1102L8 2KVA ONLINE UPS Frequency (MHz) : 50 Hz Hertz (HZ) Rated Voltage : 220 V / 230 V / 240 V AC Volt (V) Frequency : 50 Hertz (HZ) Usage : BACKUP Display Type : LCD panel for input/output voltage, battery status, load %, UPS mode; RS232/optional SNMP Weight : 10 Kilograms (kg) Material : STEEL Usage & Applications : POWER SUPPLTY Standard : IEC 620401 / IS 13252 (Part 1) Power Rating : 2,000 VA (2 KVA) Color : BLACK Phase : 1 PHASE Size : Height: 399 mm Width: 469 mm Depth: 192 mm Net Weight: 26.7 kg Features : True online double conversion topology for continuous clean power with zero transfer time. Protection : Overload, shortcircuit, over/under voltage, surge, EMI/RFI filtering Operating Temperature : 0 C to 40 C Celsius (oC) Cable Type : External battery bank cables (from UPS to battery terminals) are thicker, typically multistrand copper battery cables, sized to match the battery bank current and length (e.g., 25 mm to 35 mm for external batteries on 96 V DC systems). This ensures minimal voltage drop and safe current flow. (General UPS battery practice)

Send Inquiry

BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Price : 11500.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 YEAR Dimension (L*W*H) : Parameter Value Width 144 mm Depth 400 mm Height 215 mm Dimensions (L W H) 14.4 40 21.5 cm Millimeter (mm) Rated Current : 4.35A Ampere (amp) Product Type : BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Frequency (MHz) : 50 / 60 Hz Hertz (HZ) Rated Voltage : 110V 300V AC Volt (V) Frequency : 50 / 60 Hz Hertz (HZ) Usage : BACKUP Display Type : LCD / LED status indicators Weight : 11 kg Kilograms (kg) Material : STEEL Usage & Applications : POWER SUPPLY Standard : IEC/EN62040 compliant Power Rating : 1 kVA (1000 VA) Color : BLACK Phase : 1 PHASE Size : STANDARD Features : Features BPE MF1101L3 1KVA Online UPS Feature Description True Online Double Conversion Provides continuous power without interruption and protects equipment from voltage fluctuations. DSP Digital Control Uses advanced Digital Signal Processor (DSP) technology for stable and reliable operation. Pure Sine Wave Output Delivers clean and stable sinewave power suitable for sensitive electronics. High Input Power Factor Input power factor 0.99, reducing power loss and improving efficiency. IGBTBased Rectifier & Inverter Ensures efficient power conversion and reliable UPS performance. Wide Input Voltage Range Operates within 110V 300V AC, suitable for areas with unstable power supply. Cold Start Function UPS can start directly on battery power without mains supply. Static Bypass Protection Automatically transfers load to bypass during overload or UPS fault. High Efficiency Up to 94% efficiency in online mode and higher in ECO mode. Advanced Battery Management Optimizes battery charging and extends battery life. Multiple Communication Ports Supports RS232, USB, and optional SNMP for monitoring and management. Generator & Solar Compatible Can operate with generator or solar backup systems. LCD / LED Display Shows UPS status such as load level, battery mode, faults, and input/output conditions. These features make the BPE MF1101L3 1KVA Online UPS suitable for computers, servers, networking equipment, medical devices, and CCTV systems where uninterrupted and stable power is required. If you want, I can also prepare a complete datasheet format including: Input specifications Output specifications Battery specifications Environmental specifications. Get smarter responses, upload files and images, and more. Log in Sign up for free Protection : Overload, short circuit, battery low, overtemperature Operating Temperature : 0 C 40 C Celsius (oC) Cable Type : Cable Type (Typical for this UPS) Parameter Specification Cable Type Copper flexible cable Cable Size 1.5 sq.mm Core 3 Core (Phase + Neutral + Earth) Insulation PVC insulated Connection Input/Output power cabl

Send Inquiry

BPE (MF11106L16) 10KVA ONLINE UPS EXTERNAL BATTERY Price : 75000.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 YEAR Dimension (L*W*H) : Parameter Value Height (H) 399 mm Width (W) 469 mm Depth (D) 192 mm Weight ~26.7 kg Millimeter (mm) Rated Current : 25 27 Amps Ampere (amp) Product Type : BPE (MF11106L16) 10KVA ONLINE UPS EXTERNAL BATTERY Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 220 240 V AC Volt (V) Frequency : 50 Hertz (HZ) Usage : BACKUP Display Type : LCD + LED Indicators Weight : 26.7 Kilograms (kg) Material : STEEL Usage & Applications : POWER SUPPLY Standard : IEC 620401 Power Rating : 6 kVA Color : BLACK Phase : SINGLE PHASE Size : STANDARD Features : Core Features True Online Double Conversion Technology Ensures continuous clean power with zero interruption Zero Transfer Time (0 ms) No switching delay during power failure Pure Sine Wave Output Safe for sensitive equipment like servers & medical devices High Input Power Factor ( 0.99) Reduces power losses and improves efficiency Protection : Overload, Short Circuit, Surge, Battery Low Operating Temperature : 0 C to 45 C Celsius (oC) Cable Type : Copper earth cable 6 10 mm

Send Inquiry

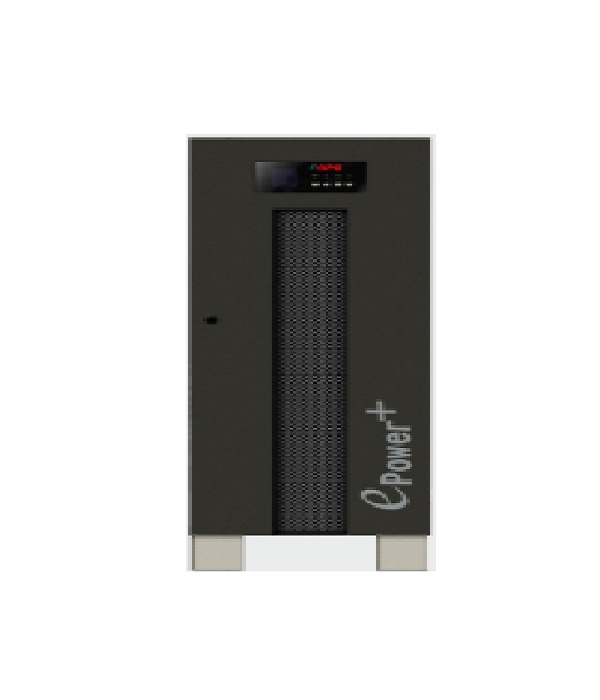

BPE (GT330L32) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price : 233640.0 INR/Piece Minimum Order Quantity : 1 Warranty : 1 YEAR Dimension (L*W*H) : 826 815 250 mm (H W D) Millimeter (mm) Rated Current : 42 Amps Ampere (amp) Product Type : BPE (GT330L32) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 380 / 400 / 415 V AC Volt (V) Frequency : 50 Hertz (HZ) Usage : BACKUP Display Type : Multifunction LCD display panel Weight : 300 Kilograms (kg) Material : STEEL Usage & Applications : POWER SUPPLY Standard : IEC 620401 Power Rating : 30KVA Color : BLACK Phase : 3:3 PHASE Size : 826 815 250 mm (H W D) Features : True Online Double Conversion Protection : Protection against dust & touch Operating Temperature : 0 C to 40 C Celsius (oC) Cable Type : XLPE Copper Armoured Cable Heavyduty, suitable for industrial power input
