Microtek 3 KVA Online UPS with Internal batteries
Product Details:
- Power Rating 3 KVA (3000 VA)
- Product Type Microtek Online UPS 3 KVA
- Standard Double-conversion online topology zero transfer time; best for sensitive electronics. Pure sine wave output ideal for computers, servers, networking gear. Wide input voltage tolerance good for areas with unstable mains. Internal SMF batteries (72 V) reduces need for external battery bank setup. Smart protection & monitoring status display and optional connectivity.
- Frequency (MHz) 50 Hertz (HZ)
- Protection Power & Equipment Protection Features
- Usage BACKUP
- Size Approximate Size & Weight (Online UPS 3 KVA with Internal Batteries
- Click to View more
Microtek 3 KVA Online UPS with Internal batteries Price And Quantity
- 1 Unit
- 32294.0 INR/Unit
Microtek 3 KVA Online UPS with Internal batteries Product Specifications
- Double-conversion online topology zero transfer time; best for sensitive electronics. Pure sine wave output ideal for computers, servers, networking gear. Wide input voltage tolerance good for areas with unstable mains. Internal SMF batteries (72 V) reduces need for external battery bank setup. Smart protection & monitoring status display and optional connectivity.
- Why These Features Matter Stable power: Double conversion and pure sine output protect sensitive electronics. Better battery health: Advanced charging and management reduce wear. Improved safety: Multiple protection layers prevent damage during surges, temperature rise, or overload. Easy monitoring: LCD and communication options keep you informed and connected.
- BACKUP
- POWER SUPPLY
- 50 Hertz (HZ)
- Power & Equipment Protection Features
- 2 YEAR
- Microtek Online UPS 3 KVA
- 3 KVA (3000 VA)
- 28.9 Kilograms (kg)
- 110 VAC-300 VAC Volt (V)
- Input Conductor (AC Mains) Single-phase AC input (230 V typical) Recommended wire size depends on load (rated current ~13 A at full load) Typical wire size: 2.5 mm copper conductor for short distances (<10 m), heavier if longer run. Must have earthing / grounding for safety. Output Conductor (UPS to Load) UPS outputs ~230 V AC, max rated current ~13 A Wire size: 2.5 mm copper is typically sufficient for most office/home equipment If supplying multiple high-load devices, a 4 mm conductor may be considered to minimize voltage drop. Battery Conductors (Internal) Inside the UPS, VRLA/SMF batteries are connected via internal copper bus bars or flexible braided copper wires Designed to handle high DC currents safely (~12 15 A continuous for a 3 KVA system)
- 3 KVA (3000 VA) Volt (v)
- Input Conductor (AC Mains) Single-phase AC input (230 V typical) Recommended wire size depends on load (rated current ~13 A at full load) Typical wire size: 2.5 mm copper conductor for short distances (<10 m), heavier if longer run. Must have earthing / grounding for safety. Output Conductor (UPS to Load) UPS outputs ~230 V AC, max rated current ~13 A Wire size: 2.5 mm copper is typically sufficient for most office/home equipment If supplying multiple high-load devices, a 4 mm conductor may be considered to minimize voltage drop. Battery Conductors (Internal) Inside the UPS, VRLA/SMF batteries are connected via internal copper bus bars or flexible braided copper wires Designed to handle high DC currents safely (~12 15 A continuous for a 3 KVA system)
- 42 19 32 Centimeter (cm)
- 50 Hertz (HZ)
- SINGLE PHASE
- LCD-LED Combo Display
- STEEL
- 0 C to 40 C Celsius (oC)
- Approximate Size & Weight (Online UPS 3 KVA with Internal Batteries
- BLACK
Microtek 3 KVA Online UPS with Internal batteries Trade Information
- 7 Days
Product Description
Microtek Online UPS 3 KVA With Internal Batteries
Key Specifications:
Core Power Ratings
-
Rated Capacity: 3 KVA / approx. 2700 W output
-
Type: Online Double-Conversion UPS (pure sinewave) cleans and conditions power continuously.
-
Phase: Single-phase input & output.
Input
-
Input Voltage Range:
Load <50 118 V to 295 V AC (5 V)
Load >50 160 V to 295 V AC (5 V) -
Input Frequency Range: 4070 Hz
-
Power Factor at Full Load: 0.99
Output
-
Output Voltage: 208 V / 220 V / 230 V / 240 V AC selectable
-
Output Frequency:
Synchronized Range: 4753 Hz or 5763 Hz
Battery Mode: 50 Hz 0.1 Hz or 60 Hz 0.1 Hz -
Waveform: Pure Sinewave
-
THD: 2 % (linear load), 4 % (non-linear load)
-
Crest Factor: 3:1 (max)
Battery (Internal)
-
Battery Voltage: 72 V DC (typically 6 7 AH sealed lead-acid SMF batteries inside)
-
Charging Current: 1.5 A (built-in charger)
-
Backup Time: Varies based on connected load (shorter at high loads; usually minutes for full load) estimate varies by usage.
-
Battery Type: Sealed Lead Acid (maintenance-free)
Performance & Protection
-
Zero Transfer Time: AC Battery instant switchover
-
Inverter to Bypass Transfer: < 4 ms
-
Overload Handling: > 110 % for 30 s, > 150 % triggers immediate bypass/alarms
-
Short Circuit Protection: Trips safely with alarms
-
Efficiency: 85 %92 %
Display & Communication
-
LCD Display: Shows input/output voltage, battery state, load level, and status.
-
Communication Interfaces: RS232 (standard), optional SNMP for network monitoring.
Physical & Other
-
Noise Level: < 50 dBA @ 1 m (fan-controlled)
-
Weight: 27 30 kg (varies by model/pack)
-
Dimensions: 19 42.1 31.8 cm (typical)
-
Warranty: 2 years electronics, 1 year battery (varies by seller)
What This Means for You
Online UPS with pure sinewave output best for sensitive equipment (PCs, servers, network gear).
Internal batteries included no need for external battery bank.
Backup time depends on load higher loads will drain internal batteries faster.
If you'd like, I can also estimate expected backup time
| Specification | Details |
|---|
| Model / Series | Microtek Online UPS 3 KVA (72 V In-Built Battery) |
| Rated Capacity | 3 KVA / 2700 W |
| Topology | Double-conversion Online UPS (True Sine Wave) |
| Input Phase | Single Phase (1 Ph in / 1 Ph out) |
| Input Voltage Range | 118 V 295 V ( 5 V) for loads <50%; 160 V 295 V ( 5 V) for loads >50% |
| Input Frequency | 40 Hz 70 Hz |
| Output Voltage Range | 208 / 220 / 230 / 240 V AC |
| Output Frequency | 50 Hz 0.1 Hz (Battery Mode) |
| DC Battery Voltage | 72 V DC (6 7 Ah internal batteries) |
| Battery Type | Sealed Lead-Acid (SMF VRLA) internal batteries |
| Charging Current | 1.5 A 9.5 A (depending on model config) |
| Waveform | Pure Sine Wave |
| Transfer Time | AC Battery: ZERO; Inverter Bypass: < 4 ms |
| Efficiency | 85 % 92 % |
| Power Factor | 0.99 @ full load |
| THD | 2 % (Linear Load) / 4 % (Non-Linear Load) |
| Crest Factor | 3:1 |
| Protections | Short-circuit, overload, over-temp, over-voltage cut-off |
| Display/Interface | LCD/LED + RS232 / SNMP (optional) |
| Noise Level | < 50 dB @ 1 m |
| Typical Dimensions | 42 19 32 cm (varies by seller) |
| Weight | 30 kg (approx.) |
| Warranty | 2 Years on electronic + 1 Year on battery |
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+

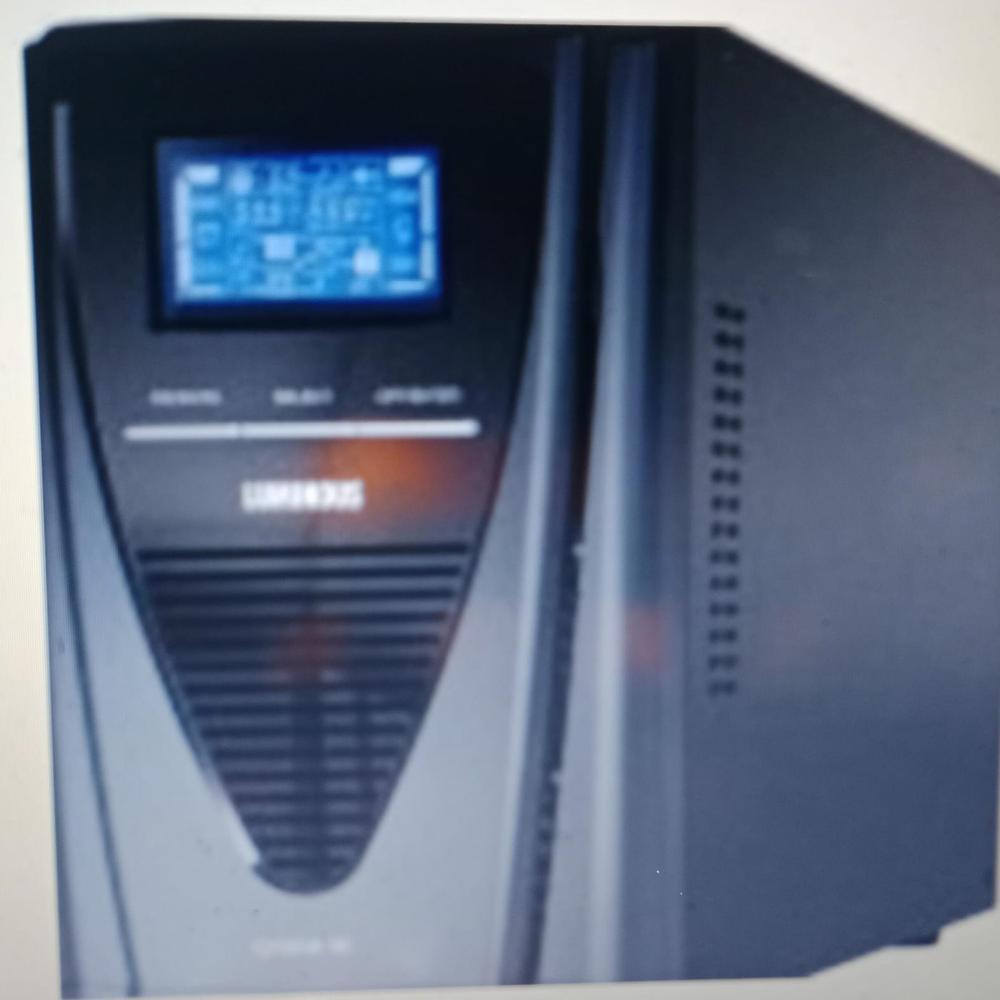

Other Products in 'Online UPS' category
