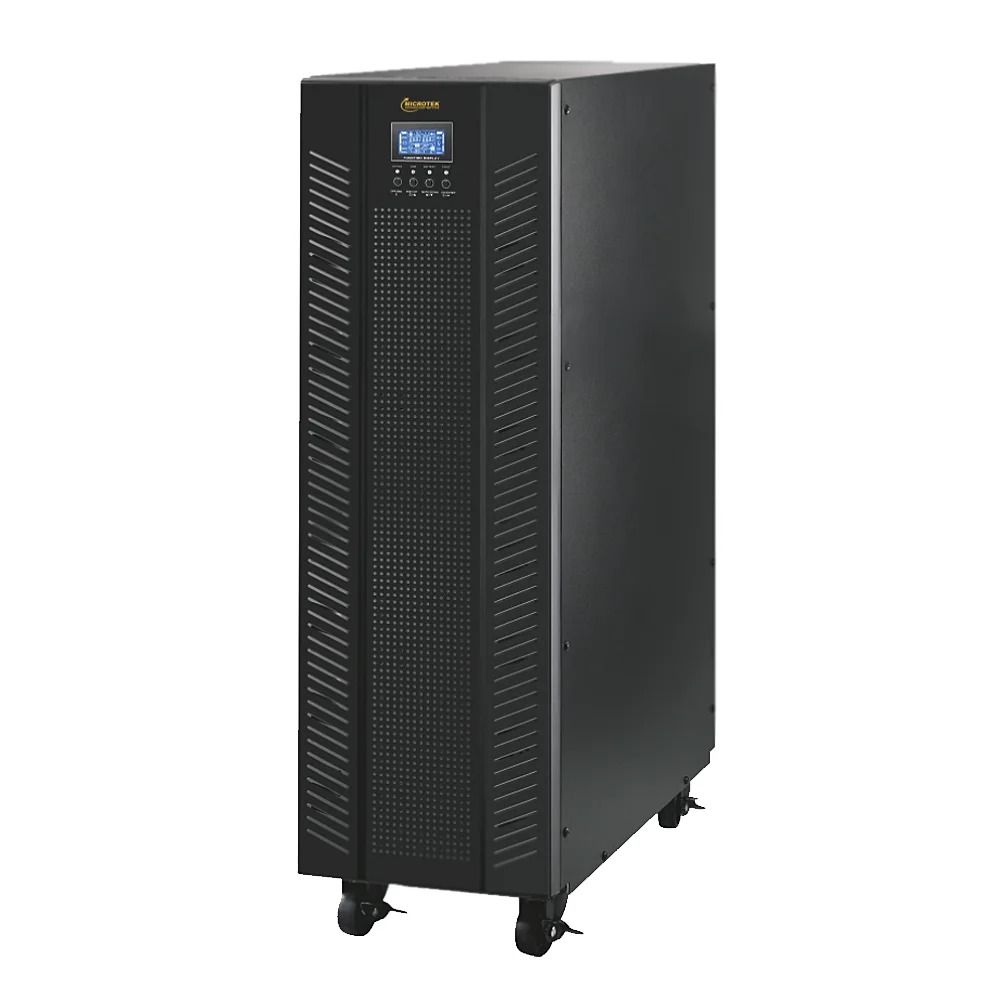

MICROTEK 6KVA ONLINE UPS WITH EXTERNAL BATTERIES

Product Description

The Microtek 6 KVA 192 V Max+ Online UPS is a true online, double-conversion UPS designed to provide continuous, stable, and pure sine wave power to critical loads such as servers, networking equipment, computers, ATMs, lab instruments, and office systems. It delivers 6 KVA / 4800 W power capacity with very high reliability, making it ideal for environments with frequent voltage fluctuations or frequent power interruptions.

Key Features

• True Double-Conversion Online Technology: Ensures that incoming AC power is fully converted to DC and then back to AC, providing a pure sine wave output thats clean and stable ideal for sensitive electronics.

• High Efficiency: Up to 94 % efficiency in AC mode, with good battery mode performance.

• Wide Input Voltage Range: Works reliably across wide mains voltage fluctuations (around 110 300 VAC), protecting connected systems even in unstable electrical conditions.

• External Battery Support: Designed to work with 1620 external VRLA/SMF batteries, so you can choose battery capacity based on how much backup time you want.

• Zero Transfer Time: Provides instant switchover to battery power during mains failure without interruption or flicker.

• Smart Controls & Monitoring: LCD display shows status like input/output voltage, frequency, load level, and battery status. Many models support RS-232/USB and optional SNMP for remote monitoring.

• Protection Features: Built-in protection against surges, overload, over-voltage cut-off, short circuits, and temperature issues helps safeguard both the UPS and connected devices.

• Generator Compatibility: Supported on many models, allowing seamless integration with standby generators during long outages.

How It Works (Simplified)

During normal mains power, the UPS conditions and stabilizes the incoming electricity while charging the connected battery bank. If mains power fails, the unit switches instantly (zero transfer time) to battery-powered output, ensuring your equipment stays on without interruption ideal for mission-critical systems.

Typical Uses

Servers & networking equipment
Office computers & peripherals
Billing and POS systems
Telecom hardware
Laboratory and test equipment
Industrial control systems
