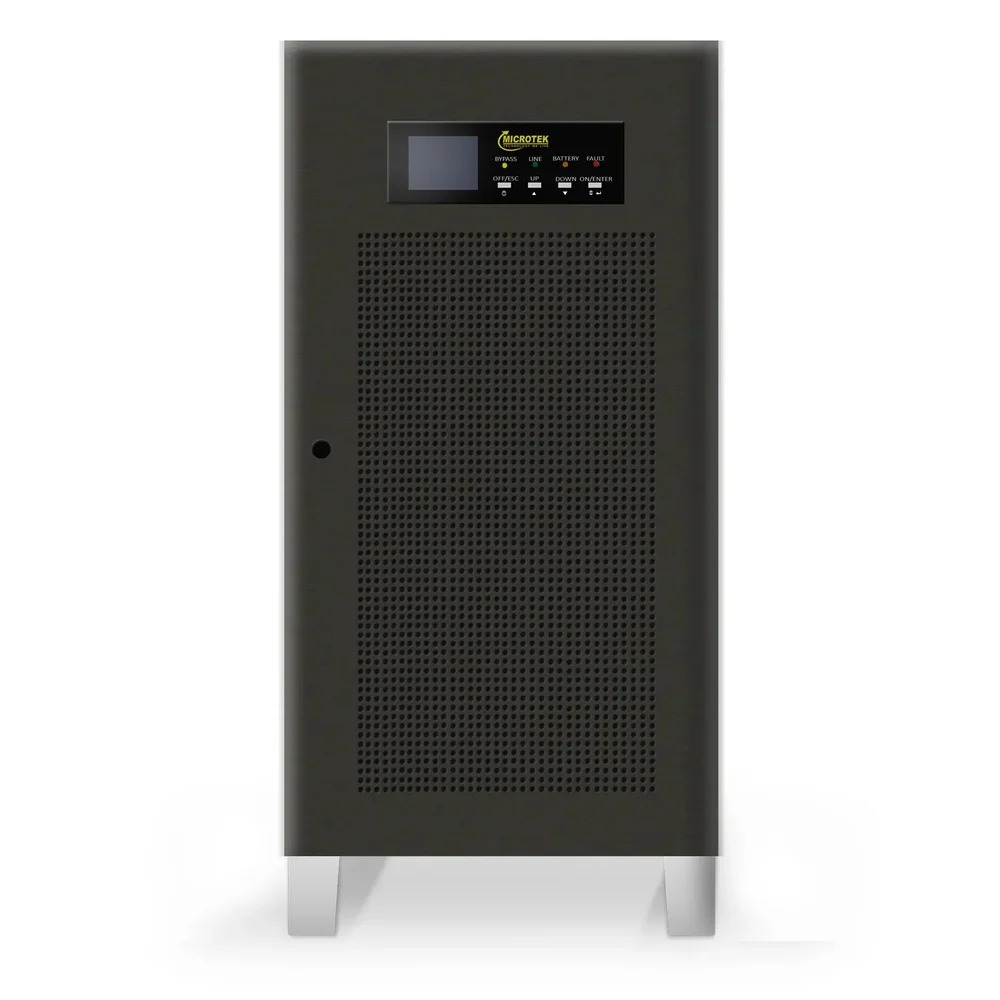

MICROTEK 20 KVA ONLINE UPS 3 PHASE IN 3 PHASE OUT without isolation transformer super max+30 KVA & 40 KVA HIGH FREQUENCY

Product Description

Product Description Super Max+ Series Online UPS

General Overview
This is a High-Frequency, Double-Conversion Online UPS designed for true 3-phase in 3-phase out power backup without an isolation transformer. These UPS systems are built to protect sensitive equipment (servers, industrial machines, telecom racks, datacenters, etc.) from power failures and voltage fluctuations by providing clean, stable, uninterrupted power.

Core Technology & Operation

Double-Conversion Online Topology
The UPS always runs the load from its inverter meaning power is first converted from AC DC AC, giving a consistent pure sinewave output with almost zero transfer time.

DSP + IGBT Power Stage
Uses Digital Signal Processing (DSP) and IGBT modules in the PFC (power factor correction) and inverter for higher efficiency, lower distortion, and stronger handling of non-linear loads.

Active Power Factor Correction
Improves input current quality and reduces stress on electrical infrastructure unity output power factor at full load.

Electrical Performance

Input
3-Phase input typically 3400 VAC (3Ph+N)
Wide input voltage tolerance to handle unstable mains
Wide frequency acceptance (4654 Hz or 5664 Hz)

Output
Pure 3-phase output, same as the input voltage level
Excellent voltage regulation (1 % during battery mode)
Frequency stable at 50 Hz 0.1 Hz (or 60 Hz 0.1 Hz)

Protection & Stability Features

Surge & Overvoltage Protection guards load against spikes
Short-Circuit & Overload Protection automatic load protection
Generator Compatible can work smoothly with standby gensets
Emergency Power Off (EPO) feature
Active & Static Bypass switches for service & maintenance

Displays & Communication

LCD / Touch Panel Display
Shows real-time info like load percentage, battery status, voltages, frequencies, and faults.

Communication Ports
USB, RS-232 and optionally SNMP for remote monitoring & integration with network tools.

Battery & Charging

External battery bank (batteries not built into UPS)
3-stage extendable charging design for optimized battery health and longer runtime
Battery count typically 3240 units (configurable)
Adjustable charge current (e.g., 1 12 A) depending on model and setup

Physical & Installation Notes

Robust industrial design often tower form factor
Capable of supporting run times from 5 min up to 10 hrs or more with larger external batteries
Workable in a range of environments (up to 40 C, moderate humidity)

Why Choose Super Max+ UPS?

24/7 Critical Power Support Keeps essential loads alive during outages
Clean Power Output Protects sensitive electronics from surges and dips
Generous Input Tolerance Works under unstable grid conditions
Extendable Battery Runtime Tailor backup time based on needs
Remote Monitoring Ready Integrates with SNMP/USB systems for IT visibility
