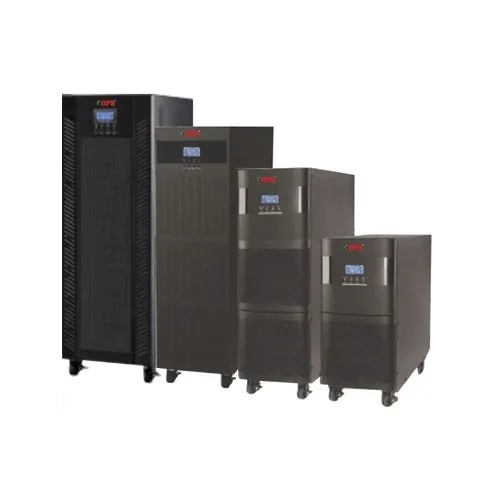

BPE (GT3305L20) 5KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

Name: BPE (GT3305L20) 5KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 75000.0 INR
Availability: InStock

75000.0 INR/Piece

Get a Price/Quote

Product Details:

Power Rating 5KVA
Product Type BPE (GT3305L20) 5KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Standard BIS, IEC 62040 series, CE, EAC
Frequency (MHz) 50 Hertz (HZ)
Protection IP20
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GT3305L20) 5KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Piece
Price 75000.0 INR/Piece

BPE (GT3305L20) 5KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Usage BACKUP
Features Core Technology True online double-conversion UPS (continuous power, zero transfer time) Advanced DSP (Digital Signal Processing) control for high performance Pure sine wave output for sensitive equipment
Standard BIS, IEC 62040 series, CE, EAC
Rated Voltage 380 / 400 / 415 V AC (3-Phase) Volt (V)
Frequency (MHz) 50 Hertz (HZ)
Material STEEL
Rated Current 7.5 Ampere (amp)
Power Rating 5KVA
Phase 3:3 PHASE
Product Type BPE (GT3305L20) 5KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Cable Type Copper, XLPE/PVC insulated
Protection IP20
Display Type Touch LCD Panel
Operating Temperature 0 40 C Celsius (oC)
Size STANDARD
Usage & Applications POWER SUPPLTY
Warranty 1 YEAR
Weight 30KG Kilograms (kg)
Frequency 50 Hertz (HZ)
Dimension (L*W*H) 826 592 250 mm Millimeter (mm)
Color BLACK

BPE (GT3305L20) 5KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The BPE GT3305L20 is a three-phase input / three-phase output (3:3) industrial online UPS system designed to provide continuous, clean, and uninterrupted power for critical equipment. It uses double-conversion technology, meaning the load is always powered through the UPS inverter, eliminating any transfer delay during power failure

Technical Specifications Table

Specification	Details
Model	GT3305L20
Capacity	5 kVA
Output Power	4 kW (PF 0.8)
Topology	True Online Double Conversion
Phase Configuration	3 Phase Input 3 Phase Output
Input Voltage	380415 V AC
Input Voltage Range	304 477 V AC
Input Frequency	50/60 Hz
Input Power Factor	> 0.99
Output Voltage	400 V AC (1%)
Output Voltage Options	380 / 415 V AC
Output Frequency	50/60 Hz
Output Waveform	Pure Sine Wave
Voltage Distortion (THD)	<3% (linear load), <5% (non-linear)
Efficiency	Up to 99%
Transfer Time	0 ms (no interruption)
Crest Factor	3:1
Overload Capacity	125% (10 min), 150% (1 min)
Bypass	Built-in Maintenance Bypass
Parallel Capability	Yes (expandable)
Input/Output Connection	Hardwired (3P + N + G)
Battery Type	External SMF / VRLA
Battery DC Bus	384 480 V DC
Battery Configuration	Depends on backup requirement
Display	Touch LCD Panel
Communication	Optional SNMP, Interface ports
Alarms	Audible & visual alerts
Operating Temperature	0 40C
Humidity	0 95% RH
Protection Class	IP20
Dimensions (HxWxD)	826 592 250 mm
Weight	30 kg
Standards/Compliance	BIS, IEC 62040 series, CE, EAC
Protection Features	Overload, short circuit, surge protection

WARRANTY :- 1YEAR
Notes

Uses external battery bank, so backup time is fully customizable
Designed for industrial / commercial applications
Requires 3-phase electrical infrastructure
Provides zero downtime power for critical loads

Advanced Double-Conversion Technology

Utilizing core true online double-conversion UPS technology, the BPE GT3305L20 ensures that power to connected equipment remains seamless and free from interruptions, regardless of input fluctuations. This architecture completely isolates sensitive loads from instability, delivering pure sine wave output with zero transfer time. Advanced DSP (Digital Signal Processing) further enhances performance and system reliability.

User-Friendly Interface and Safety Features

This UPS comes with a touch LCD panel that displays real-time system status, making it easier to manage and monitor power. Constructed from high-quality steel and protected with an IP20 rating, the device is both durable and safe for indoor use. Compliance with international standards such as BIS, IEC 62040, CE, and EAC ensures operational reliability and safety for critical applications.

Flexible Configuration and Wide Application

Designed for use in various industries and commercial setups, the BPE GT3305L20 supports external batteries for scalable backup. With a three-phase input and output design and copper, XLPE/PVC-insulated cabling, the UPS fits standard installation requirements. Suitable for power supply to data centers, manufacturing plants, and sensitive computing equipment, it operates efficiently in ambient temperatures from 0 to 40C.

FAQ's of BPE (GT3305L20) 5KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY:

Q: How does true online double-conversion technology benefit my equipment?

A: True online double-conversion technology provides continuous power by converting incoming AC to DC and then back to clean AC, preventing interruptions and protecting sensitive equipment from voltage fluctuations and power disturbances.

Q: What is the rated power capacity and input/output phase configuration for the GT3305L20 UPS?

A: The UPS has a power rating of 5KVA and operates in a 3:3 phase configuration, handling both input and output at 380/400/415V AC, making it suitable for three-phase power supply applications.

Q: When should I use the BPE GT3305L20 UPS in my facility?

A: This UPS is ideal for environments where critical systems, servers, or industrial equipment require uninterrupted, stable power, such as data centers, manufacturing, and hospital operations. Use it whenever continuous power is essential.

Q: Where can I install this UPS, and what are its physical dimensions?

A: The unit is designed for standard indoor installations with IP20 protection. Its dimensions are 826mm (L) x 592mm (W) x 250mm (H), permitting integration into existing server rooms or power control areas.

Q: What process is involved in setting up this UPS for operation?

A: Installation involves connecting the input and output cables (copper, XLPE/PVC insulated), configuring the external battery system, and initializing the system via the touch LCD panel. Professional installation by authorized technicians is recommended for safety and compliance.

Q: How does the touch LCD panel assist in daily usage and maintenance?

A: The touch LCD panel displays real-time status, power metrics, and alerts, allowing users to easily monitor system health, manage power events, and perform regular maintenance checks efficiently.

Q: What warranty and certifications accompany this UPS model?

A: The BPE GT3305L20 UPS comes with a 1-year warranty and complies with key international standards, including BIS, IEC 62040 series, CE, and EAC, ensuring product reliability and regulatory compliance.
