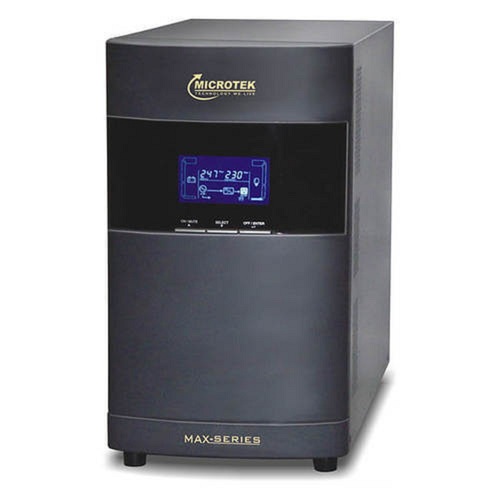

Microtek 2 KVA Online UPS with Inbuilt Battery

Name: Microtek 2 KVA Online UPS with Inbuilt Battery
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 28000.0 INR
Availability: InStock

28000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type UPS
Power Rating 2KVA / 1800 Watts
Rated Voltage 110V AC to 300V AC Volt (V)
Frequency (MHz) 50 Hertz (HZ)
Protection IP57
Usage BACKUP
Size Standard
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Microtek 2 KVA Online UPS with Inbuilt Battery Price And Quantity

Price 28000.0 INR/Unit
Minimum Order Quantity 1 Piece

Microtek 2 KVA Online UPS with Inbuilt Battery Product Specifications

Weight 15 Kilograms (kg)
Material STEEL
Frequency (MHz) 50 Hertz (HZ)
Usage BACKUP
Rated Current 1800 Watt (w)
Usage & Applications Power Supply
Power Rating 2KVA / 1800 Watts
Rated Voltage 110V AC to 300V AC Volt (V)
Protection IP57
Phase SINGLE
Warranty 01 Year
Size Standard
Color BLACK
Frequency 50 Hertz (HZ)
Product Type UPS

Microtek 2 KVA Online UPS with Inbuilt Battery Trade Information

FOB Port NEW DELHI
Payment Terms Cash Advance (CA), Cash in Advance (CID)
Supply Ability 10 Piece Per Day
Delivery Time 7 Days
Sample Policy Contact us for information regarding our sample policy
Packaging Details BOX
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

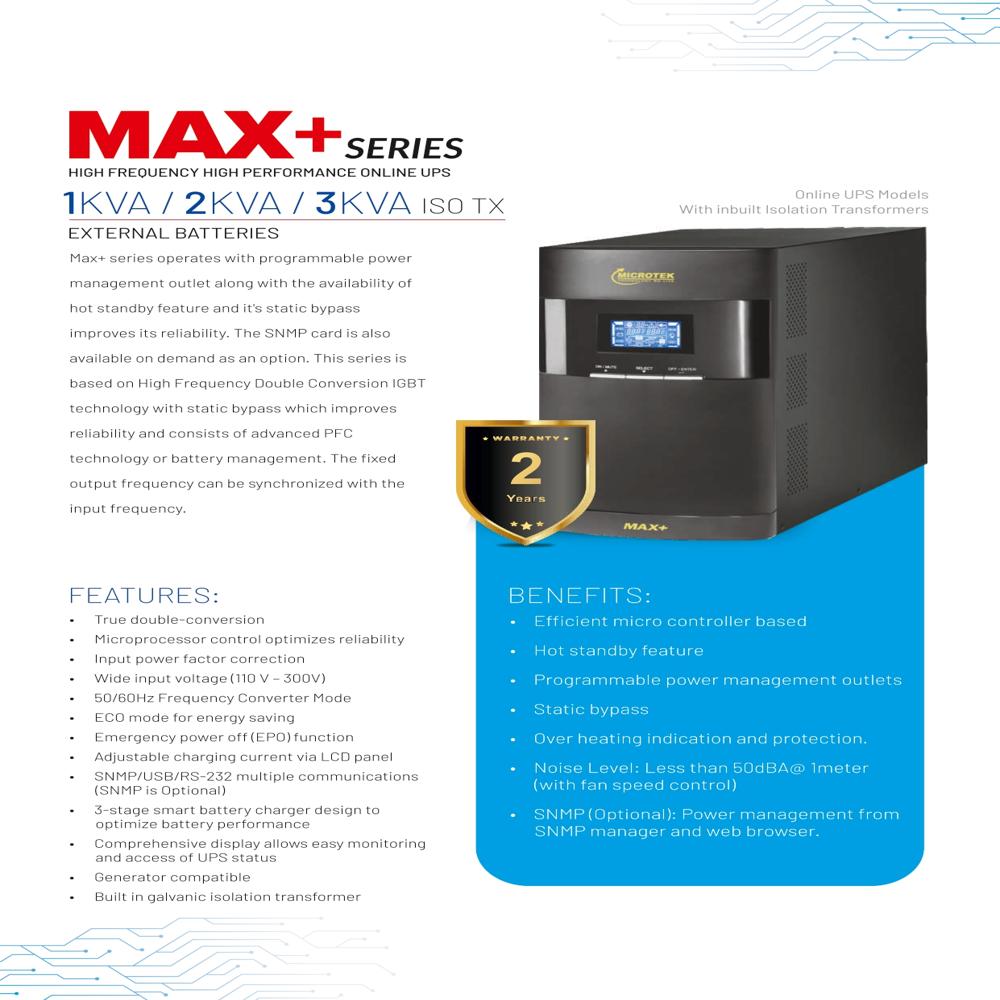

TheMicrotek 2 kVA online UPS, part of theMAX+ series, isa high-frequency, double-conversion system that provides uninterrupted, pure power for sensitive electronic applications. It typically has a power rating of1800 Wattsand operates on a72V DCbattery system, often with in-built batteries.

Key Features and Technology

Double Conversion Technology: The online UPS system converts incoming AC power to a stable DC and then back to a clean, stable AC output, ensuring a consistent and reliable power supply free from fluctuations, which protects connected devices from "bad electricity".
Pure Sinewave Output: It produces a pure sinewave output, which is essential for the safe and efficient operation of sensitive electronic equipment like computer networks, servers, and medical devices.
IGBT & Microcontroller Based: The unit utilizes high-end IGBT (Insulated Gate Bipolar Transistor) and microcontroller-based design for superior efficiency and reliable performance.
Wide Input Voltage Range: The UPS is designed to work within a wide input voltage range (e.g., 110V to 300V for load <50% as perMicrotek)and is specifically suited for Indian power conditions, making it generator compatible.
Advanced Battery Management: Features like Advanced Battery Management (ABM) and automatic battery charging in UPS off mode help in optimizing battery life and ensuring quick charging.

Technical Specifications

According to Microtek's official specifications for theONLINE UPS 2KVA 1PH:1PH 72V-IB MAX+

model:

Specification	Details
Rated Capacity	2 KVA / 1800 Watts
Input Voltage Range	110 300 V ( 5 %) for load <50%
Output Voltage Range	208 / 220 / 230 / 240 V AC
Waveform (Battery Mode)	Pure Sinewave
Transfer Time	Zero transfer time from AC mode to battery mode
DC Voltage	72 V (typically 6 x 12V, 7AH in-built batteries)
Display	LCD Display for status and fault indication
Communication Interface	Smart RS232 communication, SNMP card slot (optional)

Intended Applications

The Microtek 2 kVA online UPS is best suited for critical applications where a stable, uninterrupted power supply is vital. These include:

Computer networks and servers
Cyber cafes and labs
ATM machines
Medical and other voltage-sensitive equipment

It provides protection against power outages, voltage fluctuations, and short circuits
