Luminous

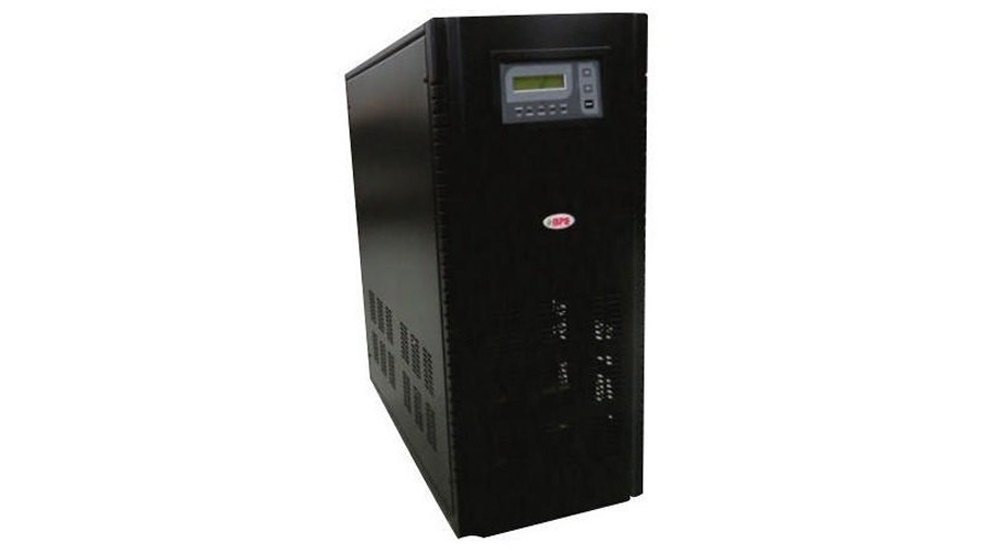

BPE (HXi3110L20) 10KVA ONLINE UPS INBUILT Isolation Transfarmer

87600.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (HXi3110L20) 10KVA ONLINE UPS INBUILT Isolation Transfarmer
Power Rating 10 KVA
Standard IEC 62040-1 (UPS safety)
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, overheat, low battery
Usage backup
Size standard
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (HXi3110L20) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Price And Quantity

Price 87600.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (HXi3110L20) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Product Specifications

Frequency 50 Hertz (HZ)
Usage & Applications power supply
Cable Type Type: Copper, multi-core power cable
Size standard
Weight 117 Kilograms (kg)
Protection Overload, short circuit, overheat, low battery
Frequency (MHz) 50 Hertz (HZ)
Usage backup
Phase 1 phase
Standard IEC 62040-1 (UPS safety)
Operating Temperature 0-40oc Celsius (oC)
Material steel
Product Type BPE (HXi3110L20) 10KVA ONLINE UPS INBUILT Isolation Transfarmer
Color black
Power Rating 10 KVA
Dimension (L*W*H) Parameter Value Width (W) 350 mm Depth (D) 650 mm Height (H) 795 mm Millimeter (mm)
Rated Current 43.5A Ampere (amp)
Display Type LCD status panel
Features True Online Double Conversion UPS
Warranty 1 year
Rated Voltage 380V / 400V / 415V AC Volt (V)

BPE (HXi3110L20) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Trade Information

Delivery Time 7 Days

Product Description

Description: BPE HXi3110L20 10KVA Online UPS (with Inbuilt Isolation Transformer)

The BPE HXi3110L20 10KVA Online UPS is a high-capacity industrial-grade uninterruptible power supply designed to provide continuous, clean, and stable power for critical loads like servers, medical equipment, telecom systems, and industrial machines.

It is a true online double-conversion UPS, meaning it constantly converts incoming AC power to DC and then back to AC, ensuring zero transfer time (0 ms) during power failure

Specification Table

Specification	Details
Model	HXi3110L20
Capacity	10 KVA / 8 kW
UPS Type	Online Double Conversion UPS
Input Phase	3 Phase Input (3P+N+PE)
Output Phase	1 Phase Output
Output Voltage	220V / 230V / 240V AC (configurable)
Frequency	50/60 Hz (auto sensing)
Waveform	Pure Sine Wave
Power Factor	0.8 (standard)
Efficiency	Up to 94% (online mode)
Transfer Time	0 ms (no break power)
THD (Output)	13% (low distortion)
Isolation Transformer	Inbuilt (galvanic isolation)
Battery Voltage	192V DC (external battery bank)
Battery Type	SMF / VRLA (external batteries)
Overload Capacity	Up to 125% (short duration)
Protection	Overload, short circuit, over temperature, battery low/high
Cooling	Forced air cooling (fan-based)
Display	LCD display (load, voltage, battery status)
Communication	RS232 / USB / SNMP (optional)
Backup Type	Depends on external battery capacity

warranty :- 1year
Simple Summary

The BPE HXi3110L20 is a 10KVA industrial online UPS with inbuilt isolation transformer, designed for zero downtime power backup, high safety, and clean power output for critical equipment like servers, hospitals, and industrial machines.

If you want, I can also make:

battery calculation (how many hours backup you will get)
full system cost (UPS + batteries + installation)
comparison with other 10KVA UPS models

Just tell me
