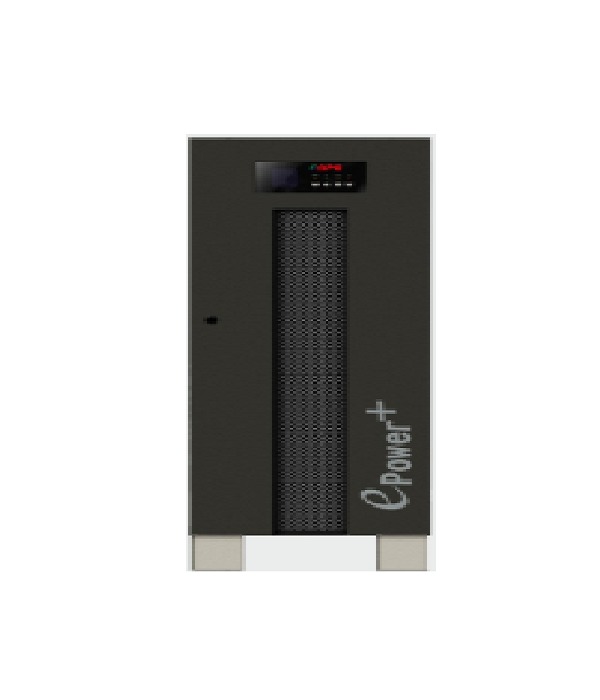

BPE (GTM3390L32) 90KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

Name: BPE (GTM3390L32) 90KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 450000.0 INR
Availability: InStock

450000.0 INR/Piece

Get a Price/Quote

Product Details:

Product Type BPE (GTM3390L32) 90KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 90KVA
Standard IEC/EN 62040-1 (UPS Safety Requirements)
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, low battery, fault alarms
Usage BACKUP
Size Parameter Details Enclosure Type Floor-standing cabinet Width ~650 800 mm Depth ~800 900 mm Height ~1700 2000 mm Weight ~450 650 kg (UPS only, without batteries) Installation Type Indoor, ventilated electrical room
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GTM3390L32) 90KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 450000.0 INR/Piece

BPE (GTM3390L32) 90KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Phase 3:3 PHASE
Power Rating 90KVA
Frequency (MHz) 50 Hertz (HZ)
Material STEEL
Product Type BPE (GTM3390L32) 90KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Rated Current 130 Amps Ampere (amp)
Dimension (L*W*H) Parameter Details Enclosure Type Floor-standing cabinet Width ~650 800 mm Depth ~800 900 mm Height ~1700 2000 mm Weight ~450 650 kg (UPS only, without batteries) Installation Type Indoor, ventilated electrical room Millimeter (mm)
Cable Type Copper, XLPE insulated, armoured (if outdoor)
Weight 650 Kilograms (kg)
Standard IEC/EN 62040-1 (UPS Safety Requirements)
Size Parameter Details Enclosure Type Floor-standing cabinet Width ~650 800 mm Depth ~800 900 mm Height ~1700 2000 mm Weight ~450 650 kg (UPS only, without batteries) Installation Type Indoor, ventilated electrical room
Frequency 50 Hertz (HZ)
Features True Online Double Conversion Technology (continuous clean power)
Warranty 1 YEAR
Color BLACK
Display Type LCD / LED status panel
Usage BACKUP
Operating Temperature 0 C to 50 C Celsius (oC)
Rated Voltage 380 / 400 / 415 V AC Volt (V)
Usage & Applications POWER SUPPLY
Protection Overload, short circuit, low battery, fault alarms

BPE (GTM3390L32) 90KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The BPE GTM3390L32 90 kVA Online UPS is a high-capacity three-phase industrial uninterruptible power supply system designed for critical power backup applications. It uses true double-conversion online technology, ensuring continuous, clean, and stable power without interruption for connected loads.

This UPS is engineered for demanding environments such as data centers, hospitals, telecom infrastructure, manufacturing plants, and large IT facilities, where even a millisecond of power failure is unacceptable.

Specification Table BPE GTM3390L32 (90 kVA)

Specification	Details
Model	GTM3390L32
Capacity	90 kVA
Power Output	81 kW (PF 0.9)
Phase	3 Phase Input / 3 Phase Output (3:3)
Technology	True Online Double Conversion UPS
Input Voltage	380 / 400 / 415 V AC
Input Frequency	50 / 60 Hz (Auto sensing)
Input Power Factor	0.99
Output Voltage	380 / 400 / 415 V AC
Output Voltage Regulation	1%
Output Frequency	50 / 60 Hz 1% (sync mode)
Output Waveform	Pure Sine Wave
Output Power Factor	0.9
Crest Factor	3:1
Efficiency	Up to 95.5% (online mode)
Transfer Time	0 ms (No break)
Harmonic Distortion (THDi/THDv)	23%
Overload Capacity	125% for 10 min, 150% for 1 min
Battery Type	External (VRLA / SMF / Tubular)
Battery Configuration	3240 batteries (typical)
DC Bus Voltage	192V / 204V / 216V / 228V / 240V configurable
Parallel Operation	Yes (up to 4 units)
Display	LCD / LED status panel
Communication	RS232 / SNMP / Modbus (optional)
Protection	Overload, short circuit, low battery, fault alarms
Cooling	Forced air cooling
Noise Level	65 dB
Operating Temp	0C to 50C
Protection Class	IP20

WARRANTY :- 1YEAR
Quick Summary

Heavy-duty industrial 90 kVA UPS
Designed for critical 3-phase loads
Works with external battery bank
Provides zero-break power backup
Suitable for data centers, hospitals, factories

If you want, I can also give:
Battery backup time calculation (1 hr / 2 hr / 4 hr)
Exact battery bank sizing (AH & quantity)
Load chart (how many ACs, servers, machines it can run)
