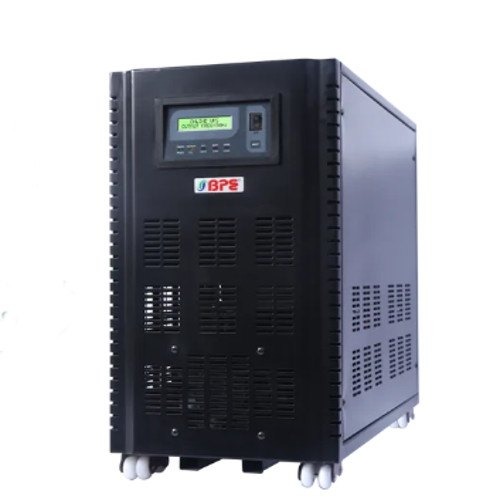

BPE (PB1105B16) 5KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer

49324.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 5 kVA
Product Type BPE (PB1105B16) 5KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer
Standard PB1105B16
Frequency (MHz) 50Hz Hertz (HZ)
Protection Overload, short circuit, under/over voltage
Usage backup
Size Parameter Details Width (W) ~250 mm Depth (D) ~550 mm Height (H) ~680 mm Weight ~51 kg
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (PB1105B16) 5KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer Price And Quantity

Minimum Order Quantity 1 Unit
Price 49324.0 INR/Unit

BPE (PB1105B16) 5KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer Product Specifications

Warranty 1 year
Rated Current 17.4 A Ampere (amp)
Color black
Standard PB1105B16
Usage & Applications power supply
Size Parameter Details Width (W) ~250 mm Depth (D) ~550 mm Height (H) ~680 mm Weight ~51 kg
Operating Temperature 0 C to 40 C Rankine
Cable Type Copper, FRLS / FRLSH insulated
Weight 51 Kilograms (kg)
Power Rating 5 kVA
Product Type BPE (PB1105B16) 5KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer
Frequency (MHz) 50Hz Hertz (HZ)
Features 5 kVA
Display Type LCD + LED indicators
Usage backup
Frequency 50Hz Hertz (HZ)
Material steel
Dimension (L*W*H) Parameter Details Width (W) ~250 mm Depth (D) ~550 mm Height (H) ~680 mm Weight ~51 kg Millimeter (mm)
Rated Voltage 220 / 230 / 240V AC Volt (V)
Phase 1 phase
Protection Overload, short circuit, under/over voltage

BPE (PB1105B16) 5KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer Trade Information

Delivery Time 7 Days

Product Description

The BPE PB1105B16 5KVA Online UPS is a high-performance true online double-conversion UPS system designed to deliver uninterrupted, clean, and stable power for sensitive and critical equipment. It is equipped with an inbuilt isolation transformer, ensuring enhanced electrical safety, noise filtering, and protection from voltage fluctuations.

This UPS provides pure sine wave output with precise voltage regulation, making it suitable for IT systems, industrial automation, medical equipment, and telecom applications.

The system operates on a 192V DC battery bank configuration and supports flexible external battery options depending on backup requirements. It features a high-efficiency IGBT-based inverter system, fast charging capability, and advanced protection against overload, short circuit, and abnormal input conditions.

With its zero transfer time (0 ms), the UPS ensures continuous power without interruption during mains failure, making it ideal for mission-critical environments

BPE PB1105B16 Specification Table

Specification	Details
Model	PB1105B16
Capacity	5 KVA / 4 KW
Type	Online Double Conversion UPS
Phase	Single Phase (1:1)
Input Voltage Range	160V 280V AC
Input Frequency	50Hz 10%
Output Voltage	220V / 230V / 240V 1%
Output Frequency	50Hz 0.1%
Waveform	Pure Sine Wave
Efficiency	Up to 93%
Power Factor	0.8 (Standard), up to 0.9 optional
Isolation Transformer	Inbuilt
Battery Voltage	192V DC
Battery Type	SMF / External battery bank
Charging Current	1A 10A (configurable)
Overload Capacity	110125% for 10 min, higher short-duration support
Transfer Time	0 ms (Online UPS)
THD (Output)	<3%
Display	LCD (Input/Output, Load, Battery status)
Protections	Overload, short circuit, low/high voltage, battery protection
Cooling	Intelligent fan-based cooling
Applications	Server, medical, industrial, CCTV, IT systems

Warraty :- 1year
If you want, I can also make:
Battery backup time chart (with 12V batteries)
Wiring diagram for installation
Comparison with APC / Luminous 5KVA UPS
Price in Delhi market

Just tell me

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

BPE (MF1103L8) 3KVA ONLINE UPS EXTERNAL BATTERY Price : 23000.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Color : BLACK Rated Current : 10.4 A Ampere (amp) Warranty : 1 YEAR Weight : 26.7 Kilograms (kg) Size : STANDARD Product Type : BPE (MF1103L8) 3KVA ONLINE UPS EXTERNAL BATTERY Power Rating : 3 kVA (3000 VA) Frequency (MHz) : 50 Hertz (HZ) Frequency : 50 Hertz (HZ) Usage : BACKUP Material : STAAL Protection : UPS Protection Features BPE 3 kVA MF1103L8 Protection Type Description / Function Overload Protection Automatically disconnects output or switches to bypass if connected load exceeds rated capacity (~3 kVA). Prevents UPS damage. Short Circuit Protection Detects short circuits on the output and immediately disconnects to prevent damage to UPS and connected devices. Overvoltage Protection Input voltage spikes above safe limits are blocked or absorbed to protect sensitive equipment. Undervoltage Protection Prevents UPS from operating at dangerously low voltages which could damage the batteries or internal circuitry. Battery Overcharge / Deep Discharge Protection UPS prevents battery overcharging and stops deep discharge to extend battery life. Phase : SINGLE PHASE Rated Voltage : 220 V / 230 V / 240 V AC Volt (V) Operating Temperature : 0 40 C Celsius (oC) Display Type : Multi function LCD status panel Dimension (L*W*H) : Physical Dimensions (Approx.) Dimension Measurement Maximum Height 399 mm ( 39.9 cm) Maximum Width 192 mm ( 19.2 cm) Maximum Depth 469 mm ( 46.9 cm) Net Weight ~26.7 kg Millimeter (mm) Standard : MF1103L8 Cable Type : The UPS is designed for single phase mains (1 Ph + N + PE) that means live (L), neutral (N), and earth (PE) wires. Features : Main Features BPE 3 kVA Online UPS (MF1103L8) True Online Double Conversion Technology Provides continuous power conditioning with zero transfer time when mains fails. Delivers a pure sine wave output, ideal for sensitive equipment like servers, computers, and networking devices. Wide Operating Range Wide input voltage range (110 285 V AC) tolerates major fluctuations without switching to battery unnecessarily. Maintains stable output voltage at 220 / 230 / 240 V 1 %. High Performance & Efficiency >90 % efficiency at full load ensures low losses and lower operational cost. Low output distortion (THD <3 %) & crest factor 3:1 support diverse loads smoothly. Battery Support External battery bank with DC bus options 72 V or 96 V (batteries sold separately). Supports battery capacities from 7 Ah to 100 Ah customizable backup time. Up to 90 % battery recharge within typical timeframe (depends on charger & battery). Display & Monitoring Multi function LCD control panel displays input/output voltages, frequency, load level, battery status and faults. Supports RS 232 and Smart Slot (SNMP) communication for remote monitoring. Integrated Protection Built in surge protection, overload safety and advanced filtering. Internal bypass (automatic & manual) for maintenance or UPS fault. Audible & visual alarms prioritized by severity. Build & Usability Compact tower form factor with sturdy build. Low audible noise near operation (<50 dB). Designed to work well with generators and solar systems (compatible in broader MF series). Benefits in Real World Use Ideal for servers, workstations, networking gear, office equipment and sensitive electronics because the online design eliminates any interruption during power changes. Flexible external battery option lets you tailor backup time based on your requirements.

Send Inquiry

BPE (MP1102B6) 2KVA ONLINE UPS INBUILT BATTERY Price : 33999.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Color : BLACK Rated Current : 8.7 Amps Ampere (amp) Warranty : 1 YEAR Weight : 25 Kilograms (kg) Size : 3U (Internal battery model) Product Type : BPE (MP1102B6) 2KVA ONLINE UPS INBUILT BATTERY Power Rating : 2 KVA Frequency (MHz) : 40 70 Hz Hertz (HZ) Frequency : 40 70 Hz Hertz (HZ) Usage : BACKUP Material : STEEL Protection : Overload, Short Circuit, Over/Under Voltage, Over Temp, Battery Low Phase : 1 PHASE Rated Voltage : 230V AC Volt (V) Operating Temperature : 0 C to 50 C Celsius (oC) Display Type : LCD Display Dimension (L*W*H) : 438 580 133 mm (3U) Millimeter (mm) Standard : IEC/EN62040, CE, ISO Certified Cable Type : 3Core Power Cable Phase (L), Neutral (N), Earth (E) Features : Advanced Power Technology True Online Double Conversion (VFI) PWM technology for stable and efficient output Delivers pure sine wave power for sensitive device

Send Inquiry

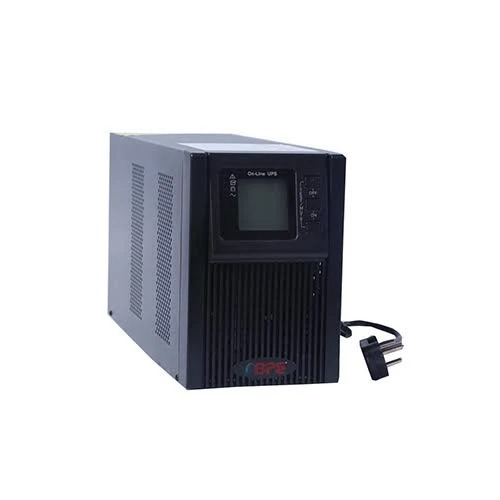

BPE (MP1103L6) 3KVA ONLINE UPS EXTERNAIL BATTERY Price : 31400.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Color : BLACK Rated Current : 10.4 A Ampere (amp) Warranty : 1 YEAR Weight : 10.8 Kilograms (kg) Size : 40 14.4 21.5 cm Product Type : BPE (MP1103L6) 3 KVA ONLINE UPS EXTERNAIL BATTERY Power Rating : 3 kVA (3000 VA) Frequency (MHz) : 50/60 Hz Hertz (HZ) Frequency : 50/60 Hz Hertz (HZ) Usage : BACKUP Material : STEEL Protection : Overload, short circuit, surge, battery low, over temp Phase : SINGLE PHASE Rated Voltage : 160 V to 280 V AC Volt (V) Operating Temperature : 0 45 C Celsius (oC) Display Type : LCD showing voltage, frequency, load, battery status etc. Dimension (L*W*H) : Dimensions (L W H): 469 192 399 mm (millimetres) Millimeter (mm) Standard : IEC/EN62040 series, CE, BIS, RoHS etc. Cable Type : Type: Three core mains power cable rated for single phase AC input (L, N, Earth). Features : Core Power & Protection Features True Online Double Conversion UPS: Provides continuous, clean power with zero transfer time ideal for sensitive equipment and servers. PWM Technology & Pure Sine Wave Output: Ensures stable and distortion free AC power for critical loads. High Input Power Factor: 0.99 at full load for efficient energy use.

Send Inquiry

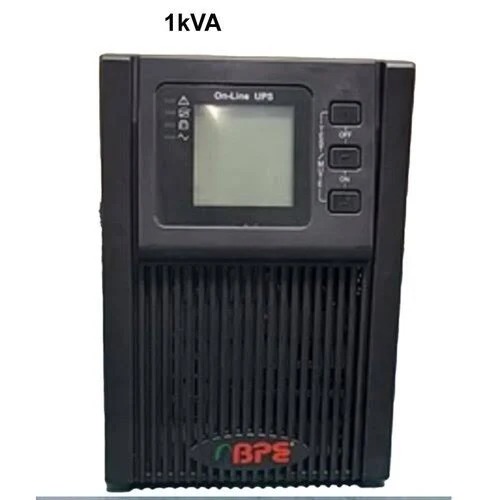

BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price : 10673.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Color : BLACK Rated Current : 800 W Watt (w) Warranty : 1 YEAR Weight : 5.6 Kilograms (kg) Size : Packaged/Cardboard Size: ~14.4 cm 40 cm 21.5 cm Product Type : BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Power Rating : 1 kVA (1000 VA) Frequency (MHz) : 50/60 Hz Hertz (HZ) Frequency : 50/60 Hz Hertz (HZ) Usage : BACKUP Material : STEEL Protection : Overload Protection Prevents damage if connected load exceeds UPS capacity. UPS goes into bypass or alarm mode Phase : Single Phase Rated Voltage : 220 / 230 / 240 V AC Volt (V) Operating Temperature : 0 50 C Celsius (oC) Display Type : LCD (voltage, frequency, mode, load, battery) Dimension (L*W*H) : Approx. External Size (W D H): 144 400 215 mm (mm) Width Depth Height (tower form factor). Millimeter (mm) Standard : IEC 62040 1 Cable Type : 3core flexible copper cable, typically 1.5 mm 2.5 mm depending on installation Connects UPS to singlephase AC mains (Live, Neutral, Earth). Features : True Online Double Conversion Technology Continuously converts incoming AC power to DC and back to AC. Zero transfer time on mains failure no interruption to connected devices.
