Luminous

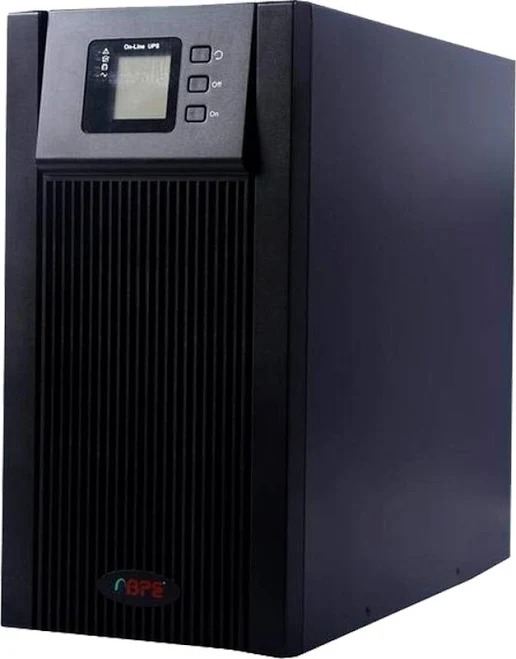

BPE (MP1103B6) 3KVA ONLINE UPS INBUILT BATTERY

25000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 3 kVA (3000 VA)
Product Type BPE (MP1103B6) 3KVA ONLINE UPS INBUILT battey
Standard IEC 62040 1 (Safety requirements for UPS systems), IS 13252 (Indian adaptation for electrical safety)
Frequency (MHz) 40 Hz 70 Hz Hertz (HZ)
Protection
- Overload protection
- Short circuit protection
- Over/Under voltage protection
- Over temperature protection
Usage backup
Size Standard Dimensions (with Internal Battery) Dimension Approx. Size Depth (D) 600 mm Width (W) 440 mm Height (H) 86.5 mm (2U rack height) Weight 29.3 kg (with internal batteries)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MP1103B6) 3KVA ONLINE UPS INBUILT BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 25000.0 INR/Unit

BPE (MP1103B6) 3KVA ONLINE UPS INBUILT BATTERY Product Specifications

Display Type Multi function LCD / LED status display
Power Rating 3 kVA (3000 VA)
Protection
- Overload protection
- Short circuit protection
- Over/Under voltage protection
- Over temperature protection
Phase single phase
Features True Online Double Conversion UPS Continuously converts incoming AC to DC and back to AC for zero transfer time during power failure no flicker, no interruptions.
Frequency (MHz) 40 Hz 70 Hz Hertz (HZ)
Dimension (L*W*H) 438 mm 630 mm 133 mm (WxDxH) Millimeter (mm)
Rated Voltage 220 240 V AC ( Volt (V)
Product Type BPE (MP1103B6) 3KVA ONLINE UPS INBUILT battey
Cable Type Type: 3 core flexible power cable (live, neutral, earth)
Material steel
Usage & Applications power supply
Rated Current 13.0 Ampere (amp)
Operating Temperature 0 C to 40 C Celsius (oC)
Usage backup
Standard IEC 62040 1 (Safety requirements for UPS systems), IS 13252 (Indian adaptation for electrical safety)
Size Standard Dimensions (with Internal Battery) Dimension Approx. Size Depth (D) 600 mm Width (W) 440 mm Height (H) 86.5 mm (2U rack height) Weight 29.3 kg (with internal batteries)
Color black
Weight 30 kg Kilograms (kg)
Frequency 40 Hz 70 Hz Hertz (HZ)
Warranty 1 year

BPE (MP1103B6) 3KVA ONLINE UPS INBUILT BATTERY Trade Information

Delivery Time 7 Days

Product Description

Description BPE 3kVA Online UPS with Inbuilt Battery

What it is:
A 3kVA true online UPS (Uninterruptible Power Supply) designed to provide continuous, stable, and clean AC power to critical electrical equipment (like servers, workstations, networking gear, medical devices, industrial controllers, etc.). Unlike cheaper UPS types, an online UPS constantly runs the connected equipment from its inverter so when mains power fails, there is zero transfer lag and no flicker on output.

Specification Details 3kVA BPE Online UPS with Inbuilt Battery

Specification	Details
Model / Series	MP1103B6 / MF1103B8 (3kVA Online UPS)
Capacity (VA / Watt)	3000VA / ~2700W
Topology	Online DoubleConversion (True Online UPS)
Input Phase	Single Phase (with Earth)
Nominal Input Voltage	200/208/220/230/240VAC
Input Voltage Range	120300VAC at 50% load, 180300VAC at 100% load
Input Frequency Range	40Hz 70Hz
Input Power Factor	0.99 @ Nominal Voltage
Output Voltage	200/208/220/230/240VAC
Output Voltage Regulation	1%
Output Frequency Range	<ul><li>Synchronized to mains: ~4753Hz or ~5763Hz</li><li>Battery mode: 50Hz 0.25Hz or 60Hz 0.15Hz</li></ul>
Power Factor (Output)	0.9
Waveform (Battery Mode)	Pure Sine Wave
THD (Total Harmonic Distortion)	3% (Linear Load); 5% (Nonlinear Load)
Crest Factor	3:1
Transfer Time	Zero (AC to Battery)
Efficiency (ACAC)	90%
Battery Type & Configuration	12V / 9Ah 6 batteries (internal)
DC Battery Voltage	72V nominal (6 12V)
Charging Voltage	82.1VDC 1V
Typical Charging Time	~6hours to ~90% capacity
Configuration	Rack/Tower Convertible
Display & Interface	Multifunction LCD / LED status display
Protection Features	<ul><li>Overload protection</li><li>Shortcircuit protection</li><li>Over/Under voltage protection</li><li>Overtemperature protection</li></ul>
Generator Compatibility	Yes
Physical (Typical)	<ul><li>Dimensions: ~630 438 88mm (Rack 2U)</li><li>Net Weight: ~29.3kg</li></ul>
Ideal Use Cases	Servers, IT equipment, telecom gear, industrial control devices, medical systems, office computers, and networking equipment

warranty :- 1 year
Notes

True online UPS means the unit constantly runs your devices from batteries via an inverter, so there is no interruption (0ms) when mains power fails.
Builtin battery backup typically provides ~510minutes at full load (actual runtime varies with load and battery health).
The unit supports wide input voltage range and is generator compatible for more reliable use in areas with unstable power.
