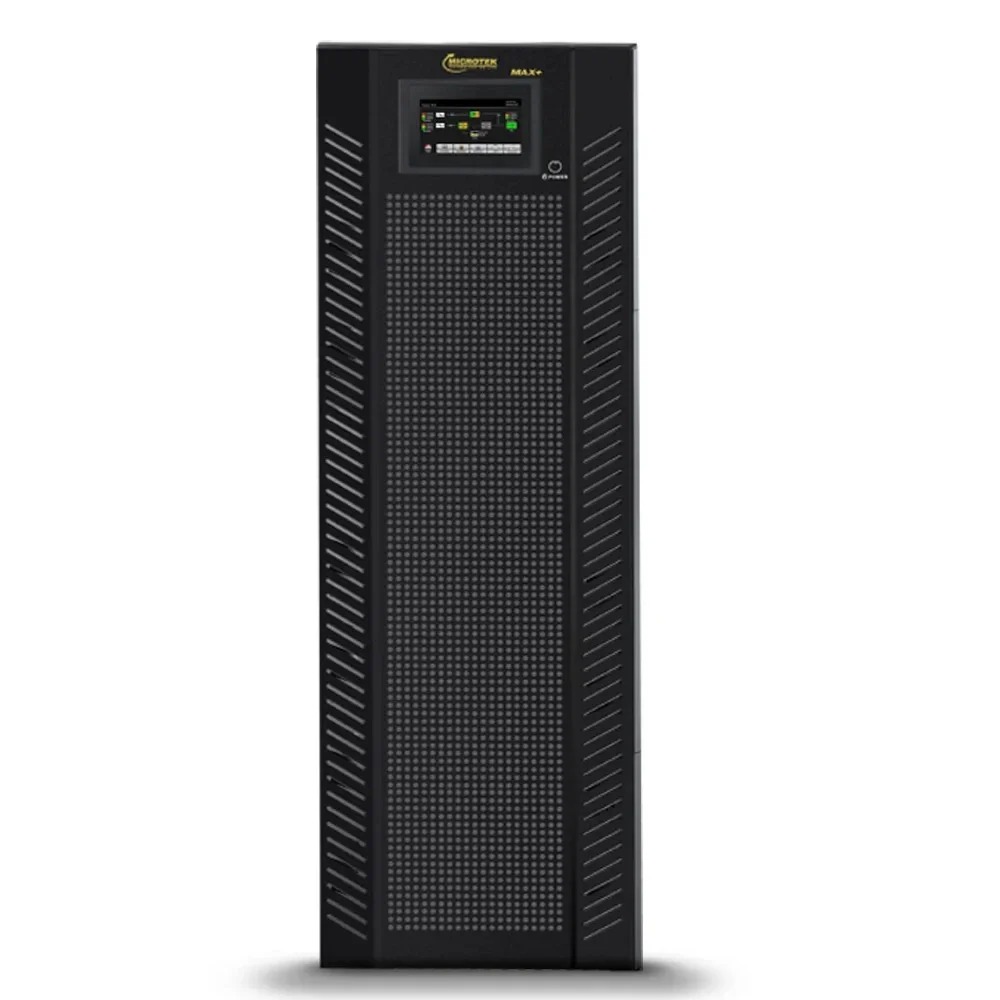

SUPERMAX+80KVA,ONLINE UPS WITH ISO TX AT OUTUPT
Product Details:
- Power Rating 80 KVA
- Product Type ONLINE UPS
- Standard international industrial standards
- Frequency (MHz) 50 Hertz (HZ)
- Protection Overload Protection / Short-Circuit Protection/ Surge Protection/Input Voltage Protection
- Usage BACKUP
- Size 72 cm 79 cm 106 cm (Height Width Depth)
- Click to View more
SUPERMAX+80KVA,ONLINE UPS WITH ISO TX AT OUTUPT Price And Quantity
- 1 Unit
- 729672.0 INR/Unit
SUPERMAX+80KVA,ONLINE UPS WITH ISO TX AT OUTUPT Product Specifications
- BACKUP
- international industrial standards
- STEEL
- 50 Hertz (HZ)
- Overload Protection / Short-Circuit Protection/ Surge Protection/Input Voltage Protection
- 3 PHASE IN 3 PHASE OUT
- POWER SUPPLY
- 72 cm 79 cm 106 cm (Height Width Depth)
- BLACK
- 72 cm 79 cm 106 cm ( Centimeter (cm)
- 115 A Ampere (amp)
- 80 KVA
- LCD (Liquid Crystal Display) with LED indicators
- 475 Kilograms (kg)
- 1 YEAR
- 380 V / 400 V / 415 V AC Volt (V)
- 50 Hertz (HZ)
- 0 C to 40 C Celsius (oC)
- ONLINE UPS
- High Capacity Power Rated at 80 kVA / ~72 kW, suitable for medium-to-large industrial and commercial loads. Online Double Conversion Technology Provides clean, uninterrupted power by continuously converting AC DC AC. Eliminates sags, surges, and frequency fluctuations. Isolation Transformer (ISO TX) at Output Electrically isolates UPS output from the load. Reduces noise, transients, and common-mode interference for sensitive equipment. 3-Phase Input & 3-Phase Output Ensures balanced and stable power distribution for industrial and commercial systems. High Efficiency 94% typical in online mode, reducing operating costs. Low Output THD <3% for linear loads, <5% for non-linear loads; safe for sensitive electronics. Automatic Voltage Regulation (AVR) Maintains steady output voltage despite input fluctuations. Smart Battery Management Extends battery life with controlled charging and thermal compensation. Overload & Fault Protection Overload, short-circuit, surge, thermal, phase failure, and battery protections. Built-in bypass ensures continuous supply in case of UPS fault. LCD + LED Display Real-time monitoring of voltage, frequency, load, battery status, and alarms. Optional Remote Monitoring SNMP, Modbus, or RS-232 integration for network monitoring of UPS health and performance. Flexible Load Handling Crest factor 3:1, capable of handling inrush currents of motors or sensitive equipment. Emergency Power Off (EPO) Optional safety feature for immediate UPS shutdown during emergencies. Industrial & Commercial Ready Suitable for data centers, server rooms, telecom, industrial automation, and medical equipment.
SUPERMAX+80KVA,ONLINE UPS WITH ISO TX AT OUTUPT Trade Information
- 7 Days
Product Description
The SUPERMAX+ 80 kVA Online UPS is a high-performance, industrial-grade uninterruptible power supply designed to deliver continuous, clean, and reliable three-phase power for mission-critical applications. Engineered with true Online Double-Conversion technology, the UPS ensures zero interruption to connected loads during power failures, voltage fluctuations, and other grid abnormalities.Key Highlights
80kVA Capacity Delivers high power suitable for medium to large loads (72kW)
True Online DoubleConversion Technology Provides clean, stable power with no transfer time during outages
Isolation Transformer at Output (ISOTX) Electrical isolation for enhanced safety and noise suppression
3Phase Input & 3Phase Output Ideal for industrial and commercial power systems
Low Output THD Clean sinusoidal output safe for sensitive electronics
High Efficiency Operation Reduces energy losses and operating cost
Automatic Voltage Regulation (AVR) Maintains stable output despite input fluctuations
Intelligent Battery Management Extends battery life with smart charging
LCD/LED Display with Status Monitoring Easy visibility of load, battery, faults, and system status
Robust Protection Features Overload, shortcircuit, surge protection, and bypass for safety
Optional Remote Monitoring & Communication SNMP/Modbus (if supported) for network integration
Fast Transfer & Reliable Backup Keeps critical systems running during power failures
Technical Specification Table 80kVA Online UPS with Isolation Transformer
| Parameter | Specification |
|---|---|
| Model Type | 80kVA Online DoubleConversion UPS (3Phase IN 3Phase OUT) |
| Capacity | 80kVA / 72kW (@ 0.9 PF) |
| Output Power Factor | 0.80.9 |
| Input Configuration | 3Phase + Neutral / Ground |
| Input Voltage (Nominal) | 380 / 400 / 415VAC (3Ph+N) |
| Input Voltage Range | 190520VAC @ 50% load 305478VAC @ 100% load |
| Input Power Factor | 0.99 @ 100% load |
| Input THDi | < 4% @ 100% load |
| Output Voltage (Nominal) | 3 400/415VAC (3Ph+N) |
| Output Voltage Regulation | 1% (steady state) |
| Frequency (Sync) | 50/60Hz 3Hz |
| Frequency (Battery Mode) | 0.1% @ 50/60Hz |
| Output Waveform | Pure sine wave |
| Output THD (Total Harmonic Distortion) | < 3% (linear load), < 5% (nonlinear load) |
| Load Crest Factor | 3:1 |
| Efficiency (Online Mode) | > 94% typical |
| Transfer Time | 0ms (online double conversion) |
| Isolation Transformer | Builtin at output (provides electrical isolation & improved power quality) |
| Overload Capability | 125% for 10min, 150% for 1min (approx) |
| Bypass | Builtin static bypass path |
| Parallel Capability | Up to 4 units (model dependent) |
| Operating Temp. | 040C |
| Relative Humidity | Up to 95% (noncondensing) |
| Waveform in Battery Mode | Pure sine wave |
| Communications (Optional) | SNMP / RS232 / Modbus (varies by model) |
| Battery Type |
External VRLA/SMF or leadacid batteries (not included) |
| Protection Features | Overload, shortcircuit, surge protection, EPO (optional) |
Notes:
-
These specs are typical for industrial 80kVA online UPS systems with isolation transformer output (like the Supermax+ series).
-
Input ranges and battery options can vary by manufacturer and model; check the specific datasheet for final design values.
-
Output THD, power factor, and efficiency figures relate to heavy loads and can change with real-world conditions.
-
WARRANTY 1 YEAR
