Product Details:

Power Rating 5 KVA
Product Type BPE (MF1105L16) 5KVA ONLINE UPS EXTERNAL BATTERY
Standard IEC 62040-1 (General safety requirements for UPS)
Frequency (MHz) 50/60 Hertz (HZ)
Protection Overload, short circuit, surge protection
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MF1105L16) 5KVA ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 42000.0 INR/Unit

BPE (MF1105L16) 5KVA ONLINE UPS EXTERNAL BATTERY Product Specifications

Power Rating 5 KVA
Frequency 50/60 Hertz (HZ)
Usage BACKUP
Rated Voltage 220V / 230V / 240V AC Volt (V)
Standard IEC 62040-1 (General safety requirements for UPS)
Color BLACK
Features Performance Features Pure sine wave output safe for sensitive equipment High input power factor (>0.99) reduces power loss Efficiency up to 94% (online mode) & 99% in ECO mode Low harmonic distortion ( 1 3%) for stable performanc
Size STANDARD
Display Type LCD Display with status & alarms
Material STEEL
Warranty 1 YEAR
Rated Current 17.4A Ampere (amp)
Phase SINGHLE PHASE
Product Type BPE (MF1105L16) 5KVA ONLINE UPS EXTERNAL BATTERY
Frequency (MHz) 50/60 Hertz (HZ)
Dimension (L*W*H) Unit Dimensions (W D H): 469 192 399 mm Millimeter (mm)
Weight 26.7 Kilograms (kg)
Cable Type Copper, 3 Core (Phase + Neutral + Earth)
Usage & Applications POWER SUPPLY
Protection Overload, short circuit, surge protection
Operating Temperature 0 C to 40 C Celsius (oC)

BPE (MF1105L16) 5KVA ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 6 Days

Product Description

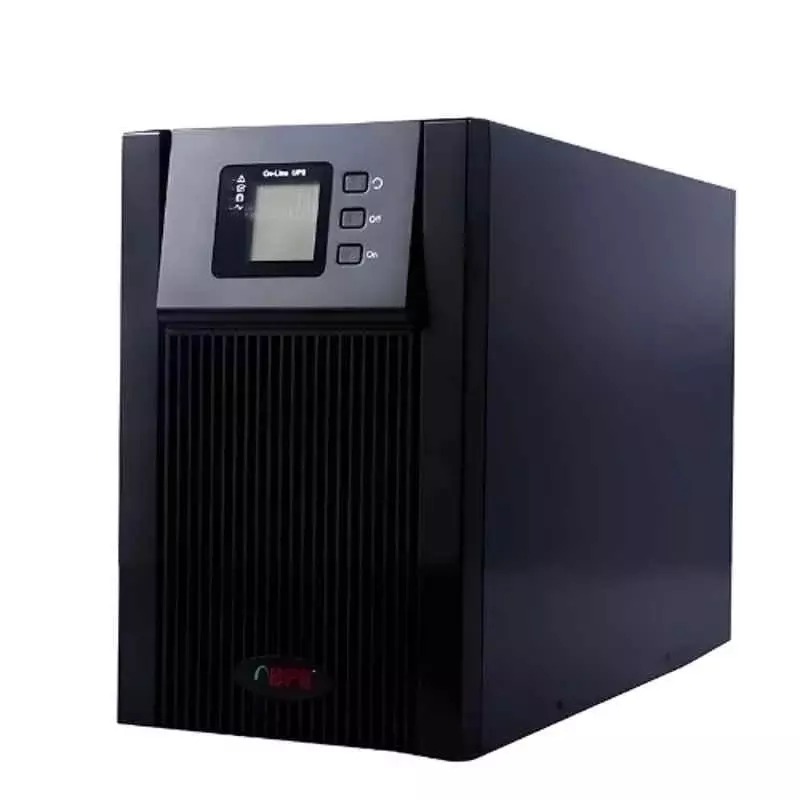

Product Description BPE MF1105L16 5KVA Online UPS

The BPE MF1105L16 is a high-performance 5KVA online (double-conversion) UPS system designed to provide continuous, clean, and uninterrupted power for critical equipment like servers, medical devices, networking systems, and industrial loads.

It uses true online double-conversion technology, which means the load is always powered through the UPS inverterensuring zero transfer time and maximum protection against power failures, voltage fluctuations, spikes, and electrical noise

Here is a clean specification table for the BPE MF1105L16 5KVA Online UPS (External Battery)

Specification Table

Specification	Details
Model	MF1105L16
Capacity	5 KVA / 4 KW
UPS Type	Online Double Conversion
Input Phase	Single Phase
Output Phase	Single Phase
Input Voltage	220V / 230V / 240V AC
Input Voltage Range	160V 240V
Input Frequency	50/60 Hz 3 Hz
Input Power Factor	>0.99
Output Voltage	220V / 230V / 240V AC 1%
Output Frequency	50/60 Hz (0.1 Hz in battery mode)
Output Waveform	Pure Sine Wave
Output Power Factor	0.8 (0.9 optional)
Efficiency	Up to 94% (Online Mode), 99% (ECO Mode)
Transfer Time	0 ms (No interruption)
THD (Voltage Distortion)	13%
Crest Factor	3:1
Battery Type	External SMF Battery
Battery Voltage (DC Bus)	192V 240V DC
Battery Configuration	Typically 16 12V batteries
Charging Current	~4A 6.5A
Recharge Time	45 hours (90% charge)
Display	LCD Display with status & alarms
Noise Level	<50 dB
Operating Temperature	0C to 40C
Humidity	5% 95% RH
Protection	Overload, short circuit, surge protection
Bypass	Internal automatic & manual bypass
Communication Ports	RS-232, SNMP, Smart Slot
Dimensions (WDH)	~469 192 399 mm
Weight	~26.7 kg

Quick Summary

5KVA industrial-grade online UPS
External battery (custom backup possible)
Zero transfer time (ideal for servers & sensitive loads)
High efficiency + strong protection features

If you want, I can convert this into:

Quotation format
Comparison with APC / Microtek
Battery calculation sheet

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MICROTEK i MAXX SERIES 7.5 KVA ONLINE UPS 16/18 battery system with isolation transformer Price : 81720.0 INR/Unit Minimum Order Quantity : 1 Weight : 78 Kilograms (kg) Rated Current : 6000 Watt (w) Product Type : ONLINE UPS Phase : Single phase Frequency (MHz) : 50 Hertz (HZ) Dimension (L*W*H) : 562 mm 250 mm ~830 mm Millimeter (mm) Material : steel Warranty : 1 Year Protection : Voltage spike/surge & over voltage cut off Usage & Applications : power supply Frequency : 50 Hertz (HZ) Usage : Backup Rated Voltage : 208V AC/ 220VAC / 230V AC Volt (V) Color : BLACK Power Rating : 7.5 KVA /6.0 KW Display Type : LCD (Liquid Crystal Display) Size : STANDARD Operating Temperature : 0 C to 40 C Celsius (oC) Standard : Electrical standards / certifications the UPS complies with (like IS, IEC, CE, RoHS)? Standard features / configuration of the Microtek 7.5 kVA UPS? Features : Protection & Safety Inbuilt OVCD (Over Voltage Cut Off Device) with surge suppression. Short circuit and overload protection protects UPS and load. Over temperature shutdown prevents overheating. EMI/RFI noise filtering reduces electrical interference. Protection from DC fan failure. Maintenance bypass & static bypass switch enables service without load interruption Cable Type : 4 mm 6 mm flexible copper PVC insulated singlecore for short runs (<10 m).

Send Inquiry

BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY Price : 24200.0 INR/Unit Minimum Order Quantity : 1 Weight : 26.7 kg Kilograms (kg) Rated Current : 2400 W Watt (w) Product Type : BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY Phase : Single Phase Frequency (MHz) : 50 Hertz (HZ) Dimension (L*W*H) : Specification Value Width (W) ~19.2 cm (~192 mm) Height (H) ~39.9 cm (~399 mm) Depth (D) ~46.9 cm (~469 mm) Form Factor Tower UPS Net Weight ~26.7 kg (approx.) Millimeter (mm) Material : STEEL Warranty : 1 YEAR Protection : Protection Features Protection Type Description Overload Protection Automatically limits output if load exceeds rated capacity; UPS switches to bypass or alarm. Short Circuit Protection Trips instantly to prevent damage to UPS and connected devices. Overvoltage Protection Protects against input voltage spikes from mains or generator. Undervoltage / Brownout Protection Prevents damage from low input voltage; automatically switches to battery mode if needed. Surge & Spike Protection Shields sensitive equipment from lightning or switching surges. Thermal / Overheat Protection UPS shuts down or alarms if internal temperature exceeds safe limits. Battery Deep Discharge Protection Prevents battery damage by shutting down before voltage drops too low. Battery Overcharge Protection Charger automatically limits voltage to prevent battery overcharging. Input Phase Failure / Phase Reversal Protection Protects UPS in case of incorrect wiring or phase loss. Bypass / Maintenance Mode Protection Ensures safe switching to bypass during UPS servicing. Alarm Indicators Audible and visual alarms for overload, battery low, battery fault, input/output abnormality. Usage & Applications : POWER SUPPLY Frequency : 50 Hertz (HZ) Usage : BACKUP Rated Voltage : 220 / 230 / 240 V AC Volt (V) Color : BLACK Power Rating : 3000 VA (3 kVA) Display Type : Multifunction LCD panel Size : STANDARD Operating Temperature : ~0 45 C Celsius (oC) Standard : Standard / Certification Details / Purpose BIS Bureau of Indian Standards ensures compliance with Indian safety and performance norms. (bpee.com ) CE Conformit Europ enne indicates compliance with EU safety, health, and environmental requirements. (sinewavebatteries.com ) ISO 9001 / 14001 Quality management (9001) and environmental management (14001) standards. (inrdeals.com ) OHSAS 18001 / ISO 27001 Occupational health & safety management (OHSAS) and information security management (27001). (sinewavebatteries.com ) RoHS Restriction of Hazardous Substances ensures the UPS is environmentally friendly with restricted toxic elements. (inrdeals.com ) Safety Features Compliance Meets global standards for overload, shortcircuit, surge, and deepdischarge protection. (shop.clarioncomputers.in ) Features : Core Features True Online Double Conversion Technology Provides continuous clean power with zero transfer time from mains to battery. Ideal for sensitive electronics like servers, PCs and networking gear. Uses advanced digital control and PWM technology for stable power delivery. Built In Battery Backup Comes with 8 12 V 7 Ah internal sealed lead acid batteries for compact all in one backup. Integrated battery management with deep discharge protection and regulated charging helps prolong battery life. Advanced Monitoring & Control LCD display shows real time information like input/output voltages, frequency, battery level, load %, operation mode, and fault indications. Visual + audible alarms for status changes and protection events. Comprehensive Protection Suite Overload protection: Automatically protects the UPS and connected devices. Short circuit protection: Prevents damage from electrical faults. Surge and spike suppression: Protects against transient voltage spikes. Automatic Voltage Regulation (AVR): Stabilises under /over voltage without switching to battery whenever possible. Wide Input Compatibility Supports wide input voltage range ( 100 300 V AC), helping it handle brownouts and voltage fluctuations without switching to battery prematurely. Works with standby generators and other backup sources. Clean & Stable Output Pure sine wave output ensures safe operation of critical loads and sensitive equipment. High power factor output ( 0.8) and low harmonic distortion help maximise usable capacity. Reliability & Efficiency High dual conversion efficiency ( 94 %) and up to ~99 % in ECO mode for energy savings. Designed with IGBT based inverter/rectifier for robust performance. Other Useful Features Cold start / auto start capability can be started even without mains supply. Static bypass and manual bypass for maintenance or fault scenarios. Compatible with generator and solar assisted systems. Typical Use Cases This UPS is suited for: Home and small office servers & workstations Networking equipment (routers, switches) Security systems (CCTV cameras/DVR/NVR) Critical workstations, POS systems, and telecom gear Any sensitive load requiring uninterrupted pure sine wave power Cable Type : This cable plugs into a grounded three pin socket (1P+N+PE).

Send Inquiry

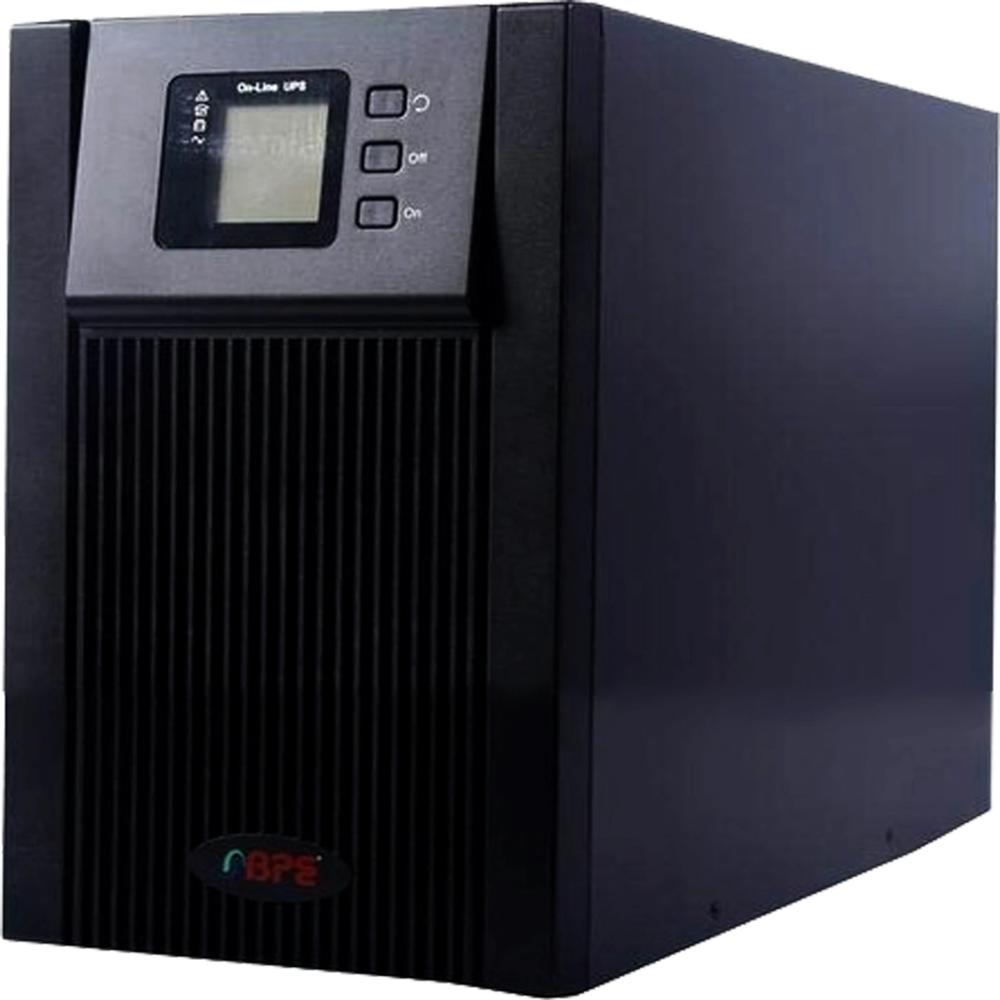

BPE (MF1103L6) 3KVA ONLINE UPS EXTERNAL BATTERY Price : 22000.0 INR/Unit Minimum Order Quantity : 1 Weight : 27 Kilograms (kg) Rated Current : 13 A Ampere (amp) Product Type : BPE (MF1103L6) 3KVA ONLINE UPS EXTERNAL BATTERY Phase : SINGLE PHASE Frequency (MHz) : 50 Hz Hertz (HZ) Dimension (L*W*H) : Dimensions Width: 192 mm Depth: 469 mm Height: 399 mm Weight: Approx. 26.7 kg Millimeter (mm) Material : steel or zinc plated steel Warranty : 1 YEAR Protection : Overload, short circuit, surge protection Usage & Applications : POWER SUPPLY Frequency : 50 Hertz (HZ) Usage : BACKUP Rated Voltage : 110 300 V AC Volt (V) Color : BLACK Power Rating : 3 kVA (3 000 VA) Display Type : LCD/LED status panel Size : STANDARD Operating Temperature : 0 C 40 C Celsius (oC) Standard : IEC Standards Designed according to international IEC (International Electrotechnical Commission) standards for UPS safety and performance Features : True Online Double Conversion Technology Cable Type : Recommended Size: 3 4 mm to 3 6 mm copper
