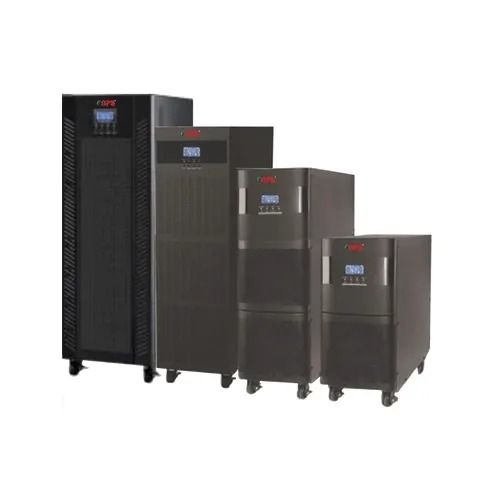

BPE (GT3315L20) 15KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

115000.0 INR/Piece

Get a Price/Quote

Product Details:

Power Rating 15KVA
Product Type BPE (GT3315L20) 15KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Standard IEC 62040-1
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, battery deep discharge
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GT3315L20) 15KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 115000.0 INR/Piece
Minimum Order Quantity 1 Unit

BPE (GT3315L20) 15KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Features True Online Double Conversion Technology ensures zero transfer time and uninterrupted power
Standard IEC 62040-1
Protection Overload, short circuit, battery deep discharge
Rated Current 14 15 Amps per phase Ampere (amp)
Material STEEL
Operating Temperature 0 C to 40 C Celsius (oC)
Usage BACKUP
Color BLACK
Power Rating 15KVA
Cable Type Copper, XLPE insulated, armored (XLPE/PVC/FRLS)
Size STANDARD
Product Type BPE (GT3315L20) 15KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Dimension (L*W*H) Height ~800 1000 mm Width ~250 350 mm Depth ~600 800 mm Weight ~80 120 kg (without batteries) Millimeter (mm)
Weight 200 Kilograms (kg)
Frequency 50 Hertz (HZ)
Phase 3:3 PHASE
Warranty 2 YEAR
Rated Voltage 380 / 400 / 415 V AC Volt (V)
Usage & Applications POWER SUPPLY
Frequency (MHz) 50 Hertz (HZ)
Display Type LCD / LED panel

BPE (GT3315L20) 15KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The BPE 10 KVA 3:3 phase online UPS is a high-performance power backup system designed for critical industrial and commercial applications. It uses true online double-conversion technology, ensuring continuous, clean, and uninterrupted power supply to sensitive equipment.

Specification Table

Specification	Details
Model	GT3310L20 / CP3310L20
Capacity	10 KVA / 8 kW
Input Phase	3 Phase
Output Phase	3 Phase
Technology	Online Double Conversion
Output Voltage	380 / 400 / 415 V AC
Output Frequency	50/60 Hz 0.1%
Power Factor	0.8
Efficiency	Up to 99% (ECO mode)
Output Waveform	Pure Sine Wave
Voltage Distortion (THD)	<3% (linear load), <5% (non-linear)
Load Crest Factor	3:1
Transfer Time	Zero (Online UPS)
Battery Type	External Battery Bank
Battery DC Bus	240 V DC
Typical Battery Setup	20 12V batteries
Backup Time	Configurable (10 min to 4+ hours)
Isolation Transformer	External (optional/required as per load)
Parallel Operation	Optional (for capacity expansion)
Charger	Inbuilt automatic charger
Cooling	Forced air cooling
Display	LCD / LED panel
Protection	Overload, short circuit, battery deep discharge
Communication	SNMP / RS232 (optional)
Warranty	Typically 2 years
