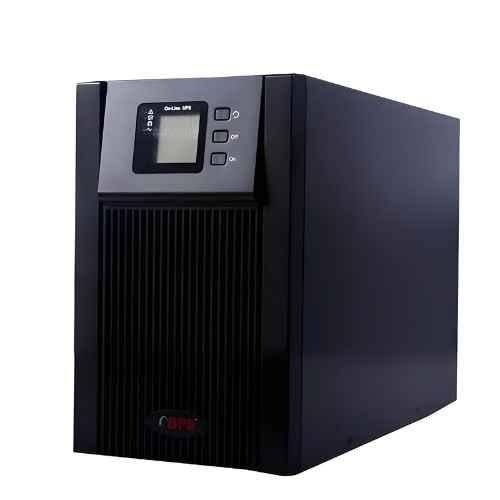

BPE MFX1102L6 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER

Product Description

Product Description BPE MFX1102L6 2KVA Online UPS with Inbuilt Isolation Transformer

The BPE MFX1102L6 2KVA Online UPS is a high-performance true online double-conversion UPS system designed to provide uninterrupted and clean power to critical equipment such as servers, networking devices, medical systems, and industrial electronics. It converts incoming AC power to DC and then back to AC, ensuring stable voltage, zero transfer time during power failure, and protection from voltage fluctuations, surges, and electrical noise.

This UPS delivers a capacity of 2 kVA / 1.6 kW with a pure sine wave output, making it suitable for sensitive electronic equipment that requires stable power quality. It supports single-phase input and output and operates with high efficiency and a high input power factor (>0.99), which reduces energy losses and improves performance.

The unit is equipped with an inbuilt isolation transformer (or optional depending on configuration) that provides electrical isolation between the input and output supply. This improves safety, reduces electrical noise, and protects connected equipment from spikes and grounding issues.

The UPS uses an external battery system with a 72 V DC bus, typically consisting of six 12-V SMF batteries, and features intelligent battery management with automatic charging and fast recharge capability. It also includes a multifunction LCD display, RS-232 communication port, SNMP monitoring option, and audible alarms for system status and fault alerts.

Additional features include static and manual bypass, EMI/RFI noise filtering, generator compatibility, and advanced microprocessor-based control, ensuring reliable operation in demanding environments. The UPS is BIS compliant and designed for operation in temperatures from 0 C to 40 C.

Typical Applications

• Servers and data centers

• Medical and laboratory equipment

• Networking and telecom systems

• Industrial automation and CNC machines

• Security and surveillance systems


  Here is the Specification Table for the BPE MFX1102L6 2KVA Online UPS with Inbuilt Isolation Transformer.

  Specification	Details
  Model	BPE MFX1102L6
  UPS Type	True Online Double Conversion UPS
  Capacity	2 kVA / 1.6 kW
  Input Phase	Single Phase
  Output Phase	Single Phase
  Input Voltage Range	110 300 V AC
  Nominal Input Voltage	220 / 230 / 240 V AC
  Input Frequency Range	40 70 Hz
  Input Power Factor	> 0.99
  Output Voltage	220 / 230 / 240 V 1%
  Output Frequency	50 / 60 Hz
  Output Waveform	Pure Sine Wave
  Transfer Time	0 ms
  Efficiency	Up to 94% (Online Mode)
  Battery Type	External SMF / VRLA Batteries
  Battery Configuration	6 12V Batteries (72V DC Bus)
  Charging Current	Approx. 6 A
  Recharge Time	4 5 Hours (90% Capacity)
  Isolation Transformer	Inbuilt Isolation Transformer
  Display	LCD Display
  Communication Ports	RS-232 / SNMP (Optional)
  Protection Features	Overload, Short Circuit, Battery Deep Discharge, Surge Protection
  Bypass	Static & Manual Bypass
  Operating Temperature	0C 40C
  Humidity	0 95% Non-Condensing
  Dimensions (Approx.)	399 192 469 mm
  Weight (Approx.)	26 27 kg (without batteries)
  Applications	Servers, Medical Equipment, Networking Devices, Industrial Systems

  WARRANTY :-1YEAR
