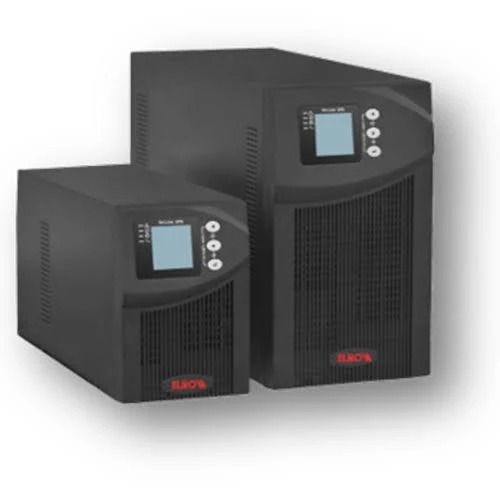

ELNOVA (ES2004L6) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY

Name: ELNOVA (ES2004L6) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 20500.0 INR
Availability: InStock

20500.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type ELNOVA (ES2004L6) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 2KVA
Standard IEC/EN 62040-1
Frequency (MHz) 45 55Hz Hertz (HZ)
Protection Overload, Short Circuit, Battery Deep Discharge Protection
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ELNOVA (ES2004L6) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 20500.0 INR/Unit

ELNOVA (ES2004L6) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Frequency (MHz) 45 55Hz Hertz (HZ)
Usage BACKUP
Power Rating 2KVA
Protection Overload, Short Circuit, Battery Deep Discharge Protection
Phase 1:1 PHASE
Features Provides continuous clean and stable power without interruption
Standard IEC/EN 62040-1
Color BLACK
Dimension (L*W*H) Dimension Approximate Size Height 320 450 mm Width 145 190 mm Depth 360 420 mm Weight 10 18 kg (without batteries) Millimeter (mm)
Cable Type 2.5 sq.mm Copper Earthing Cable
Material STEEL
Warranty 1 YEAR
Weight 15 Kilograms (kg)
Product Type ELNOVA (ES2004L6) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Usage & Applications POWER SUPPLY
Size STANDARD
Frequency 45 55Hz Hertz (HZ)
Rated Voltage 220/230/240VAC Volt (V)
Rated Current 10 12 Amps Ampere (amp)
Display Type LCD Display
Operating Temperature 0 C to 45 C Celsius (oC)

ELNOVA (ES2004L6) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The ES2004L6 belongs to the ES Series Online UPS range and uses advanced DSP digital control technology with PWM-based double conversion architecture. It continuously converts incoming AC power into DC and back to AC, ensuring zero transfer time and stable output during power failures, voltage fluctuations, spikes, and frequency disturbances.

This UPS is suitable for:

Servers and IT infrastructure
CCTV & surveillance systems
Telecom equipment

Networking devices

Specification	Details
Model	ES2004L6
Brand	ELNOVA
Product Type	Online UPS
UPS Topology	True Online Double Conversion
Capacity	2KVA / 1600W
Input Phase	1 Phase
Output Phase	1 Phase
Input Voltage	220/230/240VAC
Input Voltage Range	120V 300VAC
Output Voltage	208/220/230/240VAC Selectable
Output Waveform	Pure Sine Wave
Frequency Range	45Hz 55Hz
Transfer Time	0 ms
Input Power Factor	0.99
Output Power Factor	0.8
Efficiency	Up to 8894%
Battery Type	External SMF / VRLA Battery
Battery DC Bus	96VDC
Backup Options	30 / 60 / 90 / 120 Minutes
Charger Type	Intelligent Battery Charging
Display	LCD Display
Communication Port	RS232
Optional Communication	SNMP Card
Noise Level	<55 dB
Protection	Overload, Short Circuit, Battery Deep Discharge
Features	Cold Start, ECO Mode, Auto Restart
Compatibility	Generator Compatible
Cooling	Forced Air Cooling
Form Factor	Tower
Applications	Servers, CCTV, Networking, Medical, Telecom, Office Equipment

WARRANTY :- 1YEAR
