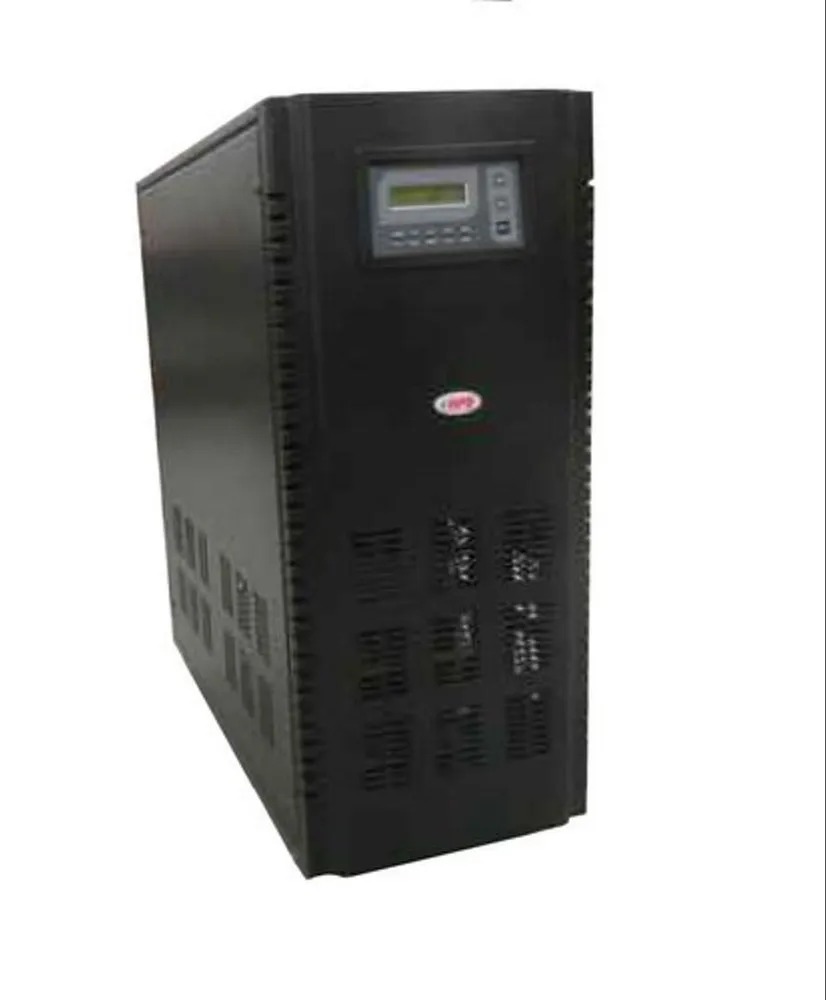

BPE UPSX1102L4 LINE INTERACTIVE UPS

17000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 230 V AC
Product Type BPE UPSX1102L4 LINE INTERACTIVE UPS
Standard ISO 9001, ISO 14001, ISO 45001, BIS, RoHS
Frequency (MHz) 45 65 Hz (Auto Sensing) Hertz (HZ)
Protection Battery low, overload, short circuit, AC input high/low
Usage BACKUP
Size Overall Dimensions: 220 350 340 mm (W D H)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE UPSX1102L4 LINE INTERACTIVE UPS Price And Quantity

Minimum Order Quantity 1 Unit
Price 17000.0 INR/Unit

BPE UPSX1102L4 LINE INTERACTIVE UPS Product Specifications

Rated Voltage 24V / 36V / 48V DC ( Volt (V)
Material STEEL
Display Type LCD + LED indicators
Rated Current 8.7A Ampere (amp)
Phase 1 PHASE
Frequency (MHz) 45 65 Hz (Auto Sensing) Hertz (HZ)
Dimension (L*W*H) 220 350 340 mm Millimeter (mm)
Frequency 45 65 Hz (Auto Sensing) Hertz (HZ)
Standard ISO 9001, ISO 14001, ISO 45001, BIS, RoHS
Operating Temperature 0 C 50 C Celsius (oC)
Size Overall Dimensions: 220 350 340 mm (W D H)
Color BLACK
Protection Battery low, overload, short circuit, AC input high/low
Cable Type 3 Core 2.5 sq.mm
Product Type BPE UPSX1102L4 LINE INTERACTIVE UPS
Usage & Applications POWER SUPPLY
Warranty 1 YEAR
Usage BACKUP
Weight 25 Kilograms (kg)
Power Rating 230 V AC
Features Feature Description Micro-controller Based PWM Technology Uses advanced PWM technology with MOSFET switching for efficient and stable UPS operation. Pure Sine Wave Output Provides clean and stable sine-wave power suitable for sensitive electronic equipment. Wide Input AVR Range Built-in Automatic Voltage Regulation handles wide input voltage fluctuations without switching to battery frequently. Fast Transfer Time Transfer time of about 4 8 ms, ensuring uninterrupted power to connected devices. Overload & Short-Circuit Protection Protects the UPS and connected equipment from excessive load or electrical faults. Battery Deep-Discharge Protection Prevents batteries from excessive discharge, extending battery life. High Battery Charging Capacity Supports up to 10 A charging for external batteries to allow longer backup time. Generator Compatibility Can operate with generator power sources without affecting performance. LCD / LED Status Display Provides visual indicators for AC mode, battery mode, overload, and fault conditions. Optional Communication Port RS-232 / USB port for monitoring and automatic shutdown software. Cold Start Function Allows the UPS to start directly from battery when AC power is not available.

BPE UPSX1102L4 LINE INTERACTIVE UPS Trade Information

Delivery Time 7 Days

Product Description

Description

The BPE UPSX1102L4 uses advanced micro-controller based PWM technology with MOSFET switching to deliver a pure sine-wave output, ensuring stable and clean power for sensitive devices such as computers, servers, networking equipment, and medical instruments. It includes a wide Automatic Voltage Regulation (AVR) range, allowing the UPS to handle unstable input power without switching to battery frequently

Here is the Specification Table for BPE UPSX1102L4 Line-Interactive UPS (2 kVA).

Specification	Details
Model	UPSX1102L4
Capacity	2 kVA
UPS Type	Line-Interactive UPS
Input Voltage Range	100 300 V AC (1 Phase + N + PE)
Input Frequency	45 65 Hz (Auto Sensing)
Output Voltage	230 V 10%
Output Frequency (Battery Mode)	50 Hz 1%
Waveform	Pure Sine Wave
Transfer Time	4 8 ms (Typical)
Battery Type	Sealed Maintenance-Free Lead Acid (VRLA)
Battery Voltage Options	24V / 36V / 48V DC (external battery configuration)
Charging Current	10 A 1 A (Adjustable)
Recharge Time	6 8 hours to 90% after full discharge
Protection	Battery low, overload, short circuit, AC input high/low
Display / Indicators	LCD + LED indicators
Alarm	Low battery, overload, fault conditions
Cold Start	Yes
Communication Port	RS-232 / USB (Optional)
Backup Outlet	1 Universal Socket (15A)
Dimensions (W D H)	220 350 340 mm
Weight	Approx. 25 kg
Operating Temperature	0C 50C
Humidity	0 95% RH (Non-condensing)
Standards	ISO 9001, ISO 14001, ISO 45001, BIS, RoHS
Safety Compliance	IEC/EN 62040-1 / IEC-EN 62040-2 / IEC-EN 62040-3

WARRANTY :-1 YEAR
If you want, I can also prepare:

Tender specification format (commonly used in government tenders)
Short specification table for BOQ or quotation.
