Luminous

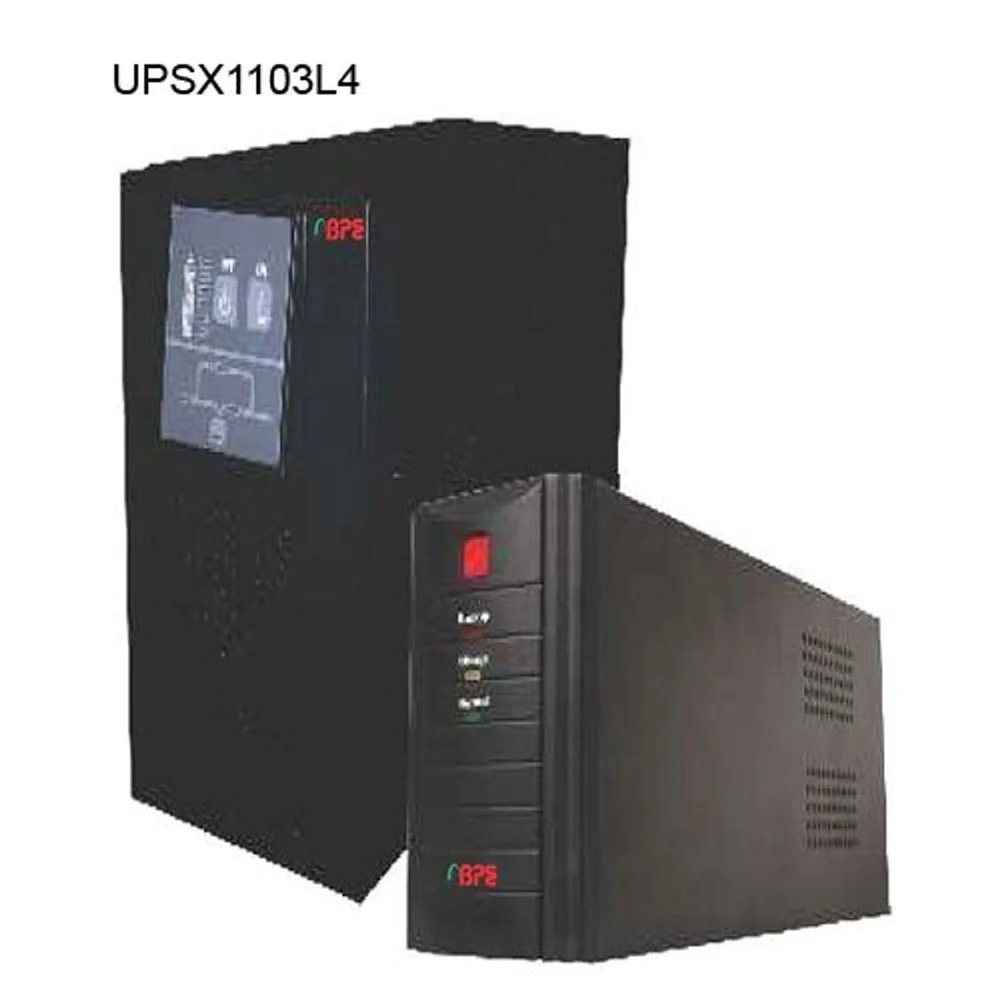

BPE UPSX1103L4 LINE INTERACTIVE UPS

18000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 3 kVA
Product Type BPE UPSX1103L4 LINE INTERACTIVE UPS
Standard ISO 9001, ISO 14001, ISO 45001, ISO 27001, BIS, RoHS; safety/EMC per IEC/EN62040
Frequency (MHz) 45 65 Hz (Auto sensing) Hertz (HZ)
Protection Battery low, overload, short circuit, AC input high/low, general fault
Usage BACKUP
Size 195 455 330 mm (Width Depth Height)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE UPSX1103L4 LINE INTERACTIVE UPS Price And Quantity

Minimum Order Quantity 1 Unit
Price 18000.0 INR/Unit

BPE UPSX1103L4 LINE INTERACTIVE UPS Product Specifications

Display Type LED + LCD indicators
Frequency 45 65 Hz (Auto sensing) Hertz (HZ)
Material STEEL
Color BLACK
Power Rating 3 kVA
Frequency (MHz) 45 65 Hz (Auto sensing) Hertz (HZ)
Features Micro controller based PWM technology with MOSFET improves regulation and efficiency of power conversion. Pure sine wave output safer and cleaner AC power for sensitive electronics like computers, networking gear, CCTV systems, etc. Wide input AVR range automatically regulates input voltage over a broad range (100 V 300 V) without switching to battery unnecessarily. Overload & short circuit protection safeguards both the UPS and connected devices against overloads and faults. Battery deep discharge protection helps prolong battery life by preventing excessive battery drain. Large charging capacity (up to ~10 A) allows fast and efficient battery charging; also supports external battery banks for extended backup. Generator compatible can work reliably with external generator power. Cold start function lets the UPS be started from battery without mains power present. Optional USB/RS 232 communication supports UPS monitoring and safe shutdown via software (optional accessory).
Dimension (L*W*H) ~195 470 330 mm Millimeter (mm)
Phase 1 PHASE
Product Type BPE UPSX1103L4 LINE INTERACTIVE UPS
Operating Temperature 0 50 C, 0 95% Celsius (oC)
Rated Voltage 100 V to 300 V AC Volt (V)
Rated Current 3000 VA Volt (v)
Size 195 455 330 mm (Width Depth Height)
Standard ISO 9001, ISO 14001, ISO 45001, ISO 27001, BIS, RoHS; safety/EMC per IEC/EN62040
Protection Battery low, overload, short circuit, AC input high/low, general fault
Cable Type Some UPS models (and optional cards) offer a USB or RS 232 port for monitoring or safe shutdown, which would use a standard USB cable (e.g., USB A to USB B) or a serial cable if purchased separately. But this is not a mains power cable just for data communication
Usage BACKUP
Weight 33 Kilograms (kg)
Warranty 1 YEAR
Usage & Applications POWER SUPPLY

BPE UPSX1103L4 LINE INTERACTIVE UPS Trade Information

Delivery Time 7 Days

Product Description

Heres a clear description of the BPE Line Interactive UPS BP1000 UP family product you referenced specifically focusing on the UPSX1103L4 model (3kVA Line Interactive UPS):

Product Overview BPE UPSX1103L4 Line Interactive UPS

Type: Line Interactive UPS designed to provide reliable power backup and surge/brownout protection. Unlike basic inverters, this unit actively regulates incoming voltage and switches to battery backup only when necessary.
Heres a clear specifications table for the BPE UPSX1103L4 Line Interactive UPS (3kVA) based on the official UPSX Series datasheet and specs:

Specification Category	Details (UPSX1103L4)
Model	UPSX1103L4
Rated Capacity	3kVA
Input Voltage (VAC)	100300VAC (Load dependent)
Input Frequency Range	4565Hz (Auto sensing)
Output Voltage	23010% VAC
Output Frequency (Battery Mode)	501Hz
Waveform	Pure Sine Wave
Transfer Time	~48ms Typical
Load Power Factor	0.6 Standard (Optional 0.7 / 0.8)
Battery Type	Sealed MaintenanceFree Lead Acid (VRLA)
Battery Voltage Options	24V / 36V / 48V (as per configuration)
Charge Current	~10A 1A (Adjustable)
Recharging Time	~68hrs to 90% after full discharge
Protections	Battery low, overload, short circuit, AC input high/low, general fault
Indicators / Display	LED + LCD indicators
Cold Start	Yes
Backup Outlets	4 Indian sockets
Dimensions (WxDxH)	~195 470 330mm
Net Weight	~33kg
Standards / Quality	ISO 9001, ISO 14001, ISO 45001, ISO 27001, BIS, RoHS; safety/EMC per IEC/EN62040
Operating Environment	050C, 095% noncondensing humidity
Communications	Optional USB / RS232 port
Software Monitoring	View Power / UPSilon 2000 (Optional)

WARRANTY :- 1 YEAR
What this means:

You get wide input voltage tolerance and pure sine output, which helps protect sensitive electronics like PCs, servers, routers, DVR/NVR systems, etc.
Adjustable battery charging and deepdischarge protections enhance battery life.
Optional connectivity/monitoring lets you track UPS status via software.
