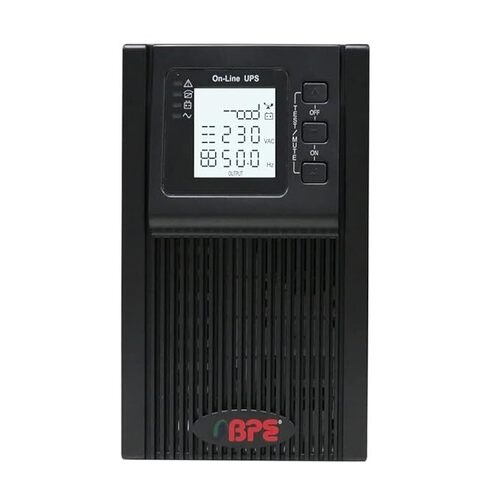

BPE (HXi3115L20) 15KVA ONLINE UPS INBUILT Isolation Transfarmer
Product Details:
- Product Type BPE (HXi3115L20) 15KVA ONLINE UPS INBUILT Isolation Transfarmer
- Power Rating 15 KVA
- Standard Floor-standing / Tower cabinet
- Frequency (MHz) 50 Hertz (HZ)
- Protection Overload, Short circuit, Surge, Noise filtering
- Usage BACKUP
- Size 795 650 350 mm
- Click to View more
BPE (HXi3115L20) 15KVA ONLINE UPS INBUILT Isolation Transfarmer Price And Quantity
- 1 Unit
- 90860.0 INR/Unit
BPE (HXi3115L20) 15KVA ONLINE UPS INBUILT Isolation Transfarmer Product Specifications
- 795 650 350 mm
- Floor-standing / Tower cabinet
- 1 PHASE
- Flexible copper, high current DC cable
- 52 to 55 Amps Ampere (amp)
- 795 650 350 mm Millimeter (mm)
- 1 YEAR
- Overload, Short circuit, Surge, Noise filtering
- LCD Monitoring Panel
- True Online Double Conversion Technology 15 KVA / 12 kW high power capacity 0 ms transfer time (no power interruption) Pure sine wave output for sensitive equipment High efficiency >94%
- 0 C 40 C Celsius (oC)
- 50 Hertz (HZ)
- BLACK
- 380V / 400V / 415V A Volt (V)
- STEEL
- 15 KVA
- BACKUP
- 88 Kilograms (kg)
- POWER SUPPLY
- 50 Hertz (HZ)
- BPE (HXi3115L20) 15KVA ONLINE UPS INBUILT Isolation Transfarmer
BPE (HXi3115L20) 15KVA ONLINE UPS INBUILT Isolation Transfarmer Trade Information
- 7 Days
Product Description
DESCRIPTION
The BPE HXi3115L20 15KVA Online UPS is a high-performance true online double conversion UPS system designed to provide uninterrupted, clean, and stable power for critical applications. It comes with an inbuilt isolation transformer, ensuring complete electrical isolation, enhanced safety, and protection from voltage spikes, surges, and electrical noise.
This UPS is ideal for industrial, IT, medical, and commercial environments where continuous and reliable power is essential. With 0 ms transfer time, it delivers seamless power without any interruption during power failure.
The system supports a 3-phase input and single-phase output configuration, making it suitable for heavy-duty loads while maintaining stable output performance. Its advanced IGBT-based design ensures high efficiency, low harmonic distortion, and improved power factor.
The built-in intelligent control system features an LCD display, real-time monitoring, and advanced battery management, allowing optimized performance and longer battery life. It is compatible with external SMF battery banks, enabling flexible backup time as per requirement.
With strong protection features such as overload, short circuit, surge, and voltage fluctuation protection, this UPS ensures maximum reliability and safety for connected equipment.
BPE 15KVA Online UPS (HXi3115L20) Specification Table
| Specification | Details |
|---|---|
| Brand / Model | BPE HXi3115L20 |
| Capacity | 15 KVA / 12 kW |
| Technology | Online Double Conversion UPS |
| Phase (Input) | 3 Phase Input |
| Phase (Output) | 1 Phase Output |
| Output Voltage | 220 / 230 / 240 V |
| Frequency | 50/60 Hz 3 Hz |
| Power Factor | 0.8 |
| Efficiency | >94% |
| Transfer Time | 0 ms (No break) |
| Waveform | Pure Sine Wave |
| THD (Output) | <3% |
| Isolation Transformer | Inbuilt (Galvanic Isolation) |
| Battery Type | SMF Battery (External Bank) |
| Battery DC Bus | 240V / 360V DC |
| Battery Range | 18Ah 150Ah supported |
| Charger Capacity | Up to 10A |
| Backup Time | Depends on battery bank |
| Input Voltage Range | 285 470V (3 Phase) |
| Crest Factor | 3:1 |
| Display | LCD Monitoring Panel |
| Noise Level | <56 dB |
| Protection | Overload, Short circuit, Surge, Noise filtering |
| Bypass System | Internal (Auto + Manual) |
| Communication | RS-232 / SNMP (optional card) |
| Operating Temp | 0C 40C |
| Weight | ~88 kg |
| Dimensions | 795 650 350 mm |
WARRNTY :- 1 YEAR
Key Highlight
- Built-in Isolation Transformer protects sensitive equipment from noise, spikes, and grounding issues
- 0 ms switching time fully safe for servers & industrial loads
- Designed for critical load applications (hospital, industry, IT server rooms)
