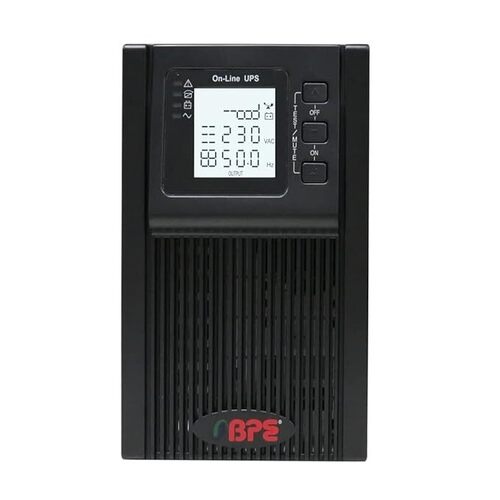

BPE (HXi3130L30) 30KVA ONLINE UPS INBUILT Isolation Transfarmer

180000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 30KVA
Product Type BPE (HXi3130L30) 30KVA ONLINE UPS INBUILT Isolation Transfarmer
Standard 1800 mm 600 mm 850 mm (industrial floor-standing cabinet typical standard)
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, Short Circuit, Overheat, Surge
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (HXi3130L30) 30KVA ONLINE UPS INBUILT Isolation Transfarmer Price And Quantity

Minimum Order Quantity 1 Unit
Price 180000.0 INR/Unit

BPE (HXi3130L30) 30KVA ONLINE UPS INBUILT Isolation Transfarmer Product Specifications

Frequency (MHz) 50 Hertz (HZ)
Rated Current 46 Ampere (amp)
Power Rating 30KVA
Frequency 50 Hertz (HZ)
Operating Temperature 0 C to 40 C Celsius (oC)
Size STANDARD
Usage BACKUP
Product Type BPE (HXi3130L30) 30KVA ONLINE UPS INBUILT Isolation Transfarmer
Material STEEL
Warranty 1 YEAR
Rated Voltage 380V 415V AC Volt (V)
Display Type LCD Panel (Status Monitoring)
Dimension (L*W*H) ~ 685 mm 615 mm 280 mm (typical HXi 20 30 KVA cabinet size range) Millimeter (mm)
Cable Type Type: Copper, FRLS / FRLSH insulated power cable
Usage & Applications POWER SUPPLY
Phase 3 PHASE
Weight 150 Kilograms (kg)
Features LCD Panel (Status Monitoring)
Standard 1800 mm 600 mm 850 mm (industrial floor-standing cabinet typical standard)
Protection Overload, Short Circuit, Overheat, Surge
Color BLACK

BPE (HXi3130L30) 30KVA ONLINE UPS INBUILT Isolation Transfarmer Trade Information

Delivery Time 7 Days

Product Description

BPE HXi3130L30 30 KVA Online UPS with Inbuilt Isolation Transformer

The BPE HXi3130L30 is a high-performance 3-phase Online Double Conversion UPS system designed for industrial and mission-critical applications. It delivers reliable, clean, and uninterrupted power with advanced protection features and an inbuilt isolation transformer for enhanced safety and electrical noise filtering.

Specifications Table

Parameter	Details
Model	BPE HXi3130L30
Capacity	30 KVA (Approx. 24 kW)
Technology	Online Double Conversion UPS
Phase	3 Phase In / 3 Phase Out
Input Voltage Range	~380415V AC
Output Voltage	400V AC (3 Phase)
Power Factor	0.8
Efficiency	91% 94% (approx.)
Waveform	Pure Sine Wave
Transfer Time	0 ms (No Break)
Isolation Transformer	Inbuilt (Galvanic Isolation)
Battery Type	External SMF / Flooded Lead Acid
DC Bus Voltage	~360V DC
Backup Time	Depends on battery bank
Recharge Time	~610 hours to 90% (typical)
Overload Capacity	110%150% (short duration)
Display	LCD Panel (Status Monitoring)
Communication Ports	RS-232 / SNMP (optional)
Protection	Overload, Short Circuit, Overheat, Surge
Cooling System	Intelligent Forced Air Cooling (Fans)
Bypass Mode	Automatic + Manual Maintenance Bypass
Operating Temperature	0C to 40C
Humidity	0% 95% (Non-condensing)
Application	Industrial, Data Center, Medical, CNC Machines

WARRANTY :- 1 YEAR
If you want, I can also format this into:
PDF datasheet
Quotation format for vendor submission
Comparison table with APC / Eaton / Vertiv 30 KVA UPS

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY Price : 25000.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Dimension (L*W*H) : Parameter Details (Approx.) Width (W) 360 mm (~14.2 in) Height (H) 580 mm (~22.8 in) Depth (D) 280 mm (~11 in) Weight 45 50 kg (includes inbuilt batteries) Millimeter (mm) Display Type : Advanced LCD showing voltages, battery, load, mode Rated Voltage : 220/230/240 V AC Volt (V) Material : STEEL Warranty : 1 YEAR Color : BLACK Weight : 50 kg Kilograms (kg) Phase : 1 PHAE Protection : Protection Features 3 kVA Online UPS Protection Type Description / Function Overload Protection Automatically limits or shuts down output if connected load exceeds rated capacity to prevent damage. Short Circuit Protection Detects short circuits in the output and disconnects the load immediately to prevent UPS or equipment damage. Battery Low / Over Discharge Protection Prevents deep discharge of the inbuilt battery, prolonging battery life and avoiding failures. Input Surge / Spike Protection Protects connected devices from voltage spikes or surges caused by lightning, switching, or grid fluctuations. Overvoltage / Undervoltage Protection (AVR) Automatic Voltage Regulation keeps output voltage within safe limits for sensitive electronics. Over Temperature Protection Monitors internal UPS temperature and shuts down or alerts in case of overheating. Reverse Polarity Protection Prevents damage in case battery terminals are connected incorrectly. Short Transfer Time / Zero Transfer Protection Ensures uninterrupted power supply during mains failure with zero milliseconds transfer to battery mode. EMI / RFI Filtering Protects against electromagnetic and radiofrequency interference affecting sensitive equipment. Standard : IEC 620401 / IEC 620402 / IEC 620403 Frequency : 50/60 Hz Hertz (HZ) Rated Current : 2400 W Watt (w) Power Rating : 3 kVA (~2400 W) Frequency (MHz) : 50/60 Hz Hertz (HZ) Operating Temperature : 0 C ~45 C Celsius (oC) Size : 360 mm 580 mm 280 mm (~14.2 22.8 11 ) Usage : BACKUP Product Type : BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY Cable Type : 3core, 4 mm to 6 mm copper wire (L, N, E) depending on distance and load; rated for 16 A or more. Features : Feature Description / Benefit True Online Double Conversion (VFI) Provides uninterrupted, clean AC power with zero transfer time during mains failure. Inbuilt VRLA/SMF Batteries Compact internal battery bank for plugandplay installation, eliminating the need for external batteries. Wide Input Voltage Range (100 300 V AC) Protects equipment against brownouts, voltage sags, and spikes without switching to battery unnecessarily. Pure Sine Wave Output Safe for sensitive electronics like PCs, servers, networking devices, medical equipment, and lab instruments. Advanced LCD/LED Display Realtime display of input/output voltage, load percentage, battery status, and operating mode. Automatic Voltage Regulation (AVR) Stabilizes output voltage, ensuring reliable operation of connected devices. High Efficiency (~94%) & ECO Mode Reduces energy consumption while maintaining reliable operation. Generator Compatible Can safely work with backup generators without damage to UPS or connected devices. Multiple Protections Overload, short circuit, battery low, overvoltage, undervoltage, surge, EMI/RFI filtering, and temperature monitoring. Compact Tower Design Suitable for office floors, server rooms, and homes without requiring separate battery racks. Zero Transfer Time Ensures uninterrupted operation for critical systems during power cuts. Long Battery Life Builtin batteries with proper charging and protection provide reliable backup and extended service life. Crest Factor 3:1 Can handle equipment with high inrush current (like servers, laser printers, networking gear). Easy Maintenance Frontaccess panel for monitoring, quick battery replacement, and servicing. Conductor : 3core, 4 mm to 6 mm copper wire (L, N, E) depending on distance and load; rated for 16 A or more.

Send Inquiry

BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price : 28000.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Dimension (L*W*H) : Parameter Details Height 205 mm Width 180 mm Depth 410 mm Weight ~26.7 kg Millimeter (mm) Display Type : Multi function LCD status console Rated Voltage : 110 285 V Volt (V) Material : STEEL Warranty : 1 YEAR Color : BLACK Weight : 26.7 kg Kilograms (kg) Phase : 1 PHASE Protection : Audible & visible alarms for faults, overload, low battery Standard : IEC 620401 (UPS safety requirements) Frequency : 50/60 Hz Hertz (HZ) Rated Current : 10.43A Microampere (A) Power Rating : 3 kVA (~2.4 kW at 0.8 PF) Frequency (MHz) : 50/60 Hz Hertz (HZ) Operating Temperature : 0 40 C Celsius (oC) Size : Dimension Measurement Height 205 mm Width 180 mm Depth 410 mm Weight ~26.7 kg Usage : BACKUP Product Type : BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Cable Type : Rated for 16 A 20 A, 1.5 mm to 2.5 mm , depending on installation distance; suitable for singlephase 230 V AC supply Features : Feature Description True Online UPS Doubleconversion (VFI) topology provides continuous, clean, regulated AC power. Inbuilt Isolation Transformer Galvanic isolation protects sensitive equipment from spikes, surges, and ground loop issues. Pure Sine Wave Output Ensures compatibility with sensitive IT, telecom, and industrial equipment. Wide Input Voltage Range Typically 110 285 V AC, allowing stable operation even during mains fluctuations. High Input Power Factor 0.99 reduces load on mains and improves efficiency. LCD Display Shows input/output voltage, frequency, load level, battery status, and UPS operating mode. Static Bypass & Cold Start Allows UPS to operate even without mains supply; automatic bypass protects load in fault conditions. Battery Flexibility Supports external batteries of 7 100 Ah for customizable backup duration. Overload & ShortCircuit Protection Builtin safeguards against faults, overloads, and battery failures. Generator & Solar Compatible Can be used with generators or renewable sources without issues. Audible & Visual Alarms Alerts for battery low, overload, faults, and abnormal conditions. Compact & Reliable Design Lightweight (~26.7 kg) and suitable for office, industrial, and data center environments. High Efficiency Up to ~94% in doubleconversion mode, reducing energy loss and heat. Conductor : Rated for 16 A 20 A, 1.5 mm to 2.5 mm , depending on installation distance; suitable for singlephase 230 V AC supply

Send Inquiry

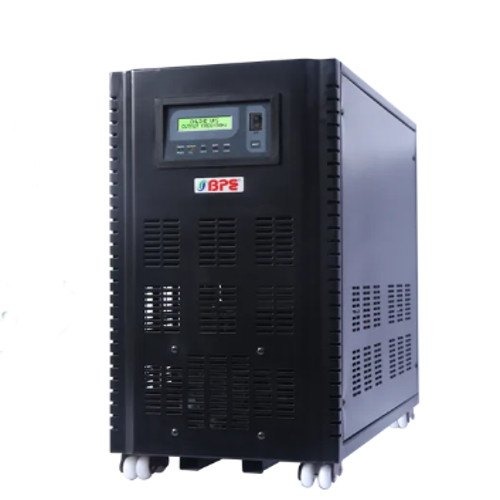

BPE (PB1115L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Price : 77880.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : power supply Dimension (L*W*H) : Width: 280 mm Depth: 615 mm Height: 685 mm Weight: ~76 kg Millimeter (mm) Display Type : LCD Display Panel Rated Voltage : 160 V 280 V AC Volt (V) Material : steel Warranty : 1 warranty Color : black Weight : 76 Kilograms (kg) Phase : 1 phase Protection : Overload, Short Circuit, Battery Low, Over Temp Standard : IEC 620401, IEC 620402, IEC 620403 Frequency : 50 Hertz (HZ) Rated Current : 43 45 Amps Ampere (amp) Power Rating : 10 KVA Frequency (MHz) : 50 Hertz (HZ) Operating Temperature : 0 C to 40 C Celsius (oC) Size : Width: 280 mm Depth: 615 mm Height: 685 mm Weight: ~76 kg Usage : backup Product Type : BPE (PB1115L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Cable Type : Copper Armoured Cable 2 Core 10 16 sq.mm Features : True Online Double Conversion (zero transfer time)
