Luminous

BPE (CP3330L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer

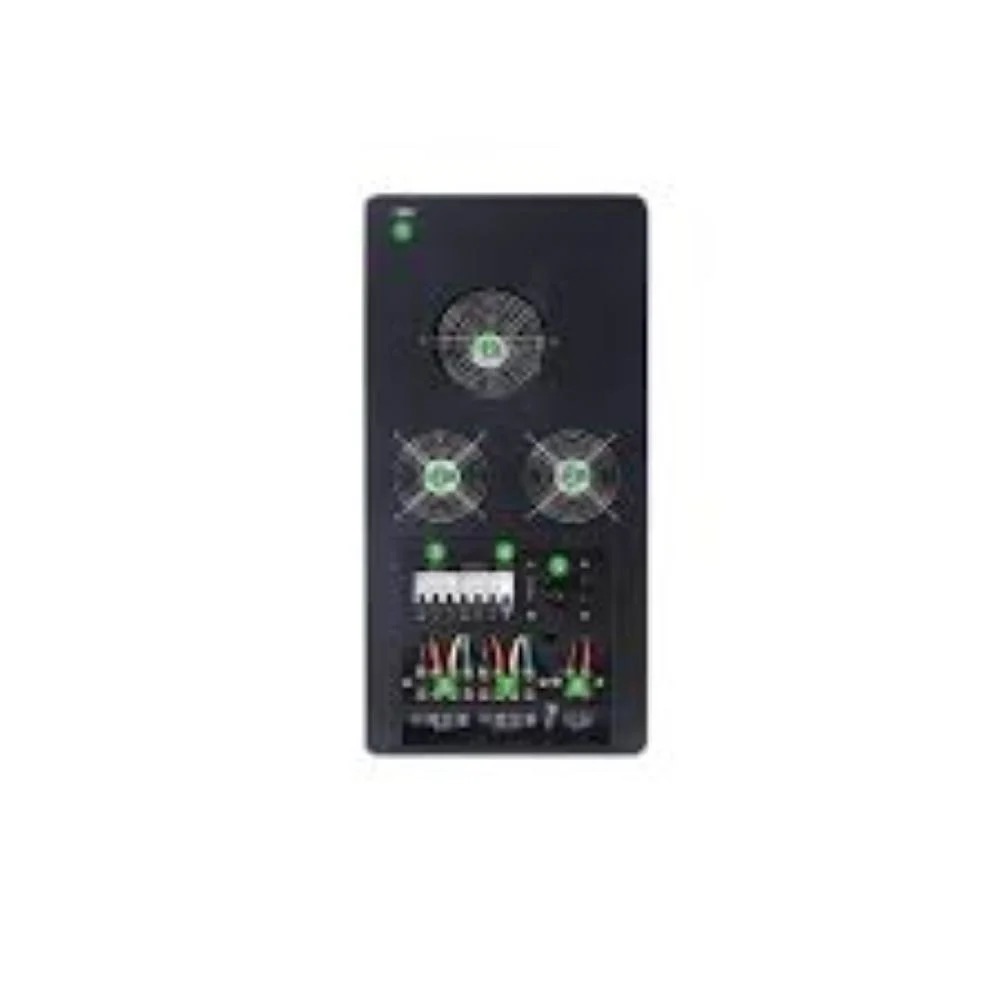

Name: BPE (CP3330L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 212400.0 INR
Availability: InStock

212400.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 30KVA
Product Type BPE (CP3330L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Standard IEC 62040-1
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, over/under voltage, over temperature
Usage backup
Size Parameter Dimension Width 615 mm Depth 280 mm Height 685 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (CP3330L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Price And Quantity

Price 212400.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (CP3330L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Product Specifications

Weight 250 Kilograms (kg)
Usage backup
Operating Temperature 0 C to 40 C Celsius (oC)
Display Type LCD digital control panel
Phase 3:3PHASE
Features True Online Double Conversion Technology (continuous clean power supply)
Standard IEC 62040-1
Frequency 50 Hertz (HZ)
Size Parameter Dimension Width 615 mm Depth 280 mm Height 685 mm
Material STEEL
Protection Overload, short circuit, over/under voltage, over temperature
Product Type BPE (CP3330L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Rated Voltage 380 / 400 / 415V AC Volt (V)
Usage & Applications POWER SUPPLY
Dimension (L*W*H) Parameter Details Width (W) 615 mm Depth (D) 280 mm Height (H) 685 mm Net Weight ~235 kg Millimeter (mm)
Power Rating 30KVA
Rated Current 43.3A Ampere (amp)
Color black
Cable Type 4-core or 4.5-core copper cable (R, Y, B + Neutral + Earth)
Frequency (MHz) 50 Hertz (HZ)
Warranty 1YEAR

BPE (CP3330L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Trade Information

Delivery Time 7 Days

Product Description

BPE CP3330L30 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer

The BPE CP3330L30 is a 30 kVA industrial-grade, 3-phase online UPS system designed for continuous and highly reliable power protection in critical environments. It uses true double-conversion online technology, ensuring zero transfer time and stable output power even during severe electrical disturbances.

This model comes with an inbuilt isolation transformer, which provides galvanic isolation between input and output. This improves electrical safety, reduces noise and harmonics, and protects sensitive industrial and IT equipment from surges, spikes, and grounding issues.

The UPS supports a wide input voltage range (3-phase 380415V) and delivers a regulated 400V pure sine wave output, making it suitable for heavy-duty industrial loads. It is designed to handle demanding conditions with high overload capability and strong compatibility with generators.

The system typically uses an external battery bank (DC bus 360V), allowing flexible backup time depending on application needs. Its advanced digital control system ensures efficient battery charging, real-time monitoring, and multiple protection features such as overload, short circuit, and over/under voltage protection.

With its high efficiency, robust build, and industrial reliability, the CP3330L30 is widely used in environments where uninterrupted power is critical.

Parameter	Details
Model	CP3330L30
Capacity	30 kVA (24 kW approx.)
Topology	True Online Double Conversion
Phase	3 Phase In / 3 Phase Out
Output Voltage	380 / 400 / 415V AC
Frequency	50 / 60 Hz (0.1% in battery mode)
Waveform	Pure Sine Wave
Power Factor	0.8 (standard)
Efficiency	Up to 94%
Transfer Time	0 ms (zero interruption)
THD (Output)	< 3% (low distortion)
Input Voltage Range	320 480V AC (3-phase)
Input Power Factor	>0.95
Isolation Transformer	Inbuilt (galvanic isolation)
Battery Voltage	360V DC (typical configuration)
Battery Type	SMF / VRLA (external bank)
Overload Capacity	125% for 10 min, 150% for 1 min
Cooling System	Forced air cooling (fan-based)
Display	LCD digital control panel
Protections	Overload, short circuit, over/under voltage, over temperature
Bypass	Static + Maintenance bypass (built-in)
Communication	RS232 / RS485 / SNMP (optional)
Operating Temperature	0C to 40C
Noise Level	< 60 dB
Protection Class	IP20
Applications	Industrial machinery, hospitals, data centers, telecom

WARRANTY :- 1 YEAR
