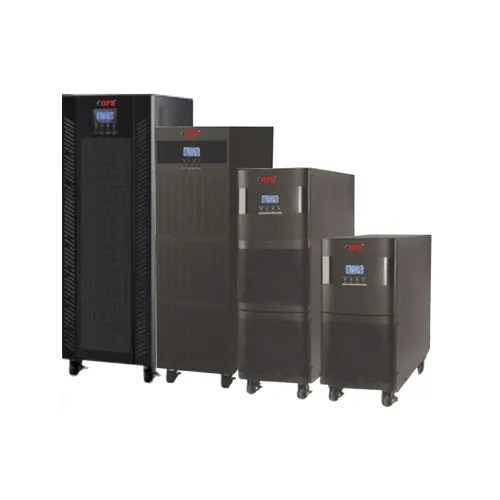

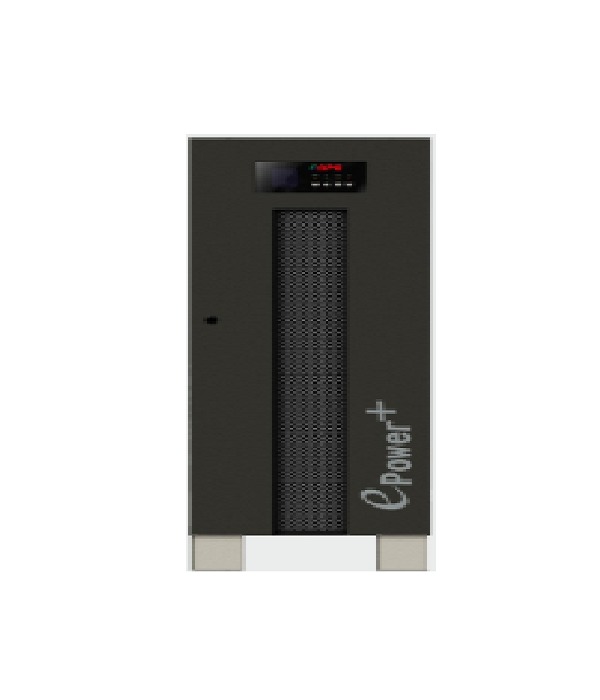

BPE (GT3320L20) 20KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

Name: BPE (GT3320L20) 20KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 125000.0 INR
Availability: InStock

125000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 20KVA
Product Type BPE (GT3320L20) 20KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Standard Indian standard aligned with IEC 62040 series
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, surge, battery protection
Usage BACKUP
Size 800 800 1760 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GT3320L20) 20KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 125000.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (GT3320L20) 20KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Warranty 1 YEAR
Rated Current 32 35 A per phase Ampere (amp)
Product Type BPE (GT3320L20) 20KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Color BLACK
Power Rating 20KVA
Size 800 800 1760 mm
Material STEEL
Phase 3:3
Protection Overload, short circuit, surge, battery protection
Weight 680 Kilograms (kg)
Usage BACKUP
Features Feature Details True Online Double Conversion Ensures continuous, clean power with zero transfer time 3 Phase Input 3 Phase Output Balanced load handling for industrial and commercial applications Pure Sine Wave Output Safe for sensitive equipment like servers & medical devices DSP Controlled Technology High-speed digital signal processing for stable performance IGBT-Based Rectifier & Inverter Improves efficiency and reduces harmonic distortion High Efficiency Mode (ECO) Up to 99% efficiency reduces power consumption Wide Input Voltage Range Operates reliably even in unstable power conditions External Battery Support Flexible battery bank for customizable backup time Isolation Transformer (Inbuilt) Protects against spikes, noise, and electrical disturbances Generator Compatibility Works seamlessly with DG sets Parallel Operation (Optional) Supports redundancy (N+X configuration) Advanced Battery Management Optimized charging increases battery life Cold Start Function Can start UPS directly from battery without mains Static & Maintenance Bypass Ensures uninterrupted supply during maintenance Comprehensive Protection Overload, short circuit, over/under voltage, battery protection LCD Display & Monitoring Real-time status of voltage, load, battery, and alarms Communication Ports RS232 / USB / SNMP for remote monitoring Compact Industrial Design Floor-standing cabinet suitable for heavy-duty use
Frequency 50 Hertz (HZ)
Usage & Applications POWER SUPPLY
Display Type LCD / Digital panel
Cable Type XLPE / PVC Insulated Copper Armoured Cable
Frequency (MHz) 50 Hertz (HZ)
Operating Temperature 0 C to 40 C Celsius (oC)
Dimension (L*W*H) 800 800 1760 mm Millimeter (mm)
Rated Voltage 380 / 400 / 415 V AC Volt (V)
Standard Indian standard aligned with IEC 62040 series

BPE (GT3320L20) 20KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The BPE GT3320L20 is a high-performance 20 KVA three-phase (3:3) online UPS system designed to provide continuous, clean, and uninterrupted power for critical industrial and commercial applications. It uses true double-conversion technology, ensuring zero transfer time and complete protection from voltage fluctuations, spikes, and power outages.

Specification Table

Specification	Details
Model	GT3320L20
UPS Type	True Online Double Conversion
Capacity	20 KVA / 18 kW
Input Phase	3 Phase
Output Phase	3 Phase
Input Voltage	380 / 400 / 415 VAC (3P + N + PE)
Output Voltage	380 / 400 / 415 VAC
Output Power Factor	0.8
Efficiency	Up to 99% (ECO mode)
Frequency	50/60 Hz 0.1%
Transfer Time	0 ms (Zero interruption)
Waveform	Pure Sine Wave
Output Voltage Distortion (THD)	<3% (linear), <5% (non-linear)
Load Crest Factor	3:1
Battery Type	External (SMF / Tubular)
DC Bus Voltage	240V 384V DC (configurable)
Backup Time	Depends on battery bank (30 min to 3+ hours)
Isolation Transformer	Inbuilt
Protection	Overload, short circuit, surge, battery protection
Communication	RS232 / USB / SNMP (optional)
Display	LCD / Digital panel
Operating Temperature	0C to 40C
Humidity	095% (non-condensing)
Installation Type	Tower / Floor Standing
Applications	Data centers, hospitals, industrial machinery

WARRANTY :- 1 YEAR
