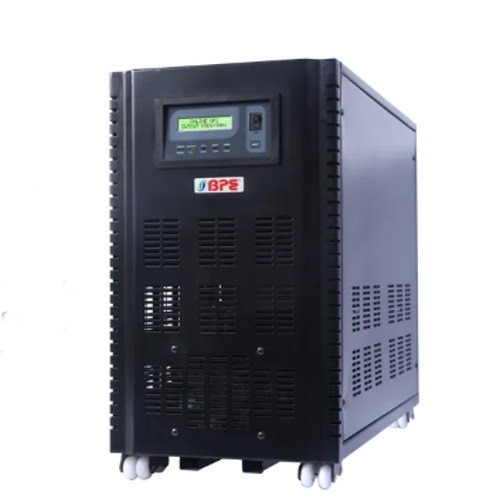

BPE (PB1105L16) 5KVA ONLINE UPS INBUILT Isolation Transfarmer

Name: BPE (PB1105L16) 5KVA ONLINE UPS INBUILT Isolation Transfarmer
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 49324.0 INR
Availability: InStock

49324.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (PB1105L16) 5KVA ONLINE UPS INBUILT Isolation Transfarmer
Power Rating 5 KVA
Standard Indian standard for safety of UPS systems
Frequency (MHz) 50 Hz Hertz (HZ)
Protection Automatically shuts down or transfers to bypass during overload
Usage BACKUP
Size 250 550 680 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (PB1105L16) 5KVA ONLINE UPS INBUILT Isolation Transfarmer Price And Quantity

Price 49324.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (PB1105L16) 5KVA ONLINE UPS INBUILT Isolation Transfarmer Product Specifications

Rated Voltage 220V / 230V / 240V) Volt (V)
Product Type BPE (PB1105L16) 5KVA ONLINE UPS INBUILT Isolation Transfarmer
Frequency 50 Hz Hertz (HZ)
Operating Temperature 0 C to 40 C Celsius (oC)
Rated Current 1.7 Amps Ampere (amp)
Warranty 1 YEAR
Cable Type 3 Core (Phase + Neutral + Earth)
Frequency (MHz) 50 Hz Hertz (HZ)
Protection Automatically shuts down or transfers to bypass during overload
Usage BACKUP
Size 250 550 680 mm
Power Rating 5 KVA
Display Type LCD Display (status & parameters)
Features Provides galvanic isolation and protects sensitive equipment
Dimension (L*W*H) 250 550 680 mm Millimeter (mm)
Color BLACK
Phase SINGLE PHASE
Usage & Applications POWER SUPPLY
Weight 51 Kilograms (kg)
Material STEEL
Standard Indian standard for safety of UPS systems

BPE (PB1105L16) 5KVA ONLINE UPS INBUILT Isolation Transfarmer Trade Information

Delivery Time 7 Days

Product Description

This UPS converts incoming AC power into DC and then back to AC, delivering a pure sine wave output that is completely isolated from input fluctuations. It is especially suitable for environments where power quality is critical, such as IT systems, medical devices, and industrial machinery.

A key highlight is its inbuilt isolation transformer, which provides galvanic isolation, protecting connected equipment from spikes, surges, and electrical noise.

Specification Table

Specification	Details
Model	BPE PB1105L16
Capacity	5 KVA / 4 KW
UPS Type	True Online Double Conversion
Phase	Single Phase (1:1)
Input Voltage	220V / 230V / 240V
Input Voltage Range	140V 280V (operational)
Input Frequency	50/60 Hz 3 Hz
Output Voltage	220V / 230V / 240V 1%
Output Frequency	50 Hz 0.1%
Output Waveform	Pure Sine Wave
Efficiency	Up to 93%
Output Power Factor	0.8 (0.9 optional)
Transfer Time	0 ms (No interruption)
Voltage Distortion (THD)	< 3%
Crest Factor	3:1
Isolation Transformer	Inbuilt
Battery Type	External (SMF / Tubular compatible)
Battery Voltage (DC Bus)	192V DC
Battery Capacity Range	7Ah 100Ah
Charging Current	Up to 10A
Recharge Time	45 hours (9095%)
Display	LCD Display (status & parameters)
Bypass	Internal (Auto & Manual)
Communication	SNMP / Software support
Dimensions (WDH)	250 550 680 mm
Weight	51 kg
Country of Origin	India

Advanced Protection for Sensitive Equipment

Featuring an inbuilt isolation transformer, the BPE 5KVA Online UPS isolates and protects sensitive devices from electrical disturbances. The system provides automatic shutdown or transfers to bypass mode during overload, ensuring uninterrupted operation and safeguarding your devices. Ideal for environments where power quality is critical, such as server rooms and laboratory equipment.

User-Friendly Features and Monitoring

The UPS is equipped with an intuitive LCD display that provides real-time status updates and parameter readings, enabling easy monitoring. The robust steel construction enhances durability, while the compact dimensions make installation straightforward. With its advanced safety mechanisms and reliable performance, this UPS is suitable for various backup power applications.

FAQ's of BPE (PB1105L16) 5KVA ONLINE UPS INBUILT Isolation Transfarmer:

Q: How does the inbuilt isolation transformer benefit sensitive equipment in the BPE 5KVA Online UPS?

A: The inbuilt isolation transformer offers galvanic isolation, protecting sensitive equipment from electrical noise, surges, and ground loops. This makes the UPS suitable for powering medical instruments, laboratory equipment, and IT infrastructure where power quality is paramount.

Q: What types of cable and electrical connections are supported by this UPS model?

A: The BPE PB1105L16 UPS uses a 3-core cable (Phase + Neutral + Earth), which is standard for single-phase power delivery in commercial and industrial settings, ensuring safe and reliable connectivity.

Q: When does the UPS automatically shut down or transfer to bypass mode?

A: The UPS is designed to automatically shut down or switch to bypass mode in the event of an overload, protecting both the UPS unit and the connected equipment from damage due to excessive current draw.

Q: What process should users follow to monitor UPS status and parameters?

A: Users can utilize the integrated LCD display to monitor the status and key operating parameters of the UPS. The display provides clear information on input/output voltage, battery status, and load level, simplifying troubleshooting and maintenance.

Q: Where is this UPS typically installed and used?

A: This UPS is commonly installed in locations requiring uninterrupted power and high equipment safety, such as server rooms, data centers, hospitals, laboratories, and industrial facilities.

Q: What safety standards does the BPE 5KVA Online UPS comply with?

A: The UPS adheres to Indian standards for the safety of UPS systems, ensuring reliable operation, user protection, and product durability in compliance with national regulations.
