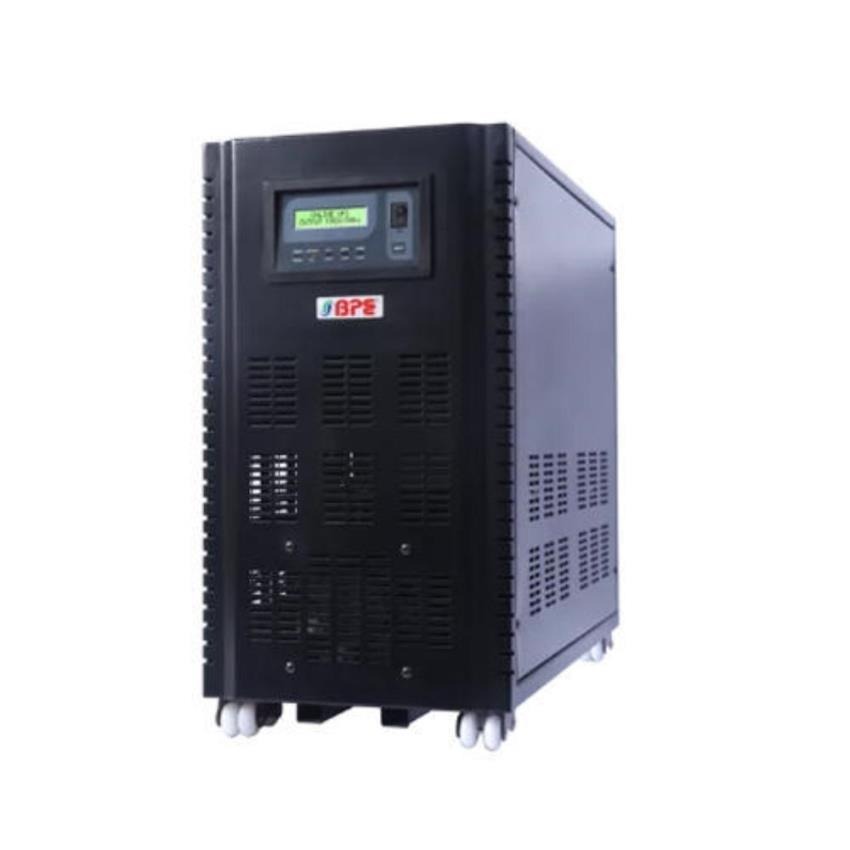

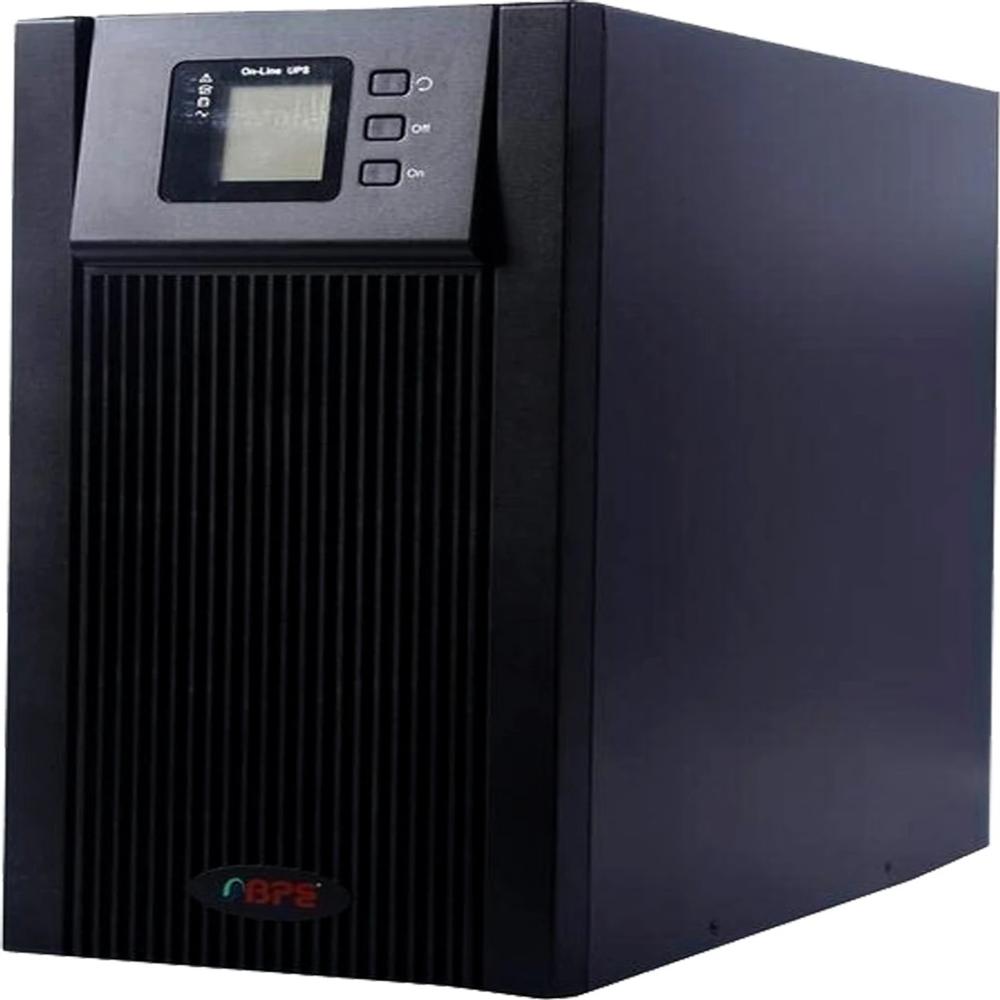

BPE (MF1106L16) 6KVA ONLINE UPS EXTERNAL BATTERY

Product Description

Key Description & Features

Power & Performance

• Type: Online DoubleConversion UPS provides continuous regulated AC output by converting incoming AC to DC and back to AC, isolating equipment from unstable mains power.

• Capacity: 6kVA / 4.8kW (models in this series are often marketed as 56kVA based on configuration).

• Input Voltage Range: Wide input (110V 300V AC), allowing operation even with fluctuating mains.

• Output Voltage: Configurable 220V/230V/240V AC with 1% regulation.

• Power Factor: High input power factor (>0.99) and output power factor 0.8 (standard).


  Specification Table BPE MF1106L16 Online UPS (External Battery)

  Specification	Details
  Model	MF1106L16 (External Battery)
  UPS Type	True Online DoubleConversion (DSP controlled)
  Capacity	6kVA (4.8kW @ 0.8 PF)
  Input Voltage (Nominal)	220V / 230V / 240V AC (Single Phase + N + PE)
  Input Voltage Range	Approx. 100V 300V AC (Load dependent)
  Input Frequency Range	50/60Hz 10% (Auto sensing)
  Input Power Factor	>0.99
  Output Voltage	Configurable: 220V / 230V / 240V AC
  Output Power Factor	0.8 (Standard) (0.9 optional)
  Output Regulation	1%
  Output Frequency	50/60Hz Auto sensing; 0.1Hz on battery
  Output Waveform	Pure sine wave
  Crest Factor	3:1
  Harmonic Distortion (THDv)	1%
  Efficiency	94% (Online Mode), 99% (ECO Mode)
  Transfer Time	Zero ms (online mode)
  Battery Type	External SMF VRLA / Lithiumion compatible
  Battery Voltage (DC Bus)	192240V DC (configurable)
  Charge Current	6.5A (standard configurable)
  Typical Recharge Time	45hours to 90%
  Display & Controls	LCD & LED panels with mode, voltages, load %, battery status
  Protections	Overload, short circuit, input under/over voltage, overtemp, battery low, surge protection
  Communication Interfaces	RS232 / USB / EPO (standard); optional SNMP / Modbus / IoT
  Operating Temperature	050C
  Humidity	095% RH (noncondensing)
  Noise Level	55dBA
  Dimensions (Approx.)	190480350mm
  Net Weight (Approx.)	25kg
  Compliance & Standards	BIS, IEC/EN62040 series, RoHS, CE*

  ---

  Notes

  • This model does NOT include internal batteries you must connect an external battery bank sized to 192240V DC (e.g., 12V 16 in series).

  • Output power figures and efficiency are typical for online doubleconversion design.

  • Optional monitoring and network cards (SNMP/IoT) are available but may cost extra.

True Online Double Conversion for Maximum Power Protection

By adopting true online double conversion topology, this UPS ensures connected equipment always receives stable, pure sinewave power free from disturbances. This makes it ideal for sensitive electronics, servers, and industrial controls that require flawless input to operate efficiently.


Comprehensive Safety and Monitoring Features

The MF1106L16 is equipped with robust safety mechanisms including overload, short circuit, over-temperature, surge, and voltage protections. Its dual LCD and LED display system keeps users well-informed about key parameters such as system mode, voltage levels, load percentage, and battery status, supporting smooth operations.


Flexible Installation and Durability

Built with high-quality steel and supported with a one-year warranty, this UPS unit is engineered for durability. Recommended copper cable sizes ensure secure connections. It withstands operating temperatures up to 50C and fits seamlessly into diverse environments owing to its standard sizing and black finish.
