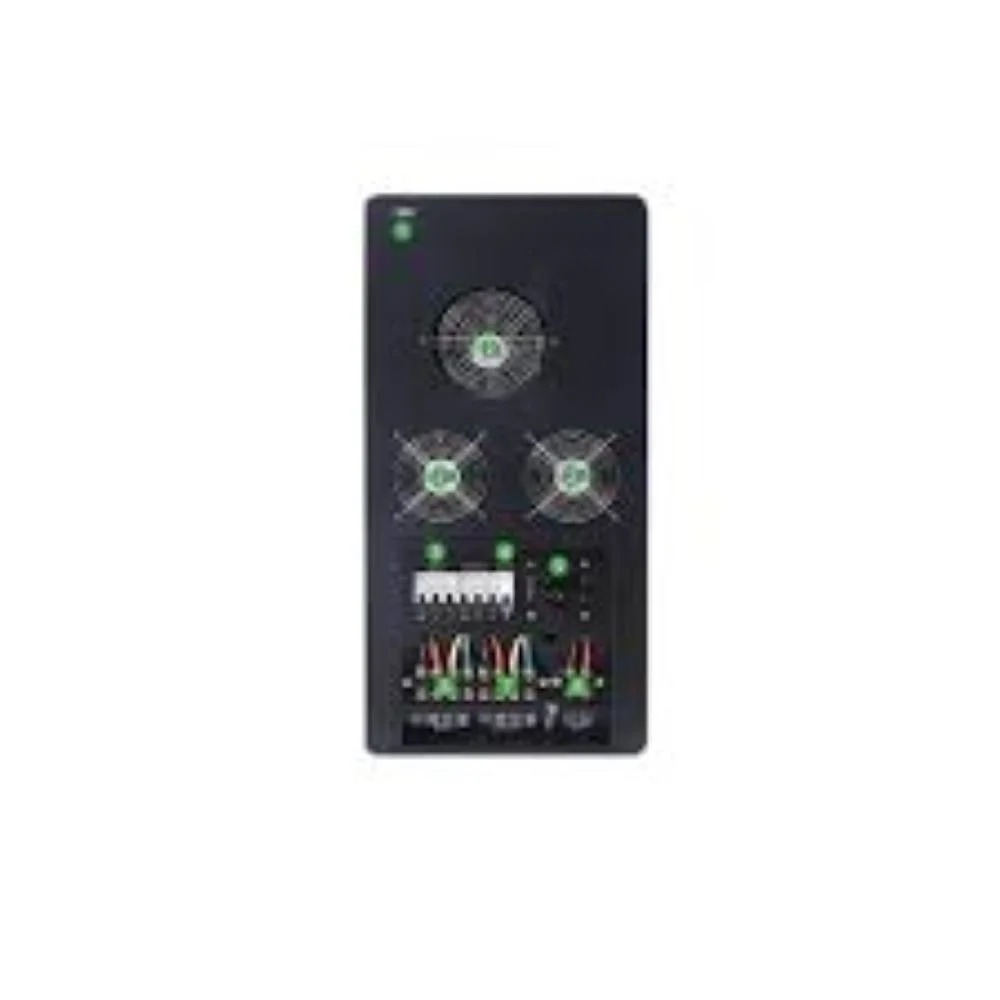

BPE (CP3320L20) 20KVA 3-Phase Online UPS with Inbuilt Isolation Transformer

Name: BPE (CP3320L20) 20KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 171100.0 INR
Availability: InStock

171100.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 20KVA
Product Type BPE (CP3320L20) 20KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Standard W D H: 615 280 685 mm
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, over/under voltage, over temperature
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (CP3320L20) 20KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Price And Quantity

Minimum Order Quantity 1 Unit
Price 171100.0 INR/Unit

BPE (CP3320L20) 20KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Product Specifications

Operating Temperature 0 C to 40 C Celsius (oC)
Material STEEL
Cable Type Copper, PVC insulated, armoured (if industrial installation)
Usage & Applications POWER SUPPLY
Warranty 1 YEAR
Rated Voltage 380V / 400V / 415V AC Volt (V)
Phase 3:3 PHASE
Weight 200 Kilograms (kg)
Rated Current 28.9A Ampere (amp)
Size STANDARD
Frequency (MHz) 50 Hertz (HZ)
Features Provides continuous, clean and stable power without interruption
Protection Overload, short circuit, over/under voltage, over temperature
Usage BACKUP
Color BLACK
Display Type LCD monitoring panel
Dimension (L*W*H) Height: 685 mm Width: 615 mm Depth: 280 mm Millimeter (mm)
Standard W D H: 615 280 685 mm
Frequency 50 Hertz (HZ)
Power Rating 20KVA
Product Type BPE (CP3320L20) 20KVA 3-Phase Online UPS with Inbuilt Isolation Transformer

BPE (CP3320L20) 20KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Trade Information

Delivery Time 7 Days

Product Description

The BPE CP3320L20 is a high-performance industrial online double-conversion UPS system designed to provide uninterrupted, clean, and stable power for critical 3-phase electrical loads. It comes with an inbuilt isolation transformer, making it suitable for sensitive and heavy-duty applications where power quality and safety are essential.

Specification	Details
Model	CP3320L20
Capacity	20 KVA
Output Power	1618 kW
Topology	Online Double Conversion (VFI)
Phase	3 Phase Input / 3 Phase Output (3:3)
Output Voltage	380V / 400V / 415V AC
Frequency	50 / 60 Hz (auto sensing)
Power Factor	0.8
Waveform	Pure Sine Wave
Transfer Time	0 ms (instant supply)
Efficiency	Up to 9496%
Input Voltage Range	320V 480V AC (3-phase)
THD (Output)	1%3% (low distortion)
Crest Factor	3:1
Overload Capacity	125%150% for short duration
Isolation Transformer	Inbuilt (galvanic isolation)
Battery Type	External SMF / VRLA / Lithium compatible
Battery Voltage	384V DC (typical system design)
Charging System	Smart multi-stage charging
Protection Features	Overload, short circuit, over/under voltage, over temperature
Display	LCD monitoring panel
Communication	RS232 / RS485 / SNMP (optional)
Bypass	Static & maintenance bypass (optional)
Cooling	Forced air (fan cooled)
Operating Temperature	0C to 40C (typical industrial range)

If you want, I can also convert this into:

PDF datasheet format
comparison with APC / Vertiv / Eaton 20KVA UPS
battery bank sizing + backup time calculation for your load
