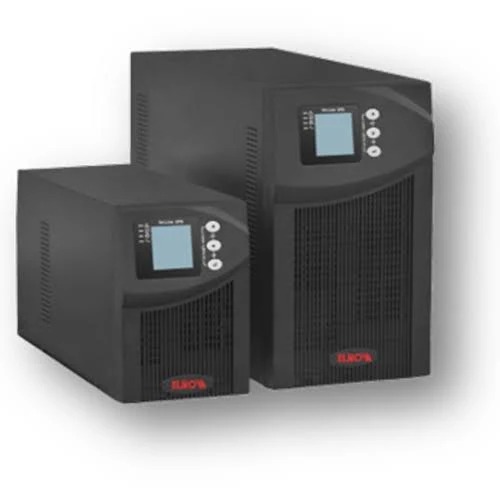

ELNOVA (ES2004B8) 2KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY

Name: ELNOVA (ES2004B8) 2KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 37260.0 INR
Availability: InStock

37260.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 2KVA
Product Type ELNOVA (ES2004B8) 2KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY
Standard IEC/EN 62040 compliant (CE/BIS)
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, battery low, over/under voltage
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ELNOVA (ES2004B8) 2KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY Price And Quantity

Price 37260.0 INR/Unit
Minimum Order Quantity 1 Unit

ELNOVA (ES2004B8) 2KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY Product Specifications

Color BLACK
Frequency (MHz) 50 Hertz (HZ)
Product Type ELNOVA (ES2004B8) 2KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY
Usage & Applications POWER SUPPLY
Rated Voltage 220V / 230V / 240V AC Volt (V)
Features True Online Double Conversion Technology for zero transfer time
Warranty 1YEAR
Rated Current 8.7 Amps Ampere (amp)
Standard IEC/EN 62040 compliant (CE/BIS)
Display Type LCD (input/output, load, battery status)
Frequency 50 Hertz (HZ)
Size STANDARD
Usage BACKUP
Weight 29 Kilograms (kg)
Operating Temperature 0 C to 45 C Celsius (oC)
Material STEEL
Dimension (L*W*H) ~469 191 339 mm Millimeter (mm)
Protection Overload, short circuit, battery low, over/under voltage
Cable Type Type: Single-phase AC power cable
Phase 1:1 PHASE
Power Rating 2KVA

ELNOVA (ES2004B8) 2KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY Trade Information

Delivery Time 7 Days

Product Description

The ELNOVA ES2004B8 2KVA 1:1 Phase Online UPS is a true double-conversion online UPS designed to deliver stable, uninterrupted, and clean power to sensitive electrical and electronic equipment.

It works by continuously converting AC power DC AC, ensuring zero transfer time during power cuts and complete protection from voltage fluctuations, spikes, and frequency variations.

This model comes with inbuilt SMF batteries, making it a compact all-in-one backup solution for small offices, IT systems, and industrial control equipment.

Specification	Details
Model	ES2004B8
Brand	ELNOVA
Type	Online Double Conversion UPS
Capacity	2 KVA / 1600 W
Phase	1:1 Single Phase
Input Voltage Range	120300 V AC
Rated Input Voltage	220/230/240 V AC
Output Voltage	220/230/240 V AC (selectable)
Output Waveform	Pure Sine Wave
Frequency Range	4565 Hz
Efficiency	Up to 94%
Power Factor	0.8 (standard)
Transfer Time	0 ms (utility to battery)
Battery Type	Inbuilt SMF (Sealed Maintenance Free)
Battery Configuration	96 V DC system (typical internal bank)
Recharge Time	68 hours (90% charge)
Backup Time	1015 minutes (depends on load)
Charging Current	1.0 A (typical)
Overload Capacity	105%150% (short duration)
Display	LCD (input/output, load, battery status)
Communication Ports	RS232 (optional USB / SNMP)
Cooling	Forced air cooling (fan-based)
Noise Level	Low audible noise
Operating Temperature	0C to 45C
Storage Temperature	-10C to 55C
Relative Humidity	095% (non-condensing)
Protection	Overload, short circuit, battery low, over/under voltage
Standards	IEC/EN 62040 compliant (CE/BIS)
Dimensions	469 191 339 mm
Weight	2829 kg

WARRANTY :- 1YEAR
