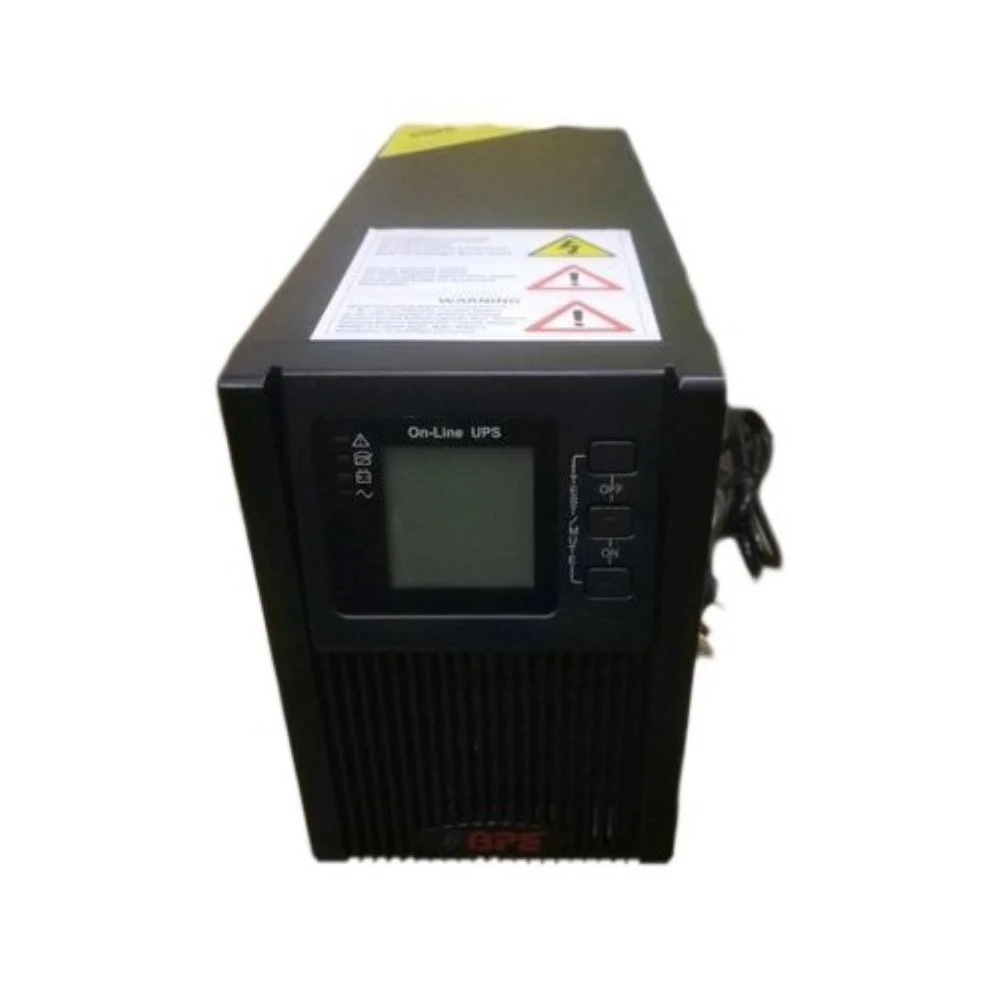

BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY

25000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY
Power Rating 3 kVA (~2400 W)
Standard IEC 62040-1 / IEC 62040-2 / IEC 62040-3
Frequency (MHz) 50/60 Hz Hertz (HZ)
Protection Protection Features 3 kVA Online UPS Protection Type Description / Function Overload Protection Automatically limits or shuts down output if connected load exceeds rated capacity to prevent damage. Short Circuit Protection Detects short circuits in the output and disconnects the load immediately to prevent UPS or equipment damage. Battery Low / Over Discharge Protection Prevents deep discharge of the inbuilt battery, prolonging battery life and avoiding failures. Input Surge / Spike Protection Protects connected devices from voltage spikes or surges caused by lightning, switching, or grid fluctuations. Overvoltage / Undervoltage Protection (AVR) Automatic Voltage Regulation keeps output voltage within safe limits for sensitive electronics. Over Temperature Protection Monitors internal UPS temperature and shuts down or alerts in case of overheating. Reverse Polarity Protection Prevents damage in case battery terminals are connected incorrectly. Short Transfer Time / Zero Transfer Protection Ensures uninterrupted power supply during mains failure with zero milliseconds transfer to battery mode. EMI / RFI Filtering Protects against electromagnetic and radio-frequency interference affecting sensitive equipment.
Usage BACKUP
Size 360 mm 580 mm 280 mm (~14.2 22.8 11 )
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 25000.0 INR/Unit

BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY Product Specifications

Operating Temperature 0 C ~45 C Celsius (oC)
Color BLACK
Cable Type 3-core, 4 mm to 6 mm copper wire (L, N, E) depending on distance and load; rated for 16 A or more.
Conductor 3-core, 4 mm to 6 mm copper wire (L, N, E) depending on distance and load; rated for 16 A or more.
Rated Voltage 220/230/240 V AC Volt (V)
Weight 50 kg Kilograms (kg)
Frequency 50/60 Hz Hertz (HZ)
Dimension (L*W*H) Parameter Details (Approx.) Width (W) 360 mm (~14.2 in) Height (H) 580 mm (~22.8 in) Depth (D) 280 mm (~11 in) Weight 45 50 kg (includes inbuilt batteries) Millimeter (mm)
Phase 1 PHAE
Features Feature Description / Benefit True Online Double Conversion (VFI) Provides uninterrupted, clean AC power with zero transfer time during mains failure. Inbuilt VRLA/SMF Batteries Compact internal battery bank for plug-and-play installation, eliminating the need for external batteries. Wide Input Voltage Range (100 300 V AC) Protects equipment against brownouts, voltage sags, and spikes without switching to battery unnecessarily. Pure Sine Wave Output Safe for sensitive electronics like PCs, servers, networking devices, medical equipment, and lab instruments. Advanced LCD/LED Display Real-time display of input/output voltage, load percentage, battery status, and operating mode. Automatic Voltage Regulation (AVR) Stabilizes output voltage, ensuring reliable operation of connected devices. High Efficiency (~94%) & ECO Mode Reduces energy consumption while maintaining reliable operation. Generator Compatible Can safely work with backup generators without damage to UPS or connected devices. Multiple Protections Overload, short circuit, battery low, overvoltage, undervoltage, surge, EMI/RFI filtering, and temperature monitoring. Compact Tower Design Suitable for office floors, server rooms, and homes without requiring separate battery racks. Zero Transfer Time Ensures uninterrupted operation for critical systems during power cuts. Long Battery Life Built-in batteries with proper charging and protection provide reliable backup and extended service life. Crest Factor 3:1 Can handle equipment with high inrush current (like servers, laser printers, networking gear). Easy Maintenance Front-access panel for monitoring, quick battery replacement, and servicing.
Protection Protection Features 3 kVA Online UPS Protection Type Description / Function Overload Protection Automatically limits or shuts down output if connected load exceeds rated capacity to prevent damage. Short Circuit Protection Detects short circuits in the output and disconnects the load immediately to prevent UPS or equipment damage. Battery Low / Over Discharge Protection Prevents deep discharge of the inbuilt battery, prolonging battery life and avoiding failures. Input Surge / Spike Protection Protects connected devices from voltage spikes or surges caused by lightning, switching, or grid fluctuations. Overvoltage / Undervoltage Protection (AVR) Automatic Voltage Regulation keeps output voltage within safe limits for sensitive electronics. Over Temperature Protection Monitors internal UPS temperature and shuts down or alerts in case of overheating. Reverse Polarity Protection Prevents damage in case battery terminals are connected incorrectly. Short Transfer Time / Zero Transfer Protection Ensures uninterrupted power supply during mains failure with zero milliseconds transfer to battery mode. EMI / RFI Filtering Protects against electromagnetic and radio-frequency interference affecting sensitive equipment.
Material STEEL
Rated Current 2400 W Watt (w)
Power Rating 3 kVA (~2400 W)
Standard IEC 62040-1 / IEC 62040-2 / IEC 62040-3
Display Type Advanced LCD showing voltages, battery, load, mode
Frequency (MHz) 50/60 Hz Hertz (HZ)
Size 360 mm 580 mm 280 mm (~14.2 22.8 11 )
Warranty 1 YEAR
Product Type BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY
Usage & Applications POWER SUPPLY
Usage BACKUP

BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY Trade Information

Delivery Time 6 Days

Product Description

Product Description 3KVA Online UPS with Inbuilt Battery

BPE 3KVA Online UPS MF1103B8 with Inbuilt Batteries (typical spec for models like MS1103B6/B8)

Overview:
A 3kVA true online UPS with doubleconversion topology and inbuilt sealed batteries, designed to provide uninterrupted, clean, pure sinewave power to your sensitive equipment (PCs, servers, network devices, medical or office systems). Online topology ensures zero transfer time to battery in the event of a power cut ideal for critical loads.

Specification 3kVA Online UPS with Inbuilt Battery

Specification	Details
Model / Series	BPE MF1103B8 / 3kVA Online UPS
Topology	True Online DoubleConversion (VFI)
Rated Capacity	3kVA (~2400W)
Input Voltage	220/230/240V AC (singlephase)
Input Voltage Range	100V 300V AC (load dependent)
Input Frequency	50/60Hz 10% (auto sensing)
Output Voltage	220/230/240V AC 1%
Output Frequency	50/60Hz (sync with mains) / 0.1Hz in battery mode
Output Waveform	Pure Sine Wave
Power Factor	0.99 (input) / 0.8 (output)
Efficiency	~94% (Online) / ~99% (ECO mode)
Crest Factor	3:1
Harmonic Distortion (THDv)	1%
Battery Type	Sealed LeadAcid (VRLA)
Battery Configuration	12V 7Ah 8 (96V DC)
Backup Time (Approx.)	~16min @ 50% load, ~5min @ full load
Recharge Time	45hrs (to ~90% capacity)
Transfer Time	0ms (mains battery)
Display	Advanced LCD showing voltages, battery, load, mode
Protection	Overload, short circuit, battery low, surge protection
Compatibility	Generator Compatible
Operating Temp.	0C ~45C
Certifications	BIS, CE, RoHS, ISO standards

WARRANTY :- 1 YEAR
Notes

Pure sine wave output is ideal for sensitive equipment like PCs, servers, routers, etc.
Backup times vary significantly with load: higher load = shorter runtime.
Inbuilt batteries make it plugandplay without the need for external battery setup

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY Price : 24200.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Protection : Protection Features Protection Type Description Overload Protection Automatically limits output if load exceeds rated capacity; UPS switches to bypass or alarm. Short Circuit Protection Trips instantly to prevent damage to UPS and connected devices. Overvoltage Protection Protects against input voltage spikes from mains or generator. Undervoltage / Brownout Protection Prevents damage from low input voltage; automatically switches to battery mode if needed. Surge & Spike Protection Shields sensitive equipment from lightning or switching surges. Thermal / Overheat Protection UPS shuts down or alarms if internal temperature exceeds safe limits. Battery Deep Discharge Protection Prevents battery damage by shutting down before voltage drops too low. Battery Overcharge Protection Charger automatically limits voltage to prevent battery overcharging. Input Phase Failure / Phase Reversal Protection Protects UPS in case of incorrect wiring or phase loss. Bypass / Maintenance Mode Protection Ensures safe switching to bypass during UPS servicing. Alarm Indicators Audible and visual alarms for overload, battery low, battery fault, input/output abnormality. Rated Current : 2400 W Watt (w) Material : STEEL Power Rating : 3000 VA (3 kVA) Usage : BACKUP Rated Voltage : 220 / 230 / 240 V AC Volt (V) Weight : 26.7 kg Kilograms (kg) Phase : Single Phase Frequency : 50 Hertz (HZ) Warranty : 1 YEAR Product Type : BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY Frequency (MHz) : 50 Hertz (HZ) Size : STANDARD Color : BLACK Dimension (L*W*H) : Specification Value Width (W) ~19.2 cm (~192 mm) Height (H) ~39.9 cm (~399 mm) Depth (D) ~46.9 cm (~469 mm) Form Factor Tower UPS Net Weight ~26.7 kg (approx.) Millimeter (mm) Operating Temperature : ~0 45 C Celsius (oC) Display Type : Multifunction LCD panel Features : Core Features True Online Double Conversion Technology Provides continuous clean power with zero transfer time from mains to battery. Ideal for sensitive electronics like servers, PCs and networking gear. Uses advanced digital control and PWM technology for stable power delivery. Built In Battery Backup Comes with 8 12 V 7 Ah internal sealed lead acid batteries for compact all in one backup. Integrated battery management with deep discharge protection and regulated charging helps prolong battery life. Advanced Monitoring & Control LCD display shows real time information like input/output voltages, frequency, battery level, load %, operation mode, and fault indications. Visual + audible alarms for status changes and protection events. Comprehensive Protection Suite Overload protection: Automatically protects the UPS and connected devices. Short circuit protection: Prevents damage from electrical faults. Surge and spike suppression: Protects against transient voltage spikes. Automatic Voltage Regulation (AVR): Stabilises under /over voltage without switching to battery whenever possible. Wide Input Compatibility Supports wide input voltage range ( 100 300 V AC), helping it handle brownouts and voltage fluctuations without switching to battery prematurely. Works with standby generators and other backup sources. Clean & Stable Output Pure sine wave output ensures safe operation of critical loads and sensitive equipment. High power factor output ( 0.8) and low harmonic distortion help maximise usable capacity. Reliability & Efficiency High dual conversion efficiency ( 94 %) and up to ~99 % in ECO mode for energy savings. Designed with IGBT based inverter/rectifier for robust performance. Other Useful Features Cold start / auto start capability can be started even without mains supply. Static bypass and manual bypass for maintenance or fault scenarios. Compatible with generator and solar assisted systems. Typical Use Cases This UPS is suited for: Home and small office servers & workstations Networking equipment (routers, switches) Security systems (CCTV cameras/DVR/NVR) Critical workstations, POS systems, and telecom gear Any sensitive load requiring uninterrupted pure sine wave power Standard : Standard / Certification Details / Purpose BIS Bureau of Indian Standards ensures compliance with Indian safety and performance norms. (bpee.com ) CE Conformit Europ enne indicates compliance with EU safety, health, and environmental requirements. (sinewavebatteries.com ) ISO 9001 / 14001 Quality management (9001) and environmental management (14001) standards. (inrdeals.com ) OHSAS 18001 / ISO 27001 Occupational health & safety management (OHSAS) and information security management (27001). (sinewavebatteries.com ) RoHS Restriction of Hazardous Substances ensures the UPS is environmentally friendly with restricted toxic elements. (inrdeals.com ) Safety Features Compliance Meets global standards for overload, shortcircuit, surge, and deepdischarge protection. (shop.clarioncomputers.in ) Cable Type : This cable plugs into a grounded three pin socket (1P+N+PE).

Send Inquiry

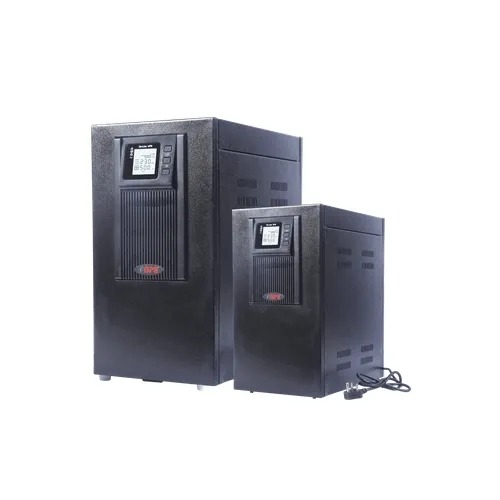

BPE MFX1102L8 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price : 27000.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Protection : Overload, Short Circuit, Surge Protection, EMI/RFI Filtering Rated Current : 1600W Watt (w) Material : STEEL Power Rating : 2 KVA ( 1600 W) Usage : BACKUP Rated Voltage : 220 V / 230 V / 240 V AC Volt (V) Weight : 26.7 k Kilograms (kg) Phase : Single Phase (1 ) Frequency : 50 Hz Hertz (HZ) Warranty : 1 YEAR Product Type : BPE MFX1102L8 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Frequency (MHz) : 50 Hz Hertz (HZ) Size : UPS Physical Size Height: 399 mm Width: 469 mm Depth: 192 mm Weight: ~26.7 kg Color : BLACK Dimension (L*W*H) : Dimensions Height: 399 mm Width: 469 mm Depth: 192 mm Weight: ~26.7 kg Millimeter (mm) Operating Temperature : 0 40 C Celsius (oC) Display Type : LCD with status & alarms Features : Key Features True Online Double Conversion Technology Converts AC DC AC continuously Provides zero transfer time during power failure Best stability and protection for sensitive equipment Inbuilt Isolation Transformer Electrical isolation between input and output Reduces electrical noise, spikes & grounding issues Enhances safety for servers, labs, medical and industrial gear High Performance Power Handling Pure sine wave output compatible with all electronic loads High input power factor ( 0.99) Output power factor ~0.8 better usable power delivery Excellent Voltage Regulation Handles wide input voltage fluctuations Provides steady output voltage for sensitive devices Protects against brownouts & surges Advanced Protection Features Overload protection Short circuit protection Surge & spike suppression EMI / RFI noise filtering User Friendly Display & Monitoring LCD panel shows: Input / output voltage Battery status Load percentage Fault & alarm indications Bypass & Redundancy Static bypass for maintenance or heavy load Manual bypass switch included Ensures continuous power even during UPS maintenance Battery Management Intelligent charging with adjustable current Deep discharge protection Extends battery life Generator & Solar Compatibility Works with diesel generators Can integrate with solar inverters (via proper setup) Cooling & Reliability Forced air cooling with internal fans Designed for continuous industrial operation Why These Features Matter Zero downtime for critical systems Pure sine output protects sensitive electronics Isolation transformer boosts safety and reduces noise Smart battery management increases battery life Bypass options ensure uptime even during UPS service Standard : IEC 620401 Cable Type : Copper cable ~2.5 mm for a typical 2 kVA UPS is a common recommendation (similar classes use this size).
