Luminous

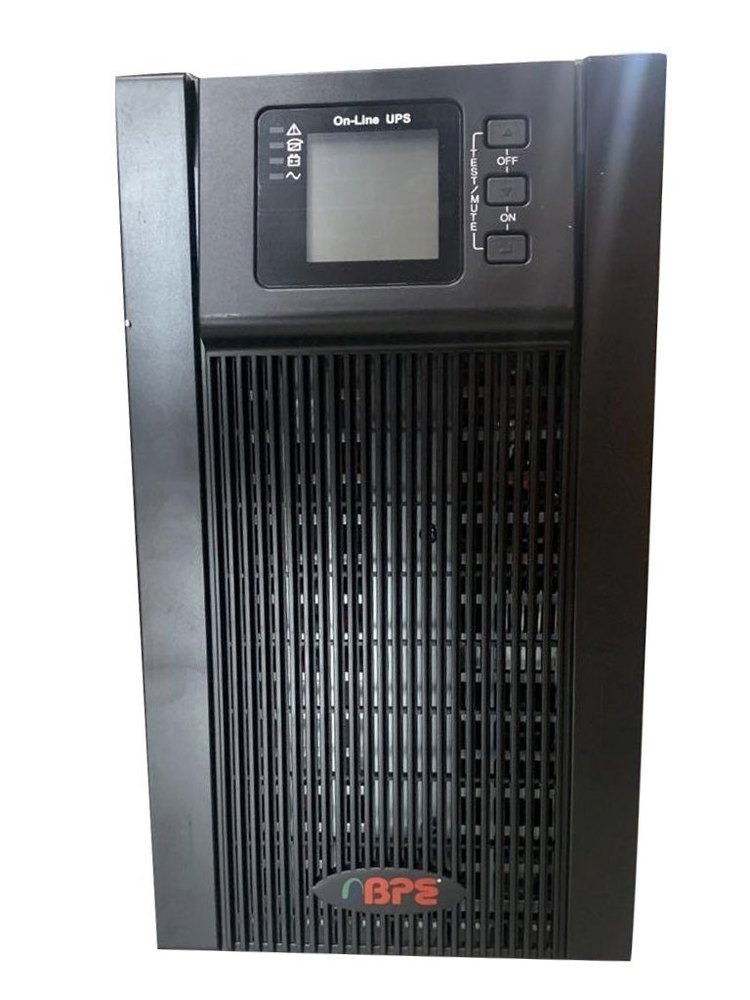

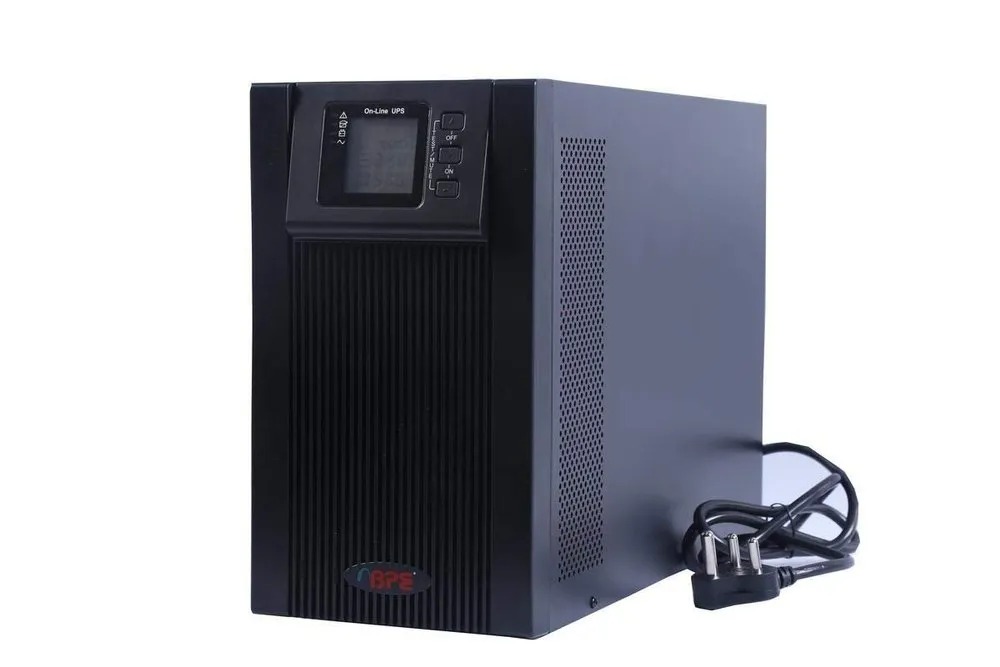

BPE UPSX1103L8 LINE INTERACTIVE UPS

19000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 3000 VA
Product Type BPE UPSX1103L8 LINE INTERACTIVE UPS
Standard ISO 9001, ISO 14001, ISO 45001, ISO 27001, BIS, RoHS; IEC/EN 62040 safety & EMC
Frequency (MHz) 45 65 Hz Hertz (HZ)
Protection Overload, short circuit, low/high input, battery low & fault protections
Usage backup
Size Dimensions (W D H) ~192 469 330 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE UPSX1103L8 LINE INTERACTIVE UPS Price And Quantity

Price 19000.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE UPSX1103L8 LINE INTERACTIVE UPS Product Specifications

Material steel
Frequency (MHz) 45 65 Hz Hertz (HZ)
Frequency 0 50 C Hertz (HZ)
Phase 1 phase
Operating Temperature 0 50 C Celsius (oC)
Display Type LED + (optional) LCD status indicators
Usage backup
Product Type BPE UPSX1103L8 LINE INTERACTIVE UPS
Rated Voltage 230 V AC Volt (V)
Features Main Features Power & Technology Micro controller based PWM technology (MOSFET) for efficient voltage regulation. Pure sine wave output clean power suitable for sensitive electronics. Line Interactive topology with automatic voltage regulation (AVR) for wide input range. Battery & Charging Battery deep discharge protection to extend battery life and protect UPS. Up to 10 A large charging capability for external batteries. Protection & Compatibility Overload protection and short circuit protection. Compatible with generators works smoothly with generator power. Indicators & Control LED/LCD status indicators to show mains mode, battery mode, charging, faults, etc. Optional USB/communication card for auto shutdown software and monitoring. Convenience & Usability Cold start capability UPS can be started on battery alone. Low audible noise level quiet operation in normal use. Build & Standards Complies with quality and safety standards like ISO 9001, ISO 14001, BIS, RoHS, and IEC/EN 62040 for performance and safety.
Power Rating 3000 VA
Warranty 1 year
Standard ISO 9001, ISO 14001, ISO 45001, ISO 27001, BIS, RoHS; IEC/EN 62040 safety & EMC
Cable Type AC mains input and output cables should be adequately thick multi core flexible copper wires that match the load and safety codes.
Dimension (L*W*H) ~192 469 330 mm Millimeter (mm)
Rated Current 3000 VA Volt (v)
Size Dimensions (W D H) ~192 469 330 mm
Protection Overload, short circuit, low/high input, battery low & fault protections
Color black
Weight 26.7 Kilograms (kg)
Usage & Applications power supply

BPE UPSX1103L8 LINE INTERACTIVE UPS Trade Information

Delivery Time 7 Days

Product Description

BPE UPSX1103L8 Line Interactive UPS Product Description

The BPE UPSX1103L8 is a lineinteractive uninterruptible power supply (UPS) designed to protect computers, networking equipment, servers, and other sensitive electronics from power fluctuations and outages. It is part of the UPSX Series (13kVA) lineup from BPE, featuring reliable performance with pure sine wave output and advanced protections

Specification Table: BPE UPSX1103L8 Line Interactive UPS

Specification	Details
Model	UPSX1103L8
Capacity	3kVA (approx. ~18002400W depending on PF)
Input Voltage	100300V AC (1Ph + N + PE), load dependent
Input Frequency	4565Hz (auto sensing)
Output Voltage	23010% (1Ph + N + PE)
Output Frequency (Battery)	501Hz
Waveform	Pure Sine Wave
Transfer Time	~48ms (typical)
Battery Type	Sealed LeadAcid VRLA (external)
Battery Voltage Options	Configurable: 12V / 24V / 36V / 48V / 72V / 96V
Charging Current	10A 1A (adjustable)
Battery Recharge Time	~68hrs to 90% after full discharge
Indicators/Display	LED + (optional) LCD status indicators
Protections	Overload, short circuit, low/high input, battery low & fault protections
Cold Start	Yes
Communication Ports	RS232 / USB (optional)
Dimensions (WDH)	~192469330mm
Net Weight	~26.7kg
Backup Outlets	4 Indian sockets
Standards/Compliance	ISO 9001, ISO 14001, ISO 45001, ISO 27001, BIS, RoHS; IEC/EN 62040 safety & EMC
Operating Temp. Range	050C
Humidity	095% RH noncondensing
Altitude	<1500m
Noise Level	Low audible noise

warranty :-1 year
What this means:
This is a robust lineinteractive UPS with pure sine wave output, wide input voltage tolerance, and external battery support, suitable for protecting PCs, servers, routers and other sensitive electronics from power instability and ou
