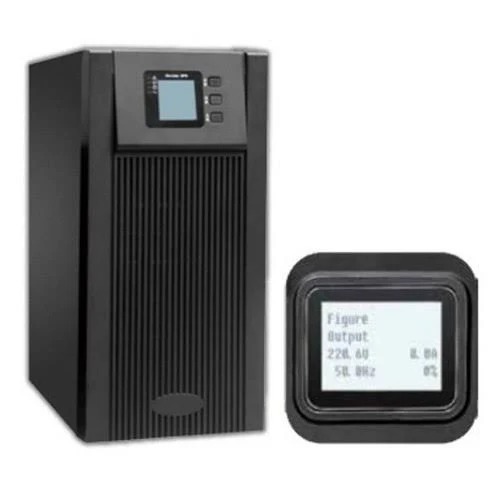

Name: ELNOVA (ES6000) 6KVA 1:1 PHASE ONLINE UPS
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 54700.0 INR
Availability: InStock

54700.0 INR/Piece

Get a Price/Quote

Product Details:

Product Type ELNOVA (ES6000) 6KVA 1:1 PHASE ONLINE UPS
Power Rating 6kva
Standard IEC 62040-1
Frequency (MHz) 40 70 Hz Hertz (HZ)
Protection Overload, Short Circuit, Battery Deep Discharge, Over Temperature
Usage backup
Size Approx. 190 430 336 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ELNOVA (ES6000) 6KVA 1:1 PHASE ONLINE UPS Price And Quantity

Price 54700.0 INR/Piece
Minimum Order Quantity 1 Unit

ELNOVA (ES6000) 6KVA 1:1 PHASE ONLINE UPS Product Specifications

Cable Type 3-Core 6 sq.mm Copper PVC/XLPE Cable
Phase 1:1 phase
Usage & Applications power supply
Usage backup
Product Type ELNOVA (ES6000) 6KVA 1:1 PHASE ONLINE UPS
Features Provides continuous clean power with zero transfer time during mains failure.
Frequency 40 70 Hz Hertz (HZ)
Rated Voltage 220 / 230 / 240 VAC Volt (V)
Warranty 1 year
Operating Temperature 0 C to 40 C Celsius (oC)
Display Type LCD + LED Display
Power Rating 6kva
Size Approx. 190 430 336 mm
Color black
Frequency (MHz) 40 70 Hz Hertz (HZ)
Standard IEC 62040-1
Protection Overload, Short Circuit, Battery Deep Discharge, Over Temperature
Rated Current 23.5 A Ampere (amp)
Dimension (L*W*H) Approx. 190 430 336 mm Millimeter (mm)
Material steel
Weight 18 Kilograms (kg)

ELNOVA (ES6000) 6KVA 1:1 PHASE ONLINE UPS Trade Information

Delivery Time 7 Days

Product Description

The ELNOVA ES6000 is a 6 kVA / 5.4 kW single-phase online UPS designed to provide uninterrupted and high-quality power protection for critical electrical and electronic equipment. It uses true online double-conversion technology, ensuring zero transfer time during power failures and delivering a stable pure sine wave output for sensitive loads.

Specification	Details
Model	ELNOVA ES6000
UPS Type	True Online Double Conversion UPS
Capacity	6 kVA / 5.4 kW
Input Phase	1 Phase
Output Phase	1 Phase
Input Voltage Range	110300 VAC
Input Frequency	4070 Hz
Input Power Factor	>0.99
Output Voltage	220/230/240 VAC
Output Frequency	50/60 Hz (Auto Sensing)
Output Waveform	Pure Sine Wave
Output Power Factor	0.9
Transfer Time	Zero (0 ms)
Battery Type	External SMF/Tubular Battery Bank
Battery Voltage	192 VDC
Charging Current	Adjustable
Efficiency (Online Mode)	>88%
ECO Mode Efficiency	Up to 95%
Display	LCD + LED Display
Communication Ports	RS232, USB, Optional SNMP
Protection	Overload, Short Circuit, Battery Deep Discharge, Over Temperature
Bypass	Automatic Static Bypass
Cold Start	Supported
Generator Compatibility	Yes
Solar Compatibility	Yes
Parallel Operation	Up to 4 Units (Optional)
Noise Level	<55 dB
Operating Temperature	0C to 40C
Dimensions (W D H)	Approx. 190 430 336 mm
Weight	Approx. 18 kg (without batteries)
Applications	Servers, CCTV, Telecom, ATMs, Medical Equipment, Data Centers, Industrial Loads

Backup Battery Configuration (Typical):

Backup Time	Recommended Battery Bank
30 Minutes	16 12V 26Ah Batteries
1 Hour	16 12V 42Ah Batteries
2 Hours	16 12V 65Ah Batteries
3 Hours	16 12V 100Ah Batteries

Suitable Load Capacity:

Load Type	Approximate Load
Desktop Computers	2025 PCs
Servers	36 Mid-Range Servers
CCTV Cameras	80120 Cameras
Networking Equipment	Large Network Rack
Medical Equipment	Critical Diagnostic Devices
Office Load	45 kW Continuous Load

warranty :- 1year
This 6 kVA online UPS is commonly used where uninterrupted, regulated power is required for mission-
