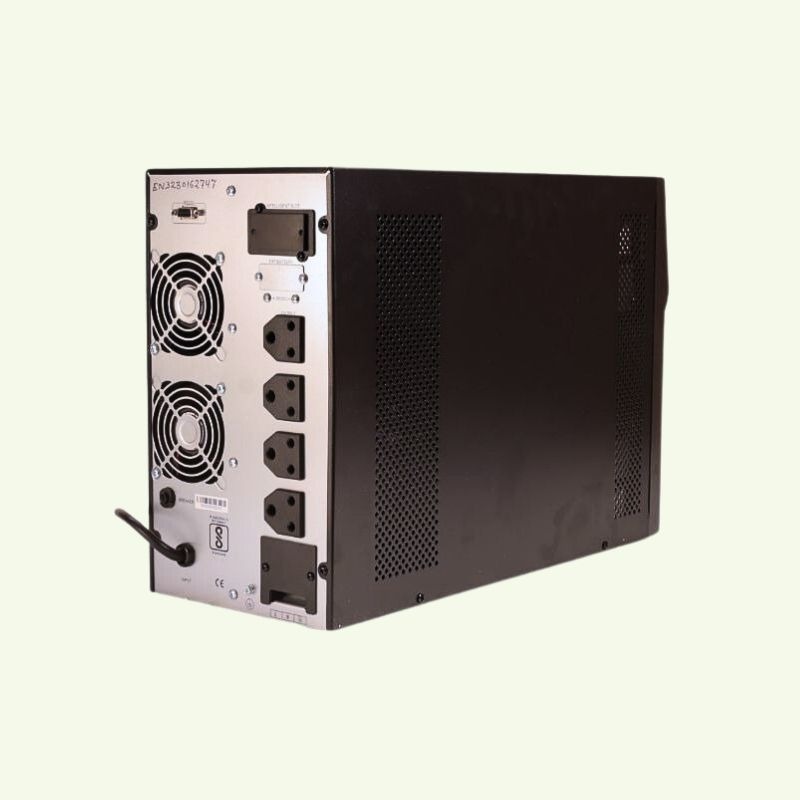

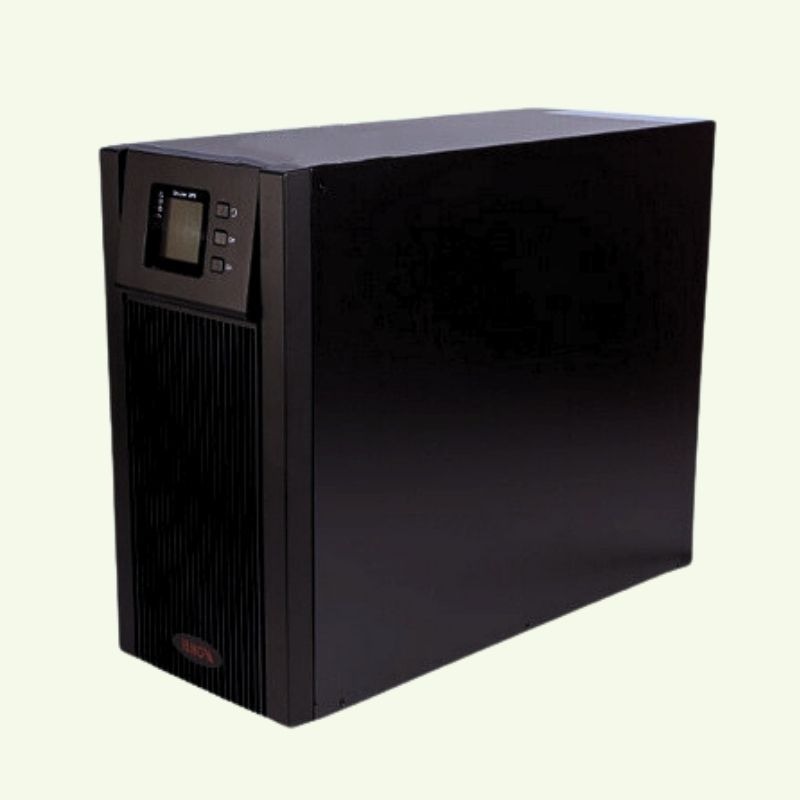

Name: ELNOVA (ES3004L) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 23000.0 INR
Availability: InStock

23000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type ELNOVA (ES3004L) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 3KVA
Standard 469 191 339 mm
Frequency (MHz) 55 Hertz (HZ)
Protection Overload, Short circuit, Battery low, Overheat
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ELNOVA (ES3004L) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 23000.0 INR/Unit
Minimum Order Quantity 1 Unit

ELNOVA (ES3004L) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Protection Overload, Short circuit, Battery low, Overheat
Weight 12 Kilograms (kg)
Power Rating 3KVA
Features True Online Double Conversion Technology for zero interruption power supply
Rated Current 13.6 A Ampere (amp)
Rated Voltage 220 / 230 / 240 V AC Volt (V)
Frequency 55 Hertz (HZ)
Phase 1:1 PHASE
Display Type LCD Display (status monitoring)
Usage BACKUP
Dimension (L*W*H) 469 191 339 mm Millimeter (mm)
Color BLACK
Operating Temperature 0 C 40 C Celsius (oC)
Frequency (MHz) 55 Hertz (HZ)
Cable Type Copper, multi-strand flexible cable
Size STANDARD
Usage & Applications POWER SUPPLY
Product Type ELNOVA (ES3004L) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Warranty 1 YEAR
Standard 469 191 339 mm
Material STEEL

ELNOVA (ES3004L) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The Elnova ES3004L 3KVA Online UPS is a high-frequency, double-conversion UPS system designed to provide continuous and stable power backup for critical electrical loads such as computers, servers, CCTV systems, networking equipment, and small office setups.

It uses advanced DSP digital control technology and delivers pure sine wave output, ensuring safe operation for sensitive electronics without voltage fluctuations or interruption.

This UPS operates on a 1-phase input and 1-phase output (1:1 configuration) and is equipped with an external battery system, allowing users to choose battery capacity based on required backup time.

Specification Table

Attribute	Details
Model	Elnova ES3004L
UPS Type	Online Double Conversion UPS
Capacity	3 KVA / 2400 W
Phase	1 Phase Input / 1 Phase Output (1:1)
Input Voltage	120 300 V AC
Input Frequency	45 55 Hz (50 Hz nominal)
Output Voltage	220 / 230 / 240 V AC (selectable)
Output Waveform	Pure Sine Wave
Output Power Factor	0.8 (standard), 0.9 optional
Efficiency	Up to 94%
Transfer Time	0 ms (No break supply)
Battery System	External Battery (not included)
Battery DC Bus	72 V DC
Battery Type	SMF / Tubular (external bank)
Charging Current	Up to 6 A (approx.)
Battery Capacity Range	7 Ah 100 Ah supported
Display	LCD Display (status monitoring)
Communication Ports	RS232 (USB/SNMP optional)
Protection	Overload, Short circuit, Battery low, Overheat
Noise Level	< 55 dB
Operating Temperature	0C 40C
Dimensions	469 191 339 mm
Weight	1112 kg
Technology	DSP Controlled, High Frequency, IGBT based

WARRANTY :- 1YEAR
If you want, I can also make a battery backup time chart (e.g., 2 hours / 4 hours setup) for this UPS based

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MAX LIFE 1 KVA ONLINE UPS Price : 23258.0 INR/Unit Minimum Order Quantity : 1 Standard : Standard Physical & Package Dimensions (Product Spec) Material : STEEL Product Type : ONLINE UPS Warranty : 1 YEAR Usage & Applications : POWER SUPPLY Usage : BACKUP Display Type : LCD display provides clear information on UPS status such as load level, battery level, AC mode, battery mode, bypass mode, fault indications and other operating parameters. Frequency (MHz) : 50 Hz Hertz (HZ) Phase : 1 PHASE Protection : BuiltIn Protection Features These are common protection mechanisms in doubleconversion online UPS designs from Microtek (especially MAX LiFe / MAX+ series): True Online DoubleConversion Provides continuous power conditioning (AC DC AC) to eliminate spikes, sags, and electrical noise. ShortCircuit Protection Detects and cuts output in the event of a short, preventing damage to UPS and connected gear. Overload Protection UPS shuts down or switches to bypass if input/current exceeds safe limits. OverTemperature Protection Automatically shuts down or limits operation if internal heat gets too high. EMI / RFI Noise Filtering Suppresses electromagnetic and radio frequency interference on the power line. OverVoltage & UnderVoltage CutOff Prevents output when mains voltage is outside safe bounds (protects electronics from spikes/sags). DC Fan Failure Protection Shuts down or alarms if cooling fan fails, avoiding overheating. Advanced Battery Management (ABM) Protects battery life and prevents overcharging or deep discharge. Generator Compatibility Automates safe operation with generator power without erratic switching. Optional Static Bypass Enable/Disable Protects load if the UPS inverter has an internal fault by routing directly to mains (configurable). RS232/SNMP Communication (optional) Alerts and logging for system faults and protection events. Why These Matter Clean & continuous power: Online designs mean zero switchover time and stable sinewave output ideal for PCs, routers, NAS, etc. Battery safety: ABM helps prevent battery damage from improper charging or deep discharge. Device safety: Surge/overvoltage cutoff and noise filtering reduce risk of electrical stress on sensitive electronics. Size : Length: 397 mm Width: 145 mm Height: 220 mm Dimension (L*W*H) : (L W H) of ~39.7 14.5 22 cm Centimeter (cm) Color : BLACK Rated Voltage : 110280VAC Volt (V) Rated Current : 3.5A Ampere (amp) Frequency : 50 Hertz (HZ) Weight : 6.4 Kilograms (kg) Power Rating : Rated Output Capacity: 1 KVA (1000 VA) Operating Temperature : 0 C to 40 C Celsius (oC) Cable Type : Here s a bulletpoint summary of recommended cable types for the Max Life 1 KVA Online UPS: AC Input (Mains Supply): Flexible copper cable, PVC or FRLS insulated Standard 230 V AC power cable (typically 1.5 m with plug) Connects UPS safely to the mains supply AC Output (to Devices): Flexible copper wire, PVC insulated Standard 230 V output cable / power lead Feeds connected devices like PCs, routers, and small servers Battery Connection (External / 48 V DC): Stranded highcurrent copper cable, flexible 10 AWG 6 AWG recommended for safe current handling PVC or rubber insulation suitable for DC battery voltage Keep cable short and direct to reduce voltage drop and heating Earthing / Grounding: Copper conductor, minimum 2.5 mm Insulated/shielded for safety Connects UPS chassis to earth for protection General Tips: Use stranded copper cables for battery connections for flexibility and reliability Avoid aluminum cables; copper is preferred for lower resistance Ensure all cables are rated for expected current and meet local electrical codes Features : Core Performance & Technology / DispSummary Feature HighlightsProtection & Reliability/ lay & Monitoring/ Efficiency & Eco Modes

Send Inquiry

BPE (MP1101B3) 1KVA ONLINE UPS INBUILT BATTERY Price : 18499.0 INR/Unit Minimum Order Quantity : 1 Standard : CE, BIS, RoHS, ISO (various) Material : STEEL Product Type : BPE (MP1101B3) 1KVA ONLINE UPS INBUILT BATTERY Warranty : 1 YEAR Usage & Applications : POWER SUPPLY Usage : BACKUP Display Type : LCD Display / Status LEDs Frequency (MHz) : 50 Hertz (HZ) Phase : 1 PHASE Protection : Overload, Short Circuit, Deep Battery Discharge Protection, etc. Size : STANDARD Dimension (L*W*H) : Dimension Measurement Length (Depth) 415 mm Width 143 mm Height 215 mm Weight ~11.2 kg Millimeter (mm) Color : BLACK Rated Voltage : 220 240 V AC Volt (V) Rated Current : 1 kVA (1000 VA) Volt (v) Frequency : 50 Hertz (HZ) Weight : 10.8 kg Kilograms (kg) Power Rating : 1 kVA (1000 VA Operating Temperature : 0 45 C Celsius (oC) Cable Type : Input Power Cable: The UPS generally comes with a three core mains power cable (live, neutral & earth) that plugs into a standard Indian 3 pin AC wall socket for mains input connection (1Ph + N + PE). You use this cable to connect the UPS to your home or office power suppl Features : True Online & Double Conversion Provides zero transfer time from mains to battery ideal for sensitive equipment. It always runs through the inverter for clean power delivery. Pure Sine Wave Output Delivers a pure sine wave output that s safe for computers, networking gear, security systems, small servers, and other electronics. Advanced Control & Technology Uses fully digital microprocessor control with PWM technology and high frequency inverter for stable performance. Wide input voltage range to handle poor mains conditions.

Send Inquiry

BPE MF1101B3 1KVA ONLINE UPS INBUILT BATTERY Price : 15000.0 INR/Unit Minimum Order Quantity : 1 Standard : Standards BPE MF1101L3 1kVA Online UPS Standard Description IEC 620401 Safety requirements for UPS systems IEC 620402 Electromagnetic compatibility (EMC) for UPS IEC 620403 UPS performance and test methods CE European Conformity certification for safety and health RoHS Restriction of Hazardous Substances compliance BIS / IS Compliance Indian safety and electrical equipment standards ISO 9001 Manufacturing Quality management system used by manufacturer Material : STEEL Product Type : BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Warranty : 1 YEAR Usage & Applications : POWER SUPPLY Usage : BACKUP Display Type : LCD + LED indicators Frequency (MHz) : 50 Hertz (HZ) Phase : 1 PHASE Protection : Overload, short circuit, overtemperature, battery low Size : Full Size (W D H): 144 400 215 mm Dimension (L*W*H) : Dimension (L W H): 40 14.4 21.5 cm Millimeter (mm) Color : BLACK Rated Voltage : 220 / 230 / 240 V AC Volt (V) Rated Current : 4.3 A Volt (v) Frequency : 50 Hertz (HZ) Weight : 10.6 Kilograms (kg) Power Rating : 1 kVA Operating Temperature : 0 C to 45 C Celsius (oC) Cable Type : RS 232 cable or SNMP network cable (Cat5e / Cat6) Features : Feature Description True Online Double Conversion Provides continuous clean power without switching delay. Pure Sine Wave Output Safe for sensitive devices like servers, computers, and medical equipment. DSP Digital Control Technology Improves system reliability and performance control. High Input Power Factor (>0.99) Reduces power loss and improves efficiency. Wide Input Voltage Range Operates from about 110 300 V AC, suitable for unstable power areas. ECO Mode Improves efficiency up to 99% to reduce energy consumption. LCD Display Shows input voltage, output voltage, battery level, load %, temperature, and status. LED Status Indicators Displays modes such as normal operation, bypass, battery mode, and fault. Advanced Battery Management (ABM) Protects battery life and optimizes charging. Cold Start Function UPS can start directly from battery without mains power. Automatic & Manual Bypass Allows power to bypass UPS during overload or maintenance. Communication Ports RS232 / SNMP support for monitoring and remote management. Generator Compatible Works with generators and solar systems. Configurable Output Settings Output voltage, frequency conversion, ECO mode configurable through LCD. External Battery Support Uses 3 12V batteries (36V system) for extended backup time.

Send Inquiry

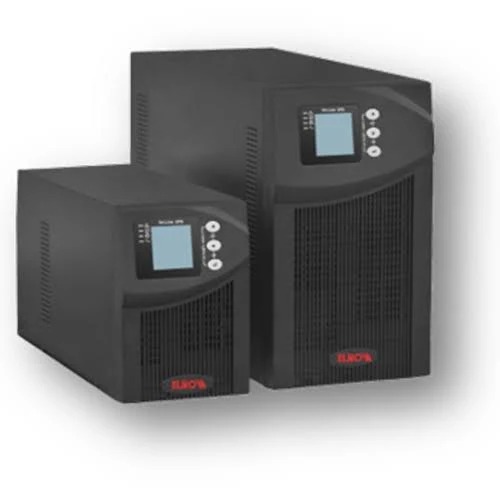

ELNOVA (ES3004B8) 3KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY Price : 37720.0 INR/Unit Minimum Order Quantity : 1 Standard : IEC/EN62040, CE, BIS Material : STEEL Product Type : ELNOVA (ES3004B8) 3KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY Warranty : 1 YEAR Usage & Applications : POWER SUPPLY Usage : BACKUP Display Type : Input/Output Voltage, Frequency, Load %, Battery Status, Fault Codes Frequency (MHz) : 55 65 Hz Hertz (HZ) Phase : 1:1 PHASE Protection : Overload, Short Circuit, Battery Deep Discharge, Surge Protection Size : DIMENSION Dimension (L*W*H) : 469 191 339 mm Millimeter (mm) Color : BLACK Rated Voltage : 220V / 230V AC Volt (V) Rated Current : ~15 16 Amps Ampere (amp) Frequency : 55 65 Hz Hertz (HZ) Weight : 29 Kilograms (kg) Power Rating : 3KVA Operating Temperature : 0 C to 45 C Celsius (oC) Cable Type : Copper Flexible FRLS Cable Features : DSP Control, Static Bypass, ECO Mode, Generator Compatible, Cold Start
