Luminous

BPE (MF1103L8) 3KVA ONLINE UPS EXTERNAL BATTERY

23000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (MF1103L8) 3KVA ONLINE UPS EXTERNAL BATTERY
Power Rating 3 kVA (3000 VA)
Standard MF1103L8
Frequency (MHz) 50 Hertz (HZ)
Protection UPS Protection Features BPE 3 kVA MF1103L8 Protection Type Description / Function Overload Protection Automatically disconnects output or switches to bypass if connected load exceeds rated capacity (~3 kVA). Prevents UPS damage. Short Circuit Protection Detects short circuits on the output and immediately disconnects to prevent damage to UPS and connected devices. Overvoltage Protection Input voltage spikes above safe limits are blocked or absorbed to protect sensitive equipment. Undervoltage Protection Prevents UPS from operating at dangerously low voltages which could damage the batteries or internal circuitry. Battery Overcharge / Deep Discharge Protection UPS prevents battery overcharging and stops deep discharge to extend battery life.
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MF1103L8) 3KVA ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 23000.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (MF1103L8) 3KVA ONLINE UPS EXTERNAL BATTERY Product Specifications

Frequency 50 Hertz (HZ)
Material STAAL
Size STANDARD
Dimension (L*W*H) Physical Dimensions (Approx.) Dimension Measurement Maximum Height 399 mm ( 39.9 cm) Maximum Width 192 mm ( 19.2 cm) Maximum Depth 469 mm ( 46.9 cm) Net Weight ~26.7 kg Millimeter (mm)
Power Rating 3 kVA (3000 VA)
Standard MF1103L8
Rated Current 10.4 A Ampere (amp)
Rated Voltage 220 V / 230 V / 240 V AC Volt (V)
Features Main Features BPE 3 kVA Online UPS (MF1103L8) True Online Double Conversion Technology Provides continuous power conditioning with zero transfer time when mains fails. Delivers a pure sine wave output, ideal for sensitive equipment like servers, computers, and networking devices. Wide Operating Range Wide input voltage range (110 285 V AC) tolerates major fluctuations without switching to battery unnecessarily. Maintains stable output voltage at 220 / 230 / 240 V 1 %. High Performance & Efficiency >90 % efficiency at full load ensures low losses and lower operational cost. Low output distortion (THD <3 %) & crest factor 3:1 support diverse loads smoothly. Battery Support External battery bank with DC bus options 72 V or 96 V (batteries sold separately). Supports battery capacities from 7 Ah to 100 Ah customizable backup time. Up to 90 % battery recharge within typical timeframe (depends on charger & battery). Display & Monitoring Multi function LCD control panel displays input/output voltages, frequency, load level, battery status and faults. Supports RS 232 and Smart Slot (SNMP) communication for remote monitoring. Integrated Protection Built in surge protection, overload safety and advanced filtering. Internal bypass (automatic & manual) for maintenance or UPS fault. Audible & visual alarms prioritized by severity. Build & Usability Compact tower form factor with sturdy build. Low audible noise near operation (<50 dB). Designed to work well with generators and solar systems (compatible in broader MF series). Benefits in Real World Use Ideal for servers, workstations, networking gear, office equipment and sensitive electronics because the online design eliminates any interruption during power changes. Flexible external battery option lets you tailor backup time based on your requirements.
Frequency (MHz) 50 Hertz (HZ)
Protection UPS Protection Features BPE 3 kVA MF1103L8 Protection Type Description / Function Overload Protection Automatically disconnects output or switches to bypass if connected load exceeds rated capacity (~3 kVA). Prevents UPS damage. Short Circuit Protection Detects short circuits on the output and immediately disconnects to prevent damage to UPS and connected devices. Overvoltage Protection Input voltage spikes above safe limits are blocked or absorbed to protect sensitive equipment. Undervoltage Protection Prevents UPS from operating at dangerously low voltages which could damage the batteries or internal circuitry. Battery Overcharge / Deep Discharge Protection UPS prevents battery overcharging and stops deep discharge to extend battery life.
Warranty 1 YEAR
Display Type Multi function LCD status panel
Operating Temperature 0 40 C Celsius (oC)
Cable Type The UPS is designed for single phase mains (1 Ph + N + PE) that means live (L), neutral (N), and earth (PE) wires.
Usage & Applications POWER SUPPLY
Usage BACKUP
Color BLACK
Product Type BPE (MF1103L8) 3KVA ONLINE UPS EXTERNAL BATTERY
Phase SINGLE PHASE
Weight 26.7 Kilograms (kg)

BPE (MF1103L8) 3KVA ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

Product Description BPE 3kVA Online UPS (Model MF1103L8)

Overview:
This is a true online doubleconversion UPS designed to deliver continuous, clean and reliable power to sensitive equipment ideal for offices, servers, computers, telecom equipment, and industrial electronics. It requires an external battery bank (batteries not included), giving flexibility in backup duration based on how many batteries you install.
Heres a detailed specification table for the BPE Make 3KVA1:1Phase OnLine UPS MF1103L8 (true online UPS with external battery option):

Specification	Details
Model	MF1103L8
UPS Type	Online Double Conversion
Rated Capacity	3kVA (2.4kW)
Output Power Factor	0.8
Input Phase	Single Phase (1Ph)
Output Phase	Single Phase (1Ph)
Input Voltage Range	110285V AC (Output derated)
Input Frequency Range	50/60Hz 3Hz
Input Power Factor	>0.99
Output Voltage	220/230/240V AC 1%
Output Frequency (Sync)	50/60Hz 3Hz
Output Waveform	Pure Sine Wave
Output THD	<3%
Load Crest Factor	3:1
Efficiency	>90% @ full load
Transfer Time	<0ms (instant)
Output Sockets	4 3pin Indian sockets
Bypass	Internal (Auto & Manual)
Battery DC Bus	72V or 96V DC
Approved Battery Capacity	7100Ah (ext.)
Max Charger Current	6A
Battery Position	External
Battery Type	SMF (sealed lead acid)
Communication Interfaces	RS232, SmartSlot (SNMP)
Display	Multifunction LCD status panel
Alarm	Audible & visible severity prioritised alarms
Noise Level	<50dB (at 1m)
Operating Temp.	040C
Humidity	595% RH
Weight	~26.7kg

WARRANTY :- 1YEAR
Notes:

External batteries are not included and must be purchased separately (configurable to required backup time).
Backup time varies with battery capacity, battery count, and load.

If you want, I can also prepare a recommended battery configuration list (e.g., for ~1hr, 2hrs, or 4hrs backup) based on your load (in watts). Just tell me your load and desired backup duratio

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

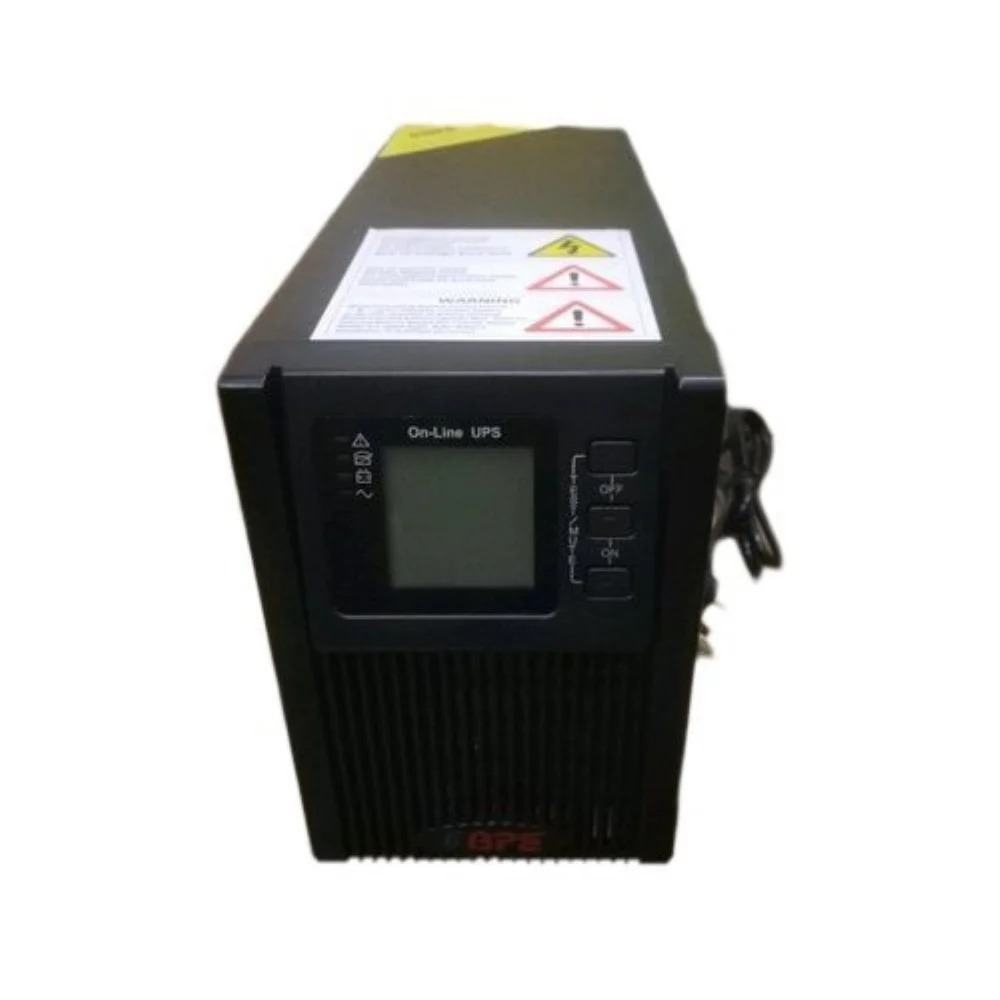

BPE MS1103L6 3KVA ONLINE UPS EXTERNAL BATTERY Price : 19000.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 YEAR Material : STEEL Size : Overall Size (W D H): 192 469 399 mm Usage & Applications : POWER SUPPLY Usage : BACKUP Color : BLACK Product Type : BPE MS1103L6 3KVA ONLINE UPS EXTERNAL BATTERY Rated Current : 3000VA Volt (v) Rated Voltage : 220 / 230 / 240 V AC Volt (V) Features : True Online Double Conversion Provides continuous and clean power without interruption. Zero Transfer Time Instant switching from mains to battery (0 ms). Pure Sine Wave Output Safe for sensitive equipment like servers and networking devices. Wide Input Voltage Range Operates within 110 300V AC, reducing battery usage during voltage fluctuations. High Efficiency Mode Up to 94% efficiency in online mode and 99% in ECO mode. LCD Display Shows input/output voltage, battery status, load percentage, and fault information. High Input Power Factor 0.99, reducing power losses and improving efficiency. Static Bypass Function Automatically transfers load to bypass during overload or fault. Advanced Battery Management Optimizes charging and protects batteries from overcharge or deep discharge. Cold Start Function UPS can start directly from battery without AC power. IGBTBased Inverter & Rectifier Provides reliable performance and better power control. Generator Compatible Works with generator power supply. EMI/RFI Filter Protects connected equipment from electrical noise and interference. Auto Restart / Auto Charge Automatically restarts and charges batteries when power returns. Frequency (MHz) : 50 / 60 Hz Hertz (HZ) Protection : Protects UPS and connected load from high input voltage. Frequency : 50 / 60 Hz Hertz (HZ) Dimension (L*W*H) : Dimension Type Size Width 192 mm Depth 469 mm Height 399 mm Net Weight 26.7 kg Millimeter (mm) Weight : 26.7 Kilograms (kg) Phase : 1 PHASE Operating Temperature : 0 C 40 C Celsius (oC) Display Type : LCD Display Panel Standard : IEC 620401 Power Rating : 2.4 kW (2400 Watts) Cable Type : 3 Core Copper Flexible Cable, 4 mm 6 mm For singlephase 230 V input; rated for 16 A 20 A. Conductor : 3 Core Copper Flexible Cable, 4 mm 6 mm For singlephase 230 V input; rated for 16 A 20 A.
