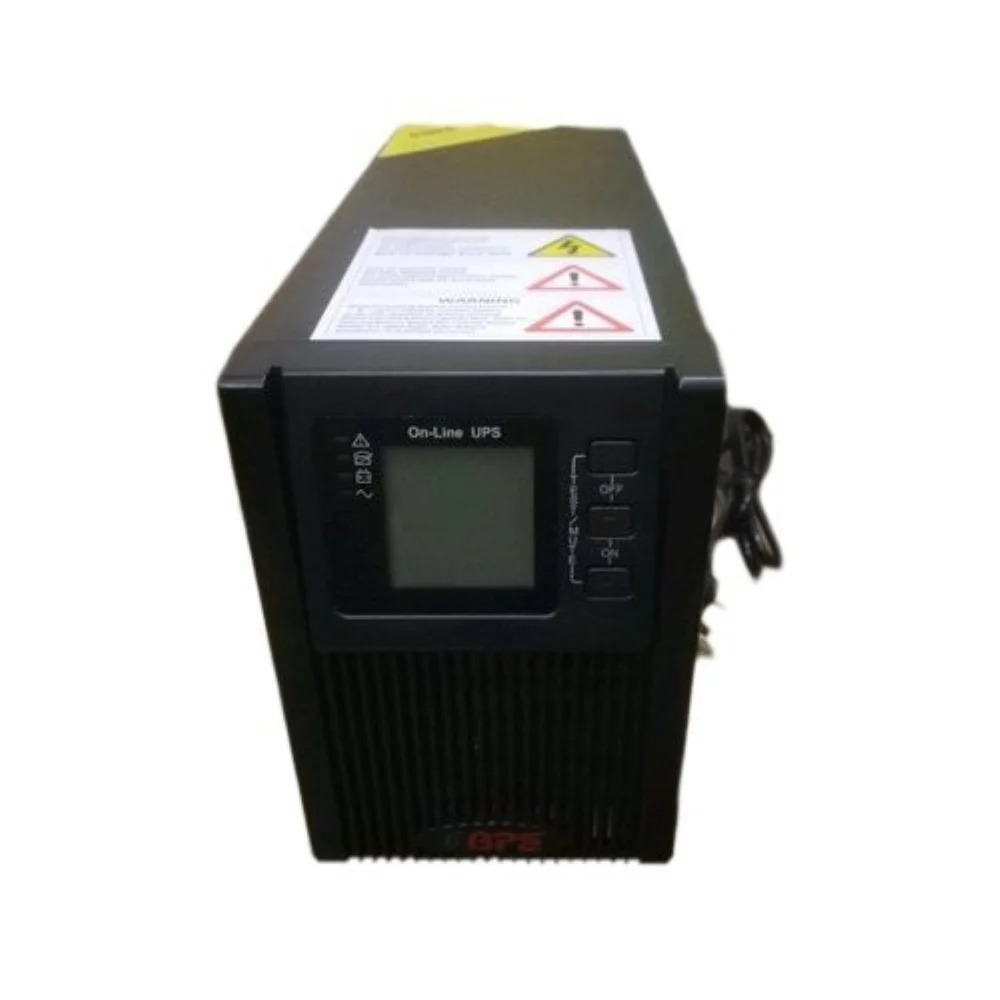

BPE MS1101L3 1KVA ONLINE UPS EXTERNAL BATTERY

11500.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE MS1101L3 1KVA ONLINE UPS WITH INBUILT BATTERY
Power Rating 1 kVA (1000 VA)
Standard MF1101L3
Frequency (MHz) 50 / 60 Hz Hertz (HZ)
Protection Overload, Short Circuit, Over/Under Voltage, OverTemp
Usage BACUP
Size Pure Sine Wave
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MS1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 11500.0 INR/Unit

BPE MS1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Product Specifications

Display Type LCD: Voltage, Frequency, Battery, Load %, Mode, Fault Codes
Color BLACK
Phase 1 PHASE
Protection Overload, Short Circuit, Over/Under Voltage, OverTemp
Usage BACUP
Rated Voltage 220 V / 230 V / 240 V AC Volt (V)
Size Pure Sine Wave
Operating Temperature ~0 45 C, Celsius (oC)
Features Main Features True Online Double Conversion Technology Provides continuous conversion of AC DC AC, so the connected equipment always runs on clean, regulated power with zero switchover time during mains interruption.
Cable Type This means you typically use a standard 3 core power cable (Phase, Neutral, Earth) sized appropriately for ~230 V & 10 A.
Standard MF1101L3
Material STEEL
Product Type BPE MS1101L3 1KVA ONLINE UPS WITH INBUILT BATTERY
Usage & Applications POWER SUPPLY
Rated Current 1000 VA 230 V 4.3 A Microampere (A)
Weight 10 Kilograms (kg)
Frequency 50 / 60 Hz Hertz (HZ)
Power Rating 1 kVA (1000 VA)
Warranty 1 YEAR
Dimension (L*W*H) Dimension Size Width (W) ~144 mm (~14.4 cm) Depth (D) ~400 mm (~40 cm) Height (H) ~215 mm (~21.5 cm) Weight ~10 11 kg (approx) Millimeter (mm)
Frequency (MHz) 50 / 60 Hz Hertz (HZ)

BPE MS1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

Overview

A true online doubleconversion UPS designed to provide uninterrupted power for critical electronics like computers, servers, networking gear and telecom equipment. Ideal for areas with frequent power cuts or brownouts, this unit constantly powers the load from its internal batteries and delivers pure sinewave output for clean and stable power.

Specification BPE 1kVA Online UPS (MF1101L3)

Specification	Details
Model	MF1101L3
UPS Type	Online DoubleConversion (True Online)
Rated Capacity	1kVA (0.8kW)
Input Voltage	220V / 230V / 240V AC (Single Phase + N + E)
Input Voltage Range	100V300V AC (Load Dependent)
Input Frequency	50/60Hz AutoSensing 10%
Input Power Factor	>0.99
Output Voltage	220V / 230V / 240V AC 1%
Output Power Factor	0.8 (Std), 0.9 (Optional)
Output Frequency	50/60Hz (Sync Mode), 0.1Hz on Battery
Waveform Type	Pure Sine Wave
Harmonic Distortion (THDv)	1%
Crest Factor	3:1
Efficiency	~94% (Dual Conversion), ~99% (ECO)
Battery DC Voltage	~96V
Battery Type & Configuration	12V/9Ah 8 (VRLA)
Recharge Time	~45hours to 90%
Display	LCD: Voltage, Frequency, Battery, Load %, Mode, Fault Codes
Indicators	LED: Normal, Bypass, Battery, Fault
Protections	Overload, Short Circuit, Over/Under Voltage, OverTemp
Communication Ports	(Optional) RS232, SNMP slot (varies by variant)
Operating Temp & Humidity	~045C, 095% RH (noncondensing)
Applications	Desktop PCs, Servers, Networking, Telecom, Home/Office

WARRANTY :- 1YEAR
What This Means

True online UPS: Constantly converts mains DC AC, so zero transfer time and clean pure sine wave output, ideal for sensitive electronics.
Wide input range: Handles brownouts and voltage fluctuations well.
Rapid recharge: ~45h to ~90%.
LCD + LEDs: Helpful for monitoring status and health.
