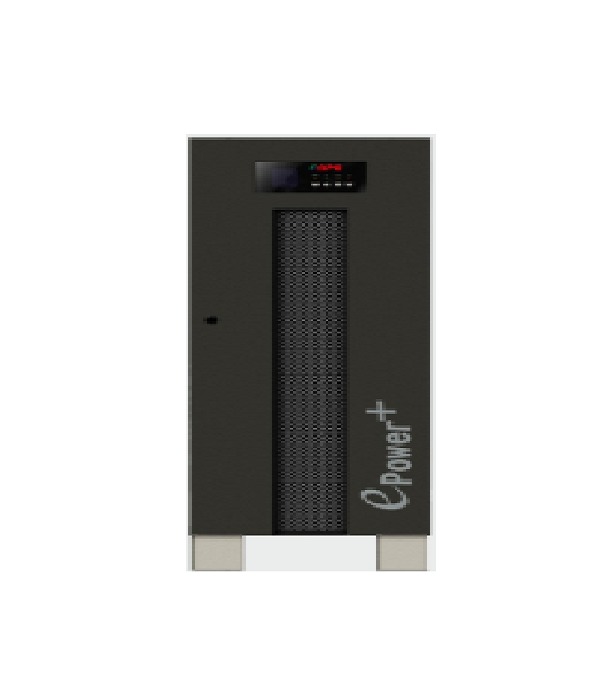

BPE (GT330L32) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

Name: BPE (GT330L32) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 233640.0 INR
Availability: InStock

233640.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 30KVA
Product Type BPE (GT330L32) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Standard IEC 62040-1
Frequency (MHz) 50 Hertz (HZ)
Protection Protection against dust & touch
Usage BACKUP
Size 826 815 250 mm (H W D)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GT330L32) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 233640.0 INR/Unit

BPE (GT330L32) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Size 826 815 250 mm (H W D)
Frequency 50 Hertz (HZ)
Display Type Multi-function LCD display panel
Protection Protection against dust & touch
Material STEEL
Usage & Applications POWER SUPPLY
Rated Voltage 380 / 400 / 415 V AC Volt (V)
Cable Type XLPE Copper Armoured Cable Heavy-duty, suitable for industrial power input
Frequency (MHz) 50 Hertz (HZ)
Dimension (L*W*H) 826 815 250 mm (H W D) Millimeter (mm)
Color BLACK
Power Rating 30KVA
Operating Temperature 0 C to 40 C Celsius (oC)
Usage BACKUP
Weight 300 Kilograms (kg)
Phase 3:3 PHASE
Product Type BPE (GT330L32) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Rated Current 42 Amps Ampere (amp)
Warranty 1 YEAR
Features True Online Double Conversion
Standard IEC 62040-1

BPE (GT330L32) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The BPE 30 kVA 3-phase online UPS is a high-performance double-conversion power backup system designed for critical industrial and commercial applications. It continuously converts incoming AC power into DC and then back to clean AC output, ensuring zero transfer time and uninterrupted power supply even during outages or voltage fluctuations.

This model supports external battery banks, allowing flexible backup duration depending on the number and capacity of batteries used. It is built to handle heavy loads such as IT infrastructure, medical equipment, and industrial machinery.

Specification Table

Specification	Details
Model	BPE ePX+3330L32 / GT330L32
Capacity	30 kVA
Output Power	2427 kW
Input Phase	3 Phase
Output Phase	3 Phase
Input Voltage	380 / 400 / 415 V AC
Input Voltage Range	290 480 V AC
Input Power Factor	0.99
Frequency (Input)	50/60 Hz 10%
Output Voltage	380 / 400 / 415 V AC
Output Frequency	50/60 Hz (auto sensing)
Output Power Factor	0.8 0.99
Efficiency	Up to 9598% (ECO up to 99%)
Waveform	Pure Sine Wave
Transfer Time	0 ms (true online UPS)
Voltage Regulation	1%
Output THD	13% (linear), 5% (non-linear)
Crest Factor	3:1
Overload Capacity	110%150% (time dependent)
Battery Type	External (SMF / VRLA / Tubular)
Battery Voltage	384 V DC (configurable 360408 V)
Charging Current	0.1C 0.25C adjustable
Backup Time	Depends on battery bank (10 min 1+ hr)
Bypass	Inbuilt static bypass
Isolation Transformer	Inbuilt
Parallel Capability	Yes (optional)
Output Connection	Hardwired (3P + N + G)

WARRANTY :- 1 YEAR
Key Notes

Supports flexible battery sizing depending on required backup time
Designed for industrial and critical applications with high reliability
Maintains stable output even during voltage fluctuations
Provides zero transfer interruption, ideal for sensitive equipment

Product Reference

BPE 30 kVA 3:3 Phase Online UPS ePX+3330L32

2,33,640jdmtechnologies.in
