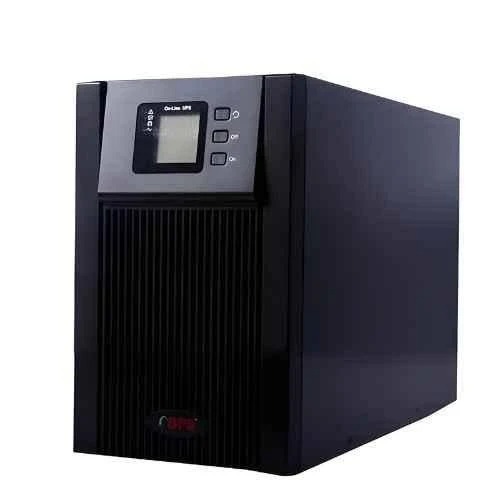

BPE (MP1101L3) 1KVA ONLINE UPS EXTERNAL BATTERY

14119.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 800 Watts
Product Type BPE (MP1101L3) 1KVA ONLINE UPS EXTERNAL BATTERY
Standard https://chatgpt.com/?utm_source=google&utm_medium=paid_search&utm_campaign=GOOG_C_SEM_GBR_Core_CHT_BAU_ACQ_PER_MIX_ALL_APAC_IN_EN_032525&c_id=22370388714&c_agid=177344203135&c_crid=741704613489&c_kwid=kwd-1927227100722&c_ims=&c_pms=1007820&c_nw=g&c_dvc=c&gad_source=1&gad_campaignid=22370388714&gbraid=0AAAAA-I0E5eo_jE4LqEjHag9D0n1vGAzW&gclid=Cj0KCQjws83OBhD4ARIsACblj18cVmUDwoqiBU3y6-Rr9-Qmroqb2YN_VZ103oI4_FvwCKCPEZP8nKEaApJYEALw_wcB#:~:text=UPS%20Performance%20Standard-,IEC%2062040%20Series,-EMI%20/%20EMC%20Compliance
Frequency (MHz) 50Hz Hertz (HZ)
Protection Protection Description Overload Protection Automatically shuts down or transfers to bypass when load exceeds capacity
Usage BACKUP
Size 14.4 40 21.5 cm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MP1101L3) 1KVA ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 14119.0 INR/Unit

BPE (MP1101L3) 1KVA ONLINE UPS EXTERNAL BATTERY Product Specifications

Frequency (MHz) 50Hz Hertz (HZ)
Product Type BPE (MP1101L3) 1KVA ONLINE UPS EXTERNAL BATTERY
Power Rating 800 Watts
Features Core Technology Features True Online Double Conversion Technology Continuous AC DC AC conversion ensures clean and stable power Zero Transfer Time (0 ms) No interruption during power failure Pure Sine Wave Output Safe for sensitive devices like PCs, servers, and medical equipment
Warranty 1 YEAR
Display Type LCD Display
Standard https://chatgpt.com/?utm_source=google&utm_medium=paid_search&utm_campaign=GOOG_C_SEM_GBR_Core_CHT_BAU_ACQ_PER_MIX_ALL_APAC_IN_EN_032525&c_id=22370388714&c_agid=177344203135&c_crid=741704613489&c_kwid=kwd-1927227100722&c_ims=&c_pms=1007820&c_nw=g&c_dvc=c&gad_source=1&gad_campaignid=22370388714&gbraid=0AAAAA-I0E5eo_jE4LqEjHag9D0n1vGAzW&gclid=Cj0KCQjws83OBhD4ARIsACblj18cVmUDwoqiBU3y6-Rr9-Qmroqb2YN_VZ103oI4_FvwCKCPEZP8nKEaApJYEALw_wcB#:~:text=UPS%20Performance%20Standard-,IEC%2062040%20Series,-EMI%20/%20EMC%20Compliance
Rated Voltage 220 240 V AC Volt (V)
Rated Current 6 Amps Ampere (amp)
Color BLACK
Usage & Applications POWER SUPPLY
Usage BACKUP
Weight 5.6 Kilograms (kg)
Operating Temperature 0 C to 40 C Celsius (oC)
Protection Protection Description Overload Protection Automatically shuts down or transfers to bypass when load exceeds capacity
Frequency 50Hz Hertz (HZ)
Size 14.4 40 21.5 cm
Phase 1 PHASE
Dimension (L*W*H) Parameter Size Width (W) 144 mm (14.4 cm) Depth (D) 400 mm (40 cm) Height (H) 215 mm (21.5 cm) Centimeter (cm)
Material STEEL
Cable Type 50Hz

BPE (MP1101L3) 1KVA ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

DESCRIPTION
The BPE MF1101L3 (MP1101L3) is a true online (double-conversion) UPS system designed to provide continuous, clean, and stable power supply for sensitive equipment like computers, servers, networking devices, medical instruments, and office systems.

Output Specifications

Parameter	Details
Rated Capacity	1 KVA / 0.8 KW
Output Voltage	220V / 230V / 240V
Voltage Regulation	1%
Output Waveform	Pure Sine Wave
Output Frequency	50Hz / 60Hz 0.1%
Voltage Distortion (THD)	< 2%
Crest Factor	3:1
Efficiency (Full Load)	> 94%
Transfer Time	0 ms (No delay)
Output Phase	Single Phase
Overload Capacity	~20% for short duration
Bypass	Automatic + Manual

WARRANTY :- 1 YEAR
Input Specifications

Parameter	Details
Input Voltage Range	160V 260V AC
Input Phase	Single Phase
Frequency Range	50Hz

Battery Specifications

Parameter	Details
Battery Type	External (SMF / VRLA / Tubular)
No. of Batteries	3 Nos
Battery Voltage	12V each
Total Battery Bank	36V
Charging Current	6 Amp
Backup Time	Depends on Ah (battery capacity)

General Specifications

Parameter	Details
UPS Type	True Online (Double Conversion)
Technology	IGBT-PWM
Display	LCD Display
Design	Tower / Floor Standing
Cooling	Forced Air Cooling
Isolation Transformer	Not included
Certifications	BIS Certified (India)
Warranty	~23 Years

Additional Features

Zero transfer time (ideal for sensitive equipment)
Generator compatible
Solar compatible
Microprocessor controlled system
RS-232 communication support
Hardwire connection support
