Luminous

BPE (GT330L20) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

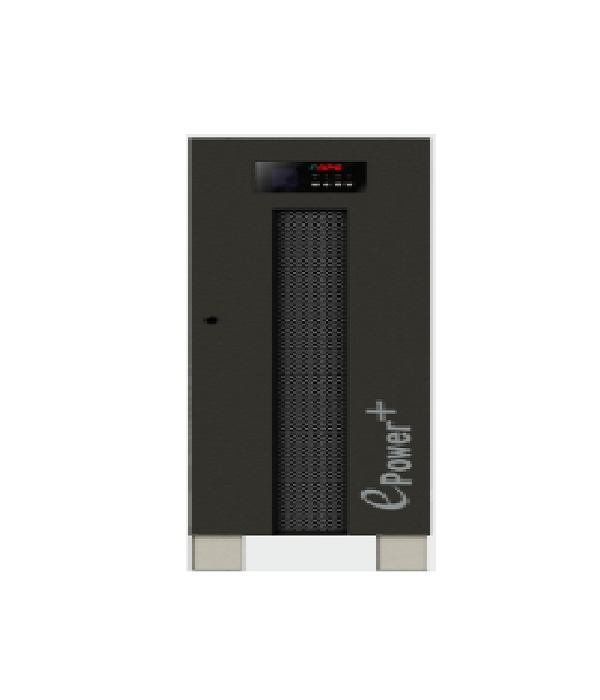

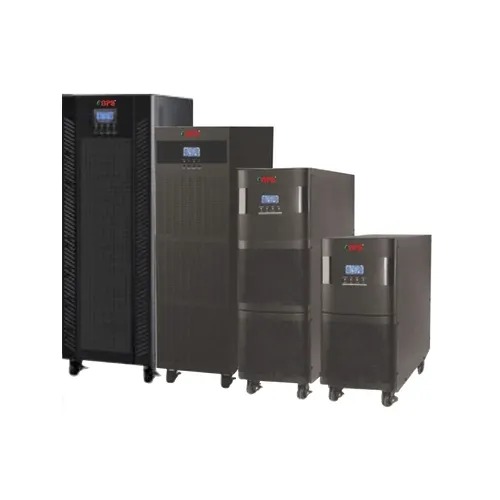

Name: BPE (GT330L20) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 161000.0 INR
Availability: InStock

161000.0 INR/Piece

Get a Price/Quote

Product Details:

Power Rating 30KVA
Product Type BPE (GT330L20) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Standard RS232/USB communication
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, surge, over/under voltage, thermal protection
Usage backup
Size Parameter Details Width (W) ~592 mm Depth (D) ~250 mm Height (H) ~1000 mm Net Weight ~60 95 kg (varies by configuration)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GT330L20) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Piece
Price 161000.0 INR/Piece

BPE (GT330L20) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Frequency (MHz) 50 Hertz (HZ)
Material STEEL
Rated Voltage 380 / 400 / 415 V AC Volt (V)
Phase 3:3 PHASE
Power Rating 30KVA
Standard RS232/USB communication
Cable Type XLPE Copper Armoured Cable (3.5 Core or 4 Core)
Usage & Applications POWER SUPPLY
Color black
Protection Overload, short circuit, surge, over/under voltage, thermal protection
Product Type BPE (GT330L20) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Display Type LCD / LED status panel
Dimension (L*W*H) Parameter Details Width (W) ~592 mm Depth (D) ~250 mm Height (H) ~1000 mm Net Weight ~60 95 kg (varies by configuration) Millimeter (mm)
Frequency 50 Hertz (HZ)
Features Online Double Conversion Technology Provides continuous, clean power Zero transfer time (0 ms) for uninterrupted output Fully isolates load from mains disturbances
Usage backup
Size Parameter Details Width (W) ~592 mm Depth (D) ~250 mm Height (H) ~1000 mm Net Weight ~60 95 kg (varies by configuration)
Warranty 1 YEAR
Rated Current 43 A per phase Ampere (amp)
Operating Temperature 0 C to 40 C Celsius (oC)
Weight 120 Kilograms (kg)

BPE (GT330L20) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

BPE GT330L20 30KVA 3:3 Phase Online UPS Description

The BPE GT330L20 30KVA 3-Phase Online UPS is a high-performance industrial double-conversion power backup system designed to deliver uninterrupted and clean power to critical three-phase electrical loads. It ensures stable voltage, zero transfer time, and full protection against power disturbances.

Built for demanding environments such as data centers, hospitals, telecom infrastructure, and industrial automation, this UPS provides reliable backup and power conditioning for sensitive and heavy-duty equipment.

BPE GT330L20 30KVA 3:3 Phase Online UPS Specification Table

Specification	Details
Model	GT330L20 (30 KVA Series)
Capacity	30 KVA / 2427 kW (depends on PF version)
Type	Online Double Conversion UPS
Phase	3 Phase Input / 3 Phase Output (3:3)
Input Voltage	380 / 400 / 415V AC
Input Range	304480V AC (wide range)
Input Frequency	50 / 60 Hz 10%
Output Voltage	380 / 400 / 415V AC
Output Power Factor	0.8 to 0.9 (model dependent)
Output Waveform	Pure Sine Wave
Efficiency	Up to 91%95% (model dependent)
Transfer Time	0 ms (Online UPS)
Crest Factor	3:1
Harmonic Distortion (THD)	< 2%3% (typical)
Battery Type	External SMF / VRLA Batteries
Battery Configuration	3240 batteries (12V each)
DC Bus Voltage	360384V DC
Charging Current	Adjustable (typically 1A10A)
Protection	Overload, Short circuit, Over/Under voltage, Over temperature
Display	LCD / LED status panel
Communication	RS232 / USB / SNMP (optional)
Bypass	Static & Maintenance Bypass (optional/standard depending variant)
Operating Temperature	0C to 40C
Noise Level	<60 dB

WARRANTY :- 1YEAR
Short Summary

The BPE GT330L20 30KVA UPS is a high-capacity industrial online UPS with:

Zero transfer time
Strong overload handling
External scalable battery backup
Designed for critical 3-phase industrial loads

If you want, I can also make:
Battery backup time chart (30 min / 1 hr / 2 hr)
Wiring diagram (3-phase + battery bank setup)
Comparison with APC / Vertiv 30KVA UPS
Installation requirement checklist

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY Price : 25000.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Protection : Protection Features 3 kVA Online UPS Protection Type Description / Function Overload Protection Automatically limits or shuts down output if connected load exceeds rated capacity to prevent damage. Short Circuit Protection Detects short circuits in the output and disconnects the load immediately to prevent UPS or equipment damage. Battery Low / Over Discharge Protection Prevents deep discharge of the inbuilt battery, prolonging battery life and avoiding failures. Input Surge / Spike Protection Protects connected devices from voltage spikes or surges caused by lightning, switching, or grid fluctuations. Overvoltage / Undervoltage Protection (AVR) Automatic Voltage Regulation keeps output voltage within safe limits for sensitive electronics. Over Temperature Protection Monitors internal UPS temperature and shuts down or alerts in case of overheating. Reverse Polarity Protection Prevents damage in case battery terminals are connected incorrectly. Short Transfer Time / Zero Transfer Protection Ensures uninterrupted power supply during mains failure with zero milliseconds transfer to battery mode. EMI / RFI Filtering Protects against electromagnetic and radiofrequency interference affecting sensitive equipment. Usage & Applications : POWER SUPPLY Cable Type : 3core, 4 mm to 6 mm copper wire (L, N, E) depending on distance and load; rated for 16 A or more. Phase : 1 PHAE Standard : IEC 620401 / IEC 620402 / IEC 620403 Power Rating : 3 kVA (~2400 W) Material : STEEL Frequency (MHz) : 50/60 Hz Hertz (HZ) Rated Voltage : 220/230/240 V AC Volt (V) Weight : 50 kg Kilograms (kg) Operating Temperature : 0 C ~45 C Celsius (oC) Warranty : 1 YEAR Rated Current : 2400 W Watt (w) Size : 360 mm 580 mm 280 mm (~14.2 22.8 11 ) Usage : BACKUP Frequency : 50/60 Hz Hertz (HZ) Features : Feature Description / Benefit True Online Double Conversion (VFI) Provides uninterrupted, clean AC power with zero transfer time during mains failure. Inbuilt VRLA/SMF Batteries Compact internal battery bank for plugandplay installation, eliminating the need for external batteries. Wide Input Voltage Range (100 300 V AC) Protects equipment against brownouts, voltage sags, and spikes without switching to battery unnecessarily. Pure Sine Wave Output Safe for sensitive electronics like PCs, servers, networking devices, medical equipment, and lab instruments. Advanced LCD/LED Display Realtime display of input/output voltage, load percentage, battery status, and operating mode. Automatic Voltage Regulation (AVR) Stabilizes output voltage, ensuring reliable operation of connected devices. High Efficiency (~94%) & ECO Mode Reduces energy consumption while maintaining reliable operation. Generator Compatible Can safely work with backup generators without damage to UPS or connected devices. Multiple Protections Overload, short circuit, battery low, overvoltage, undervoltage, surge, EMI/RFI filtering, and temperature monitoring. Compact Tower Design Suitable for office floors, server rooms, and homes without requiring separate battery racks. Zero Transfer Time Ensures uninterrupted operation for critical systems during power cuts. Long Battery Life Builtin batteries with proper charging and protection provide reliable backup and extended service life. Crest Factor 3:1 Can handle equipment with high inrush current (like servers, laser printers, networking gear). Easy Maintenance Frontaccess panel for monitoring, quick battery replacement, and servicing. Display Type : Advanced LCD showing voltages, battery, load, mode Dimension (L*W*H) : Parameter Details (Approx.) Width (W) 360 mm (~14.2 in) Height (H) 580 mm (~22.8 in) Depth (D) 280 mm (~11 in) Weight 45 50 kg (includes inbuilt batteries) Millimeter (mm) Product Type : BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY Conductor : 3core, 4 mm to 6 mm copper wire (L, N, E) depending on distance and load; rated for 16 A or more.

Send Inquiry

MAX LIFE 2 KVA ONLINE UPS Price : 31467.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Protection : Overload Protection/ ShortCircuit PrBattery Low / Deep Discharge ProtectionotOUnder Voltage Protection (UVP)/ ver Voltage Protection (OVP)/ ection / Usage & Applications : POWER SUPLY Cable Type : AC Input (Mains): Use 2.5 mm 4 mm copper wire for singlephase 230 V input. AC Output (Load): Use 2.5 mm copper wire, depending on connected devices. Battery Connection (48 V DC): Use 10 AWG 6 AWG copper wire for safe handling of high DC current. Earthing / Grounding: Minimum 2.5 mm copper wire; essential for safety and lightning protection. Wire Quality: Use flexible, highquality copper conductors rated for the expected current. Battery Wiring: Keep short and direct to reduce losses and heating. Phase : SINGLE phase Standard : Standard Features / Specifications Power Rating : 2 KVA / 2000 VA Material : STEEL Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 220 / 230 / 240 V AC Volt (V) Weight : 8.6 Kilograms (kg) Operating Temperature : 0 C to 45 C Celsius (oC) Warranty : 1 YEAR Rated Current : 2 KVA ( 1600 W Ampere (amp) Size : (L W H): 53 cm 14.5 cm 22 cm (length width height) Usage : BACKUP Frequency : 50 Hertz (HZ) Features : True Double Conversion Online TechMicroprocessor Controlnology/ Display Type : comprehensive LCD screen Dimension (L*W*H) : Length: 53 cm Width: 14.5 cm Height: 22 cm Weight: ~8.6 kg Centimeter (cm) Product Type : ONLINE UPS Conductor : AC Input (Mains): Use 2.5 mm 4 mm copper wire for singlephase 230 V input. AC Output (Load): Use 2.5 mm copper wire, depending on connected devices. Battery Connection (48 V DC): Use 10 AWG 6 AWG copper wire for safe handling of high DC current. Earthing / Grounding: Minimum 2.5 mm copper wire; essential for safety and lightning protection. Wire Quality: Use flexible, highquality copper conductors rated for the expected current. Battery Wiring: Keep short and direct to reduce losses and heating.

Send Inquiry

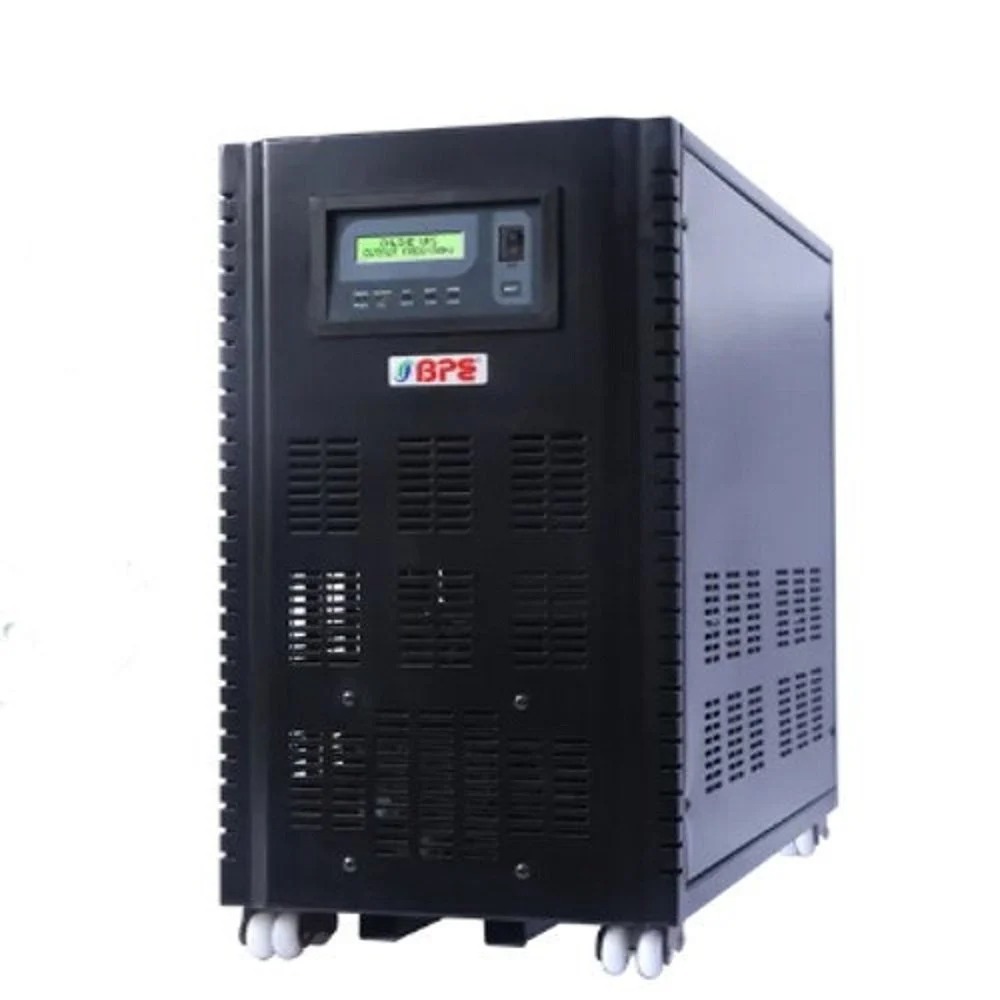

BPE (CP3305L16) 5KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Price : 25000.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Protection : Overload, short circuit, over/under voltage, overheating Usage & Applications : POWER SUPPLY Cable Type : Type: XLPE insulated copper cable (industrial grade) Phase : 3 PHASE Standard : Width: 615 mm Depth: 280 mm Height: 685 mm Power Rating : 5KVA Material : STEEL Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 380V / 400V / 415V AC Volt (V) Weight : 180 Kilograms (kg) Operating Temperature : 0 C to 40 C Celsius (oC) Warranty : 1 YEAR Rated Current : 8 10 A per phase (approx. Ampere (amp) Size : STANDARD Usage : BACKUP Frequency : 50 Hertz (HZ) Features : Continuously converts AC DC AC Display Type : LCD panel (voltage, load, battery status) Dimension (L*W*H) : Width: 615 mm Depth: 280 mm Height: 685 mm Millimeter (mm) Product Type : BPE CP3305L16 5KVA 3Phase Online UPS with Inbuilt Isolation Transformer
