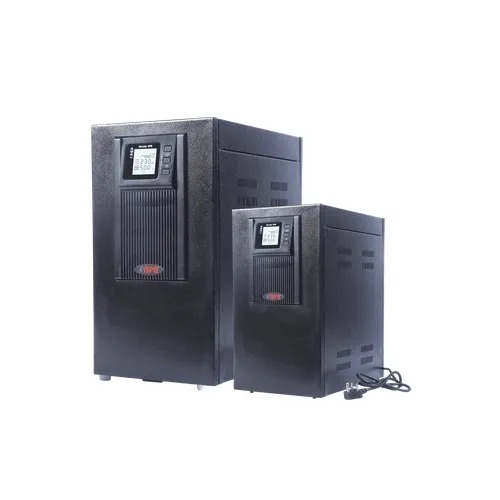

BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER

28000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER
Power Rating 3 kVA (~2.4 kW at 0.8 PF)
Standard IEC 62040-1 (UPS safety requirements)
Frequency (MHz) 50/60 Hz Hertz (HZ)
Protection Audible & visible alarms for faults, overload, low battery
Usage BACKUP
Size Dimension Measurement Height 205 mm Width 180 mm Depth 410 mm Weight ~26.7 kg
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price And Quantity

Minimum Order Quantity 1 Unit
Price 28000.0 INR/Unit

BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Product Specifications

Rated Current 10.43A Microampere (A)
Usage & Applications POWER SUPPLY
Size Dimension Measurement Height 205 mm Width 180 mm Depth 410 mm Weight ~26.7 kg
Protection Audible & visible alarms for faults, overload, low battery
Color BLACK
Features Feature Description True Online UPS Double-conversion (VFI) topology provides continuous, clean, regulated AC power. Inbuilt Isolation Transformer Galvanic isolation protects sensitive equipment from spikes, surges, and ground loop issues. Pure Sine Wave Output Ensures compatibility with sensitive IT, telecom, and industrial equipment. Wide Input Voltage Range Typically 110 285 V AC, allowing stable operation even during mains fluctuations. High Input Power Factor 0.99 reduces load on mains and improves efficiency. LCD Display Shows input/output voltage, frequency, load level, battery status, and UPS operating mode. Static Bypass & Cold Start Allows UPS to operate even without mains supply; automatic bypass protects load in fault conditions. Battery Flexibility Supports external batteries of 7 100 Ah for customizable backup duration. Overload & Short-Circuit Protection Built-in safeguards against faults, overloads, and battery failures. Generator & Solar Compatible Can be used with generators or renewable sources without issues. Audible & Visual Alarms Alerts for battery low, overload, faults, and abnormal conditions. Compact & Reliable Design Lightweight (~26.7 kg) and suitable for office, industrial, and data center environments. High Efficiency Up to ~94% in double-conversion mode, reducing energy loss and heat.
Power Rating 3 kVA (~2.4 kW at 0.8 PF)
Product Type BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER
Standard IEC 62040-1 (UPS safety requirements)
Frequency 50/60 Hz Hertz (HZ)
Frequency (MHz) 50/60 Hz Hertz (HZ)
Operating Temperature 0 40 C Celsius (oC)
Cable Type Rated for 16 A 20 A, 1.5 mm to 2.5 mm , depending on installation distance; suitable for single-phase 230 V AC supply
Conductor Rated for 16 A 20 A, 1.5 mm to 2.5 mm , depending on installation distance; suitable for single-phase 230 V AC supply
Dimension (L*W*H) Parameter Details Height 205 mm Width 180 mm Depth 410 mm Weight ~26.7 kg Millimeter (mm)
Weight 26.7 kg Kilograms (kg)
Rated Voltage 110 285 V Volt (V)
Warranty 1 YEAR
Usage BACKUP
Display Type Multi function LCD status console
Material STEEL
Phase 1 PHASE

BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Trade Information

Delivery Time 7 Days

Product Description

The BPE 3kVA Online UPS MF1103L8 is a true online, doubleconversion UPS designed to provide continuous, clean, and regulated AC power for sensitive electronics and critical systems such as computers, servers, networking equipment, telecom gear, surveillance systems, medical devices and industrial electronics.

This UPS uses online doubleconversion technology (VFISS111) which means the mains power is constantly converted to DC and then back to perfectly regulated AC, removing disturbances like spikes, sags, surges, and frequency variations.

BPE MF1103L8 3KVA Online UPS Specification Table

Specification	Details
Model	MF1103L8 (3kVA Online UPS)
UPS Type	True Online Double Conversion (VFI)
Capacity (VA / W)	3kVA (~2.4kW at 0.8PF)
Input Voltage	220 / 230 / 240V AC
Input Phase	SinglePhase (1Ph)
Input Voltage Range	110285V AC (output derated) / 140280V Nominal
Input Frequency	50/60Hz 3Hz
Input Power Factor	>0.99
Output Voltage	220 / 230 / 240V AC
Output Waveform	Pure Sine Wave
Output Frequency	Sync to mains: 50/60Hz 3Hz; Battery: 50/60Hz 0.1Hz
Output Voltage Distortion (THD)	<3%
Load Crest Factor	3:1
Efficiency at Full Load	>90%
Transfer Time	0ms (zero switching delay)
Bypass	Internal Bypass (automatic & manual)
Output Connections	4 3pin Indian sockets
Battery System	External batteries supported
Approved Battery Capacity	7100Ah (SMF compatible)
Battery DC Bus Voltage	72V or 96V DC
Maximum Charger Current	~6A
Battery Recharge Time	~45hrs to 90%
Control/Display	Multifunction LCD status console
Communication Ports	RS232 (DB9), SmartSlot / SNMP optional
Alarms/Protection	Audible & visible alarms for faults, overload, low battery
Audible Noise	<50dB @ 1m
Operating Temp.	040C
Weight	~26.7kg
Features	Static bypass, cold start, generator compatibility
Isolation Transformer Support	Compatible (external, where required)

WARRANTY :- 1 YEAR
Note: Batteries are external with this model (MF1103L8) you choose capacity based on desired backup time.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MAX LIFE 3 KVA ONLINE UPS Price : 47884.0 INR/Unit Minimum Order Quantity : 1 Usage : BACKUP Material : steel / metal sheet body with powder coated finish Phase : SINGLE Weight : 15.5 Kilograms (kg) Rated Voltage : 220 V / 230 V / 240 VAC Volt (V) Warranty : 1 YEAR Frequency (MHz) : 50 HZ Hertz (HZ) Frequency : 50 HZ Hertz (HZ) Rated Current : 3 kVA ~2700 W Watt (w) Usage & Applications : POWER SUPPLY Size : Physical Size / Dimensions: Length: ~46.5 cm Width: ~19 cm Height: ~31.8 cm (L W H) Protection : Overload Protection / Short CircuiGenerator Compatibility/ t ProOver Voltage & Under Voltage Protection/ Wide Input Voltage Range Color : BLACK Power Rating : Rated Power Capacity: 3 kVA (kilovolt ampere) Product Type : ONLINE UPS Display Type : load level, battery level, AC mode or battery mode, bypass mode, and fault indicators. Dimension (L*W*H) : 46.5 19 31.8 cm (L W H) Centimeter (cm) Operating Temperature : 0 C 50 C Celsius (oC) Features : True online double conversion with pure sine wave output Adjustable charging current via LCD panel Cold start from battery High current charger (60 A) Generator compatible and wide input range Overload and short circuit protection Advanced battery support with parallel scaling option Standard : Standard packaging includes protective padding around the UPS, so overall shipping box may be ~5 7 cm larger in each dimension and a few kg heavier. Typical total package weight 17 18 kg. Cable Type : Recommended Cable Types Input AC Cable (Mains to UPS) Type: 3core flexible copper cable (Live, Neutral, Earth) Specification: 4 mm copper, heat resistant PVC or FRLS (Fire Retardant Low Smoke) insulation Voltage Rating: 300 V AC Notes: Properly fused; follow local electrical codes. Output AC Cable (UPS to Equipment / Load) Type: Flexible copper wire or standard IEC extension cabling Specification: 4 mm copper for full load (~2700 W / 12 A at 230 V) Voltage Rating: 300 450 V AC, depending on insulation standard DC Battery Cable (UPS to Battery Bank) Type: Flexible, stranded copper cable Specification: 10 16 mm (depending on battery AH and distance) Voltage Rating: 60 V DC Insulation: Heat resistant, batterygrade PVC or XLPE Notes: Keep cable runs short and use properly rated terminals to handle up to 60 A charging current. Material Conductor: Highconductivity copper (preferred over aluminum for low resistance and heat) Insulation: Fireresistant, heatresistant, and flexible for safe routing

Send Inquiry

BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Price : 11500.0 INR/Unit Minimum Order Quantity : 1 Usage : BACKUP Material : STEEL Phase : 1 PHASE Weight : 11 kg Kilograms (kg) Rated Voltage : 110V 300V AC Volt (V) Warranty : 1 YEAR Frequency (MHz) : 50 / 60 Hz Hertz (HZ) Frequency : 50 / 60 Hz Hertz (HZ) Rated Current : 4.35A Ampere (amp) Usage & Applications : POWER SUPPLY Size : STANDARD Protection : Overload, short circuit, battery low, overtemperature Color : BLACK Power Rating : 1 kVA (1000 VA) Product Type : BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Display Type : LCD / LED status indicators Dimension (L*W*H) : Parameter Value Width 144 mm Depth 400 mm Height 215 mm Dimensions (L W H) 14.4 40 21.5 cm Millimeter (mm) Operating Temperature : 0 C 40 C Celsius (oC) Features : Features BPE MF1101L3 1KVA Online UPS Feature Description True Online Double Conversion Provides continuous power without interruption and protects equipment from voltage fluctuations. DSP Digital Control Uses advanced Digital Signal Processor (DSP) technology for stable and reliable operation. Pure Sine Wave Output Delivers clean and stable sinewave power suitable for sensitive electronics. High Input Power Factor Input power factor 0.99, reducing power loss and improving efficiency. IGBTBased Rectifier & Inverter Ensures efficient power conversion and reliable UPS performance. Wide Input Voltage Range Operates within 110V 300V AC, suitable for areas with unstable power supply. Cold Start Function UPS can start directly on battery power without mains supply. Static Bypass Protection Automatically transfers load to bypass during overload or UPS fault. High Efficiency Up to 94% efficiency in online mode and higher in ECO mode. Advanced Battery Management Optimizes battery charging and extends battery life. Multiple Communication Ports Supports RS232, USB, and optional SNMP for monitoring and management. Generator & Solar Compatible Can operate with generator or solar backup systems. LCD / LED Display Shows UPS status such as load level, battery mode, faults, and input/output conditions. These features make the BPE MF1101L3 1KVA Online UPS suitable for computers, servers, networking equipment, medical devices, and CCTV systems where uninterrupted and stable power is required. If you want, I can also prepare a complete datasheet format including: Input specifications Output specifications Battery specifications Environmental specifications. Get smarter responses, upload files and images, and more. Log in Sign up for free Standard : IEC/EN62040 compliant Cable Type : Cable Type (Typical for this UPS) Parameter Specification Cable Type Copper flexible cable Cable Size 1.5 sq.mm Core 3 Core (Phase + Neutral + Earth) Insulation PVC insulated Connection Input/Output power cabl

Send Inquiry

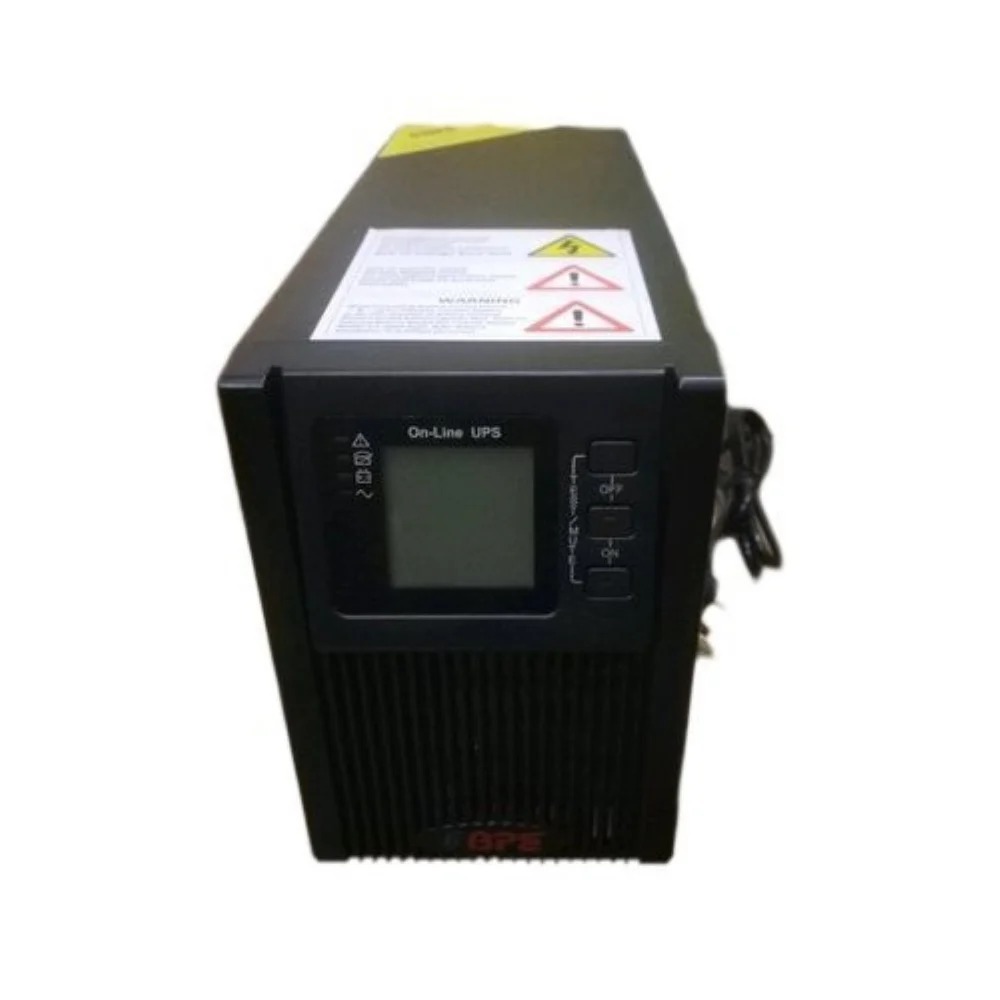

BPE MS1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Price : 11500.0 INR/Unit Minimum Order Quantity : 1 Usage : BACUP Material : STEEL Phase : 1 PHASE Weight : 10 Kilograms (kg) Rated Voltage : 220 V / 230 V / 240 V AC Volt (V) Warranty : 1 YEAR Frequency (MHz) : 50 / 60 Hz Hertz (HZ) Frequency : 50 / 60 Hz Hertz (HZ) Rated Current : 1000 VA 230 V 4.3 A Microampere (A) Usage & Applications : POWER SUPPLY Size : Pure Sine Wave Protection : Overload, Short Circuit, Over/Under Voltage, OverTemp Color : BLACK Power Rating : 1 kVA (1000 VA) Product Type : BPE MS1101L3 1KVA ONLINE UPS WITH INBUILT BATTERY Display Type : LCD: Voltage, Frequency, Battery, Load %, Mode, Fault Codes Dimension (L*W*H) : Dimension Size Width (W) ~144 mm (~14.4 cm) Depth (D) ~400 mm (~40 cm) Height (H) ~215 mm (~21.5 cm) Weight ~10 11 kg (approx) Millimeter (mm) Operating Temperature : ~0 45 C, Celsius (oC) Features : Main Features True Online Double Conversion Technology Provides continuous conversion of AC DC AC, so the connected equipment always runs on clean, regulated power with zero switchover time during mains interruption. Standard : MF1101L3 Cable Type : This means you typically use a standard 3 core power cable (Phase, Neutral, Earth) sized appropriately for ~230 V & 10 A.
