Luminous

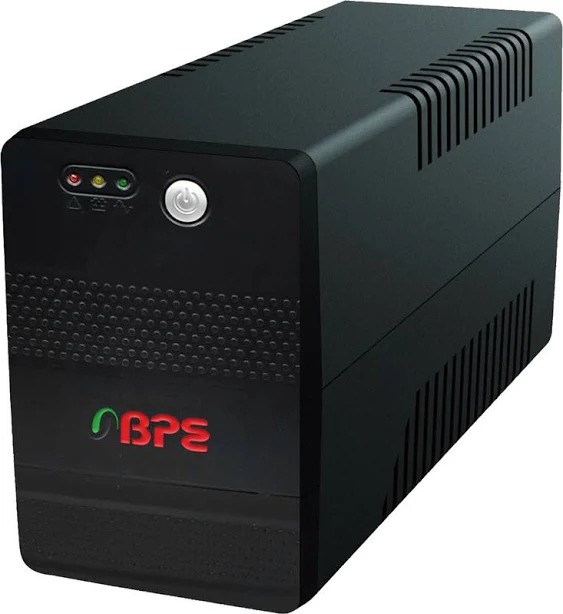

BP650VA LINE INTERATIVE UPS

1850.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BP650VA LINE INTERATIVE UPS
Power Rating 650 VA
Standard IEC 62040-1
Frequency (MHz) 50 / 60 Hz 0.1 Hz Hertz (HZ)
Protection Automatically shuts down or alarms when the load exceeds the UPS capacity
Usage BACKUP
Size Size in centimeters: 27.9 cm 10.1 cm 14.2 cm (L W H)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BP650VA LINE INTERATIVE UPS Price And Quantity

Minimum Order Quantity 1 Unit
Price 1850.0 INR/Unit

BP650VA LINE INTERATIVE UPS Product Specifications

Dimension (L*W*H) 27.9 cm 10.1 cm 14.2 cm (L W H) Centimeter (cm)
Usage & Applications POWER SUPPLY
Standard IEC 62040-1
Color BLACK
Operating Temperature 0 C to 40 C Celsius (oC)
Display Type LED Indicators
Phase Single Phase
Weight 4.2 Kilograms (kg)
Frequency 50 Hertz (HZ)
Features Feature Description Line-Interactive Technology Automatically regulates voltage fluctuations without switching to battery mode. LED Indicators Shows status like power on, battery mode, charging, and fault conditions. Audible Alarm Alerts for power failure, low battery, or overload conditions. Automatic Voltage Regulation (AVR) Corrects high and low voltage without draining the battery. Overload & Short-Circuit Protection Protects the UPS and connected devices from electrical faults. Sealed Maintenance-Free Battery 12V / 7Ah battery that requires no maintenance and prevents leakage. Compact & Lightweight Design Easy to place near desktop PCs or small office setups. Surge Protection Protects connected equipment from voltage spikes and lightning surges. Safe Shutdown Support Provides enough battery backup time to save work and safely turn off devices. Energy Efficient Low standby power consumption to save electricity
Usage BACKUP
Material ABS Plastic (Flame-retardant)
Frequency (MHz) 50 / 60 Hz 0.1 Hz Hertz (HZ)
Warranty 2 YEARS
Product Type BP650VA LINE INTERATIVE UPS
Rated Voltage 230 V AC Volt (V)
Protection Automatically shuts down or alarms when the load exceeds the UPS capacity
Cable Type Copper conductors with PVC insulation
Rated Current 360 W Watt (w)
Size Size in centimeters: 27.9 cm 10.1 cm 14.2 cm (L W H)
Power Rating 650 VA

BP650VA LINE INTERATIVE UPS Trade Information

Delivery Time 6 Days

Product Description

BPE BP650 Line Interactive UPS Description

The BP650VA UPS is a compact line-interactive uninterruptible power supply (UPS) designed to provide reliable backup power and protection for computers and small electronic devices. It helps keep equipment running during short power outages and protects them from voltage fluctuations, surges, and spikes.

This UPS has a capacity of about 650VA (around 360W), making it suitable for desktop PCs, monitors, routers, networking devices, and small office equipment. During a power failure, the UPS automatically switches to battery power within a few milliseconds, allowing users enough time to save work and safely shut down their systems.

The unit uses a sealed maintenance-free lead-acid battery (12V/7Ah) and typically takes 68 hours to recharge up to 90% capacity after a full discharge. It also includes features such as automatic voltage regulation (AVR), overload protection, surge protection, and LED indicators with audible alarms to notify users of battery mode, low battery, or faults.

Because of its compact design, low noise operation, and plug-and-play setup, the BP650VA UPS is widely used in homes, small offices, retail counters, and educational environments where reliable short-term power backup is required

Here is the specification table for a 650VA BP650 UPS (example: BPE BP650 Line Interactive UPS):

Specification	Details
Model	BP650V
Capacity	650 VA (~360 W)
Input Voltage Range	120 300 VAC
Input Frequency	50 / 60 Hz 10% (auto sensing)
Output Voltage (AVR Mode)	200 245 VAC
Output Voltage (Battery Mode)	230 VAC 10%
Output Frequency (Battery Mode)	50 / 60 Hz 0.1 Hz
Waveform	Simulated sine wave
Transfer Time	4 8 ms (typical)
Battery Type	Sealed Maintenance-Free Lead Acid (VRLA)
Battery Capacity	1 12V / 7Ah
Recharge Time	6 8 hours to 90% charge
Backup Time	~16 25 minutes (1 PC load)
Protection	Overload, short-circuit, surge protection
Indicators	LED indicators & audible alarms
Output Sockets	Usually 3 universal sockets

WARRANTY :- 2 YEARS
Typical Uses

Desktop PC
Monitor
Wi-Fi router
Small office devices

If you want, I can also show:

Connection diagram of BP650 UPS with PC
Internal parts (battery, inverter board) diagram.
