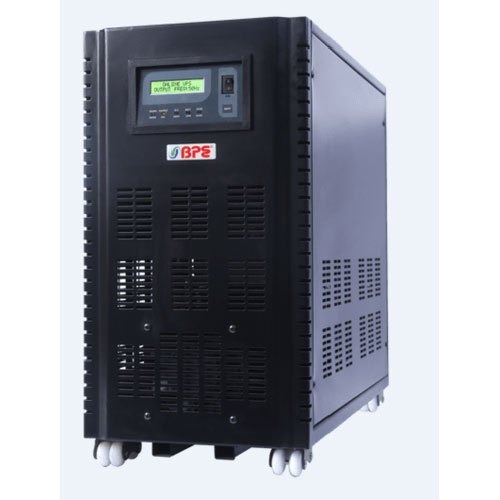

BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY

150000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY PRICE
Power Rating 20 kVA
Standard ISO 900
Frequency (MHz) 50 Hertz (HZ)
Protection Internal automatic & manual bypass, overload protection, surge suppression
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 150000.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY Product Specifications

Display Type Multi-function LCD panel showing load, battery, alarms
Material STEEL
Frequency (MHz) 50 Hertz (HZ)
Warranty 1 YEAR
Color BLACK
Size STANDARD
Protection Internal automatic & manual bypass, overload protection, surge suppression
Usage & Applications POWER SUPPLY
Rated Voltage 380 415 V AC, Volt (V)
Standard ISO 900
Rated Current 87 A Ampere (amp)
Phase 1 PHASE
Product Type BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY PRICE
Features Provides continuous clean power by converting AC DC AC, isolating the load from mains disturbances and eliminating transfer time during outages.
Dimension (L*W*H) Dimension Value Height 616 mm Width 502 mm Depth 250 mm Net Weight 37 kg Millimeter (mm)
Weight 37 Kilograms (kg)
Usage BACKUP
Frequency 50 Hertz (HZ)
Cable Type 3 Core Flexible Copper Cable PVC Insulated, FRLS / Fire Retardant LSZH (preferred), 600/1000 V grade
Operating Temperature 0 45 C, Celsius (oC)
Power Rating 20 kVA

BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

Product Overview

The 20kVA BPE Online UPS (MFP3120L16/20) is a threephase input, singlephase output true online UPS designed to provide clean, uninterrupted power for sensitive equipment and critical loads. This type of UPS uses doubleconversion technology to ensure that loadside power is always conditioned and free from mains instability, sags, swells or outages ideal for servers, telecom, medical equipment, and industrial control systems.

Specifications 20KVA Online UPS (MFP3120L16/20)

Category	Specification	Details
Output	Rated Power	20kVA (16kW)
	Power Factor	0.8
	Phase	Singlephase output (L+N+PE)
	Output Voltage	220V (configurable 230V / 240V)
	Output Waveform	Pure sine wave
	Output Voltage Distortion (THD)	<3%
	Frequency (Sync to mains)	50/60Hz 3Hz
	Transfer Time	<0ms (true online)
	Output Connections	3pin Indian sockets (4)
Input	Voltage	380/400/415V AC (3phase)
	Voltage Range	277480V (operational)
	Frequency	50/60Hz 3Hz
	Power Factor	>0.99
Efficiency & Performance	Full Load Efficiency	>93%
	Load Crest Factor	3:1
Battery & Runtime	Battery DC Bus	192240V DC
	Supported Battery Capacity	26100Ah (per battery suggested)
	Charger	Max ~10A
	Battery Position	External only
	Battery Type	SMF / Flooded / VRLA compatible
	Recharge Time (to 90%)	~<10hours
Control & Management	Display	Multifunction LCD status panel
	Communication Ports	RS232 (DB9), SmartSlot / SNMP options
	Audible Alarm	Yes (status & warnings)
Protection & Bypass	Internal Bypass	Automatic & Manual
	Overload Capability	Supported (optional configurations)
Physical	Audible Noise	<55dB @ 1m
	Dimensions & Weight	(Varies by package) Not standardised online
Additional Features	Parallel Capability	Supported (depends on configuration)
	Generator Compatible	Yes (stable input range)

WARRANTY :- 1YEAR
Notes

This model does not include batteries external battery bank must be purchased separately.
Actual runtime depends on battery size (Ah), number of batteries, and load.
Specifications may vary slightly by seller or optional configuration (e.g., power factor 0.9/1.0 available).

If you want, I can also provide recommended battery configuration options (e.g., how many batteries and what AH rating youd need for specific backup durations like 30min, 1hr, etc.) along with estimated external battery costs. Just tell me the load (in kW) you want to support and desired backup time.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MAX LIFE 3 KVA ONLINE UPS Price : 47884.0 INR/Unit Minimum Order Quantity : 1 Phase : SINGLE Product Type : ONLINE UPS Rated Current : 3 kVA ~2700 W Watt (w) Usage : BACKUP Frequency : 50 HZ Hertz (HZ) Weight : 15.5 Kilograms (kg) Power Rating : Rated Power Capacity: 3 kVA (kilovolt ampere) Material : steel / metal sheet body with powder coated finish Frequency (MHz) : 50 HZ Hertz (HZ) Warranty : 1 YEAR Color : BLACK Usage & Applications : POWER SUPPLY Size : Physical Size / Dimensions: Length: ~46.5 cm Width: ~19 cm Height: ~31.8 cm (L W H) Rated Voltage : 220 V / 230 V / 240 VAC Volt (V) Dimension (L*W*H) : 46.5 19 31.8 cm (L W H) Centimeter (cm) Features : True online double conversion with pure sine wave output Adjustable charging current via LCD panel Cold start from battery High current charger (60 A) Generator compatible and wide input range Overload and short circuit protection Advanced battery support with parallel scaling option Display Type : load level, battery level, AC mode or battery mode, bypass mode, and fault indicators. Protection : Overload Protection / Short CircuiGenerator Compatibility/ t ProOver Voltage & Under Voltage Protection/ Wide Input Voltage Range Standard : Standard packaging includes protective padding around the UPS, so overall shipping box may be ~5 7 cm larger in each dimension and a few kg heavier. Typical total package weight 17 18 kg. Operating Temperature : 0 C 50 C Celsius (oC) Cable Type : Recommended Cable Types Input AC Cable (Mains to UPS) Type: 3core flexible copper cable (Live, Neutral, Earth) Specification: 4 mm copper, heat resistant PVC or FRLS (Fire Retardant Low Smoke) insulation Voltage Rating: 300 V AC Notes: Properly fused; follow local electrical codes. Output AC Cable (UPS to Equipment / Load) Type: Flexible copper wire or standard IEC extension cabling Specification: 4 mm copper for full load (~2700 W / 12 A at 230 V) Voltage Rating: 300 450 V AC, depending on insulation standard DC Battery Cable (UPS to Battery Bank) Type: Flexible, stranded copper cable Specification: 10 16 mm (depending on battery AH and distance) Voltage Rating: 60 V DC Insulation: Heat resistant, batterygrade PVC or XLPE Notes: Keep cable runs short and use properly rated terminals to handle up to 60 A charging current. Material Conductor: Highconductivity copper (preferred over aluminum for low resistance and heat) Insulation: Fireresistant, heatresistant, and flexible for safe routing

Send Inquiry

BPE MF1101B3 1KVA ONLINE UPS INBUILT BATTERY Price : 15000.0 INR/Unit Minimum Order Quantity : 1 Phase : 1 PHASE Product Type : BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Rated Current : 4.3 A Volt (v) Usage : BACKUP Frequency : 50 Hertz (HZ) Weight : 10.6 Kilograms (kg) Power Rating : 1 kVA Material : STEEL Frequency (MHz) : 50 Hertz (HZ) Warranty : 1 YEAR Color : BLACK Usage & Applications : POWER SUPPLY Size : Full Size (W D H): 144 400 215 mm Rated Voltage : 220 / 230 / 240 V AC Volt (V) Dimension (L*W*H) : Dimension (L W H): 40 14.4 21.5 cm Millimeter (mm) Features : Feature Description True Online Double Conversion Provides continuous clean power without switching delay. Pure Sine Wave Output Safe for sensitive devices like servers, computers, and medical equipment. DSP Digital Control Technology Improves system reliability and performance control. High Input Power Factor (>0.99) Reduces power loss and improves efficiency. Wide Input Voltage Range Operates from about 110 300 V AC, suitable for unstable power areas. ECO Mode Improves efficiency up to 99% to reduce energy consumption. LCD Display Shows input voltage, output voltage, battery level, load %, temperature, and status. LED Status Indicators Displays modes such as normal operation, bypass, battery mode, and fault. Advanced Battery Management (ABM) Protects battery life and optimizes charging. Cold Start Function UPS can start directly from battery without mains power. Automatic & Manual Bypass Allows power to bypass UPS during overload or maintenance. Communication Ports RS232 / SNMP support for monitoring and remote management. Generator Compatible Works with generators and solar systems. Configurable Output Settings Output voltage, frequency conversion, ECO mode configurable through LCD. External Battery Support Uses 3 12V batteries (36V system) for extended backup time. Display Type : LCD + LED indicators Protection : Overload, short circuit, overtemperature, battery low Standard : Standards BPE MF1101L3 1kVA Online UPS Standard Description IEC 620401 Safety requirements for UPS systems IEC 620402 Electromagnetic compatibility (EMC) for UPS IEC 620403 UPS performance and test methods CE European Conformity certification for safety and health RoHS Restriction of Hazardous Substances compliance BIS / IS Compliance Indian safety and electrical equipment standards ISO 9001 Manufacturing Quality management system used by manufacturer Operating Temperature : 0 C to 45 C Celsius (oC) Cable Type : RS 232 cable or SNMP network cable (Cat5e / Cat6)

Send Inquiry

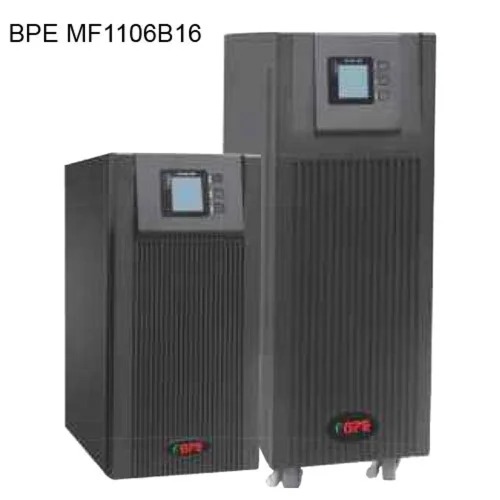

BPE (MF1106B16) 6KVA ONLINE UPS INBUILT BATTERY Price : 65000.0 INR/Unit Minimum Order Quantity : 1 Phase : 1 PHASE Product Type : BPE (MF1106B16) 6KVA ONLINE UPS INBUILT BATTERY Rated Current : 26 Amp Ampere (amp) Usage : BACKUP Frequency : 50/60 Hertz (HZ) Weight : 82 Kilograms (kg) Power Rating : 6 KVA Material : STEEL Frequency (MHz) : 50/60 Hertz (HZ) Warranty : 1 YEAR Color : BLACK Usage & Applications : POWER SUPPLY Size : STANDARD Rated Voltage : 220V / 230V / 240V AC Volt (V) Dimension (L*W*H) : Dimensions Parameter Details Width (W) 190 mm Depth (D) 480 mm Height (H) 750 mm Net Weight ~82 kg Millimeter (mm) Features : True Online Double Conversion with PWM & IGBT technology Display Type : LCD + LED indicators Protection : Protection against input over/under voltage, surges, and spikes Standard : Dimensions Parameter Details Width (W) 190 mm Depth (D) 480 mm Height (H) 750 mm Net Weight ~82 kg Operating Temperature : 0 C to 40 C Celsius (oC) Cable Type : Copper (Cu) conductor cable
