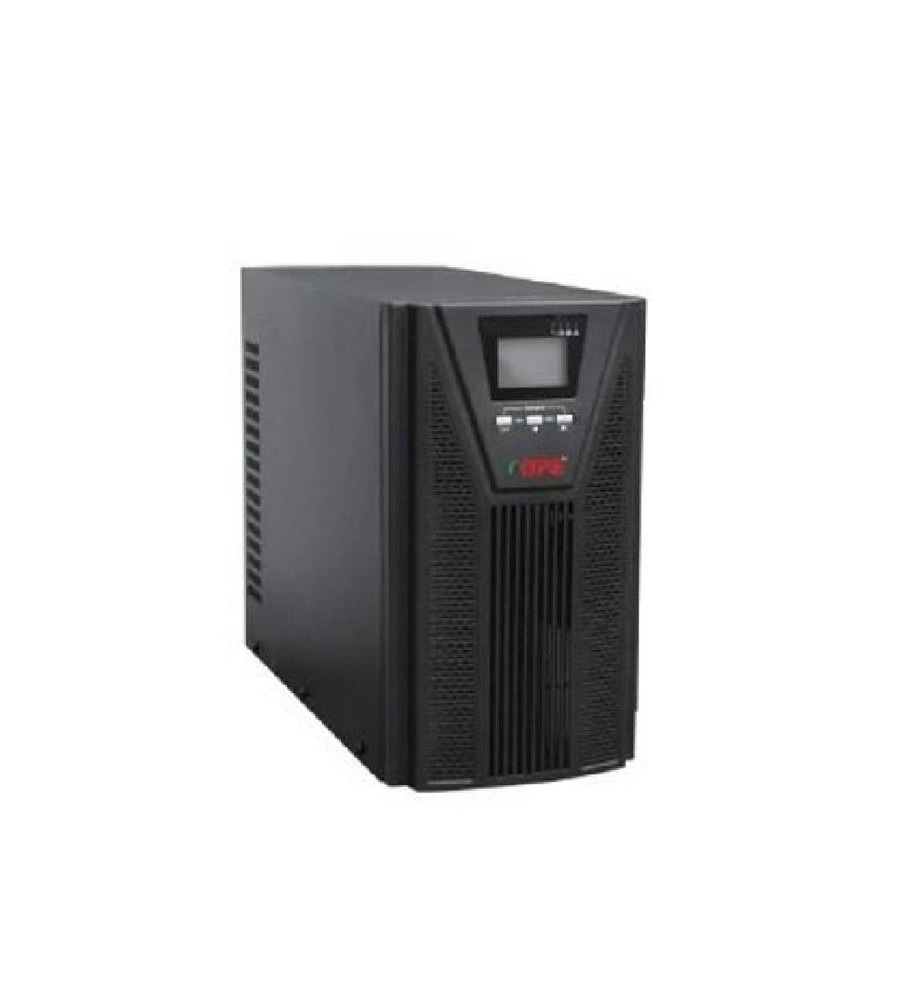

BPE MFP1103L8 2KVA ONLINE UPS

25000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 2.4 kW (2400 W
Product Type BPE MFP1103L8 2KVA ONLINE UPS
Standard Standard Description / Purpose BIS (IS 16242) Indian safety standard for UPS systems ensures safe operation in homes, offices, and industrial environments. IEC 62040 1 International standard for UPS safety covers design, protection against electric shock, fire, and mechanical hazards. IEC 62040 2 Electromagnetic compatibility (EMC) standard limits interference to other devices and protects UPS from external disturbances. IEC 62040 3 Defines performance and testing for online UPS systems ensures consistent output voltage, frequency, and reliability. IS/IEC Power Quality Ensures pure sine wave output, low THD (<3 %), and stable voltage for sensitive electronics. EMC / EMI Compliance Reduces electromagnetic emissions so UPS does not affect nearby electronics
Frequency (MHz) 40 70 Hz Hertz (HZ)
Protection Audible & visual alerts, overload protection
Usage BACKUP
Size Unit Size (Approx.): Height: 399 mm Width: 192 mm Depth: 469 mm Net Weight: ~26.7 kg
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MFP1103L8 2KVA ONLINE UPS Price And Quantity

Minimum Order Quantity 1 Unit
Price 25000.0 INR/Unit

BPE MFP1103L8 2KVA ONLINE UPS Product Specifications

Protection Audible & visual alerts, overload protection
Rated Current 10.9 A Ampere (amp)
Weight 26.7 kg Kilograms (kg)
Usage BACKUP
Material STEEL
Power Rating 2.4 kW (2400 W
Warranty 1 YEAR
Cable Type Type: Copper conductor, 3 core (Live, Neutral, Earth)
Standard Standard Description / Purpose BIS (IS 16242) Indian safety standard for UPS systems ensures safe operation in homes, offices, and industrial environments. IEC 62040 1 International standard for UPS safety covers design, protection against electric shock, fire, and mechanical hazards. IEC 62040 2 Electromagnetic compatibility (EMC) standard limits interference to other devices and protects UPS from external disturbances. IEC 62040 3 Defines performance and testing for online UPS systems ensures consistent output voltage, frequency, and reliability. IS/IEC Power Quality Ensures pure sine wave output, low THD (<3 %), and stable voltage for sensitive electronics. EMC / EMI Compliance Reduces electromagnetic emissions so UPS does not affect nearby electronics
Dimension (L*W*H) Dimensions (Approx.): Height: 399 mm Width: 192 mm Depth: 469 mm Net Weight: ~26.7 k Millimeter (mm)
Phase 1 phase
Conductor Type: Copper conductor, 3 core (Live, Neutral, Earth)
Operating Temperature 0 40 C Celsius (oC)
Features Main Features True Online Double Conversion Technology Provides continuous clean power with zero transfer time during mains fluctuations ideal for critical equipment that can t tolerate interruptions. Pure Sine Wave Output Delivers stable, low distortion AC power suitable for sensitive loads without risk of surges or distortion. IGBT Based Rectifier & Inverter High efficiency digital design improves reliability and reduces heat useful in demanding environments. Wide Input Voltage Range Works even with unstable mains ( 110 300 V AC) without switching to battery too quickly. High Efficiency
Usage & Applications POWER SUPPLY
Color BLACK
Size Unit Size (Approx.): Height: 399 mm Width: 192 mm Depth: 469 mm Net Weight: ~26.7 kg
Frequency 40 70 Hz Hertz (HZ)
Display Type Multi function LCD status panel
Product Type BPE MFP1103L8 2KVA ONLINE UPS
Rated Voltage 220/230/240 V AC Volt (V)
Frequency (MHz) 40 70 Hz Hertz (HZ)

BPE MFP1103L8 2KVA ONLINE UPS Trade Information

Delivery Time 7 Days

Product Description

Product Description BPE MF1103L8 Online UPS

Type: True Online DoubleConversion UPS
Model: MF1103L8
Brand: BPE (Best Power Equipments / BPE India)

The MF1103L8 is a pure online UPS designed to provide continuous, clean, and regulated power to sensitive electrical equipment like computers, servers, networking gear, CCTV systems, and other critical load devices. It uses advanced doubleconversion technology to ensure zero transfer time and pure sine wave output, making it ideal in environments with unstable mains power

Heres a clear specification table for the BPE Online UPS 3KVA Model MF1103L8 (true DoubleConversion Online UPS), based on official product specs:

Specification	Details
Model	MF1103L8
Type	Online / DoubleConversion UPS
Capacity	3kVA (~2.4kW at 0.8PF)
Output Voltage	220V (also operates at 230/240V)
Output Power Factor	0.8
Output Frequency	Sync to mains: 50/60Hz 3Hz Battery mode: 50/60Hz 0.1Hz
Output Waveform	Pure Sine Wave
Output Voltage Distortion (THD)	<3%
Crest Factor	3:1
Transfer Time	Zero (continuous online mode)
Efficiency	>90% (full load)
Input Voltage	220V (works with 230/240V)
Input Voltage Range	110285V (output derated below this)
Input Frequency Range	4070Hz
Input Power Factor	>0.99
Bypass	Internal (automatic & manual)
Output Sockets	4 Indian 3pin
Battery DC Bus Voltage	72V or 96V (external batteries required)
Recommended Battery AH Range	7100Ah (external)
Max Charger Current	6A
Battery Type	SMF (external)
Communication Ports	RS232 (DB9), SmartSlot
Display	Multifunction LCD status panel
Alarms/Protection	Audible & visual alerts, overload protection
Operating Temp.	040C
Noise (1m)	<50dB
Weight	~26.7kg
Cooling	Forced air
Compliance	BIS certified

Key features at a glance:
True online double conversion zero switchover time for sensitive gear
Pure sine output to protect computers/servers
Wide input voltage tolerance reduces unnecessary battery use
External battery support lets you size runtime independently

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

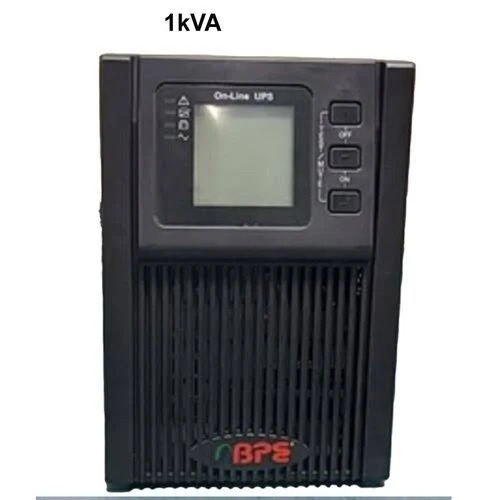

BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price : 10673.0 INR/Unit Minimum Order Quantity : 1 Weight : 5.6 Kilograms (kg) Usage : BACKUP Product Type : BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Rated Voltage : 220 / 230 / 240 V AC Volt (V) Power Rating : 1 kVA (1000 VA) Warranty : 1 YEAR Protection : Overload Protection Prevents damage if connected load exceeds UPS capacity. UPS goes into bypass or alarm mode Rated Current : 800 W Watt (w) Material : STEEL Size : Packaged/Cardboard Size: ~14.4 cm 40 cm 21.5 cm Frequency : 50/60 Hz Hertz (HZ) Frequency (MHz) : 50/60 Hz Hertz (HZ) Phase : Single Phase Usage & Applications : POWER SUPPLY Color : BLACK Standard : IEC 62040 1 Dimension (L*W*H) : Approx. External Size (W D H): 144 400 215 mm (mm) Width Depth Height (tower form factor). Millimeter (mm) Display Type : LCD (voltage, frequency, mode, load, battery) Features : True Online Double Conversion Technology Continuously converts incoming AC power to DC and back to AC. Zero transfer time on mains failure no interruption to connected devices. Cable Type : 3core flexible copper cable, typically 1.5 mm 2.5 mm depending on installation Connects UPS to singlephase AC mains (Live, Neutral, Earth). Operating Temperature : 0 50 C Celsius (oC)

Send Inquiry

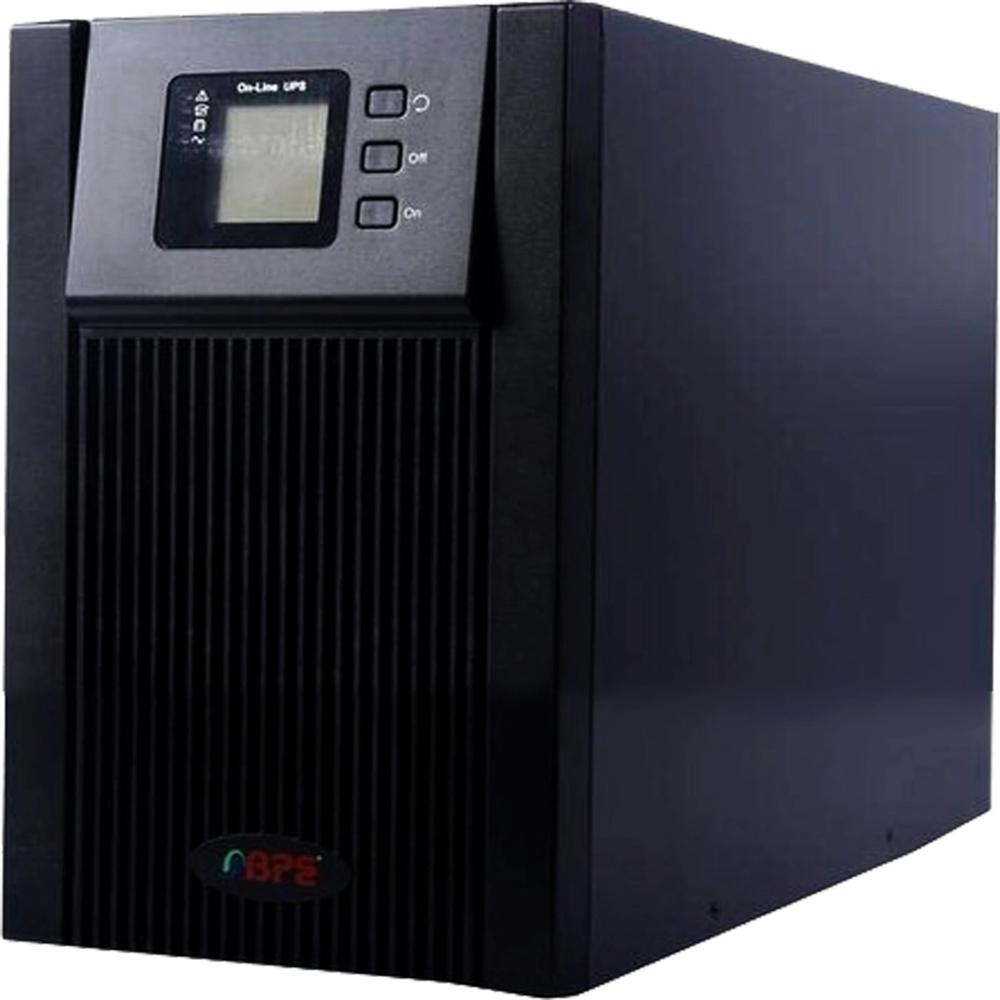

BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY Price : 24200.0 INR/Unit Minimum Order Quantity : 1 Weight : 26.7 kg Kilograms (kg) Usage : BACKUP Product Type : BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY Rated Voltage : 220 / 230 / 240 V AC Volt (V) Power Rating : 3000 VA (3 kVA) Warranty : 1 YEAR Protection : Protection Features Protection Type Description Overload Protection Automatically limits output if load exceeds rated capacity; UPS switches to bypass or alarm. Short Circuit Protection Trips instantly to prevent damage to UPS and connected devices. Overvoltage Protection Protects against input voltage spikes from mains or generator. Undervoltage / Brownout Protection Prevents damage from low input voltage; automatically switches to battery mode if needed. Surge & Spike Protection Shields sensitive equipment from lightning or switching surges. Thermal / Overheat Protection UPS shuts down or alarms if internal temperature exceeds safe limits. Battery Deep Discharge Protection Prevents battery damage by shutting down before voltage drops too low. Battery Overcharge Protection Charger automatically limits voltage to prevent battery overcharging. Input Phase Failure / Phase Reversal Protection Protects UPS in case of incorrect wiring or phase loss. Bypass / Maintenance Mode Protection Ensures safe switching to bypass during UPS servicing. Alarm Indicators Audible and visual alarms for overload, battery low, battery fault, input/output abnormality. Rated Current : 2400 W Watt (w) Material : STEEL Size : STANDARD Frequency : 50 Hertz (HZ) Frequency (MHz) : 50 Hertz (HZ) Phase : Single Phase Usage & Applications : POWER SUPPLY Color : BLACK Standard : Standard / Certification Details / Purpose BIS Bureau of Indian Standards ensures compliance with Indian safety and performance norms. (bpee.com ) CE Conformit Europ enne indicates compliance with EU safety, health, and environmental requirements. (sinewavebatteries.com ) ISO 9001 / 14001 Quality management (9001) and environmental management (14001) standards. (inrdeals.com ) OHSAS 18001 / ISO 27001 Occupational health & safety management (OHSAS) and information security management (27001). (sinewavebatteries.com ) RoHS Restriction of Hazardous Substances ensures the UPS is environmentally friendly with restricted toxic elements. (inrdeals.com ) Safety Features Compliance Meets global standards for overload, shortcircuit, surge, and deepdischarge protection. (shop.clarioncomputers.in ) Dimension (L*W*H) : Specification Value Width (W) ~19.2 cm (~192 mm) Height (H) ~39.9 cm (~399 mm) Depth (D) ~46.9 cm (~469 mm) Form Factor Tower UPS Net Weight ~26.7 kg (approx.) Millimeter (mm) Display Type : Multifunction LCD panel Features : Core Features True Online Double Conversion Technology Provides continuous clean power with zero transfer time from mains to battery. Ideal for sensitive electronics like servers, PCs and networking gear. Uses advanced digital control and PWM technology for stable power delivery. Built In Battery Backup Comes with 8 12 V 7 Ah internal sealed lead acid batteries for compact all in one backup. Integrated battery management with deep discharge protection and regulated charging helps prolong battery life. Advanced Monitoring & Control LCD display shows real time information like input/output voltages, frequency, battery level, load %, operation mode, and fault indications. Visual + audible alarms for status changes and protection events. Comprehensive Protection Suite Overload protection: Automatically protects the UPS and connected devices. Short circuit protection: Prevents damage from electrical faults. Surge and spike suppression: Protects against transient voltage spikes. Automatic Voltage Regulation (AVR): Stabilises under /over voltage without switching to battery whenever possible. Wide Input Compatibility Supports wide input voltage range ( 100 300 V AC), helping it handle brownouts and voltage fluctuations without switching to battery prematurely. Works with standby generators and other backup sources. Clean & Stable Output Pure sine wave output ensures safe operation of critical loads and sensitive equipment. High power factor output ( 0.8) and low harmonic distortion help maximise usable capacity. Reliability & Efficiency High dual conversion efficiency ( 94 %) and up to ~99 % in ECO mode for energy savings. Designed with IGBT based inverter/rectifier for robust performance. Other Useful Features Cold start / auto start capability can be started even without mains supply. Static bypass and manual bypass for maintenance or fault scenarios. Compatible with generator and solar assisted systems. Typical Use Cases This UPS is suited for: Home and small office servers & workstations Networking equipment (routers, switches) Security systems (CCTV cameras/DVR/NVR) Critical workstations, POS systems, and telecom gear Any sensitive load requiring uninterrupted pure sine wave power Cable Type : This cable plugs into a grounded three pin socket (1P+N+PE). Operating Temperature : ~0 45 C Celsius (oC)
