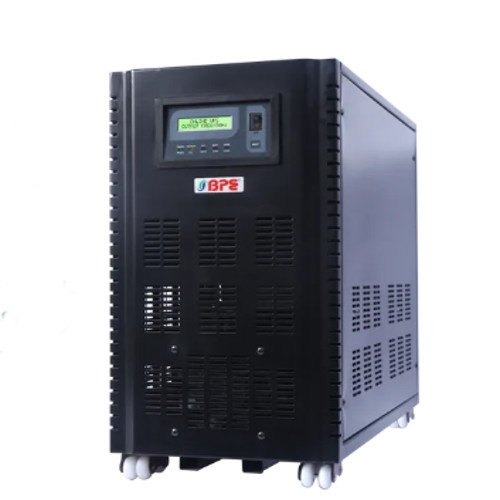

BPE (PB1106B16) 6KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer

97173.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 6 kVA
Product Type BPE (PB1106B16) 6KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer
Standard Safety Standard IEC 62040-1 General safety requirements for UPS systems
Frequency (MHz) 50Hz Hertz (HZ)
Protection Overload, Short Circuit, Battery Low, Over Voltage, Surge
Usage BACKUP
Size Parameter Details Width (W) 250 mm Depth (D) 500 mm Height (H) 650 mm Weight ~65 kg
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (PB1106B16) 6KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer Price And Quantity

Minimum Order Quantity 1 Unit
Price 97173.0 INR/Unit

BPE (PB1106B16) 6KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer Product Specifications

Frequency (MHz) 50Hz Hertz (HZ)
Frequency 50Hz Hertz (HZ)
Usage & Applications POWER SUPPLY
Display Type LCD Display
Color BLACK
Features True Online Double Conversion (VFI)
Weight 85 kg Kilograms (kg)
Material STEEL
Product Type BPE (PB1106B16) 6KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer
Size Parameter Details Width (W) 250 mm Depth (D) 500 mm Height (H) 650 mm Weight ~65 kg
Warranty 1 YEAR
Cable Type Copper, 3 Core (Phase + Neutral + Earth) 6 sq.mm
Usage BACKUP
Phase 1 PHASE
Rated Voltage 220V / 230V / 240V AC (Single Phase) Volt (V)
Rated Current 26 Amps Ampere (amp)
Protection Overload, Short Circuit, Battery Low, Over Voltage, Surge
Standard Safety Standard IEC 62040-1 General safety requirements for UPS systems
Dimension (L*W*H) Parameter Details Width (W) 250 mm Depth (D) 500 mm Height (H) 650 mm Weight ~65 kg Millimeter (mm)
Operating Temperature 0 C to 40 C Celsius (oC)
Power Rating 6 kVA

BPE (PB1106B16) 6KVA ONLINE UPS INBUILT BATTERIES WITH Isolation Transfarmer Trade Information

Delivery Time 7 Days

Product Description

Product Description BPE PB1106B16 (6KVA Online UPS)

The BPE PB1106B16 6KVA Online UPS is a high-performance double-conversion online UPS system designed to provide uninterrupted, clean, and stable power for critical applications such as IT infrastructure, medical equipment, industrial machines, and networking systems.

This model is engineered with advanced power conditioning, ensuring zero transfer time and complete protection against voltage fluctuations, spikes, surges, and electrical noise.

Specification Table BPE PB1106B16 (6KVA Online UPS)

Specification	Details
Model	BPE PB1106B16
Capacity	6 kVA / 4.8 kW
UPS Type	Online Double Conversion
Phase	Single Phase Input / Single Phase Output
Input Voltage Range	110V 300V AC
Input Frequency	40Hz 70Hz
Output Voltage	220V / 230V / 240V AC 1%
Output Frequency	50Hz 0.5%
Waveform	Pure Sine Wave
Transfer Time	0 ms (No Break)
Efficiency	Up to 9093%
Power Factor	0.8 (standard)
Battery Type	SMF VRLA (Sealed Maintenance Free)
Battery Configuration	16 12V (Inbuilt)
Charging Time	45 Hours (90% charge)
Backup Time	1560 Minutes (depending on load)
Display	LCD Display
Communication Ports	RS-232 / USB / SNMP (Optional)
Bypass	Static & Maintenance Bypass
Protection	Overload, Short Circuit, Battery Low, Over Voltage, Surge
Cooling	Forced Air Cooling (Fans)
Noise Level	< 55 dB
Operating Temperature	0C to 40C
Humidity	095% (Non-condensing)
Isolation Transformer	Optional / External (Not standard in B16)
Application	IT, Medical, Industrial, Networking

Note

PB1106B16 = Inbuilt battery model (compact, shorter backup)
For inbuilt isolation transformer, typically choose PB1106L16 variant
