Luminous

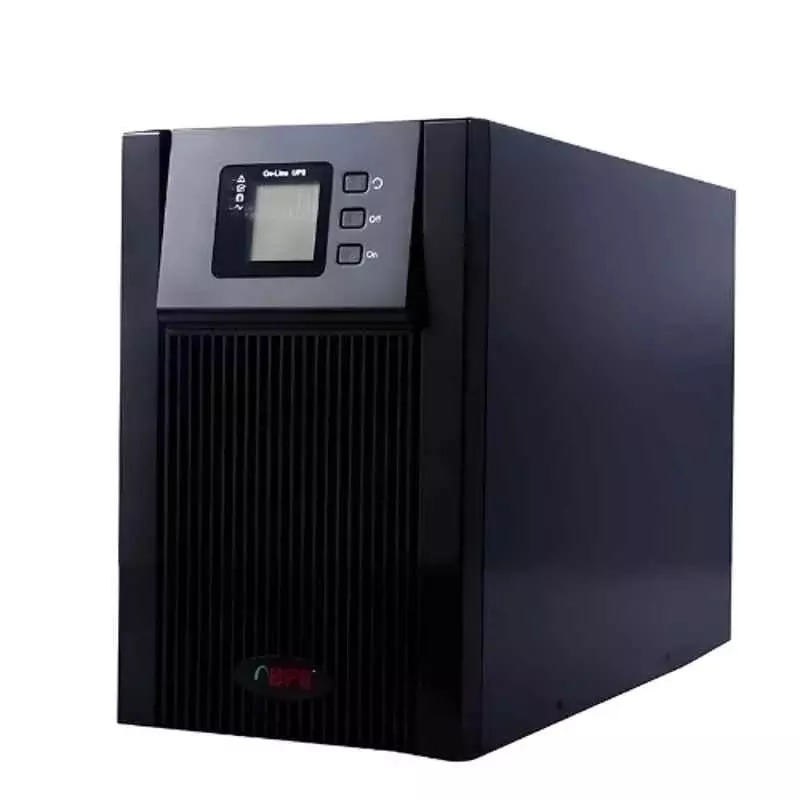

BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY

11500.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY
Power Rating 1 kVA (1000 VA)
Standard IEC/EN62040 compliant
Frequency (MHz) 50 / 60 Hz Hertz (HZ)
Protection Overload, short circuit, battery low, over-temperature
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 11500.0 INR/Unit

BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Product Specifications

Cable Type Cable Type (Typical for this UPS) Parameter Specification Cable Type Copper flexible cable Cable Size 1.5 sq.mm Core 3 Core (Phase + Neutral + Earth) Insulation PVC insulated Connection Input/Output power cabl
Weight 11 kg Kilograms (kg)
Display Type LCD / LED status indicators
Power Rating 1 kVA (1000 VA)
Frequency (MHz) 50 / 60 Hz Hertz (HZ)
Frequency 50 / 60 Hz Hertz (HZ)
Product Type BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY
Standard IEC/EN62040 compliant
Usage BACKUP
Usage & Applications POWER SUPPLY
Protection Overload, short circuit, battery low, over-temperature
Warranty 1 YEAR
Features Features BPE MF1101L3 1KVA Online UPS Feature Description True Online Double Conversion Provides continuous power without interruption and protects equipment from voltage fluctuations. DSP Digital Control Uses advanced Digital Signal Processor (DSP) technology for stable and reliable operation. Pure Sine Wave Output Delivers clean and stable sine-wave power suitable for sensitive electronics. High Input Power Factor Input power factor 0.99, reducing power loss and improving efficiency. IGBT-Based Rectifier & Inverter Ensures efficient power conversion and reliable UPS performance. Wide Input Voltage Range Operates within 110V 300V AC, suitable for areas with unstable power supply. Cold Start Function UPS can start directly on battery power without mains supply. Static Bypass Protection Automatically transfers load to bypass during overload or UPS fault. High Efficiency Up to 94% efficiency in online mode and higher in ECO mode. Advanced Battery Management Optimizes battery charging and extends battery life. Multiple Communication Ports Supports RS-232, USB, and optional SNMP for monitoring and management. Generator & Solar Compatible Can operate with generator or solar backup systems. LCD / LED Display Shows UPS status such as load level, battery mode, faults, and input/output conditions. These features make the BPE MF1101L3 1KVA Online UPS suitable for computers, servers, networking equipment, medical devices, and CCTV systems where uninterrupted and stable power is required. If you want, I can also prepare a complete datasheet format including: Input specifications Output specifications Battery specifications Environmental specifications. Get smarter responses, upload files and images, and more. Log in Sign up for free
Rated Current 4.35A Ampere (amp)
Rated Voltage 110V 300V AC Volt (V)
Material STEEL
Operating Temperature 0 C 40 C Celsius (oC)
Phase 1 PHASE
Color BLACK
Size STANDARD
Dimension (L*W*H) Parameter Value Width 144 mm Depth 400 mm Height 215 mm Dimensions (L W H) 14.4 40 21.5 cm Millimeter (mm)

BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

BPE MF1101L3 1KVA Online UPS Description

The BPE MF1101L3 1KVA Online UPS (External Battery Model) is a true online double-conversion UPS designed to provide continuous and clean power for sensitive equipment such as computers, servers, medical devices, networking equipment, and CCTV systems. It converts incoming AC power to DC and then back to AC, ensuring zero transfer time and pure sine-wave output, which protects connected devices from voltage fluctuations and power interruptions.
Here is the Specification Table for the BPE MF1101L3 1KVA Online UPS External Battery Model.

Specification	Details
Model	MF1101L3
UPS Type	Online Double Conversion UPS
Capacity	1 kVA / 1000 VA
Output Power	0.8 kW
Input Phase	Single Phase
Output Phase	Single Phase
Nominal Input Voltage	220V / 230V / 240V AC
Input Voltage Range	110V 300V AC
Input Frequency	50 / 60 Hz 10% (Auto sensing)
Input Power Factor	>0.99
Output Voltage	220V / 230V / 240V AC 1%
Output Frequency	50 / 60 Hz 0.1 Hz (Battery Mode)
Output Waveform	Pure Sine Wave
Output Voltage Distortion	2%
Crest Factor	3:1
Efficiency	Up to 94% (Online Mode), 99% (ECO Mode)
Battery Type	External Batteries
Battery Configuration	3 12V batteries (36V DC)
Charging Current	Up to 6.5 A configurable
Recharge Time	45 hours (90% capacity)
Transfer Time	0 ms (True Online UPS)
Communication	RS232 / SNMP (optional)
Operating Temperature	0C 40C
Storage Temperature	-25C 55C
Humidity	0 95% non-condensing
Noise Level	<45 dB
Protection	Overload, short circuit, battery low, over-temperature
Display	LCD / LED status indicators
Efficiency Standards	IEC/EN62040 compliant
Battery Support	External battery rack supported

WARRANTY :- 1 YEAR
Key Point:
This model supports 3 external 12V batteries (36V DC bus), allowing flexible backup time depending on battery capacity (e.g., 26Ah, 42Ah, 65Ah, 100Ah).
